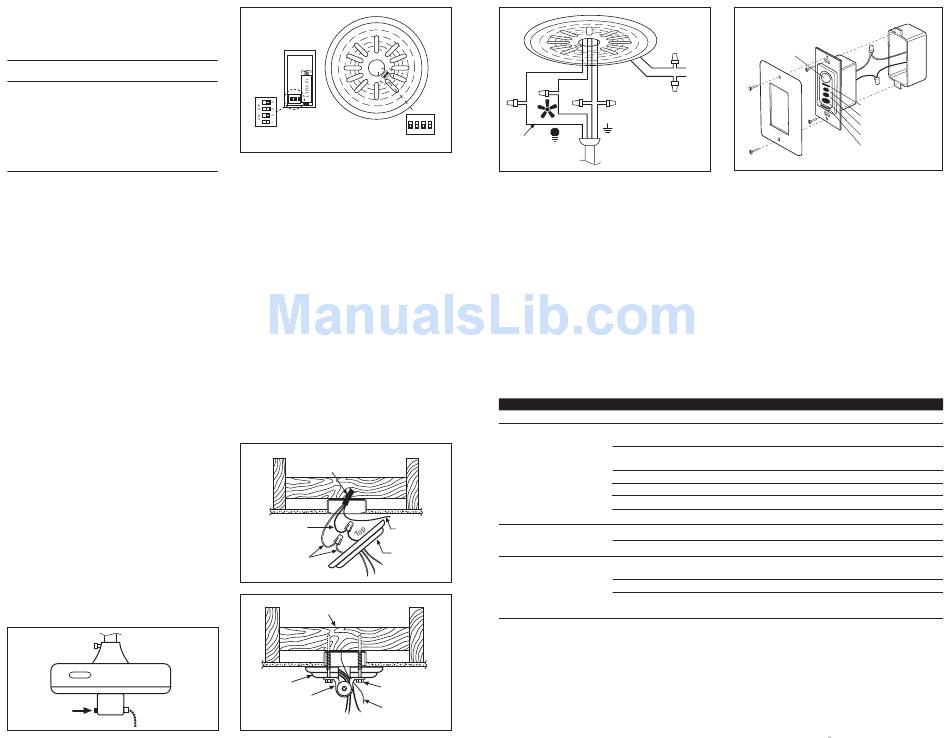

Original
®
Remote Fan & Light Control
Model 27189
Ratings:
120 VAC, 60 Hz, 2.0 Amp Fan
Receiver Weight 16 oz.
300 Watt incandescent light
Read and Save these Instructions
Caution: Risk of Electrical Shock!
All wiring must be performed in accordance with national and
local electrical codes. If you are unfamiliar with the wiring
codes, you should use a qualified electrician.
To avoid overheating and possible damage to other equip-
ment, do not install to control a receptacle, fluorescent light
fixture, motor operated appliance, or transformer-supplied
appliance. Use only to control one paddle-blade ceiling fan
and incandescent light fixture.
Notes:
1. This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
2. This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accor-
dance with the instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
3. For use only with electrically reversible ceiling fans rated at 2.0 amps or
less, and fan incandescent light kits rated at 300 watts or less.
4. Not for use with shaded-pole or non-reversible motors.
5. Medium and Low fan speeds are determined by the Original
®
and thus may vary from the factory settings due to normal motor variations.
Before Installing the Original
®
Control:
1. Confirm that your Hunter Original
®
ceiling fan is electrically reversible.
Look for a reversing switch on the switch housing below the motor. Refer
to Figure 1.
2. Use the pull-chain switch to set the fan speed to the HIGH position
before installation. Do not use the pull-chain to change the fan speed
after installation, as damage to your ceiling fan or control may result. The
speed of the fan should only be changed by the Original
®
control.
3. Set the ceiling fan light kit to the ON position before installation. The
light level should only be changed by the Original
®
control.
Receiver Installation:
1. Disconnect power to the ceiling fan and light kit at the main electric
panel. Remove fuse or move circuit breaker to the OFF position.
2. IMPORTANT! Before installing this control, change the factory default
dip switch settings to your own unique code. Refer to Figure 2. Be sure the
dip switch positions of the transmitter and receiver match, or the ceiling
fan will not function.
Select different combinations of dip switches to prevent mis-operation due
Figure 1
Confirm
Reverse
Switch
Figure 2
Dip Switch
Transmitter Back
Receiver
Select your own unique code, being sure settings match in the
transmitter and receiver.
to other remote control fans, garage door openers, etc.
3. This Original
®
remote control mounts between the ceiling and fan
hanger bracket. Therefore, if the fan is already installed, it will need to be
taken down.
4. Wire the power leads coming from the ceiling outlet box. Connect the
main wires from the top of the control – white to white, and black to
black. See Figure 3. Push the wires up into the outlet box and arrange the
wire connectors to point upward. Separate the wires so that the black
wires are on one side of the box and the white wires are on the other.
5. Bring the control up to the ceiling. Feed the bare copper ground wire
down through the center hole of the control. Use the lag screws (includ-
ed) to hold the control and and the fan mounting bracket in place. See
Figure 4.
6. Mount the fan to the fan hanger. Connect the white wire from the con-
trol to the fan white wire and the black wire to the black. Connect the
bare copper wire to the green ground wire from the fan. Connect the red
wire from the control to the fan through-wire that goes directly to the
light kit. See Figure 5. Push the connections up through the center hole
into the ceiling outlet box.
7. Complete the installation of the fan by following the instructions sup-
plied with the fan.
8. Restore power at main electrical panel.
Wall Control Installation:
1. Remove rocker style wallplate (not included) to expose the wall wiring.
Disconnect the existing switch and remove from the electrical box.
control
2. If 4 wires are visible, connect each black wire to an Original
black black wire. If 2 wires are visible, connect each to an Original
Figure 3
Electric Cable
Black
White
Figure 4
Wooden Building
Structure
Control
Original
Fan
®
Bracket
Mount Directly to Structure
Figure 5
Red
Black
Common
ON
DIP
1
2
3
4
Dip Switch
Through-Lead
for Light Kit
control lead. Use 2 of the large wire nuts supplied to make the connec-
tions. Refer to Figure 4.
3. If a ground wire is provided in your electrical box, attach it to the
ground screw near the bottom of the mounting plate.
4. Gently push wires and wall control into the electrical box. Attach the
Original
®
control to the switch box with the two screws provided.
5. Verify that the master switch is in the OFF Position. Press inward on
each side of the wall control to remove face cover. Set the dip switches to
match the dip switches in the receiver. Install a 12 volt battery (A23,
MN21, or equivalent). Replace the face cover.
Operation:
1. Slide the master switch to the ON position. After a 1.5 second delay, the
light will turn ON at maximum brightness.
2. Light Operation:
• Press and quickly release the light button on the wall mounted control
to turn the light OFF or ON. (Light will come ON at maximum brightness.)
• Press and hold the light button for more than 1 second to turn the light
ON and decrease from maximum brightness to OFF.
• Release the light button when the desired light level is reached.
Troubleshooting
Symptom
®
control
1. No functions operate.
®
Bare Copper
2. Operates only at close range.
Ground Wire
Control
3. Inconsistent operation.
The Hunter Fan Company makes the following limited warranty to the original purchaser of the Original
in material and workmanship for a period of one year from the date of sale. If the Control malfunctions or fails within the warranty period due to a defect in material or
workmanship we will replace it free of charge. IF THE ORIGINAL PURCHASER CEASES TO OWN THE CONTROL, THIS WARRANTY AND ANY IMPLIED WARRANTY, INCLUDING
BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE VOIDED. THIS WARRANTY IS IN LIEU OF ALL
OTHER EXPRESS WARRANTIES. THE DURATION OF ANY IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, IN RESPECT TO ANY CONTROL, IS EXPRESSLY LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE FOR
Use Long Lag
SUCH CONTROL. This warranty excludes malfunctions or failures which were caused by repairs by persons not authorized by us, mishandling, improper installation, modifica-
Screws Supplied
tions, or damage to the Control while in your possession, or unreasonable use. This warranty does not apply to batteries or to deterioration or damage to the product caused by
with Control
the use of faulty batteries. To obtain a replacement, return your Control postage prepaid along with proof of purchase to Hunter Fan Company Service Department at 2500 Frisco
Bare Copper
Avenue, Memphis, Tennessee 38114. IN NO EVENT SHALL HUNTER FAN COMPANY BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES. SOME STATES DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE
Wire
LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
FROM STATE TO STATE.
Figure 6
Receiver
Black/
Hot
AC
Power
Bare Ground
In
White/
Copper from
White
Neutra
l
Outlet Box
Green
Fan
Wiring Diagram
• Continue to hold the light button to repeat the cycle. (Maximum–light
level decrease–OFF)
• While the light is ON, holding the light button will decrease the light
brightness.
• Turning the light OFF resets the dimming function. The next press of the
light button will start at maximum brightness.
3. Fan Operation:
• Press the High, Medium, or Low speed buttons to turn the ceiling fan
ON at the desired speed.
• Press the fan OFF key to turn the ceiling fan OFF.
For best fan operation: Allow the ceiling fan motor to start on High, then
select the desired speed.
4. Manual Light Switch Operation:
To turn the lights ON without battery power to the wall control turn OFF
the wall switch for 5 seconds, then turn the master switch back ON. The
light will turn ON at maximum brightness, and the fan will be OFF.
5. For everyday operation, leave the master switch ON. However, if the
control will not be used for an extended period of time (5 days or more),
turn the master switch OFF.
For more information on Hunter Fan products, visit our website: www.hunterfan.com
Possible Causes
Main Power not restored.
Fan pull chain not set to High.
Light pull chain not set to ON.
Receiver wiring incorrect.
Transmitter and receiver dip switches do not match.
Battery too weak.
Cable or power lines in ceiling run over fan.
Battery too weak.
Signal partially blocked from reaching receiver.
RF interference.
Continuing RF interference.
HUNTER FAN COMPANY ORIGINAL
®
CONTROL LIMITED WARRANTY
Light Button
Fan OFF
Fan Low Speed
Fan Medium Speed
Fan High Speed
Master ON/OFF
Solution
Replace fuse. Turn ON circuit breaker. Turn ON wall
switch.
Turn OFF power at wall switch or main electric panel.
Set fan to High speed.
Set light kit to ON.
Verify wiring connections.
Set transmitter and receiver to same dip switch setting.
Replace with new, alkaline battery.
Re-orient any cables or wires.
Replace with new, alkaline battery.
Extend antenna into ceiling box, or move it for better
reception.
Turn OFF wall switch for 5 seconds, then turn back ON.
Change dip switch settings to a different code in both
Transmitter and Receiver.
®
Control ("Control"): Your Control is warranted to be free from defects
1999, Hunter Fan Company Form 41443 (12/99)
