Tascam CD-RW901 Technical Documentation

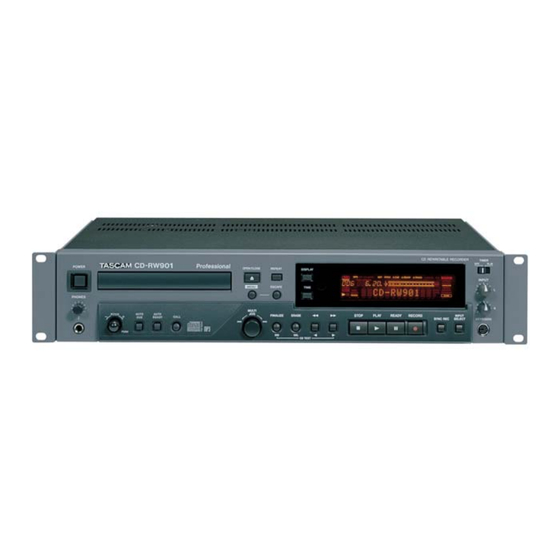

PRODUCT OVERVIEW
Starting with the features of the
CD-RW900 the CD-RW901 adds
XLR balanced I/O, a wired remote
and features AES/EBU digital I/O,
RS-232, and a timed track
increment (selectable from 1 to 10
minutes) for adding CD track ID
markers during recording.
The CD-RW901 provides dedicated input level controls and the digital inputs are equipped with automatic
sample rate conversion for compatibility with nearly any signal. Pitch Control (16% +/-) on playback is a
standard feature along with Key Control, MP3 Audio Playback, and Power-on-Play. The front panel PS/2
keyboard input offers the ability to name tracks and provide the user one-key access to frequently accessed
menu functions.
2U rack-mount CD Recorder
XLR balanced and RCA unbalanced analog
I/O with dedicated input controls
AES/EBU and S/PDIF digital I/O
Included wired remote control
RS-232C serial control port and Parallel
control port
Timed track increment feature can
automatically add a CD track ID every 1 to
10 minutes
±16% pitch control in 0.1% steps (CD
audio discs only)
MP3 Audio Playback
Power on play
TASCAM 7733 Telegraph Road Montebello, CA 90640 (323) 726-0303
All features and specifications are subject to change without notice. Contact your local TASCAM representative for the latest information.
CD-RW901
Technical Documentation
CD Text and MP3 ID3 tag display
Key Control (CD audio discs only): Change the
pitch without changing the playback speed.
Dedicated analog input level controls
Fade in/fade out recording features
PS/2 keyboard input
Auto track increment by level with trim function
Automatic sample rate converter (to 44.1kHz,
defeatable)
Un-finalize for CD-RW
All, single, program, random play and repeat play
modes
http://www.tascamcontractor.com
RS-232
MSRP $1,125.00
1
TASCAM CD-RW901
