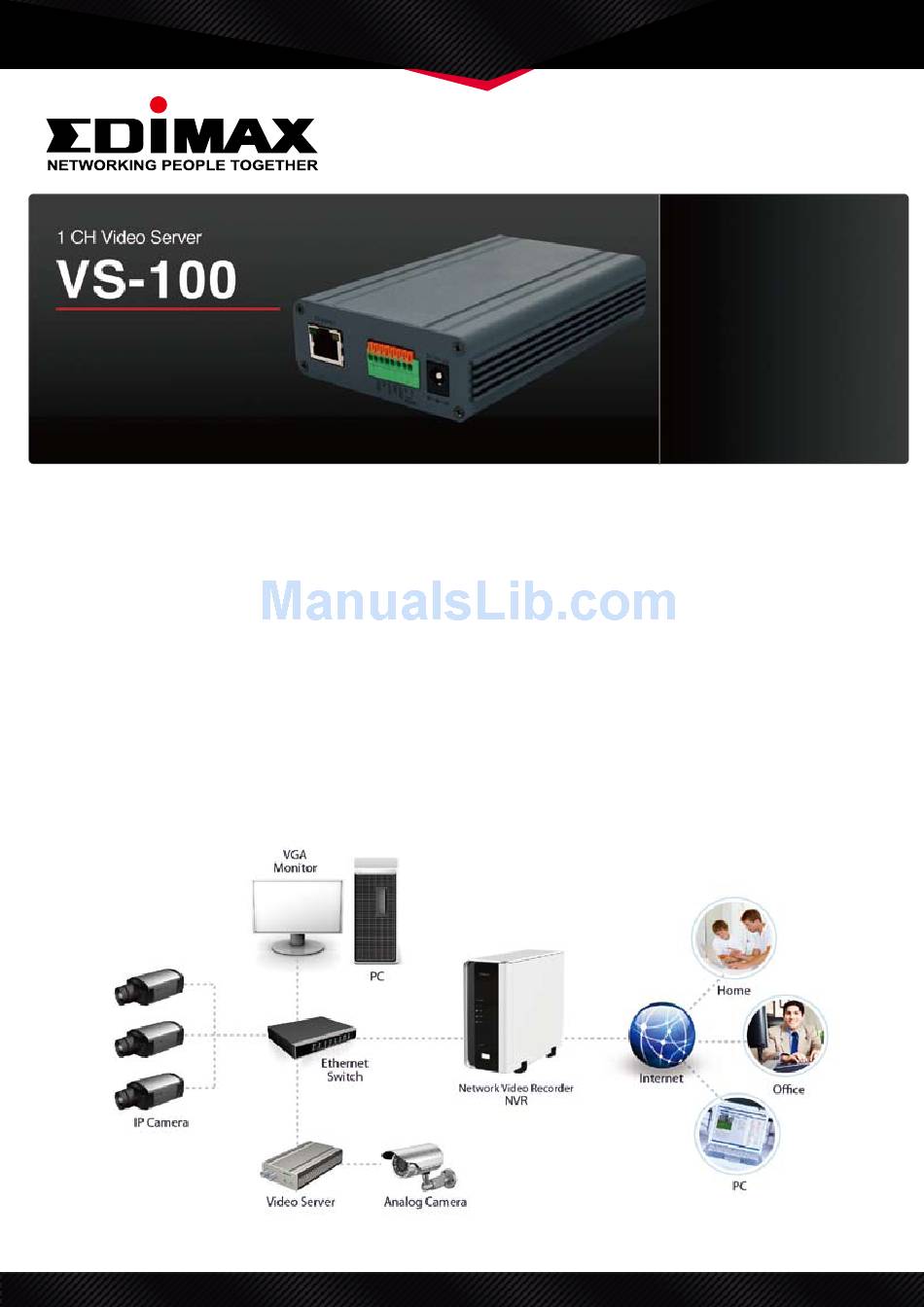

Edimax VS-100 Brochure & Specs

ONVIF CompliantH.264/ MPEG4/
MJPEG multiple stream 30fps at D1
Two-way Audio

Product Overview

The VS-100 video server helps customers to make use of their existing analog CCTV cameras to
upgrade to a network video surveillance system, so their intial investment will not be wasted. VS-100 video
server accommodates one analog video channel, image digitizer, images compressor and web sever with
network interface. VS-100 video server combines your analog CCTV system with a network video system,
thereby acquiring all the functionality and benefits that digital technology offers – remote accessibility, flexibility
& scalability and super image quality.
The VS-100 video server allows users to remotely monitor and control analogue cameras over TCP/IP
network, highly efficient compression and superior resolution of recording bring users clear & crisper images
and provides simple network configuration to transmit real-time video for security surveillance.
Total Network Surveillance Solution
The IP Security Solutions
EDIMAX Technology co., Ltd.
uONVIF Compliant
uH.264/ MPEG4/ MJPEG multi-profile
streaming
u30fps at D1
uTwo-way Audio
uOption: DC 12V/AC 24V or Power over
Ethernet (PoE) IEEE 802.3af.
uBuilt-in SD/SHDC memory card slot
for local storage
u3GPP Mobile Surveillance supported
uSupport RS-485 communication
