American DJ Illusion 250 User Instruction

American DJ
User Instructions
12/04
®
American DJ
®
4295 Charter Street
Los Angeles CA. 90058
www.americandj.com

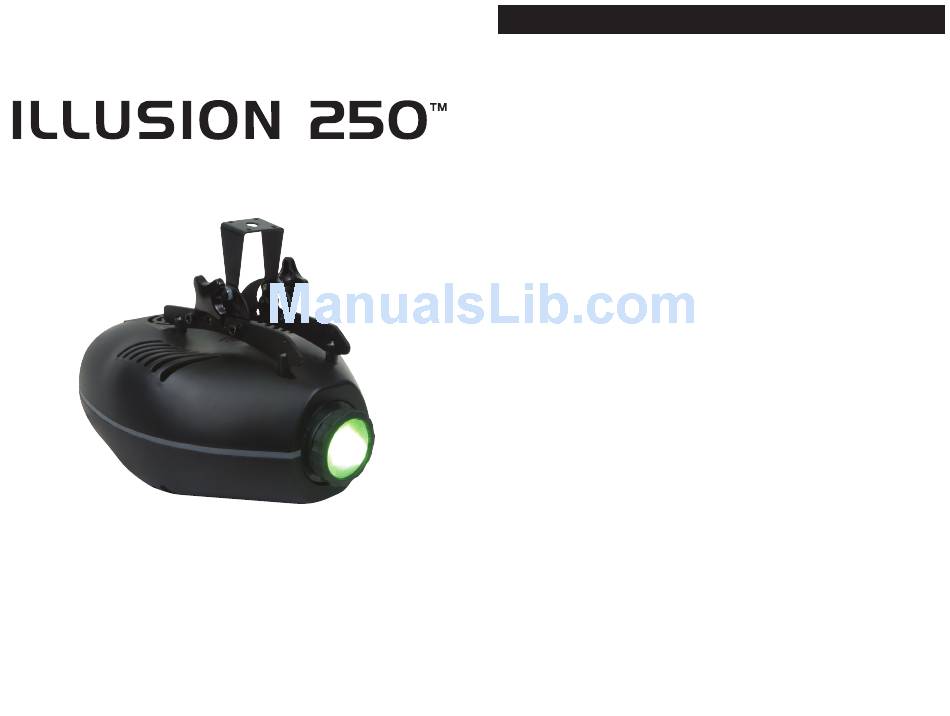

Illusion 250™
Unpacking:
Thank you for purchasing the Illusion 250™ by American
DJ . Every Illusion 250™ has been thoroughly tested and has been
®
shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all equipment necessary to operate the unit has
arrived intact. In the event damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Please do not return this unit to your dealer without con-
tacting customer support first.
Introduction:
The Illusion 250™ is a four channel, intelligent DMX
fixture, that creates a bright, and awesome kaleidoscope effect, using
multiple gobos and colors. The fixture can operate in three different
operating modes; stand alone, sound-active, or in a Master/Slave con-
figuration. The Illusion 250™ comes with several built in programs and
is best used in multiples of four. When used as a stand alone unit or
when used in multiples linked in a master/slave configuration. For best
results use fog or special effects smoke to enhance the beams projec-
tions.
During the initial start-up or use of this product a light smoke or
smell may arise from the unit. This is a normal process and is
cause by the heat associated with the lamp.
Customer Support:
American DJ
support line, to provide help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 9:00 a.m. to 5:
00 p.m. Pacific Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2610
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Warning!
This may cause severe eye damage. Avoid looking directly
into the light source at all times!
American DJ - www.americandj.com - Illusion 250™ Instruction Manual Page 2
®
