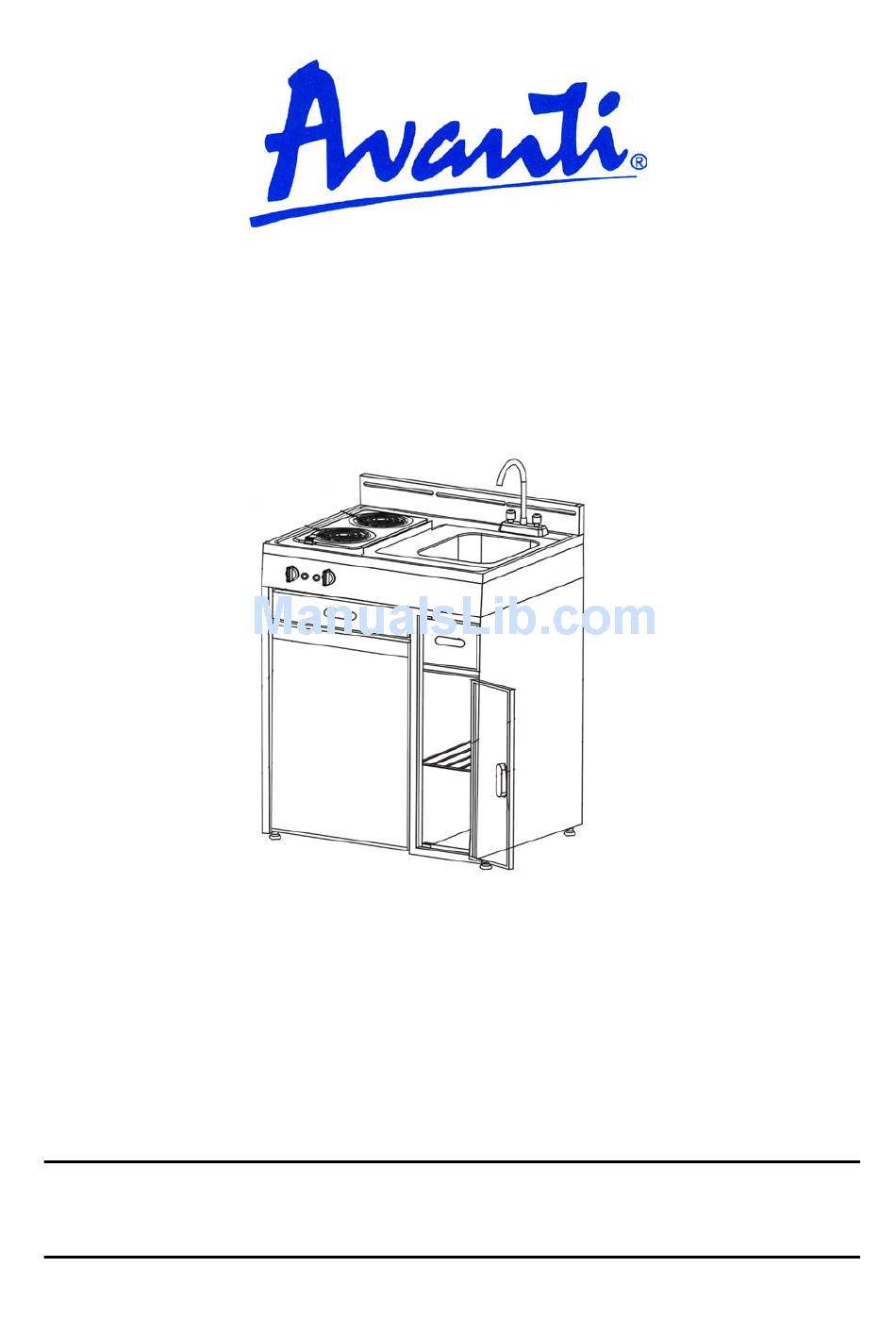

INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
CK3016
Model Number / No. de Modelo:
COMPACT KITCHEN WITH REFRIGERATOR
MINI COCINA INTEGRADA CON REFRIGERADOR
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS AND SAVE FOR LOCAL ELECTRICAL INSPECTOR.
La sección en español empieza en la página 17
Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.
La política de Avanti es la de continuar mejorando sus productos y se reserva el derecho de cambiar los materiales y
especificaciones sin notificación alguna.
Avanti Products LLC
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com
Advertisement
Table of Contents
Related Manuals for Avanti CK3016
Summary of Contents for Avanti CK3016
-
Page 1: Manual De Instrucciones
Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice. La política de Avanti es la de continuar mejorando sus productos y se reserva el derecho de cambiar los materiales y especificaciones sin notificación alguna. -
Page 2: Table Of Contents
Cleaning Your Compact Kitchen Cleaning the Burners and Reflector Bowls Power Failure Vacation Time Moving Your Compact Kitchen Troubleshooting (General) Service for Your Compact Kitchen Your Avanti Products Warranty Instrucciones en Español 17 – 22 Registration Information and Registration Card... -
Page 3: Help Us Help You
Please write these numbers here: If you don't understand something or you need more assistance, please call: ____________________________________ Date of Purchase Avanti Customer Service 800-220-5570 ____________________________________ Model Number Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period. -
Page 4: Parts And Features
PARTS AND FEATURES BACKSPLASH REAR BURNER (500 WATTS) FRONT BURNER (900 WATTS) COOK-TOP REAR BURNER POWER SWITCH / KNOB REAR BURNER INDICATOR FRONT BURNER INDICATOR FRONT BURNER POWER SWITCH / KNOB REFRIGERATOR 10. WATER FAUCET 11. SINK 12. DRAWER – LARGE 13. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, or injury when using your Compact Kitchen, WARNING follow these basic precautions: • Read all instructions before using the Compact Kitchen. • DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation are not problems of the past. -
Page 6: Electrical Installation Instructions
NOTICE: DAMAGES TO YOUR APPLIANCE CAUSED BY THE USE OF IMPROPER COOKWARE IS CONSIDERED AS NON-COMPLIANCE WITH THE WRITTEN INSTRUCTION AS PROVIDED IN THIS MANUAL AND VOID ANY WARRANTY THAT MAY BE IN EFFECT. (See section: Your Avanti Products Warranty). -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Before Using Your Compact kitchen • Remove the exterior and interior packing. • Check to be sure you have all of the following parts: Kitchen Section Refrigerator Section • 1 Wire Shelf • 2 wire shelves • Strainer •... -
Page 8: Electrical Connection
Electrical Connection WARNING Improper connection of the equipment-grounding can result in the risk of electrical shock. If the power cord of the range or refrigerator is damaged, have it replaced by an authorized Avanti Products service center. • The appliance must be installed and grounded by a qualified technician in accordance with the National Electrical Code ANSI/NFPA No. -
Page 9: Power Supply Connections
WARNING The electrical installation shown below must be performed by a qualified and licensed electrician, following all of the electrical codes and ordinances required by the State. Power Supply Connections • Prepare the wiring in accordance to the National Electrical Code and/or local codes and ordinances by a qualified electrician. -
Page 10: Water Faucet Installation And Water Line Connection
Water Faucet Installation And Water Line Connection Connection to the water supply must be performed by a professional licensed plumber and comply with all Local Codes and Ordinances. WARNING IMPROPER WATER LINE CONNECTION MAY RESULT IN FLOODING YOU MUST USE A LICENSED PLUMBER REVIEW STATE AND LOCAL PLUMBING CODES BEFORE INSTALLATION Figure No. -
Page 11: Installation Of Your Refrigerator
Figure No. 6 Photo may vary Installation Of Side Tray NOTE: Side tray is not a standard supplied part. If you need it, please contact Avanti Service Center to buy it using the form provided. Figure No. 7 Photo may vary... -
Page 12: Operating Your Compact Kitchen
OPERATING YOUR COMPACT KITCHEN Directions For Use Of Electrical Connection The appliance is equipped with a junction box located under the countertop with two outlets. One outlet for burners and one outlet for refrigerator (see Figure No. 8). Once the unit is installed by a qualified electrician make sure that both, the burners and the refrigerator are properly connected to the box. -
Page 13: Care And Maintenance
CARE AND MAINTENANCE – COMPACT KITCHEN Cleaning Your Compact Kitchen • Disconnect the A/C from the main power box or designated circuit breaker, turn off the Compact Kitchen, make sure all surface units are off and cool before removing anything, then remove all items including shelves and rack. -
Page 14: Moving Your Compact Kitchen
Moving Your Compact kitchen • Have a qualified electrician to disconnect the power supply and shut off the water supply. • Use a qualified plumber to disconnect the water supply connections and water drain connection. • Remove all items from the storage compartment. •... -
Page 15: Service For Your Compact Kitchen
We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti Products appliances. With the purchase of your Avanti Products appliance, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. -
Page 16: Your Avanti Products Warranty
In rental or commercial use, the warranty period is 90 days. Avanti Products will provide you with a reasonably similar replacement product that is either new factory refurbished.All... - Page 17 CARACTERISTICAS 1. PANEL TRASERO 2. HORNILLA TRASERA DE 500 VATIOS 3. HORNILLA FRONTAL DE 900 VATIOS 4. GABINETE 5. CONTROL DE TEMP (DE LA HORNILLA TRASERA) 6. LUZ INDICADORA (DE LA HORNILLA TRASERA) 7. LUZ INDICADORA (DE LA HORNILLA FRONTAL) 8.
-
Page 18: Instrucciones En Español
INSTRUCCIONES EN ESPAÑOL PRECAUCIÓN Para reducir el riesgo de incendio, descarga eléctrica, o daño cuando use su electrodoméstico, siga las siguientes precauciones. • Lea todas las instrucciones antes de usar su electrodoméstico. • Peligro o Precaución: Existe el riesgo que los niños queden atrapados. •... - Page 19 UBICACION 1. Seleccione un lugar con un piso firme y nivelado. 2. Para un mejor desempeño, nivele el refrigerador utilizando las patas ajustables o tornillos niveladores. Para verificar el nivel, abra la puerta hasta la mitad, debe regresar sola. INSTRUCCIONES PARA LA CONECCION A TIERRA Este aparato electrodoméstico debe estar conectado a tierra.
- Page 20 PREPARANDO SU COCINA PARA UTILIZARLA POR PRIMERA VEZ Coloque el panel trasero utilizando los 3 tornillos incluidos (vea Figura 3). CONEXION DE LA FUENTE DE AGUA ADVERTENCIA La conexión de la fuente de agua debe ser realizada por un plomero profesional y licenciado.
- Page 21 CUIDADO Y MANTENIMIENTO INFORMACION GENERAL PRECAUCION: Desconecte la unidad del suministro eléctrico antes de limpiar o dar mantenimiento. • Es aconsejable limpiar la unidad cuando esta esté fría, especialmente cuando vaya a limpiar las partes esmaltadas. • Evite usar productos de limpieza que contengan una base de cloro o ácido.
- Page 22 IRREGULARIDADES CON EL FUNCIONAMIENTO DEL REFRIGERADOR PROBLEMA CAUSAS PROBABLES SOLUCION El refrigerador no funciona. Falta de energía. Verifique el fusible. Tomacorriente defectuoso. Substitúyalo o arréglelo. Control de temperaturas en la Girar el botón en la posición correcta. posición “ O ”. Conéctelo.
-
Page 23: Registration Information And Registration Card
