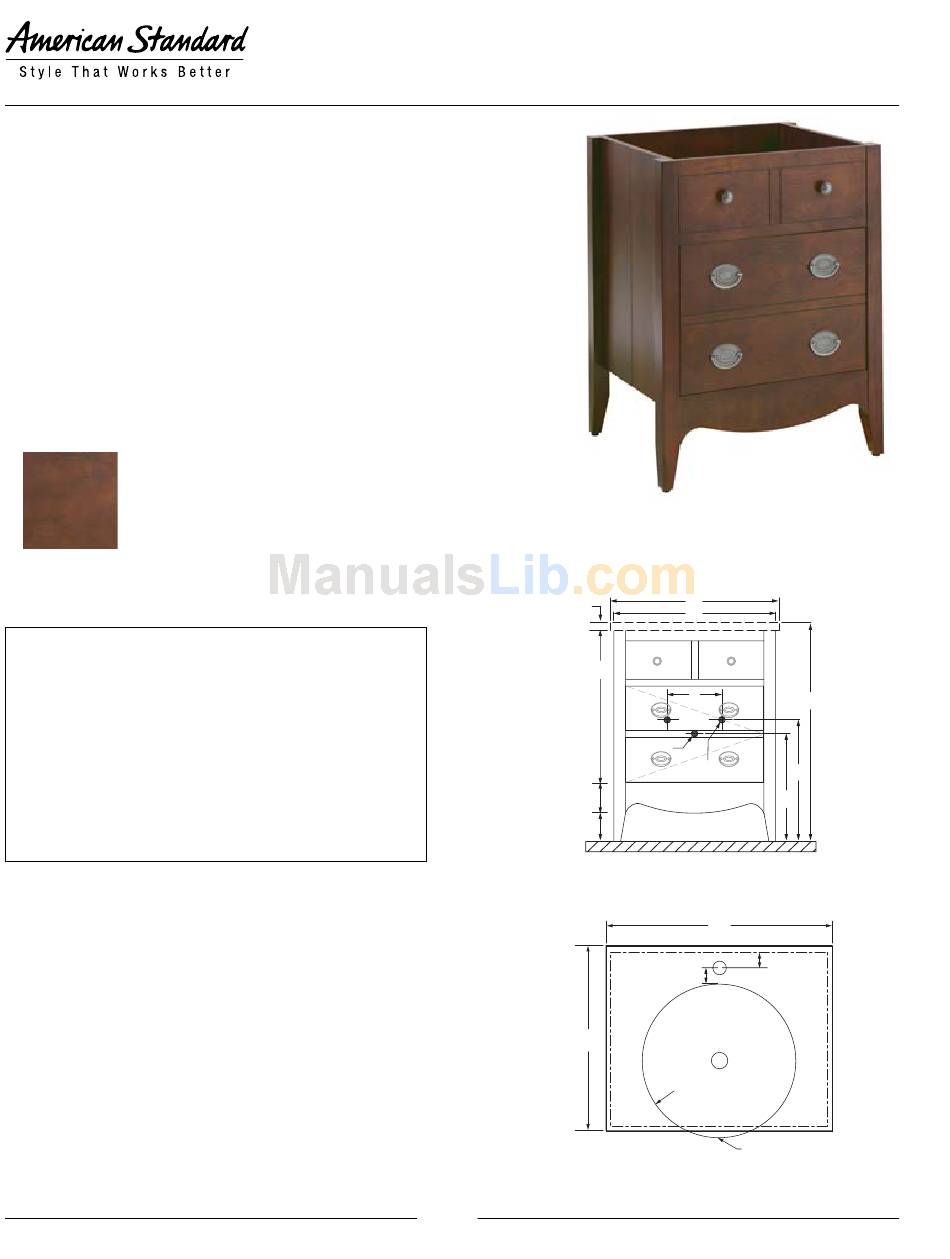

American Standard Jefferson Vanity 9630.024 Specification Sheet

FREEDOM OF CHOICE™ RTU COLLECTION
❏ 9630.024 Jefferson Vanity
• Classic traditional style vanity
• Birchwood construction and veneers
• Autumn Cherry finish
Nominal Dimensions:
24" x 20" x 31-1/4"
(610 x 508 x 794mm)
Autumn Cherry
To Be Specified (Required):
❏ 9477.025 Laminated marble top pre-drilled for
vessel and vessel faucet (specify color: White - 252,
Cream - 250, Black - 154)
with
❏ 0978.000 Tempered glass vessel sink (specify finish:
Clear - 200, Frosted - 321), 17" diameter, 6" height
or
❏ 0960.000 Vitreous china vessel sink, White-020,
16-7/8" diameter, 6-1/4" height
NOTES:
*
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P"
TRAP ARE SUGGESTED.
- FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
IMPORTANT: Dimensions of fixtures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No
responsibility is assumed for use of superseded or voided pages.
© 2008 AS America Inc.
FREEDOM OF CHOICE™ RTU COLLECTION
I12
JEFFERSON VANITY
9630.024 Jefferson 24" Vanity w/Door
25"
3/4"
(635mm)
24"
(19mm)
(609mm)
22-1/16"
(560mm)
8"
(203mm)
1-1/4" OD
WASTE
SUPPLIES
AS REQ'D
4-9/16"
(116mm)
9477.025 Optional Laminate Marble Top
4 1/4"
(108mm)
FINISHED FLOOR
9630.024
Jefferson Vanity
25"
(635mm)
1- 3/4"
(44mm)
20-1/2"
(520mm)
Ø17
3/4"
(19mm)
9477.025
Laminated Marble Top
WOOD
32"
(813mm)
18"
(457mm)
16"
(406mm)
1- 3/4" (44mm)
OVERHANG
Revised 2/08
