In-vehicle charger for 7.2 volt-18 volt battery packs (10 pages)
Summary of Contents for Ryobi P130
Page 1
7.2 volt-18 volt battery packs BATTERIES SOLD SEPARATELY Your battery charger has been engineered and manufactured to Ryobi’s high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
TABLE OF CONTENTS n Introduction ..................................2 n Safety Rules for Charger ..............................3 n Symbols................................... 4 n Features................................... 5 n Assembly ..................................6 n Operation..................................6-8 n Maintenance ..................................9 n Parts Ordering / Service ..............................10 INTRODUCTION This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate.
SAFETY RULES FOR CHARGER n Make sure cord is located so that it will not be WARNING! stepped on, tripped over, or otherwise subjected to damage or stress. Following this rule will reduce the READ AND UNDERSTAND ALL INSTRUCTIONS. risk of serious personal injury. Failure to follow all instructions listed below, may result in n To reduce the risk of electric shock, unplug charger electric shock, fire and/or serious personal injury.
SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

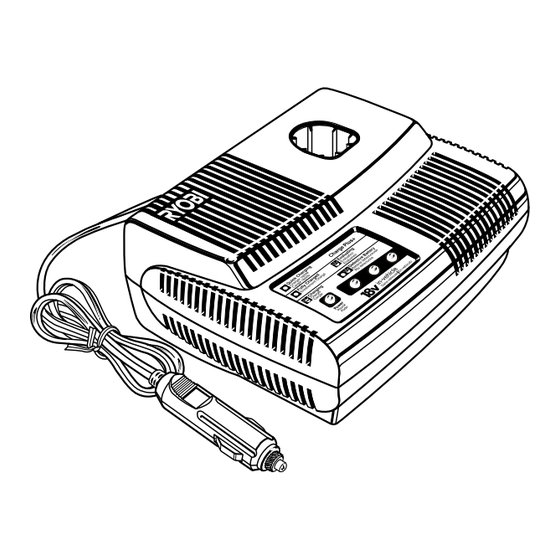

FEATURES PRODUCT SPECIFICATIONS Charger Voltage............................7.2 Volt - 18 Volt DC Charger Input ..............................12 V, DC only Charge Rate ..................................1 hour Cord Length ..................................3 ft. P130 UNIVERSAL SINGLE PORT BATTERY CAR CHARGER RECEPTACLE CORD DEEPLY DISCHARGED OR DEFECTIVE BATTERY...
You may use this charger for the following purposes: n Yellow LED flashing = This is a High and Low input voltage n Portable charging of Ryobi 7.2 volt-18.0 volt batteries. shutdown. If the cigarette adapter plug voltage is above 15Vdc or below 10Vdc the charger will stop charging.
Page 7
This is normal and does not under normal circumstances, return both the battery pack and indicate a problem. charger to your nearest Ryobi Authorized Service Center for n Do not place the charger and battery pack in an area of electrical check.
Page 8
LED to blink. If the red LED CHARGER continues to blink and the yellow LED comes on, return bat- tery pack to your nearest Ryobi Authorized Service Center for checking or replacing. NOTE: This situation only occurs when continuous use of a tool causes the batteries to become hot.
To avoid serious personal injury, always remove the repaired or replaced by the customer. All other parts should battery pack from the tool when cleaning or performing be replaced at a Ryobi Authorized Service Center. any maintenance. BATTERY PACK REMOVAL AND...
Ryobi Authorized Service Center. Be sure to provide all pertinent facts when you call or visit. Please call 1-800-525-2579 for your nearest Ryobi Authorized Service Center. You can also check our web site at www.ryobitools.com for a complete list of Authorized Service Centers.
