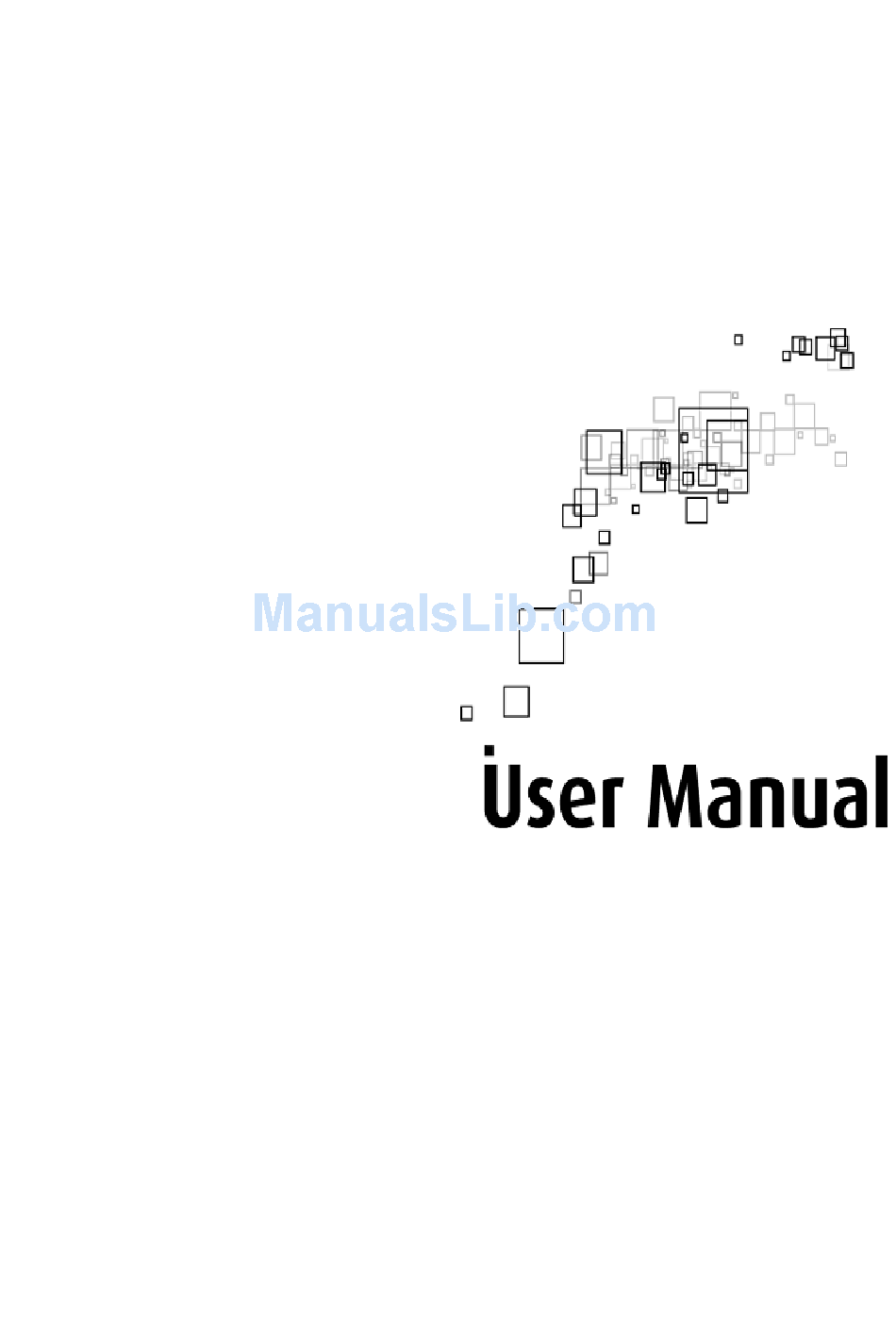

- Page 1 WL889RT4 High Speed 4 Port Wireless-N Router...
- Page 2 Aztech WL889RT4 USER MANUAL 2012 © All rights reserved. Version 1.0 No part of this document may be reproduced, republished, or retransmitted in any form or by any means whatsoever, whether electronically or mechanically, including, but not limited to, by way of photocopying, recording, information recording, or through retrieval systems without the express written permission.
-
Page 3: Table Of Contents
Aztech WL889RT4 USER MANUAL Table of Contents Table of Contents Table of Contents Table of Contents About the Product ..........................5 Product Overview ........................... 6 Features .............................. 6 System Requirements ........................6 Package Contents ..........................6 Device Design ............................. 7 Front Panel View .......................... - Page 4 Aztech WL889RT4 USER MANUAL DHCP and ARP Tables ........................14 Wireless Settings ..........................14 Wireless Basic Settings ......................... 14 Access Control ..........................15 WPS ............................... 15 Firewall ............................. 15 IP Filtering ............................. 15 MAC Filtering..........................15 Port Filtering ..........................15 URL Filtering ..........................
-
Page 5: About The Product
About the Product About the Product Wireless broadband router WL889RT4 is a hybrid design product which integrates Ethernet technology and wireless access into a single stand-alone unit. The device allows you to take advantages of both mobility and fast connection. All PCs whenever on wireless LAN or Ethernet LAN can share files, printers and other network resources. -
Page 6: Product Overview
Aztech WL889RT4 USER MANUAL Product Overview Product Overview Product Overview Product Overview Features Features Features Features Complies with IEEE 802.11n, 802.11g, 802.11b standards for 2.4GHz Wireless LAN. Supports PPPoE, Dynamic IP, and static IP broadband functions. Supports UPnP, DDNS and Static Routing list. -
Page 7: Device Design
Aztech WL889RT4 USER MANUAL Device Design Device Design Device Design Device Design Front Front Front Front P P P P anel anel anel V V V V iew anel The front panel of the WL886RT4 Wireless Router consists of 8 LED indicators, which is designed to indicate connections. -
Page 8: Rear Panel View
Aztech WL889RT4 USER MANUAL There is no device connected to the corresponding port WAN/LAN There is a device connected to the corresponding port 1, 2, 3, 4 There is an active device connected to the corresponding port Flashing Rear Panel View... -
Page 9: Setup Diagram
2. Use another Ethernet cable to connect your Broadband modem to WL889RT4’s WAN port. 3. Connect the Power adapter to the 9V DC port at the back of the WL889RT4 and plug to a power source. Please turn on the power source before you proceed to the Internet connection setup. - Page 10 1. Open your Internet Browser and go to http://192.168.2.1. On the authentication page, type admin for both username and password. 2. Click on the Quick Setup button to set up your WL889RT4 for the first time. 3. Choose your current region from the drop-down list.
-
Page 11: Router's Web User Interface
System Status page and will show you information about the internet connection status. Note Note: : : : If you are unable to get an IP Address from the WAN Status, Turn off your Broadband modem and WL889RT4 router for 2 min. Note Note After which, turn On the modem and wait for the lights to stabilized before you switch On the WL889RT4 router. -
Page 12: System Status
Aztech WL889RT4 USER MANUAL System Status System Status System Status System Status On this page you can see your network’s status and some useful information when configuring and troubleshooting your network. Quick Setup Quick Setup Quick Setup Quick Setup Here you can easily configure both your Internet and wireless connection. -
Page 13: Time Zone Setting
Aztech WL889RT4 USER MANUAL Time Zone Setting Time Zone Setting Time Zone Setting Time Zone Setting Select your time zone in the drop-down list. WAN Interface Type WAN Interface T WAN Interface T WAN Interface T Select the type of connection for your Internet Service Provider (ISP). -
Page 14: Bridge
Aztech WL889RT4 USER MANUAL Bridge Bridge Bridge Bridge In this mode, all Ethernet ports and wireless interface are bridged together and NAT function is disabled. All the WAN related function and firewall are not supported. WAN Settings WAN Settings WAN Settings... -
Page 15: Access Control
Aztech WL889RT4 USER MANUAL Encryption- Select for the encryption that suit your network best (WPA-mixed recommended) Pre-Shared Key- Refers to the password of your wireless network Note Note Note Note It is recommended to set other parameters to their default values unless you fully understand the effect of that feature. -
Page 16: Port Forwarding
Aztech WL889RT4 USER MANUAL Port Forwarding Port Forwarding Port Forwarding Port Forwarding Entries in this table allow you to automatically redirect common network services to a specific machine behind the NAT firewall. These settings are only necessary if you wish to host some sort of server like a web server or mail server on the private local network behind your Gateway's NAT firewall. -
Page 17: System Log
Aztech WL889RT4 USER MANUAL Username/E-mail – Enter the Email address or username used on creating the DDNS account Password – The password used on creating the DDNS account System Log System Log System Log System Log This page can be used to set remote log server and show the system log.
