Parts Manual
Frame, PTO and Battery Exploded Diagram
Hood, Dash Panel and Fuel Tank Exploded Diagram
Seat, Fender and Deck Lift Exploded Diagram
Steering Controls and Front Axle Exploded Diagram
Transmission Drive and Controls Exploded Diagram
Engine Mounting and Connections Exploded Diagram
Steering Gear Box Exploded Diagram
46" Mowing Deck
50" Mowing Deck
RH Transmission Assembly
LH Transmission Assembly
I1046 and I1050 Crankcase; Crankshaft; and Dipstick
I1046 and I1050 Cylinder Head/Valves/Breather Exploded Diagram
I1046 and I1050 Blower Housing/Baffles Exploded Diagram
I1046 and I1050 Oil Pan/Filter Exploded Diagram
I1046 and I1050 Air Filter/Intake Manifold Exploded Diagram
I1046 and I1050 Flywheel/Electrical Exploded Diagram
I1046 and I1050 Fuel System/Carburetor
I1046 and I1050 Starter Motor Exploded Diagram
I1046 and I1050 Engine Control Exploded Diagram
Model I1046 Labels
Model I1050 Labels
Advertisement
Quick Links
1
Parts Manual
2
Frame, Pto and Battery Exploded Diagram
3
Steering Controls and Front Axle Exploded Diagram
4
Transmission Drive and Controls Exploded Diagram
5
Steering Gear Box Exploded Diagram
6
46" Mowing Deck
7
I1046 and I1050 Flywheel/Electrical Exploded Diagram
Download this manual
See also:
Operator's Manual
i1046 & i1050/Series i1000
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
PRINTED IN U.S.A.
PARTS MANUAL
Zero Turn Riding Mower
Models
i1046
i1050
SECTION HM12
769-02740
12/2006
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Related Manuals for Cub Cadet i1046
Lawn Mower Cub Cadet i1046 Operator's Manual
Zero turn riding mower time saver models (144 pages)
Lawn Mower Cub Cadet i1046 Operator's Manual
Zero turn riding mower (72 pages)
Lawn Mower Cub Cadet i1046, i1050 Operator's Manual
Zero turn riding mower time saver models (36 pages)
Lawn Mower Cub Cadet i1046 Operator's Manual
Zero turn riding mower time saver models (32 pages)
Lawn Mower Cub Cadet i1050 Operator's Manual
Zero turn riding mower (36 pages)
Lawn Mower Cub Cadet LTX 1040 Compatibility Manual
1000/1500/2500/3000/i/rzt/z-force series homeowner riding equipment attachments (3 pages)
Lawn Mower Cub Cadet I1042 Operator's Manual
Zero turn riding mower (36 pages)
Lawn Mower Cub Cadet Time Saver i1042 Operator's Manual
Zero turn riding mower time saver (112 pages)
Lawn Mower Cub Cadet i1042 Operator's Manual
Zero turn riding mower (10 pages)
Lawn Mower Cub Cadet i1042 Operator's Manual
Zero turn riding mower (56 pages)
Lawn Mower Cub Cadet 38" Operator's Manual
Cub cadet 38",44",50" 3-spindle rotary mowers operator's manual (24 pages)
Lawn Mower Cub Cadet 1860 Owner's Manual
Cub cadet garden tractor owner's manual (39 pages)
Lawn Mower Cub Cadet 1861 Owner's Manual
Cub cadet garden tractor owner's manual (44 pages)
Lawn Mower Cub Cadet 1325 Owner's Manual
Cub cadet lawn tractor owner's manual (46 pages)
Lawn Mower Cub Cadet 1405 Owner's Manual
Cub cadet lawn tractor owner's manual (35 pages)
Lawn Mower Cub Cadet 1415 Owner's Manual
Cub cadet lawn tractor owner's manual (36 pages)
Summary of Contents for Cub Cadet i1046
Page 1: Parts Manual

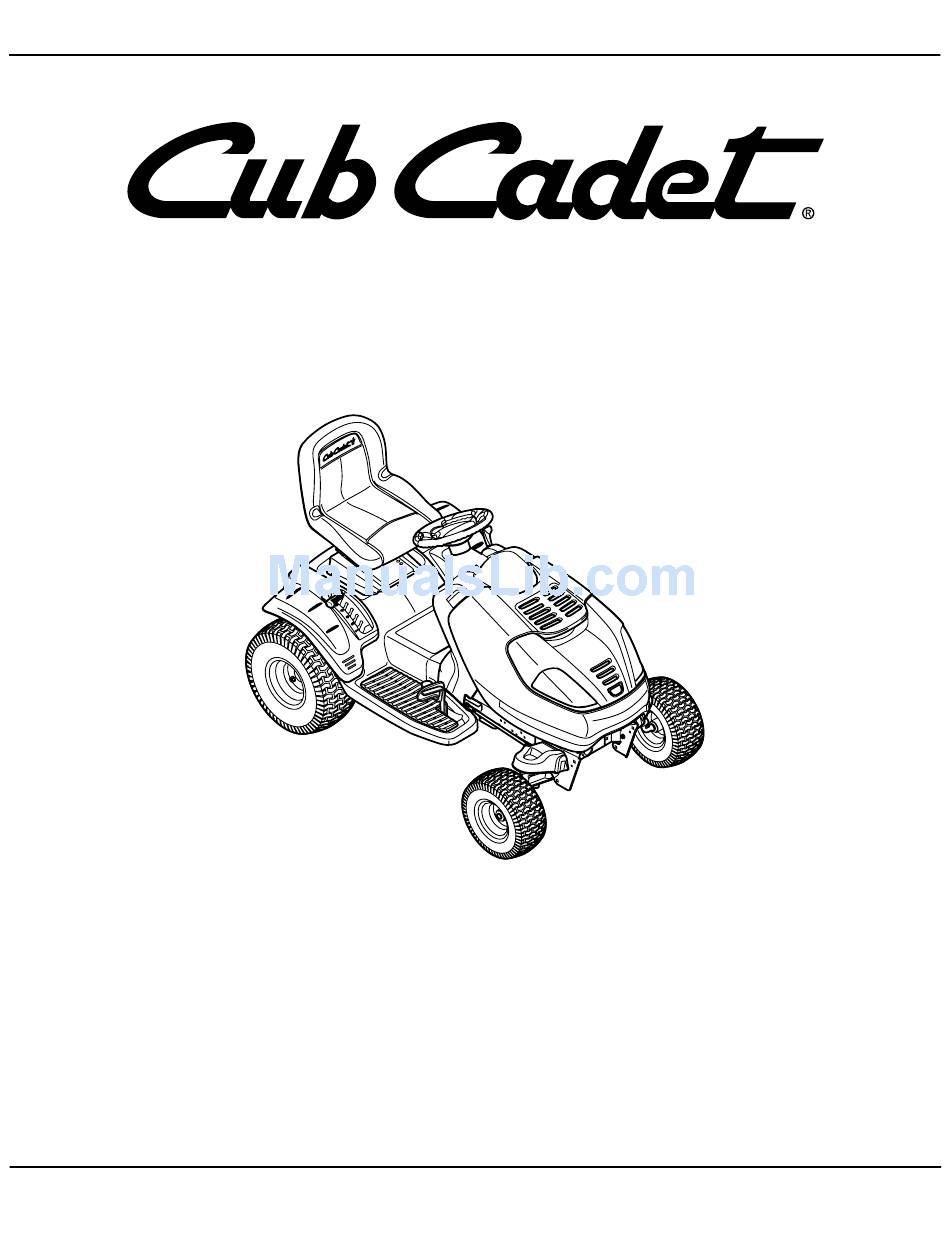

& i1050/Series i1000 SECTION HM12 PARTS MANUAL Zero Turn Riding Mower Models i1046 i1050 CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 769-02740 PRINTED IN U.S.A. 12/2006...
