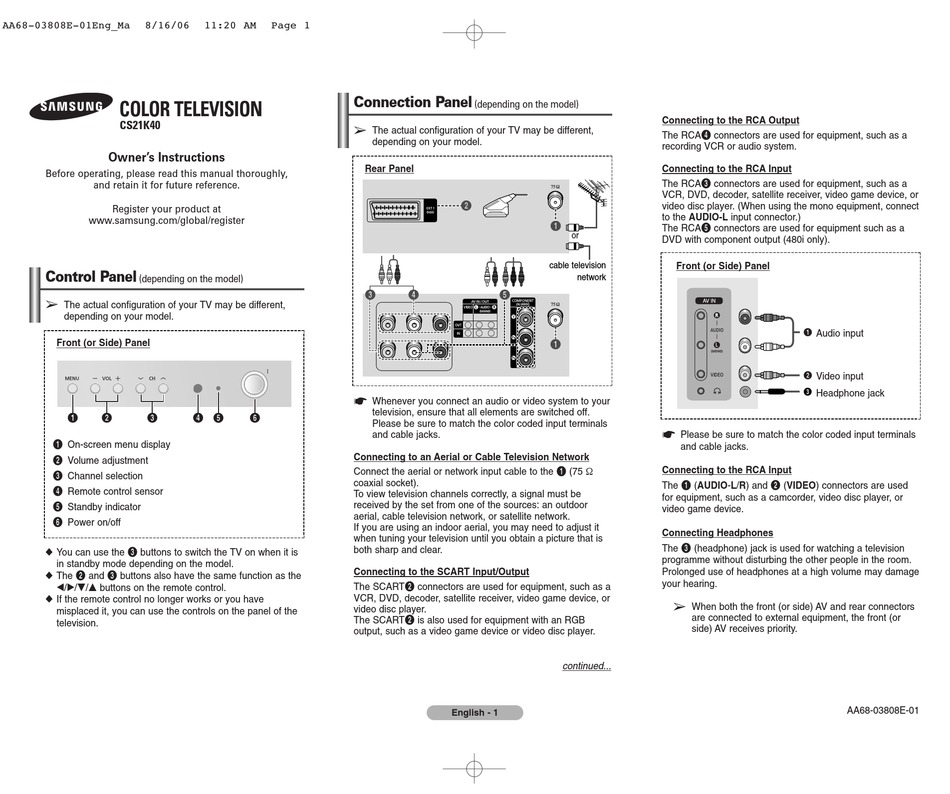

COLOR TELEVISION
CS21K40
Owner's Instructions
Before operating, please read this manual thoroughly,
and retain it for future reference.
Register your product at
www.samsung.com/global/register
Control Panel
(depending on the model)
➢
The actual configuration of your TV may be different,
depending on your model.
Front (or Side) Panel
1 On-screen menu display
2 Volume adjustment
3 Channel selection
4 Remote control sensor
5 Standby indicator
6 Power on/off
◆ You can use the 3 buttons to switch the TV on when it is
in standby mode depending on the model.
◆ The 2 and 3 buttons also have the same function as the
œ/√/†/... buttons on the remote control.
◆ If the remote control no longer works or you have
misplaced it, you can use the controls on the panel of the
television.
Connection Panel
(depending on the model)
➢
The actual configuration of your TV may be different,
depending on your model.
Rear Panel
☛
Whenever you connect an audio or video system to your
television, ensure that all elements are switched off.
Please be sure to match the color coded input terminals
and cable jacks.
Connecting to an Aerial or Cable Television Network
Connect the aerial or network input cable to the 1 (75 Ω
coaxial socket).
To view television channels correctly, a signal must be
received by the set from one of the sources: an outdoor
aerial, cable television network, or satellite network.
If you are using an indoor aerial, you may need to adjust it
when tuning your television until you obtain a picture that is
both sharp and clear.
Connecting to the SCART Input/Output
The SCART2 connectors are used for equipment, such as a
VCR, DVD, decoder, satellite receiver, video game device, or
video disc player.
The SCART2 is also used for equipment with an RGB
output, such as a video game device or video disc player.
English - 1
Connecting to the RCA Output
The RCA4 connectors are used for equipment, such as a
recording VCR or audio system.
Connecting to the RCA Input
The RCA3 connectors are used for equipment, such as a
VCR, DVD, decoder, satellite receiver, video game device, or
video disc player. (When using the mono equipment, connect
to the AUDIO-L input connector.)
The RCA5 connectors are used for equipment such as a
or
DVD with component output (480i only).
Front (or Side) Panel
cable television
network
☛
Please be sure to match the color coded input terminals
and cable jacks.
Connecting to the RCA Input
The 1 (AUDIO-L/R) and 2 (VIDEO) connectors are used
for equipment, such as a camcorder, video disc player, or
video game device.
Connecting Headphones
The 3 (headphone) jack is used for watching a television
programme without disturbing the other people in the room.
Prolonged use of headphones at a high volume may damage
your hearing.
➢
When both the front (or side) AV and rear connectors
are connected to external equipment, the front (or
side) AV receives priority.
continued...
Audio input
Video input
Headphone jack
AA68-03808E-01
