4.
Carefully remove the heatsink and fan
assembly from the motherboard.
5.
Rotate each fastener clockwise to ensure
correct orientation when reinstalling.
1.7

System memory

1.7.1

Overview

The motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets.
A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched
differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for
better performance with less power consumption.

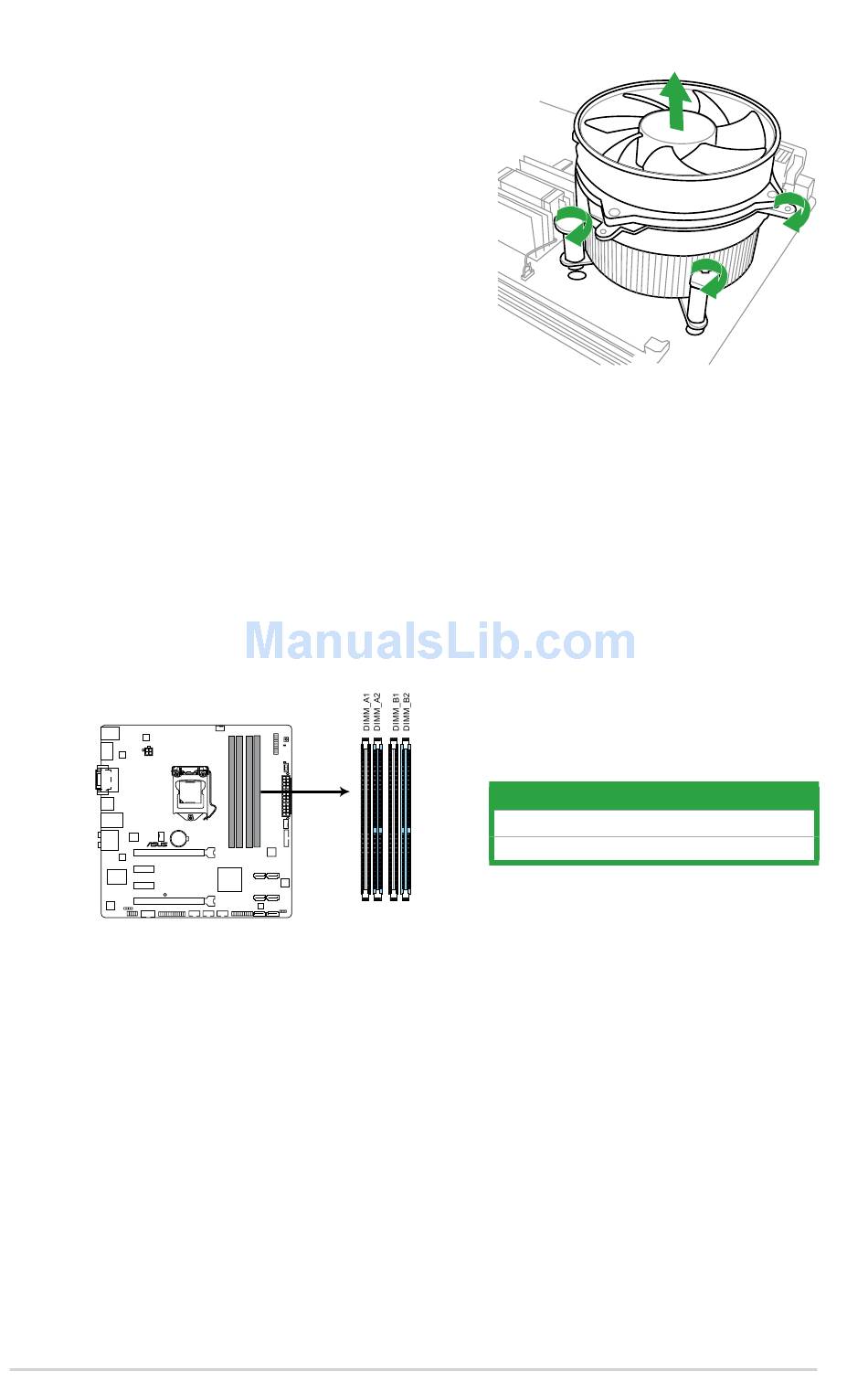

The figure illustrates the location of the DDR3 DIMM sockets:
P8H61-M EVO
P8H61-M EVO 240-pin DDR3 DIMM sockets
ASUS P8H61-M EVO
Channel
Sockets
Channel A
DIMM_A1 and DIMM_B1
Channel B
DIMM_B1 and DIMM_B2
1-13
