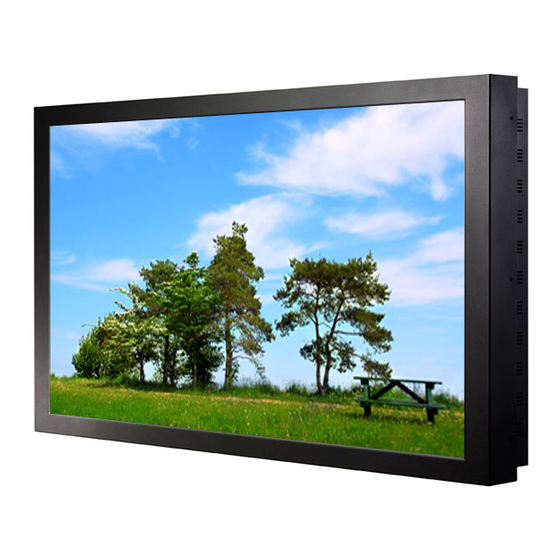

Hyundai 32" User Manual

Hyundai 32" User Manual

Base frame model: 32"; 40"; 42"; 52"; 46"; 70"; 82" & kiosk model: 46", 52", 70", 82"
Hide thumbs Also See for 32":
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai 32"

Summary of Contents for Hyundai 32"

  • Page 2 U.S.A. U.S.FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT INFORMATION TO THE USER NOTE : This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Declaration Of Conformity

    1. Hyundai IT Corp. 1229 In-ri, Apo-eup Gimcheon, Gyeongsangbuk-do 740-860 Rep. of Korea 2. Hyundai IT Corp. San 136-1 Ami-ri, Bubal-eub, Ichon-si, Kyungki-Do, 467-860 Rep. of Korea We herewith confirmed to comply with the requirements set put in the Council Directive on the Approximation of the Lows of the Member States relating to Electromagnetic Compatibility Directive (89/336/EEC), Low-Voltage Directive(73/23/EEC , 93/68/EEC) .

  • Page 4: Table Of Contents

    DIGITAL SIGNAGE Contents Major features ....................2 Safety Information ..................2 Be sure to understand ..................5 Check the product list ...................6 Proper location for product installation ............7 Title and function of each part ..............8 How to Connecting Kiosk ................11 How to Connecting Digital RGB(HDMI) .............12 How to Connecting analog RGB (PC D-SUB) ..........14 How to Connecting the component (Option) ...........16 How to Connecting the the video (Option) ..........18...

  • Page 5: Major Features

    DIGITAL SIGNAGE Major features This product has been designed to enable the user ease of use, and display information effectively and conveniently. • TFT LCD Module adopted D320ML(I/G) / D400ML / D420ML(I/G/P/T) / D460ML(I/G/P/T/H) / D468ML(I/G/P/T/H) / D460SL(I) : 1366 x 768 WXGA (HD) D405ML(I/G) / D407ML(I/G/P/T) / D425ML(I/G/P/T)/ D465ML(I/G) / D467ML(I/G/P/T) / D525ML(I/G) / D825ML(I/G) / D525SL(I) / D705ML(I/G) / D705SL(I) / D825SL(I) : 1920 x 1080 WUXGA (Full HD)
  • Page 6 DIGITAL SIGNAGE - The main plug of the power supply cord shall remain readily operable. - An apparatus with CLASS I construction shall be connected to a Mains socket outlet with a protective earthing connection. - Make sure that the power cord and other cables are correctly plugged in. - Plug the power cord correctly into the end, do not wobble/jiggle, it may cause electric shock fire.
  • Page 7 DIGITAL SIGNAGE - Do not hang on or jump to the product or mounting rack. - When the product is left unused for a long time, be sure to unplug the power cord. - In the case of damage or breakage do not attempt to self repair, please contact local service engineer.

  • Page 8: Be Sure To Understand

    DIGITAL SIGNAGE Be sure to understand Image quality of the product CAUSE Due to the nature of LCD's property, Afterimage can occur. Afterimage appears when identical frames / images are displayed continuasly. If displayed for prolonged periods of time this can become permanent. PREVENTION When you display a freeze frame for a long time, lower the brightness and contrast (Brightness, 70/ Contrast, 80).

  • Page 9: Check The Product List

    DIGITAL SIGNAGE Check the product list Please check the following components provided with the product after you open the box. Remote control & batteries Power Cord Base Frame Type User's manual D-SUB Cable HDMI to DVI Cable (Option) HDMI cable RS232C Cable (Option) Kiosk Type (Portrait) Kiosk Type (Landscape)

  • Page 10: Proper Location For Product Installation

    DIGITAL SIGNAGE Proper location for 1. Locate the product at least 30cm away from the electric appliance or heating product. 2. The product must be placed at least 10cm away from the wall and ground. product installation 3. Keep the product out of direct ray of light and locate screen not to be reflected by the sunlight.

  • Page 11: Title And Function Of Each Part

    DIGITAL SIGNAGE Title and function of each Remote control receiving sensor. Menu button : to display menu or exit from the menu. part Power display LED red-stand by/ Green-working. select button. OSD button. To move down in OSD menu. Control Panel Power button ;...
  • Page 12 DIGITAL SIGNAGE Terminal panel AC IN PC D-SUB OUT COMPONENT OUT (Y Pb Pr) AC POWER SWITCH UPGRADE CVBS IN HDMI IN PC AUDIO IN CVBS OUT HDMI OUT RS-232C OUT COMPONENT AUDIO IN (L R) SPEAKER OUT RS-232C IN &...
  • Page 13 DIGITAL SIGNAGE Remote control To turn the power on or off. Move up in OSD menu. To move left or control the volume down in OSD menu. To move right or control the volume up in OSD menu. To move down in OSD menu. Select in OSD menu.

  • Page 14: How To Connecting Kiosk

    DIGITAL SIGNAGE How to Connecting Kiosk PC or Source (Satellite receiver, Camcorder etc.) 11/36...

  • Page 15: How To Connecting Digital Rgb(Hdmi)

    DIGITAL SIGNAGE How to Connecting Digital RGB(HDMI) 1. Please ensure that the power to the device is switched off, then connect each cable one after another before restoring power. 1 when connect HDMI to HDMI cable 2 when connect DVI to HDMI cable –...
  • Page 16 DIGITAL SIGNAGE Support timing for Horizontal frequency Vertical frequency Resolution HDMI (KHz) (Hz) 480p 640 x 480p 576p 720 x 576p 720p 1280 x 720p 50 / 60 1080i 1920 x 1080i 50 / 60 640 x 480 31.47 59.94 640 x 480 37.88 60.32...

  • Page 17: How To Connecting Analog Rgb (Pc D-Sub)

    DIGITAL SIGNAGE How to Connecting analog RGB (PC D-SUB) 1. Please ensure that the power to the device is switched off, then connect each cable one after another before restoring power. 2. Connect D-SUB to D-Sub cable. Then tighten the screw of the cable after connecting PC D-SUB.
  • Page 18 DIGITAL SIGNAGE Support timing for PC Horizontal frequency Vertical frequency Resolution (KHz) (Hz) 640 x 480 31.47 59.94 800 x 600 37.88 60.32 1024 x 768 48.36 60.00 1360 x 768 47.71 60.00 1280 x 1024 64.00 60.00 1600 x 1200 75.00 60.00 1920 x 1080...

  • Page 19: How To Connecting The Component (Option)

    DIGITAL SIGNAGE How to Connecting the component (Option) 1. Please ensure that the power to the device is switched off, then connect each cable one after another before restoring power. 2. Connect the component cables to Y, Pb, and Pr correctly. Connect BNC cable and tighten.
  • Page 20 DIGITAL SIGNAGE Support timing for Horizontal frequency Vertical frequency Resolution component & AV (KHz) (Hz) 0i 0 x 0i 5. / 60 60 x 0p 5. / 60 0p 0 x 0p 5. / 60 56i 0 x 56i 56p 0 x 56p 0p 10 x 0p...

  • Page 21: How To Connecting The The Video (Option)

    DIGITAL SIGNAGE How to Connecting the the video (Option) 1. Please ensure that the power to the device is switched off, then connect each cable one after another before restoring power. 2. Connect video cable and BNC cable, and then tighten. 3.

  • Page 22: Adjusting Osd And Explanation Of Its Function

    DIGITAL SIGNAGE Adjusting OSD and Users can automatically adjust the picture mode according to the input mode. explanation of its Picture Picture function Picture Mode Custom Picture Mode Custom How to Select the Picture Custom  Dynamic Custom  High Mode Colour Tone ...
  • Page 23 DIGITAL SIGNAGE How to Set the Desired Users can manually adjust their desired picture Picture 1. Press Menu button. Custom Menu items appear on the screen. Brightness 2. Press ↲ button to select "Picture" Icon. Contrast "Picture mode" is highlighted. Colour 3.
  • Page 24 DIGITAL SIGNAGE Users can adjust Color as users want. How to Select a Colour Tone 1. Press Menu button. Colour Tone Menu items appear on the screen. 2. Press ↲ button to select "Picture" Icon. Colour Tone Custom "Picture Mode" is highlighted. Green 3.
  • Page 25 DIGITAL SIGNAGE How to Set the Display Size Users can adjust the display scale as they want Picture Picture Picture Mode Auto size Picture Mode Custom  Wide Custom  Colour Tone  Panorama Colour Tone  4 : 3 Size Zoom Size...
  • Page 26 DIGITAL SIGNAGE 1. Press Menu button. How to set image adjustment Picture Menu items appear on the screen. in PC mode 2. Press ↲ button to select "Picture" Icon. (Supported only in PC mode) Auto Adjust  Phase "Picture Mode" is highlighted. H-Posilion 3.
  • Page 27 DIGITAL SIGNAGE User can eliminate noises on the screen in AV/Component/HDMI mode.(Not supported in PC mode) How to Set Noise 1. Press Menu button. Reduction(NR) Picture Menu items appear on the screen. Picture Mode 2. Press ↲ button to select "Picture" Icon. Custom ...
  • Page 28 DIGITAL SIGNAGE How to Adjust the Desired Users can adjust sound mode automatically as they want. Audio Mode Sound Sound Mode Custom 10KHz Volume 3KHz Balance L50 R50 Equalizer  1KHz Auto Volume 300Hz Sound Mode Stereo 100Hz  U Move L Adjust Menu ...
  • Page 29 DIGITAL SIGNAGE How to Select Auto Volume This function will automatically give a similar volume size to each channel. 1. Press Menu button. Sound Menu items appear on the screen. Mode 2. Press ▲ / ▼ buttons to move to "Sound" Icon. Volume 3.
  • Page 30 DIGITAL SIGNAGE How to Reset Setup 1. Press Menu button. Menu items appear on the screen. Reset Enter  2. Press ↲ button to select "Setup" Icon. Time  "Reset" is highlighted. Language 3. Press ▶ or ↲ buttons to select to "Reset". OSD Tone Key Lock 4.
  • Page 31 DIGITAL SIGNAGE <Go to step 6 if you need to set the "On or Off Timer"> Setup 6. Press ▲ / ▼ buttons to move to "On or Off Timer". Reset  7. Press ▶ or ↲ buttons to select "On or Off Timer" . Time ...
  • Page 32 DIGITAL SIGNAGE How to set OSD tone 1. Press Menu button. Setup Menu items appear on the screen. Reset  2. Press ↲ button to select "Setup" Icon. Time  "Reset" is highlighted. Language 3. Press ▲ / ▼ buttons to move to "OSD Tone" OSD Tone 4.
  • Page 33 DIGITAL SIGNAGE How to Set the Multi Multi Multi Function H Set CounL Multi Function  V Set CounL Heal Control  Display Sequence H Edge ADJ V Edge ADJ SET ID Master     U Move Adjust Menu U Move Enter...
  • Page 34 DIGITAL SIGNAGE Set up Value installation item Product 1 Product 2 Product 3 Product 4 Product 5 Product 6 H Set Count V Set Count Display Sequence H Edge ADJ / These are the set up value to make up the un-displayed area of Bezel Part. V Edge ADJ It can be adjustable according to the contents It is necessary to control via RS232 communication port on PC.
  • Page 35 DIGITAL SIGNAGE How to Set the Heat "Heat control" allows you set up fan operation according to interior temperture of the product Control Multi Multi Multi Function  Fan Control Heal Control  Fan Active Temp 50 °C Hysteresis 50 °C Temprature 50 °C ...

  • Page 36: Diagnosis

    DIGITAL SIGNAGE Diagnosis When the product is not working properly, please check before you call customer center. Symptoms How to solve the problem It happens not to show the screen noise when the power is on. Therefore it is not a Screen displays late defect.
  • Page 37 DIGITAL SIGNAGE Symptoms How to solve the problem The screen displays check the volume up and down with remote control and audio connection cable without the sound. No sound from either Confirm the status of the sound balance on OSD menu and check the connection right speaker or left of speaker cable.

  • Page 38: Specifications

    DIGITAL SIGNAGE Specifications D320ML(I/G) / D400ML / D420ML(I/G/P/T) / Model D320ML(I/G)/D400ML/ D460ML(I/G/P/T/H) / D468ML(I/G/P/T/H) / D460SL(I) D420ML(I/G/P/T)/ D460ML(I/G/P/T/H)/ 1366 x 768 Pixel (HD) D468ML(I/G/P/T/H)/D460SL(I) D320ML(I/G) : 697.7 x 392.3 / Pixel pitch 0.51 D400ML : 885.2 x 497.7 / Pixel pitch 0.65 Screen size (HxV/mm) D420ML(I/G/P/T) : 930.3 x 523.0 / Pixel pitch 0.68 D460ML(I/G/P/T/H), D468ML(I/G/P/T/H) : 1018.4x572.5 / Pixel 0.75...
  • Page 39 DIGITAL SIGNAGE Specifications D405ML(I/G)/D407ML(I/G/P/T)/D425ML(I/G/P/T)/D465ML(I/G)/ Model D467ML(I/G/P/T)/D525ML(I/G)/D825ML(I/G)/ D525SL(I)/D705ML(I/G)/ D405ML(I/G)/D407ML(I/G/P/T)/ D705SL(I)/D825SL(I) D425ML(I/G/P/T)/D465ML(I/G)/ D467ML(I/G/P/T)/ D525ML(I/G)/ 1920 x 1080 Pixel (Full HD) D825ML(I/G)/ D525SL(I)/ D405ML(I/G) : 885.6 x 498.15 / Pixel pitch 0.46 D705ML(I/G)/D705SL(I)/ D407ML(I/G/P/T) : 885.2 x 497.7 / Pixel pitch 0.46 D825SL(I) D425ML(I/G/P/T) : 930.25 x 523 / Pixel pitch 0.4845 x 0.4845 D465ML(I/G) : 1018.08 x 572.67 / Pixel pitch 0.53 D467ML(I/G/P/T) : 1018.4 x 572.5 / Pixel pitch 0.53...

  • Page 40: Remote Control / Rs232C Command Spec

    < REMOTE CONTROL / RS232C COMMAND SPEC > 1. SPEED : 9600 Baud/s, 8 bit, No parity, 1 Stop bit. 2. REMOTE CONTROL WAVE FORM 1) Remote Control System Infrared rey system fosc=455KHZ fc=fosc/2=37.917KHZ 2) Signal code 2-1) Transmission - One pulse LEAD CODE CUSTOM CODE CUSTOM CODE...
  • Page 41 3. REMOTE CONTROL KEY CODE TABLE Custom Code : 7788H DATA LAYOUT DATA POWER 0x80 MENU 0x95 EXIT 0x96 SOURCE 0xAC ENTER 0x8C 0x8D DOWN 0x8E LEFT 0x8F RIGHT 0x90 4. COMMAND FORMAT * SET ID must select from the OSD menu and can't be select through the COMMAND. * Only one unit can be set as Master unit, select Master ON from the OSD Menu.
  • Page 42 5. COMMAND TYPE Command Description pn / pf Power on / Power off fn / ff Fan on / Fan off Factory reset sd / sp / sc / sa Source change ( d:HDMI, p:PC, c:Component, a:AV ) sbu / sbd Sub-Brightness 1 step up / down rou / rod Red Offset 1 step up / down...
  • Page 43 6. REMOTE CONTROL KEY CODE TABLE Key value Key value quit ( from Ir mode ) volume up power volume down mute down picturemode left sleep right sound enter s.mode menu info->display The others exit quit ( from Ir mode ) input 7.
  • Page 44 HYUNDAI IT Service Center...
