User's Guide
®
∫
t
Touch Function Selector Technology
f

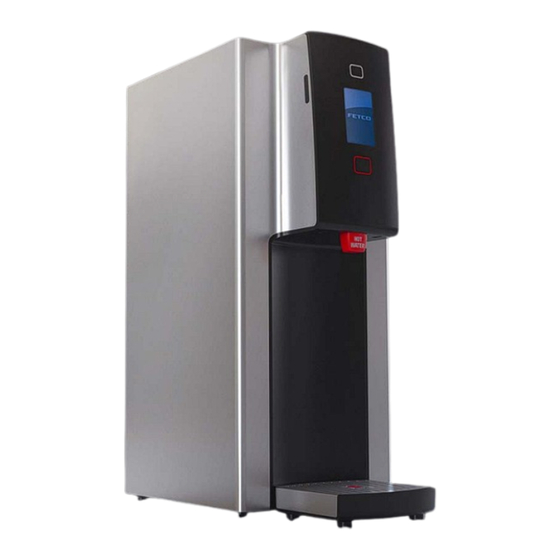

HWD-2110
Hot Water Dispenser
.
NOTICE TO INSTALLER: Please leave this book with the machine.
Temperature On Demand US design patent applied for. Other Temperature On Demand US patents applied for.
FETCO®, is a trademark of Food Equipment Technologies Company.
© 2011 Food Equipment Technologies Company
November 2011
Advertisement
Related Manuals for Fetco HWD-2110
Summary of Contents for Fetco HWD-2110
- Page 1 NOTICE TO INSTALLER: Please leave this book with the machine. Temperature On Demand US design patent applied for. Other Temperature On Demand US patents applied for. FETCO®, is a trademark of Food Equipment Technologies Company. © 2011 Food Equipment Technologies Company...
-
Page 2: Specifications
Programming, display and error codes are interactive and more intuitive. Float indicator is built into drip tray to help simplify maintenance and cleaning. NOTE: The HWD-2110 Digital Hot Water Dispenser cannot be modified into a HWD-2110 TOD Temperature on Demand Hot Water Dispenser... -
Page 3: Installation
1. Before placing the unit, verify that it will fit in the space intended for it, and that the counter or table will support the weight of the HWD-2110 when filled. 2. When the unit is in position, use a bubble level to level it front to back and side to side by adjusting the legs. - Page 4 1. Turn on the incoming water supply line and inspect both inside and outside of the unit for leaks in all fittings and tubes. The three primary screens for HWD-2110 start up 2. Plug the unit into the appropriate electrical outlet.
-
Page 5: Operating Principles
Inspect inside of tank for lime deposits. De-lime tank and probes if necessary. This procedure should be performed by a qualified service technician Notice: • Turn off power to the HWD-2110 before any cleaning procedure, including wiping the exterior for appearance reasons. Dry the exterior, especially the face panel, before turning on power. WARNING: •... - Page 6 Control and Operational Screens The FETCO® Hot Water Dispenser uses a digital display screen and illuminated touch pads to control the set-up and on-off water functions. -Upper and lower pads are lighted when ready, and may alternately brighten and dim.
- Page 7 Programming and diagnostic screens To enter Programming and Diagnostics dialog screens Turn power switch on lower back of unit “OFF” Turn power switch “ON” and when first screen is displayed touch lower (red) pad to activate The First Programming screen will display. Displayed are the default settings programmed into the equipment Touch upper “Touch Function Selector”...
- Page 8 HWD-2110 DOMESTIC Wiring diagram...
- Page 9 HWD-2110 EXPORT Wiring diagram...
- Page 10 SERVICE PARTS, TANK, HWD-2110 PARTS LIST FOR HWD-2110 Hot Water Tank Drawing 1104.00028.00 ITEM# PART# DESCRIPTION 1107.00013.00 HEATER ASSEMBLY, IMMERSION 5000W/240VAC 1059.00001.00 TRIAC 40A, 600V 1053.00004.00 THERMOSTAT, SINGLE SHOT, 25A 1024.00007.00 O-RING, DASH #344, TANK COVER 1102.00007.00 TANK COVER ASSEMBLY 1054.00006.00...
- Page 11 Drawing 1109.00033.00 HWD-2110 Service Parts...
- Page 12 PARTS LIST FOR HWD-2110 With TOD Service Parts Drawing 1109.00033.00 Item # Part Number Description 1023.00136.00 LEG HWD-2100 1023.00146.00 TOP COVER HWD-2110 1023.00147.00 PLUG, TANK SERVICE DRAIN for 18GA AND UP BODY 1024.00040.00 CARD PLUG, HWD-2100 1025.00040.00 TUBE, 1/4" OD X .125" ID X 16" LG, VENT 1025.00041.00...
