Baseline
Top Mount Refrigerator Specifications
•
Product Shipping Weight (approx.) – 205 Lbs.
An electrical supply with grounded three-prong receptacle is
•
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
•
Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
Connected Load (kW Rating) @ 120 Volts = .54 kW
•
•
Amps @ 120 Volts = 4.5 Amps
Always consult local and national electric & plumbing codes.
•
•
Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
•

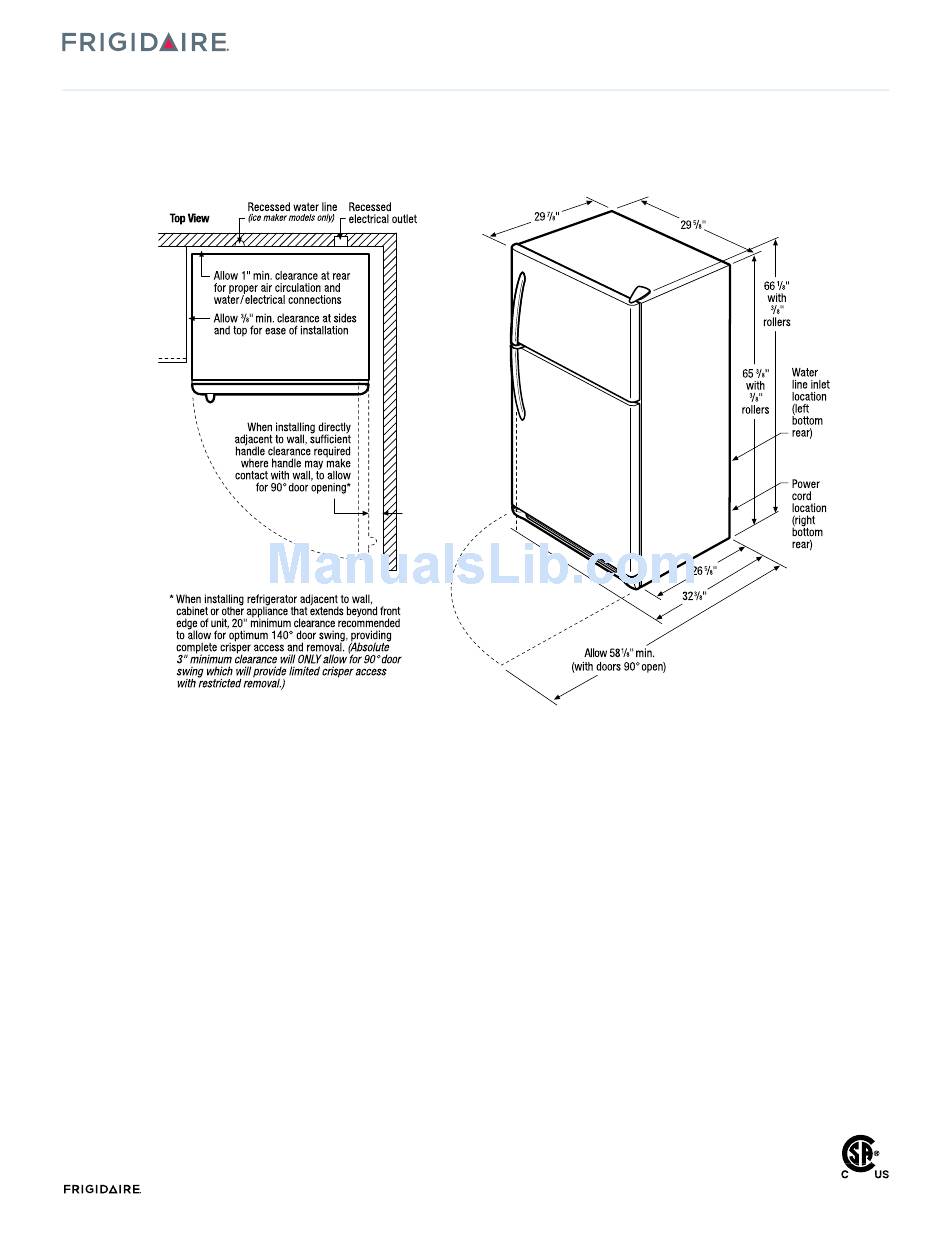

Minimum 3/8" clearance required for sides and top of refrigerator
with 1" clearance at rear to allow for ease of installation, proper air
circulation, and plumbing / electrical connections.
•
When installing refrigerator adjacent to wall, cabinet or other
appliance that extends beyond front edge of unit, 20" minimum
clearance recommended to allow for optimum 140° door swing,
providing complete crisper access and removal. (Absolute 3"
minimum clearance will ONLY allow for 90° door swing which
will provide limited crisper access with restricted removal.)
CANADA
5855 Terry Fox Way
Mississauga, ON L5V 3E4
•
•
CFTR1826L 06/11
•
To ensure optimum performance, do not install in areas where
temperature drops below 55° F or rises above 110° F and
avoid installing in direct sunlight or close proximity to range,
dishwasher or other heat source.
For proper ventilation, front grille MUST remain unobstructed.
•
•
Recess electrical outlet when possible.
Optional Ice Maker Kit (PN # IM115) available for installation in
•
ice maker-ready models only.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
Copper tubing with 1/4" O.D. recommended for water supply line
•
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
•
Adjustable front rollers to assist with door alignment.
Note: For planning purposes only. Refer to Product Installation Guide
Optional Accessories
•
Ice Maker Kit – (PN # IM115)
1-800-265-8352
frigidaire.ca
•
•
© 2011 Electrolux Major Appliances, NA
Top Mount Refrigerators
CFTR1826L S / K/M / W 18 Cu. Ft.
on the web at frigidaire.ca for detailed instructions.
Specificationssubjecttochange.
Printed in Canada
