QuickSpecs
Overview

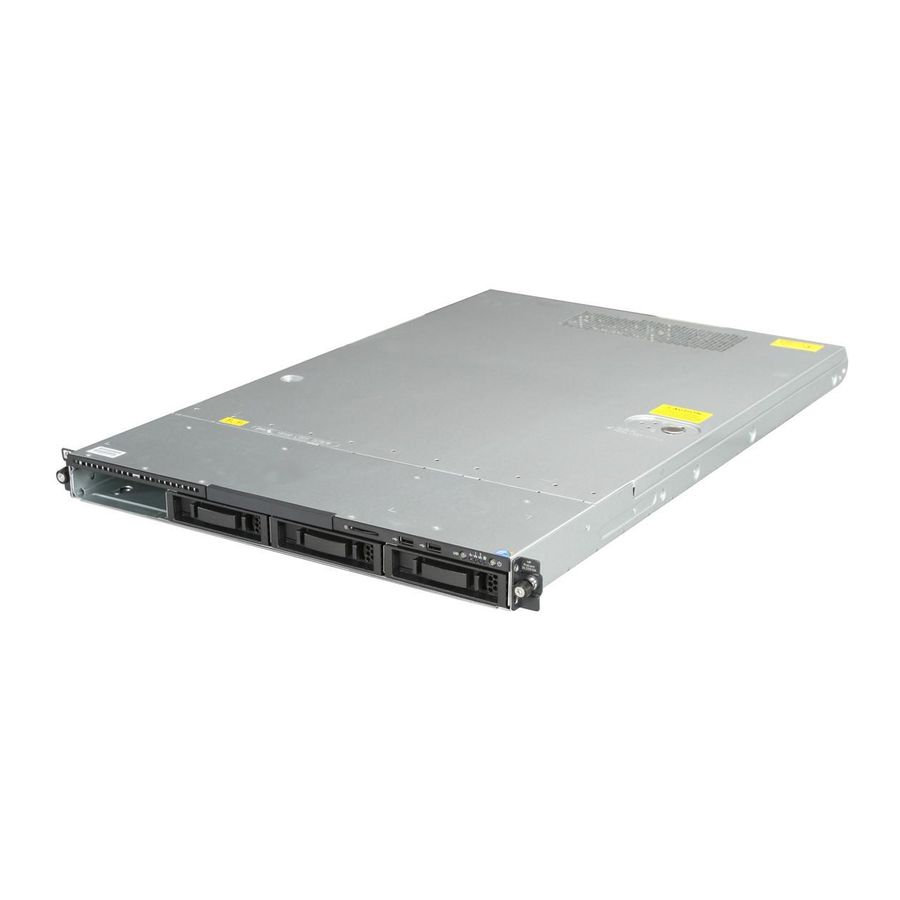

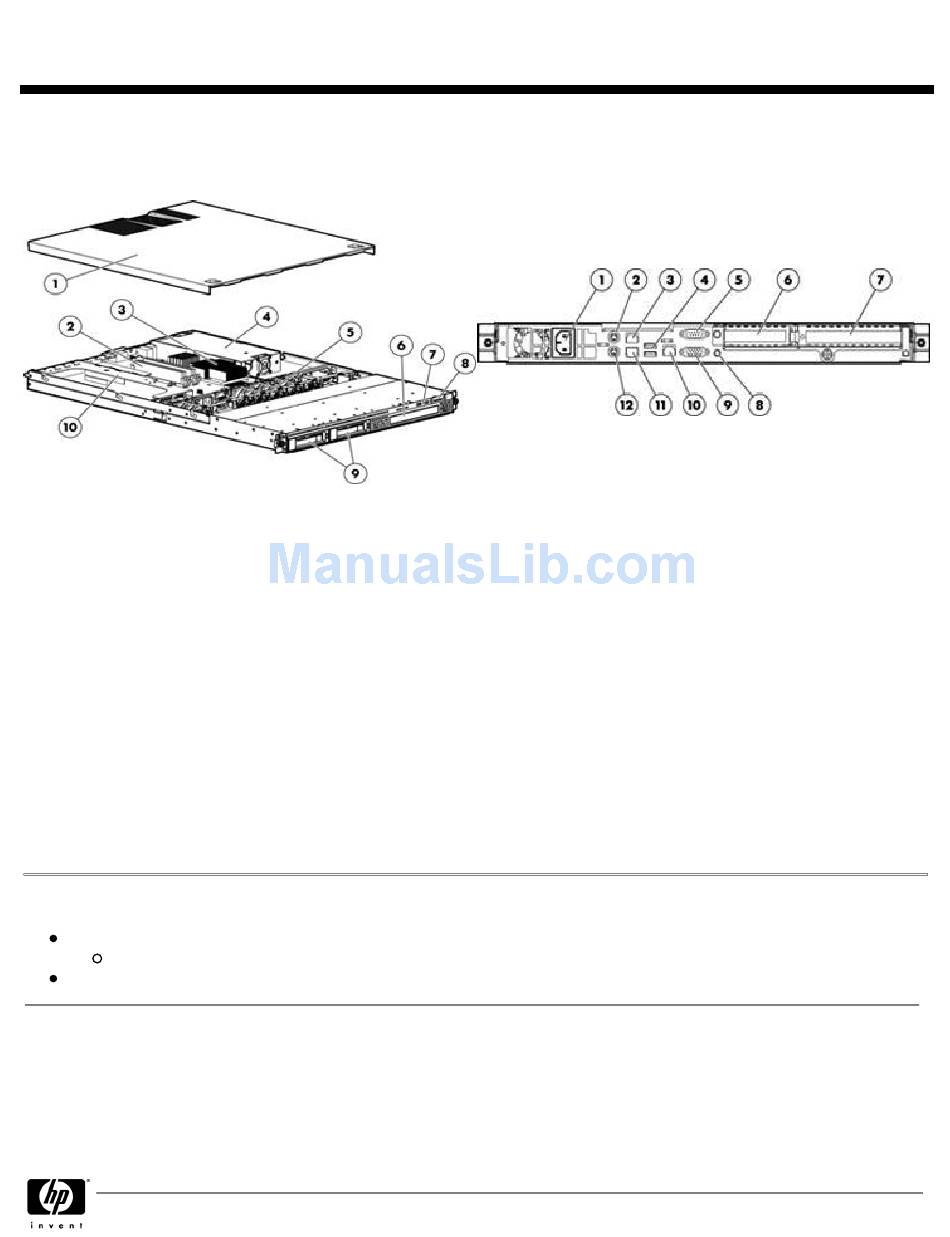

Front View:
Front View:
Front View:
Front View:
1.
Cover
2.
Four PC2-6400 ECC DDR2 Memory Slots
3.
Processor Socket (Intel® Xeon®, Core™2, Pentium® or
Celeron®)
4.
Power Supply (400 Watt)
5.
Non Hot Plug Dual Rotor Fans
6.
Optional 12.7mm DVD-ROM, or DVD-RW Drive for 2
HDD models and optional 9.5mm DVD-ROM, or DVD
combo drive for 4-HDD model
7.
Two upfront USB connectors
8.
Power Button, UID Button, and Front LED Indicators
9.
Support for up to four Hot Plug SATA or SAS Hard Drives
10.
Two PCI-Express Slots (2 PCI-Express x8 connectors
standard)
What's New
What's New
What's New
What's New
New Quad-Core Intel Xeon processors with up to 12 MB L2 cache for 1333MHz Front Side Bus
Adding to line up of Quad-Core and Dual-Core Intel processors for more performance, flexibility and choice
Support for low-cost Intel Celeron 440
At a Glance
At a Glance
At a Glance
At a Glance
The HP ProLiant DL320 G5p Server is an enterprise rack-optimized server at an entry level price. The highly manageable 1
processor, 1U server is ideal for single-application IT infrastructure, web and edge-of-network applications requiring enterprise-class
management features. Optional upgrades provide support for hot-plug SAS drives and/or up to 4 SAS or SATA drives, and gives the
DL320 G5p the flexibility to meet the needs of your datacenter. Plus, you get the cost-effective solution of a single-processor
platform with the performance advantages of dual-core or quad-core.
DA - 12854
Canada — Version 23 — July 13, 2009
HP ProLiant DL320 Generation 5p (G5p)
HP ProLiant DL320 Generation 5p (G5p)
HP ProLiant DL320 Generation 5p (G5p)
HP ProLiant DL320 Generation 5p (G5p)
Rear View:
Rear View:
Rear View:
Rear View:
1.
Power supply
2.
Mouse connector
3.
NIC 2 Port
4.
USB connectors (2)
5.
Serial connector
6.
PCI Express expansion slot 5, low-profile, half-length
7.
PCI Express expansion slot 4, (optional PCI-X, full-length)
8.
UID button/LED
9.
Video connector
10.
Dedicated Integrated Lights-Out 2 (iLO 2) management
port (optional)
11.
NIC 1 Port / Shared iLO 2 Management Port
12.
Keyboard connector
Page 1
