QuickSpecs

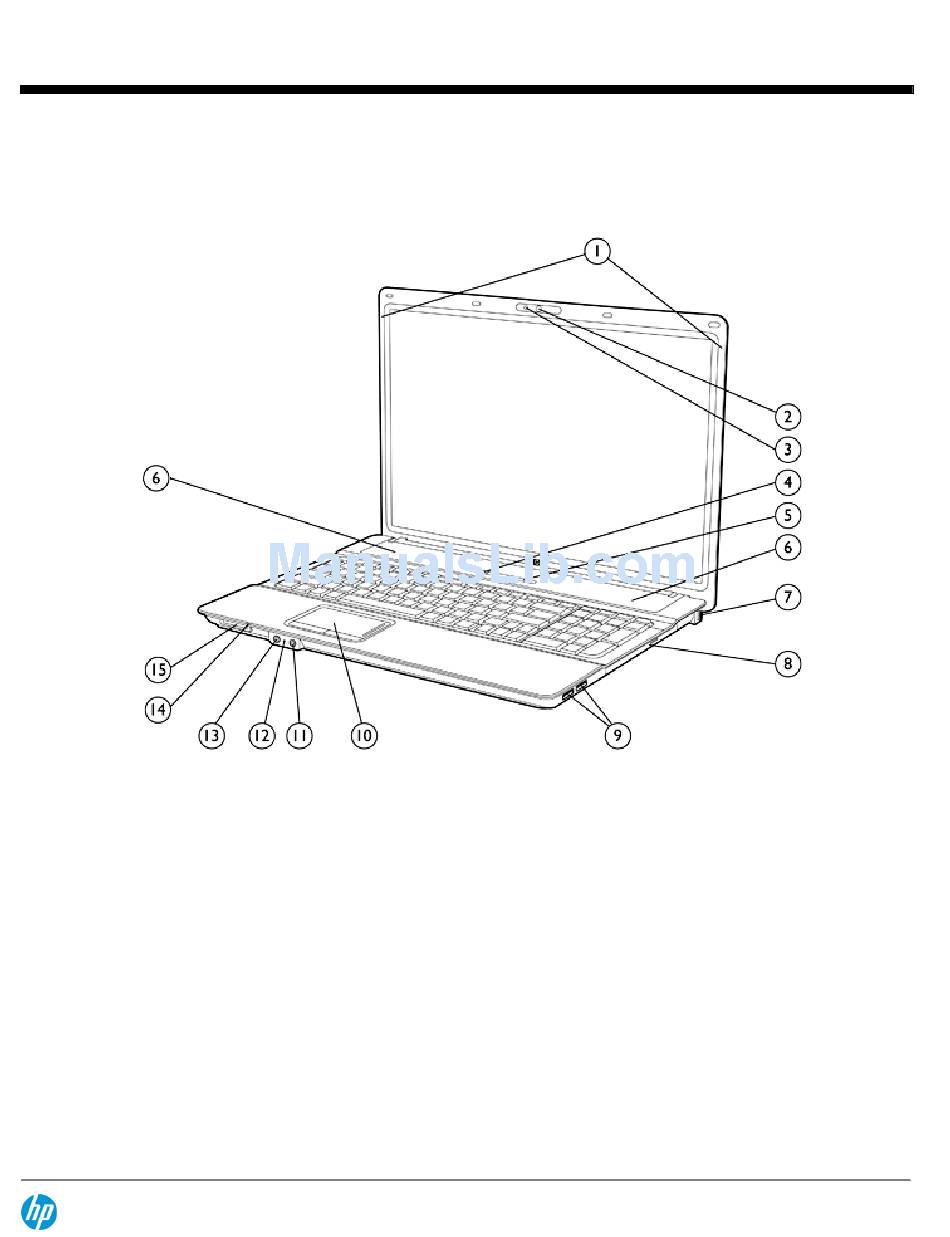

Overview
1.
WLAN antennas
2.
Optional VGA webcam
3.
Optional webcam light
4.
Wireless on/off button with LED indicator
5.
Power button with LED indicator
6.
Stereo speakers
7.
Kensington Lock slot
8.
Optical drive
DA - 13057 Worldwide — Version 15 — June 30, 2009
HP Compaq 6830s Notebook PC
HP recommends Windows Vista
9.
(2) USB 2.0 ports
10. Touchpad with scroll zone
11. Stereo microphone in
12. Integrated microphone
13. Stereo headphone/line out
14. Hard drive activity LED indicator
15. Media Card Reader
®
Business
Page 1

Advertisement

loading

Related Manuals for HP Compaq 6830s

Summary of Contents for HP Compaq 6830s

  • Page 1 QuickSpecs HP Compaq 6830s Notebook PC Overview ® HP recommends Windows Vista Business WLAN antennas (2) USB 2.0 ports Optional VGA webcam 10. Touchpad with scroll zone Optional webcam light 11. Stereo microphone in Wireless on/off button with LED indicator 12.
  • Page 2 QuickSpecs HP Compaq 6830s Notebook PC Overview 1. RJ-11/modem port 5. RJ-45/Ethernet port 2. VGA connector (external monitor/projector) 6. (2) USB 2.0 ports 3. Battery Charging LED indicator 7. ExpressCard/54 slot 4. Power Connector 1. Battery release latches 4. Memory module compartment 2.
  • Page 3 Optional integrated VGA webcam Up to 500 GB 5400 rpm or 160 GB 7200 rpm user-removable hard drive with HP 3D DriveGuard protection Up to 8 GB of 667 MHz or 800 MHz DDR2 SDRAM supported, dual channel memory support...

  • Page 4: Standard Features

    QuickSpecs HP Compaq 6830s Notebook PC Standard Features Processors Intel Core 2 Duo Processor T9400 (2.53 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor P8700 (2.53 GHz, 3 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor P8600 (2.40 GHz, 3 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor P8400 (2.26 GHz, 3 MB L2 cache, 1066 MHz...
  • Page 5 Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
  • Page 6 QuickSpecs HP Compaq 6830s Notebook PC Standard Features Wireless Devices Support for a broad range of secure, integrated wireless LAN options featuring support for the latest industry standards. Integrated Bluetooth is also available (factory configurable only) and can be combined with any of the supported wireless LAN options.
  • Page 7 QuickSpecs HP Compaq 6830s Notebook PC Standard Features ExpressCard/54 slot Supports ExpressCard/54 (54 mm x 75 mm x 5 mm) and ExpressCard/34 (34 Expansion card slots mm x 75 mm x 5 mm) card sizes Media Card Reader Supports SD (Secure Digital), MultiMedia Card, Memory Stick, Memory Stick Pro, Memory Stick Duo*, Picture card * Memory Stick Duo Adapters are required and sold separately.
  • Page 8 First update included. Subscription required for updates thereafter. HP Recovery Manager Each unit is shipped with HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted.
  • Page 9 6-foot (1.8-meter) power cord included; total length including external AC adapter is 12 feet (3.66 meter) HP Fast Charge* * HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. Battery Primary battery...
  • Page 10 HP 2 GB (DDR2 800 MHz) SODIMM KT293AA HP 4 GB (DDR2 800 MHz) SODIMM KT294AA Storage HP Notebooks USB Diskette Drive DC361B HP Primary SATA 250 GB 5400 rpm Hard Drive AK072AA Power HP 90W Smart AC Adapter ED495AA#xxx HP 90W Smart Auto Adapter ED493AA...
  • Page 11 NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires Windows Vista Business 64-bit or Linux.

  • Page 12: Internal Storage Device

    QuickSpecs HP Compaq 6830s Notebook PC Storage Removable Media Drive Support Quantity Supported Drive Bay Blu-ray ROM DVD+/-RW Fixed optical drive bay SuperMulti DL Drive DVD+/-RW SuperMulti DL Fixed optical drive bay LightScribe Drive DVD/CD-RW Combo Drive Fixed optical drive bay...

  • Page 13: Technical Specifications

    QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications System Unit Dimensions (HxWxD) 1.27 in (at front) x 15.6 in x 11.22 in 32.3 mm (at front) x 396 mm x 285 mm Weight Starting at 6.5 lb (2.95 kg) NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies by configuration and components.
  • Page 14 HP Compaq 6830s Notebook PC Technical Specifications * Configurations of the HP Compaq 6830s that are ENERGY STAR qualified are identified as HP Compaq 6830s ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT registration varies by country. See www.epeat.net...
  • Page 15 2.5 hours Standby System ON 3 to 5 hours (depending on system power consumption) HP Fast Charge Technology Charges the battery up to 90% within 1.5 hours when system is OFF Displays 17.0-inch WXGA+ anti- Active Area (W x H) 14.5 x 9.0 in (36.7 x 22.9 cm)
  • Page 16 QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications 17.0-inch WXGA+ Active Area (W x H) 14.5 x 9.0 in (36.7 x 22.9 cm) BrightView Diagonal Size 17.0 in (43.2 cm) Surface Treatment BrightView Contrast Ratio 300:1 typical Refresh Rate 60 Hz...
  • Page 17 QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications 160 GB 7200 rpm SATA Drive Weight 0.25 lb (115 g) Hard Drive Capacity 160 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 18 QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications 500 GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Hard Drive Capacity 500 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 19 QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications 250 GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Hard Drive Capacity 250 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 20 QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications 120 GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Hard Drive Capacity 120 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 21 QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications DVD/CD-RW Combo Drive Access Times Random <110 ms CD (typical) <130 ms DVD (typical) Max Data Transfer Rate 24X CD-ROM Up to 3,600 KB/s 8X DVD Up to 10,800 KB/s 24X CD-R...
  • Page 22 QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications Blu-ray ROM DVD+/-RW Access Times Random <190 ms CD-ROM (typical) SuperMulti DL Drive <180 ms DVD-ROM (typical) <230 ms BD-ROM (typical) Max Data Transfer Rate 16X CD-ROM Up to 2400 KB/s 8X DVD-ROM...
  • Page 23 QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications Audio Output Quality Frequency Response 20 Hz – 20 kHz Signal to Noise Ratio >85 dB Total Harmonic Distortion 0.01% Noise Floor -110 dB Play/Record Sampling 8 kHz – 48kHz Rate(s) 16, 20 or 24-bit...
  • Page 24 QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications Fax Mode Capabilities TIA/EIA-578-B (Class 1) T.30, T.4 (Group 3) V.17 V.29 V.27ter V.21 Channel 2 Command Set V.250 (Partial) TIA-602 Identification: +GMI, +GMM, +GMR Port control: +IPR, +ICF, +IFC, +ILRR Modulation: +MS, +MR, +MA...
  • Page 25 QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications Antenna Structure 1 transmit; 2 receive (1x2) Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Modulation Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM...

  • Page 26: Configuration Utility

    QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications Altitude Operating 0 to 10,000 ft (3,048 m) Non-operating 0 to 50,000 ft (15,240 m) Configuration Utility Microsoft Windows XP Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible...
  • Page 27 QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications Modulation Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM Security Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES (support for key sizes of 128, 192, and 256 bits), 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST.
  • Page 28 QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows XP (required for Cisco Compatible Extensions support) Microsoft Windows Vista Microsoft Windows Vista Wireless Network Connection Manager. Intel IHV extensions for Windows Vista available to support Cisco Compatible Extensions.
  • Page 29 QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications Output Power (for OFDM; 15 dBm power varies by data rate) Power Consumption Idle associated: 250 mW Idle unassociated: 150 mW Transmit: 2.0 W (max) Receive: 2.0 W (max) Power Management ACPI compliant power management 802.11 compliant power saving mode...
  • Page 30 QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications Broadcom 4322AGN Wireless LAN Standards IEEE 802.11a IEEE 802.11b 802.11a/b/g/draft-n WiFi IEEE 802.11g Adapter IEEE 802.11n (draft 2.0) Interoperability Wi-Fi certified (802.11abg only) Cisco Compatible Extensions Program compliant (802.11abg only) with Microsoft Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN)
  • Page 31 QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications Antenna type High efficiency dual band antenna with spatial diversity, mounted in the display enclosure Range 802.11 a – Typical 600 feet – Outdoor Open Area (@6 Mbps) 150 feet – Indoor, Office environment 802.11 b –...
  • Page 32 QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications Data Rates and 3 Mbps data rate; throughput up to 2.17 Mbps Throughput Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric...
  • Page 33 QuickSpecs HP Compaq 6830s Notebook PC Technical Specifications Personal Area Networking Profile (PAN)* Human Interface Device Profile (HID)* FAX Profile (FAX) Basic Imaging Profile (BIP) Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP) * indicates the profile is also supported by Microsoft Windows XP SP2...

  • Page 34: Additional Information

    This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive – 2002/95/EC. information This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. This product is in compliance with California Proposition 65 (State of California;...
  • Page 35 Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards. Material Usage This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment (http://www.hp.com/hpinfo/globalcitizenship/environment/ supplychain/gen_specifications.html):...
  • Page 36 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
