HP Compaq 8710p Quickspecs

Notebook pc
Hide thumbs Also See for Compaq 8710p:

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual, User Manual
QuickSpecs

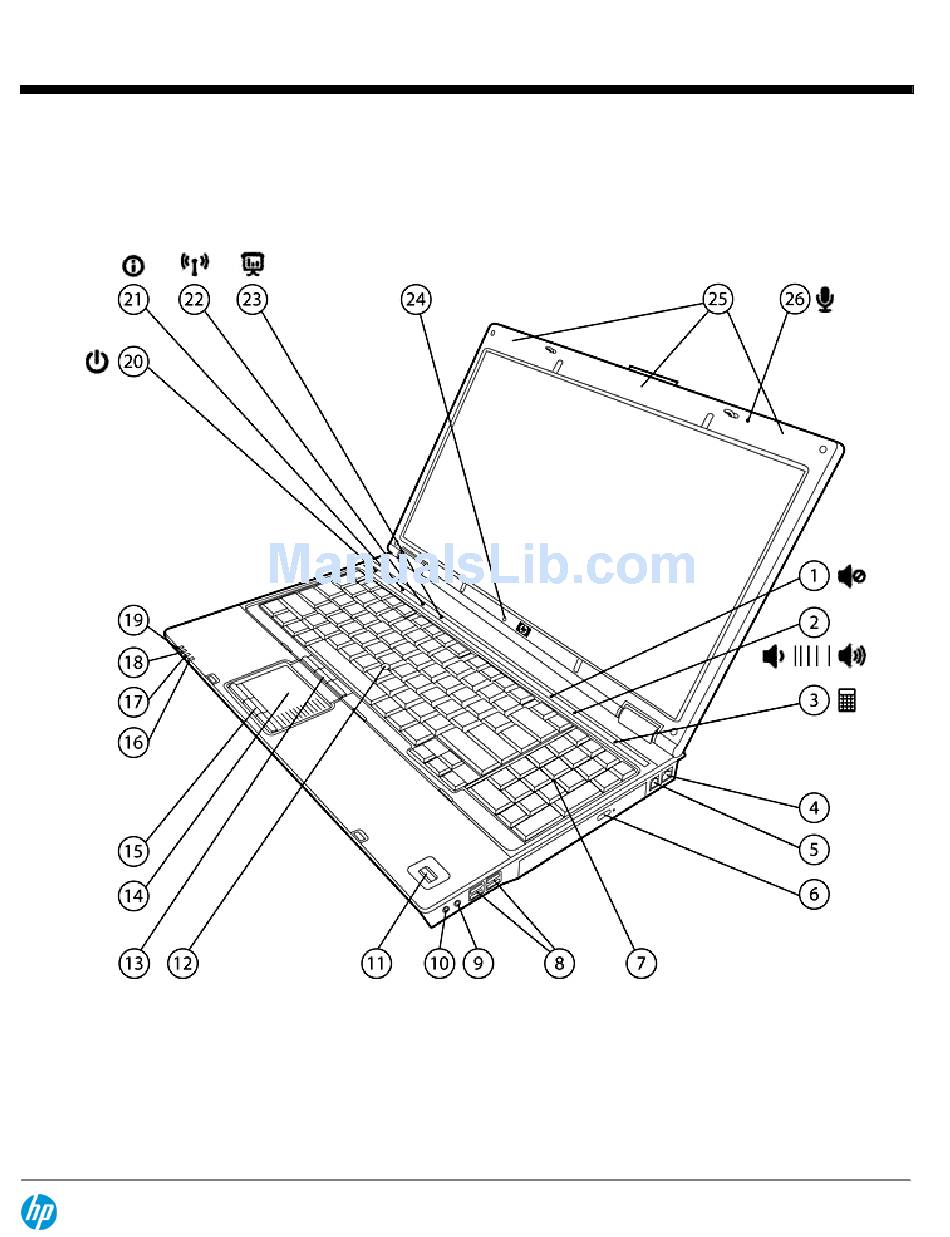

Overview
1.
Volume mute button with LED indicator
2.
Volume scroll zone with up/down LED indicators
3.
Calculator button
4.
RJ-45/Ethernet port
5.
RJ-11/modem port
6.
Optical drive
7.
Full numeric keypad
8.
4 USB 2.0 ports
DA - 12716 North America — Version 16 — July 14, 2008
HP Compaq 8710p Notebook PC
HP recommends Windows Vista
Business
14.
Touchpad with scroll zone
15.
Touchpad buttons, three
16.
Hard drive / optical drive activity / HP 3D DriveGuard LED
17.
Battery charging LED
18.
Power/standby LED
19.
Wireless on/off LED
20.
Power button with LED
21.
HP Info / HP QuickLook button with LED indicator
®
Page 1

Advertisement

loading

Related Manuals for HP Compaq 8710p

Summary of Contents for HP Compaq 8710p

  • Page 1 Volume mute button with LED indicator Touchpad with scroll zone Volume scroll zone with up/down LED indicators Touchpad buttons, three Calculator button Hard drive / optical drive activity / HP 3D DriveGuard LED RJ-45/Ethernet port Battery charging LED RJ-11/modem port Power/standby LED...
  • Page 2 Power connector 10. Integrated stereo speakers HDMI port 11. Media Card Reader VGA/external monitor connector 12. Hard drive activity / HP 3D DriveGuard LED 2 USB 2.0 ports 13. Battery charging LED 1394a port 14. Power/standby LED Integrated Smart Card Reader 15.
  • Page 3 Integrated 802.11 a/b/g/draft-n, a/b/g, or b/g wireless LAN module Bluetooth® Up to 250-GB 5400 rpm or 160-GB 7200 rpm user-removable hard drive with HP 3D DriveGuard protection Touch-sensitive controls for HP Info Center, HP QuickLook, wireless on/off, HP Presentation button, volume up, volume down,...

  • Page 4: Standard Features

    QuickSpecs HP Compaq 8710p Notebook PC Standard Features Processors Intel Core 2 Duo Processor T9500 (2.60 GHz, 6 MB L2 cache, 800 MHz FSB)* Intel Core 2 Duo Processor T9300 (2.50 GHz, 6 MB L2 cache, 800 MHz FSB)* Intel Core 2 Duo Processor T8300 (2.40 GHz, 3 MB L2 cache, 800 MHz FSB)* Intel Core 2 Duo Processor T8100 (2.10 GHz, 3 MB L2 cache, 800 MHz FSB)*...
  • Page 5 1920 x 1080 resolution and 7-channel audio with one convenient cable (not included). DVI port in optional HP Docking Station (sold separately) supports resolutions up to 1920 x 1200 for single-link DVI monitors and up to 2560 x 1600 for dual-link DVI monitors.
  • Page 6 Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
  • Page 7 19.05-mm x 19.05-mm key pitch (center-to-center spacing), 3.0-mm stroke, and comfort-dished keycaps. HP DuraKeys is a clear coating applied over the notebook keyboard that helps protect the finish and the printed characters on the keys. HP DuraFinish helps protect the finish on the keyboard deck, graphics, and icons from normal wear and tear.
  • Page 8 QuickSpecs HP Compaq 8710p Notebook PC Standard Features Interfaces PC Card slot One Type I/II PC Card slot Smart Card Reader Media Card Reader External monitor One – VGA 1394a One – 4-pin connector Stereo microphone in Stereo headphone/line Power connector...
  • Page 9 HP Backup and Recovery Each unit is shipped with HP Backup and Recovery Manager. HP Backup and Recovery Manager can provide data and system file protection for HP business PCs to enable fast recovery if the system becomes Manager corrupted or if important information is accidentally deleted.
  • Page 10 Total length including external AC adapter is 12 feet. HP Fast Charge* *HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 12-cell Ultra-Capacity batteries. Battery...
  • Page 11 ** HP 3-in-1 NAS Docking Station and HP Advanced Docking Station only Service and Support HP Services offers limited 3- year warranty; 1-year limited warranty on primary battery. On-site service and warranty upgrades are also available. For HP Care Pack services see http://www.hp.com/go/lookuptool.
  • Page 12 Communications 56K Modem Integrated Intel Gigabit Network Connection (10/100/1000 NIC) Integrated Wireless Intel Wireless WiFi Link 4965AGN HP Integrated Module with Bluetooth Wireless Technology Integrated Security TPM 1.2 Embedded Security Chip HP Fingerprint Sensor Pointing Device Touchpad with scroll zone and poinstick, both with three pick buttons...
  • Page 13 Communications 56K Modem Integrated Intel Gigabit Network Connection (10/100/1000 NIC) Integrated Wireless Intel Wireless WiFi Link 4965AGN HP Integrated Module with Bluetooth Wireless Technology Integrated Security TPM 1.2 Embedded Security Chip HP Fingerprint Sensor Pointing Device Touchpad with scroll zone and poinstick, both with three pick buttons...
  • Page 14 Communications 56K Modem Integrated Intel Gigabit Network Connection (10/100/1000 NIC) Integrated Wireless Intel Wireless WiFi Link 4965AGN HP Integrated Module with Bluetooth Wireless Technology Integrated Security TPM 1.2 Embedded Security Chip HP Fingerprint Sensor Pointing Device Touchpad with scroll zone and poinstick, both with three pick buttons...
  • Page 15 QuickSpecs HP Compaq 8710p Notebook PC Standard Features * Intel's numbering is not a measurement of higher performance. ** At initial boot, either 32- or 64-bit can be selected. This is a one time selection and the other version will be deleted.
  • Page 16 RT081AA#ABA Expansion Solutions HP Docking Station with Smart Adapter EN488AA#ABA HP Advanced Docking Station with Smart Adapter EN489AA#ABA HP 3-in1 NAS Docking Station with Smart Adapter EM537AA#ABA HP Standard Monitor Stand PA507A HP Adjustable Notebook Stand PA508A HP External MultiBay II...
  • Page 17 HP USB Optical Travel Mouse RH304AA HP Bluetooth PC Card Mouse RJ316AA * Requires HP Docking Station, HP Advanced Docking Station, or HP 3-in-1 NAS Docking Station DA - 12716 North America — Version 16 — July 14, 2008 Page 17...
  • Page 18 NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB of memory requires Windows Vista Business 64- bit or Linux.

  • Page 19: Optical Drive Support

    QuickSpecs HP Compaq 8710p Notebook PC Storage Optical Drive Support Quantity Supported Drive Bay DVD-ROM Drive Fixed optical drive bay DVD/CD-RW Combo Drive Fixed optical drive bay DVD+/-RW SuperMulti DL Drive Fixed optical drive bay DVD+/-RW SuperMulti DL LightScribe Fixed optical drive bay...

  • Page 20: Technical Specifications

    QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications System Unit Dimensions (HxWxD) 1.3 in (at front) x 15.5 in x 10.8 in Weight Starting from 7.5 lb NOTE: Height varies depending upon where on the notebook the measurement is made. Starting weight includes 8-cell battery, hard drive, 512-MB memory, 802.11 wireless communications module, Bluetooth,...
  • Page 21 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications HP 120W Smart AC Weight 1.52 lb (0.69 kg) (adapter) 0.29 lb (0.13 kg) (power cord) Adapter Dimensions 6.65 x 2.56 x 1.50 in (16.9 x 6.5 x 3.8 cm) Input Operating Input Voltage...
  • Page 22 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications Optional HP Extended Life Dimensions (H x W x L) 1.0 x 3.9 x 8.7 in (2.5 x 10.0 x 22.0 cm) Battery Weight 1.00 lb (0.455 kg) Cells/Type 8-cell Lithium-Ion Energy...
  • Page 23 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications 17.0-inch WXGA+ anti- Active Area (W x H) 14.5 x 9.0 in (36.7 x 22.9 cm) glare Diagonal Size 17.0 in (43.2 cm) Surface Treatment Anti-glare Contrast Ratio 300:1 typical Refresh Rate...
  • Page 24 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications 17.0-inch WSXGA+ wide- Active Area (W x H) 14.5 x 9.0 in (36.7 x 22.9 cm) viewing angle BrightView Diagonal Size 17.0 in (43.2 cm) Surface Treatment BrightView Contrast Ratio 300:1 typical...
  • Page 25 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications 120-GB 7200 rpm SATA Drive Weight 0.25 lb (113 g) Capacity 120 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-7 / SATA 1.0a Transfer Rate Synchronous (maximum) 100 MB/s (Drive Capability)
  • Page 26 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications 250-GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Capacity 250 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-7 / SATA 1.0a Transfer Rate Synchronous (maximum) 100 MB/s (Drive Capability)
  • Page 27 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications 120-GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Capacity 120 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-7 / SATA 1.0a Transfer Rate Synchronous (maximum) 100 MB/s (Drive Capability)
  • Page 28 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications DVD/CD-RW Combo Drive Access Times Random <110 ms CD <130 ms DVD Max Data Transfer Rate 24X CD-ROM 3,600 KB/s 8X DVD 10,800 KB/s 24X CD-R 3,600 KB/s 24X CD-RW 3,600 KB/s...
  • Page 29 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications DVD+/-RW SuperMulti DL Access Times Random <175 ms CD LightScribe Drive <230 ms DVD Max Data Transfer Rate 24X CD-ROM 3,600 KB/s 8X DVD 10,800 KB/s 24X CD-R 3,600 KB/s 16X CD-RW...
  • Page 30 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications 1X BD-RE 4,500 KB/s Transfer Mode Multiword DMA Mode Interface EIDE Supported Media (read) CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW.
  • Page 31 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications Audio Output Quality Frequency Response 20 Hz – 20 kHz Signal to Noise Ratio >85 dB Total Harmonic Distortion 0.01% Noise Floor -110 dB Play/Record Sampling 8 kHz – 48kHz Rate(s) 16, 20 or 24-bit...
  • Page 32 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications V.92 56K Data/Fax Modem Form Factor MDC 1.5 Daughtercard Power Management APM Revision 1.2, ACPI Support Approvals/ UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other...
  • Page 33 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications Frequency Band 2.4 GHz and 5 GHz Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Modulation Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM...

  • Page 34: Configuration Utility

    QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications Altitude Operating 0 to 10,000 ft (3,048 m) Non-operating 0 to 50,000 ft (15,240 m) Configuration Utility Microsoft Windows 2000 or XP Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager...
  • Page 35 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications Media Access Protocol CSMA/CA (Collision Avoidance) with ACK Network Architecture Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) Models Roaming IEEE 802.11 compliant roaming between access points Output Power (for CKK) 15 dBm Output Power (for OFDM;...
  • Page 36 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications Configuration Utility Microsoft Windows 2000 or XP Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows 2000 or XP (required for Cisco Compatible Extensions support)
  • Page 37 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications Power Consumption Transmit: 2.0 W (max) Receive: 1.5 W (max) Idle mode : 390 mW (nominal) Sleep mode: 20 mW (max) Power Management ACPI compliant power management 802.11 compliant power saving mode...
  • Page 38 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications with Bluetooth Wireless Dimensions 1.02 x 0.55 x 0.22 in (26 x 14 x 5.7 mm) Technology Frequency Band 2402 to 2480 MHz Number of Available 79 (1 MHz) available channels Channels Data Rates and 3 Mbps data rate;...
  • Page 39 QuickSpecs HP Compaq 8710p Notebook PC Technical Specifications Dial-Up Networking (DUN)* Generic Object Exchange Profile (GOEP) Object Push Profile (OPP)* File Transfer Profile (FTP) Synchronization Profile (SYNC) Hard Copy Cable Replacement (HCRP)* Personal Area Networking Profile (PAN)* Human Interface Device Profile (HID)*...
  • Page 40 This product is in compliance with the EU Restrictions of Hazardous Substances (RoHS) Directive – 2002/95/EC. information: This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. Keyboard complies with ISO standard: ISO 9995, EN 29241-4, and ISO/IEC 15412 Input devices of this product comply with ISO 9241, part 9.
  • Page 41 Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards. Material Usage This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment (http://www.hp.com/hpinfo/globalcitizenship/ environment/supplychain/gen_specifications.html):...
  • Page 42 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
