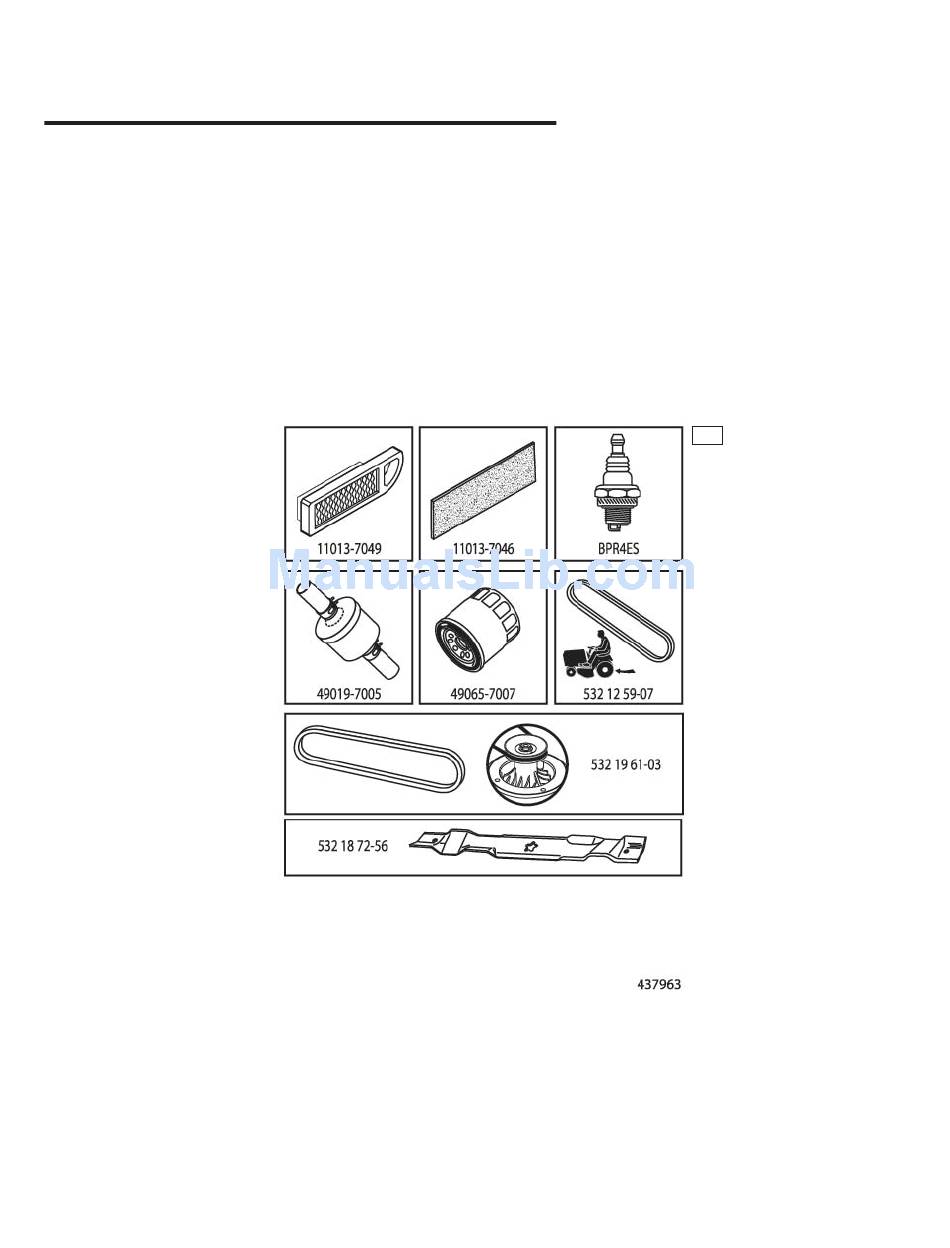

- Page 1 ILLUSTRATED PARTS LIST MFG. ID NO. 96041025001 264T CUSTOMER CATALOG NO. GTH PRODUCT NO. 960 41 02-50 580 65 80-20 Rev. 4...
-
Page 2: Wheels And Tires
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50 DECALS 27 PART PART DESCRIPTION DESCRIPTION 532 17 83-02 Decal, Drive Pedals 581 62 73-01 Decal, Hood Logo 532 19 63-57 Decal, Warning 532 14 08-37 Decal, Park Brake 532 19 68-41 Decal, Engine Warning Symbols 532 15 97-36... - Page 3 TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50 SCHEMATIC 38 SCH12 BATTERY SOLENOID STARTER FUSE AMMETER BLACK (OPTIONAL) ELECTRIC CLUTCH WHITE PTO SWITCH BLACK WHITE (DISENGAGED) WHITE BLACK GRAY CLUTCH/BRAKE (PEDAL UP) REVERSE SWITCH (NOT IN REVERSE) BLACK BLACK BLACK...
- Page 4 TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50 ELECTRICAL 32 T11S With 12V Outlet Option With Charge Indicator Option With Service Minder Option...
- Page 5 TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50 ELECTRICAL 32 PART DESCRIPTION 532 16 34-65 Battery 874 76 04-12 Bolt Hex Hd. 1/4-20 unc x 3/4 532 18 64-91 Battery Box 532 17 61-38 Switch Interlock 532 40 02-52 Harness Socket Light 532 00 41-52...
- Page 6 TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50 CHASSIS AND ENCLOSURES 39 Chassis-tex_GT HUSQ_ll_150...
- Page 7 TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50 CHASSIS AND ENCLOSURES 39 PART PART DESCRIPTION DESCRIPTION 532 43 97-52 Applique Sub Asm. 194 873 90 05-00 Nut Lock Hex Flange 5/16-18 532 43 74-72 Dash 195 532 40 41-37 Plug 12 V Adapter 532 44 11-77 Hood...
- Page 8 TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50 DRIVE 40 Drive-tex_K66_pedal_10_r2...
- Page 9 TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50 DRIVE 40 PART PART DESCRIPTION DESCRIPTION – – – – – – Transaxle, TuffTorq K66Y(426118) 532 40 72-46 Rod Pedal Control (Order parts from transaxle 532 42 91-64 Nut Push .625 manufacturer.) 532 40 52-57...
- Page 10 TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50 ENGINE 24 SPARK ARRESTER KIT engine-tex_Kawa-2cyl_8...
- Page 11 TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50 ENGINE 24 PART DESCRIPTION – – – – – – Kawasaki FS730V-AS50 (437952) (Order parts from engine manufacturer.) 532 44 59-62 Muffler 532 19 43-20 Keeper Belt Engine 532 17 93-35 Clutch Electric 532 19 43-43...
- Page 12 TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50 STEERING ASSEMBLY 41 steering-tex_TTR_9...
-
Page 13: Steering Assembly
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50 STEERING ASSEMBLY 41 PART DESCRIPTION 532 43 97-40 Wheel, Steering Husq SR 532 41 35-91 Axle Asm., Front 532 43 68-73 Spindle Asm., LH 532 43 68-74 Spindle Asm., RH 532 12 49-31 Bearing, Race Thrust Harden 532 12 17-48... - Page 14 TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50 MOWER DECK 44 mower_deck 54-tex_23_r3...
-
Page 15: Mower Deck
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50 MOWER DECK 44 PART PART DESCRIPTION DESCRIPTION 532 44 14-92 Deck Weldment Mower 532 18 76-07 Baffle Center 532 19 60-66 Cover Mandrel LH 532 17 85-15 Washer Hardened 532 19 71-81 Cover Mandrel RH 532 19 61-05... -
Page 16: Mower Lift
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50 MOWER LIFT 45 lift-tex_3 PART PART DESCRIPTION DESCRIPTION 532 42 20-27 Shaft Asm., Lift 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock 532 19 52-30 Lever Asm., Lift RH 532 40 34-07 Lift Link Asm. -
Page 17: Seat Assembly
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50 SEAT ASSEMBLY 42 seat-tex_6.5SL_1_r1 PART PART DESCRIPTION DESCRIPTION 532 42 40-73 Seat 873 80 05-00 Nut, Lock 5/16-18 unc 532 19 76-61 Handle Slide Seat 532 18 01-66 Bracket Pivot Fender 532 19 82-00 Spring Latch Seat... - Page 18 12.13.13 JM...
