Hawking H-WU300 User Manual

Ieee 802.11b mini wireless usb adapter
Hide thumbs Also See for H-WU300:
Table of Contents

Advertisement

Quick Links

Download this manual

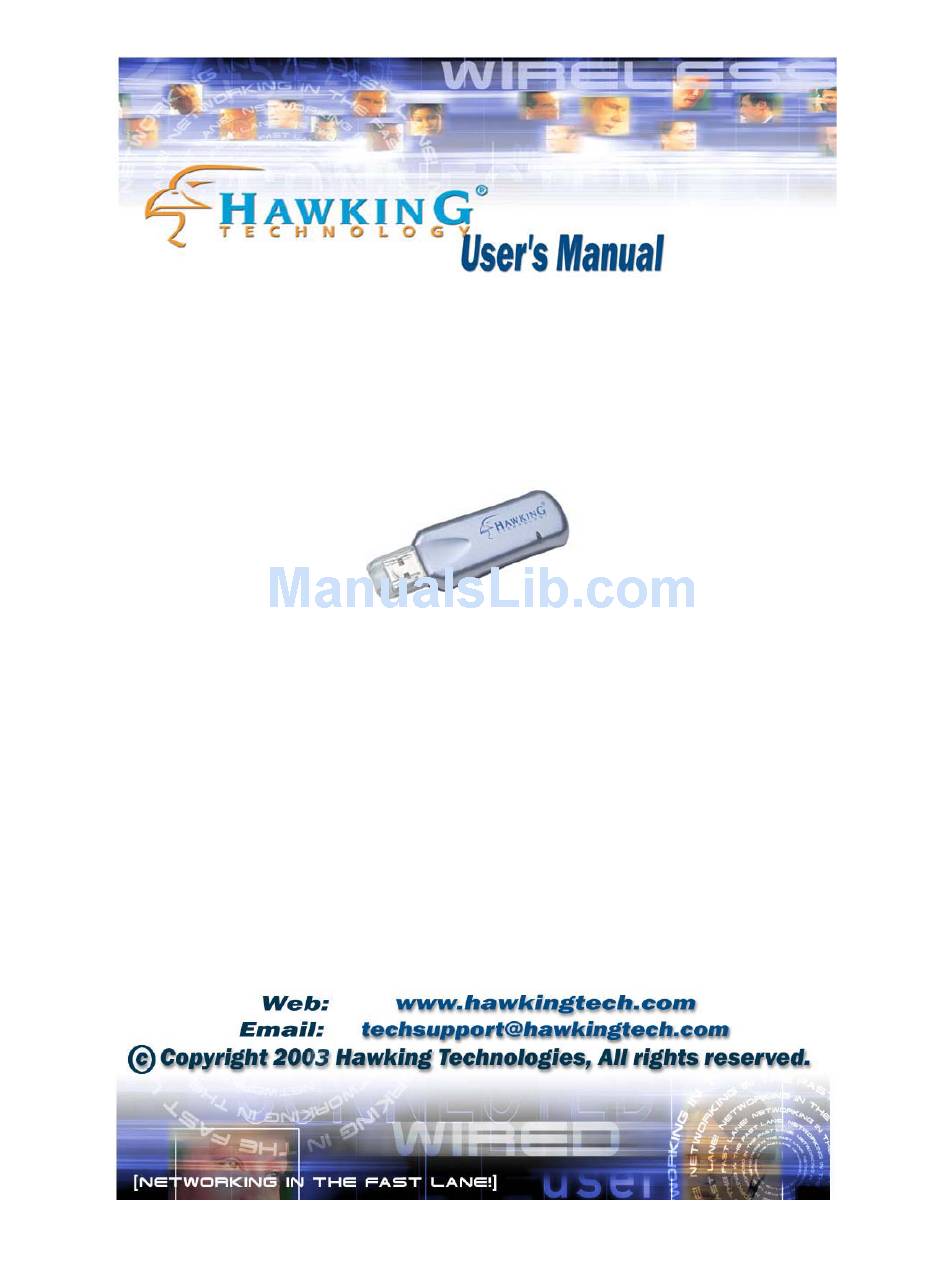

H-WU300
IEEE 802.11b
Mini Wireless USB Adapter

Advertisement

Table of Contents
loading

Related Manuals for Hawking H-WU300

Summary of Contents for Hawking H-WU300

  • Page 1 H-WU300 IEEE 802.11b Mini Wireless USB Adapter...
  • Page 2 Trademarks & Copyright Windows 95/98/ME and Windows NT/2000/XP are registered trademarks of Microsoft Corp. All other brands and product names are trademarks of their respective companies. No part of this publication may be reproduced in any form or by any means or used to make any derivative (such as translation, transformation or adaptation) without the express written consent of the manufacturer as stipulated by the United States Copyright Act of 1976.
  • Page 3 Hawking Technology reserves the right to revise or updates its products, software, or documentation without obligation to notify any individual or entity.

  • Page 4: Table Of Contents

    Table of Contents Regulatory Information _________________________ Error! Bookmark not defined. 1. Welcome __________________________________________________________4 1.1 Kit Contents______________________________________________________5 1.2 Main Features of 802.11b WLAN USB Adapter ________________________6 1.3 Wireless Networking Scenarios ______________________________________7 1.4 Advantages for Using Wireless Network_______________________________9 2. Quick Start to Wireless Networking____________________________________10 2.1 Installation ______________________________________________________10 2.2 Connecting to an Exiting Network __________________________________12 3.

  • Page 5: Welcome

    1. Welcome Thank you for purchasing the Hawking Technologies 802.11b Mini WLAN USB Adapter. This user’s guide will instruct you how to install your device and configure it for your specific application. The manual will also teach you about the IEEE802.11b Wireless LAN standard and how it works.

  • Page 6: Kit Contents

    1.1 Kit Contents The 802.11b WLAN USB Adapter kit should include the following items: One 802.11b WLAN USB Adapter, one CD and one Quick Start Guide. a. One 802.11b WLAN USB Adapter b. One Software CD including: 1. Utility & Driver Installation Software 2.

  • Page 7: Main Features Of 802.11B Wlan Usb Adapter

    1.2 Main Features of 802.11b WLAN USB Adapter USB Connection Status LED Off: Power Off. Blinking: The USB adapter is powered on but no wireless connection is found. Steady Green: Wireless connection is linked. 802.11b WLAN USB Adapter features: High-speed wireless connection, up to 11 Mbps IEEE802.11b (DSSS) standard for 2.4 GHz Wireless LAN Plug-and-Play installation Solid design with an integrated antenna...

  • Page 8: Wireless Networking Scenarios

    1.3 Wireless Networking Scenarios As our 802.11b WLAN USB Adapter is interoperable and compatible with other IEEE 802.11b compliant products from other manufacturers, it offers you the most freedom to establish your ideal wireless network. Therefore, after installing 802.11b WLAN USB Adapter, you can connect your computer to: a.
  • Page 9 A. Peer-to-Peer Networking: An Ad Hoc Network could be easily set up with some PCs and this 802.11b WLAN USB Adapter or our other WLAN devices. Therefore, it is very suitable to build a network for temporary use, such as for demonstration in exhibition, for new sales point/branch use and alike.

  • Page 10: Advantages For Using Wireless Network

    1.4 Advantages for Using Wireless Network The Mini WLAN USB Adapter can wirelessly transmit and receive data, minimizing the need for wired connections, at speeds up to eleven megabits per second. With the 802.11b WLAN USB Adapter you can locate computers on your network anywhere without wires and cables.

  • Page 11: Quick Start To Wireless Networking

    2. Quick Start to Wireless Networking 2.1 Installation 1. Insert the installation CD. It automatically starts the setup program for WLAN Utility and Driver. 2. Follow the installation wizard to complete the software installation process. 3. Connect the Mini Wireless USB Adapter to the USB port of your computer or laptop...
  • Page 12 4. Your Operating System will detect new device and verify the driver automatically. You may check it in “Device Manager”. See details of verifying the driver in User’s Guide Chapter 3.2. Note! During installation procedure, each operating system may prompt different specific options: Windows 98SE: The system will request the original Windows CD during the installation process.

  • Page 13: Connecting To An Exiting Network

    2.2 Connecting to an Existing Network 1. Double click the shortcut icon. The IEEE 802.11b WLAN Utility window appears. You can also see a small red icon in Windows System Tray. Disconnected 2. Select “Site Survey” tab. From the list, you can check the informations of each network, and then choose one network to join.
  • Page 14 3. Select “Setting” tab. Enter the chosen SSID, select a proper Network Type and then click “Apply”. Click “OK” button when appears. 4. In the “LAN Status” tab, you can check the Access Point SSID, Access Point MAC, Signal Strength and Signal Quality of the connected network. Once connected, the Status Icon in the Windows System Tray will then change the color accordingly.

  • Page 15: Step-By-Step Installation Guide

    3. Step-by-Step Installation Guide This section will lead you through the installation of the Mini WLAN USB Adapter and IEEE802.11b WLAN software in detail. People who are familiar with the installation and settings of wireless device may refer to quick start guide to establish a network in a snap.

  • Page 16: Install The Ieee802.11B Wlan Driver / Utility

    3.1 Install the IEEE802.11b WLAN Driver / Utility Note! Please install the IEEE802.11b WLAN Driver & Utility before inserting the Mini WLAN USB Adapter. 1. Insert the installation CD. Insert the installation CD into your CD-ROM drive. The setup program automatically starts. 2.
  • Page 17 4. Click “Yes”. 5. Read the destination folder and click “Next”. The default destination folder is displayed in the setup dialog box. Click “Next” to go on to Step 7. You may change the default folder by clicking “Browse” to select the destination folder you prefer (go on to Step 6).
  • Page 18 6. Select the Program Folder and click “Next”. 7. Click “Next”. 8. Click “Yes”. You are asked whether to add an IEEE802.11b WLAN Utility shortcut to your desktop. Click “Yes” to create one.
  • Page 19 9. The user manual is published in Portable Document Format (PDF). If Acrobat Reader does not exist in your system, the following message will be prompted to automatically enter the Acrobat Reader installation screen. Please follow the instructions to complete the Acrobat Reader installation. 10.

  • Page 20: Additional Setup Processes

    3.1.1 Additional Setup Processes During the software installation procedure, each operating system may prompt different specific options. Mostly, you will be asked to add some necessary protocols and to edit some networking settings: 1. Windows 98SE: The system may request the original Windows CD during the installation process.

  • Page 21: Disable Windows Xp Zero-Configuration

    3.1.2 Disable Windows XP Zero-Configuration In Windows XP, it is recommended that you use the IEEE 802.11b WLAN Utility. Right after the installation, before opening the Utility, please follow the steps below to disable the Windows XP Zero Configuration: 1. Go to “Control Panel” and double click “Network Connections”. 2.

  • Page 22: Verifying The Driver/Utility

    3.2 Verifying the Driver/Utility 1. Windows 98SE/Me: Step 1. Right-click “My Computer” icon on the desktop and choose “Properties”. Step 2. Select “Device Manager” tab and open “Network adapters”. You should see your 802.11b WLAN USB Adapter in the list. Highlight it and click “Properties”...

  • Page 23: Ieee802.11B Wlan Utility

    3.3 IEEE802.11b WLAN Utility 802.11b WLAN USB Adapter has its own management software, named IEEE802.11b WLAN Utility, and users can control all functions provided with it. The Utility icon appears in the Windows System Tray after clicking the IEEE802.11b WLAN Utility shortcut on your desktop. The Utility includes six tabs: LAN Status, Setting, Site Survey, Link Information, Diagnostic and About.

  • Page 24: Basic Setting For Infrastructure Mode

    3.4 Basic Setting for Infrastructure Mode To connect with an Access Point, please follow the process below: Select the “Setting” tab Select “Infrastructure” for Network Type Select or enter the correct SSID Press the “Apply” button. SSID is the group name that will be shared by every member of your wireless network .You will only be able to connect with an Access Point (AP), which has the same SSID.

  • Page 25: Basic Setting For 802.11Ad Hoc Mode/Ad Hoc Mode

    3.5 Basic Setting for 802.11Ad Hoc Mode/Ad Hoc Mode If you have more computers and only want to place them in a local area network, or you want to communicate directly without using an Access Point or any connection to a wired network, then you can select the “802.11 Ad Hoc”...
  • Page 26 You must select a SSID if you use the 802.11 Ad hoc. If you have trouble connecting other brands’ IEEE 802.11b devices using the “802.11 Ad Hoc” mode, please try “Ad Hoc” mode. The next section shows you the basic setting of the “Ad Hoc” mode. B.

  • Page 27: Advanced Settings

    3.6 Advanced Settings Click the “Advance” button in the Setting page to edit the advanced settings for your 802.11b WLAN USB Adapter. Regarding the transmission rate, there are four options: A. Fully Auto (Default) B. Fixed 11Mbps C. Fixed 5.5Mbps D.

  • Page 28: Encryption Function

    3.7 Encryption Function You may enhance the security of your network by enabling the “Encryption” function. The WEP Required Mode enables you to define the encryption keys that your 802.11b WLAN USB Adapter should use. Caution: If you wish to enable the “Encryption” function, you must enable this function for all computers of your network, and the WEP key needs to be the same for all IEEE802.11b stations.
  • Page 29 b. Select “Manual 128 bits (ASCII)” and enter a 13-digit WEP Key. c. Select “Manual 64 bits” and enter a 10-digit WEP Key. d. Select “Manual 128 bits” and enter a 26-digit WEP Key.

  • Page 30: Remove Your 802.11B Wlan Usb Adapter

    3.8 Remove your Mini Wireless USB Adapter If you do not need the wireless connectivity of your Mini Wireless USB Adapter, you can unplug and remove your 802.11b WLAN USB Adapter directly. Note! When removing the 802.11b WLAN USB Adapter, you will lose your connection to the network.

  • Page 31: Uninstall The Ieee802.11B Wlan Utility / Driver

    3.9 Uninstall the IEEE802.11b WLAN Utility / Driver 1. Make sure the Utility is closed. 2. Open Control Panel, and then click Add or Remove Programs > IEEE802.11bWLAN Utility > Remove 3. Follow the uninstall wizard to complete the uninstallation. 4.

  • Page 32: Using The Utility

    4. Using the Utility 4.1 LAN Status Tab If you want to know the connecting status in Infrastructure Mode or 802.11 Ad Hoc Mode, choose LAN Status tab in IEEE802.11b WLAN Utility window. 1. Infrastructure Mode: The SSID and MAC of the access Point, which your computer connects to, will appear in the screen if you choose the Infrastructure Mode.

  • Page 33: Link Information Tab

    4.2 Link Information Tab The Link Information tab shows information of Current Channel, Current Transmission Rate, Own MAC Address, Current Connection State, Wireless Network Adapter IP Address, Wireless Network Adapter Subnet Mask, and Wireless Network Adapter Default Gateway. 4.3 Site Survey Tab This tab gives you all the information of each Access Point within the communication range, so that you can select the Access Point with the strongest signal for better performance.

  • Page 34: Diagnostic Tab

    4.4 Diagnostic Tab Click “Start Diagnostic” button to check errors in hardware, firmware, and software of your 802.11b WLAN USB Adapter. In case of any errors occur, please click “View Error details” button and print it out to present to your dealer or distributor. 4.5 About Tab This tab provides you the version information of Firmware, Driver and Utility.

  • Page 35: Network Application

    5. Network Application This section consists of the network applications of The Mini Wireless USB Adapter, including: How To Survey the network neighborhood How To Share Your Folder with Your Network Member(s) How To Share Your Printer with Your Network Member(s) How To Access the Shared Folder(s)/File(s) of Your Network Members(s) How To Use the Shared Printer(s) of Your Network Member(s) In fact, the network applications of the Mini Wireless USB Adapter are the same as...

  • Page 36: File Sharing

    5.2 File Sharing The Mini Wireless USB Adapter allows the sharing of files between computers that are logged onto the same wireless network. If you want to share your folder “My Documents” with other computers of the wireless network, please highlight the folder “My Documents”...

  • Page 37: Using The Shared Folder

    5.3 Using the Shared Folder If you would like to access a shared folder stored in other stations of the same network, please follow the instructions below: 1. Double-click the “My Network Places” icon, and then double-click the computer where the shared folder is located. 2.

  • Page 38: Product Specifications

    6. Product Specifications Frequency range 2.4G ~ 2.4835Ghz Modulation DSSS (Direct Sequence Spread Spectrum) with technique BPSK (1Mbps), QPSK (2Mbps), and CCK (5.5 and 11Mbps) Core Logic Intersil Prism 3.0 Host interface USB V1.1 - external: 26mm(W)*77.2mm(L)*10.9mm(H) Dimension Weight - external: 20g Form factor -MiniUSB type B Operation voltage...
  • Page 39 Humidity 5% ~90% (non-condensing) 1 year standard warranty, 3 years optional Warranty EMC certificate Media access CSMA/CA with ACK protocol LED indicator WLAN LED: indicates networking activity - Off: Power Off. -Blinking: The USB adapter is powered on but no wireless connection is made yet.
  • Page 40 Contact: Hawking Technologies, Inc. www.hawkingtech.com 1-888-662-8828 USA: Irvine, CA Europe: Rotterdam, The Netherlands Techsupport: Phone: 949.580.0878 Email: techsupport@hawkingtech.com...
