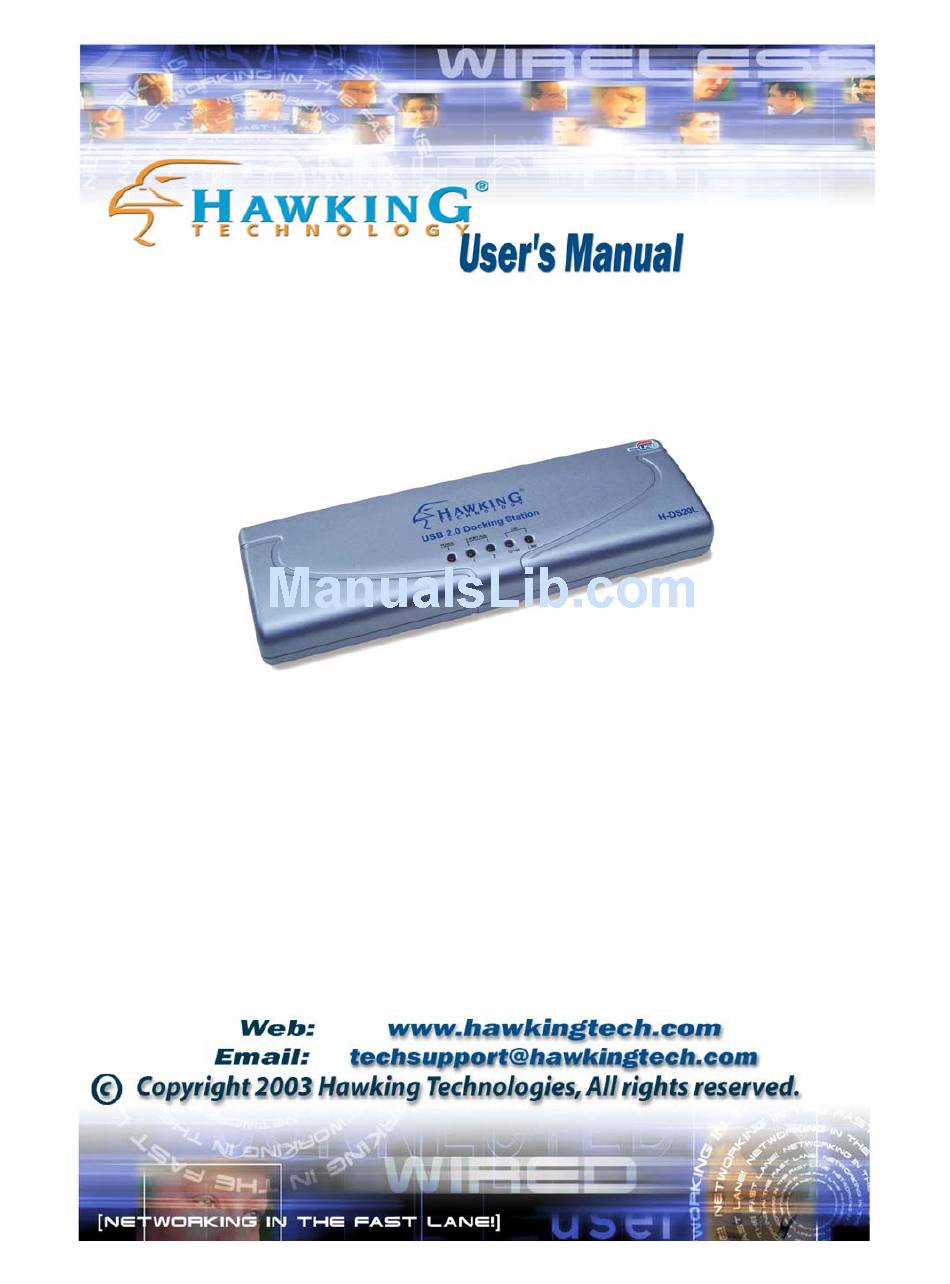

- Page 1 H-DS20L USB 2.0 Docking Station...
-
Page 2: Limited Warranty
VCCI Mark Warning LIMITED WARRANTY Hawking Technology guarantees that every USB Docking Station is free from physical defects in material and workmanship under normal use for two (2) years from the date of purchase. If the product proves defective during this two-year warranty period, call Hawking Customer Service in order to obtain a Return Authorization number. -
Page 3: Table Of Contents
Basic Overview……………………………………………………………………...…….4 Safety Instructions………………………………………………………………...4 Introduction……………………………………………………………………….4 Features…………………………………………………………………………...4 System Requirements……………………………………………………………..5 Package Contents…………………………………………………………………5 Supported Operating Systems…………………………………………………….5 Technical Specifications…………………………………………………………………..6 Hardware Installation…………………………………………………………………..…7 Software Installation………………………………………………………………………9... -
Page 4: Basic Overview
User’s Manual. INTRODUCTION Hawking Technology’s USB 2.0 Docking Station is a unique expansion unit specially designed to transform a Notebook Computer into a desktop equivalent. It provides several desktop system connectivity capacities. The USB docking station allows you to add up to four USB ports to your PC and up to a total of 127 additional hubs and other devices. -
Page 5: System Requirements
SYSTEM REQUIREMENTS PC or Mac MS Windows 98SE, ME, 2000, XP & Mac OS9.x & 10.1 Available USB Port 64 MB RAM or above Pentium 233 MHz or higher PACKAGE CONTENTS Docking Station – 1pc DC5V Power supply - 1pc User’s Manual - 1pc Software driver CD-ROM - 1pc Type-A to Type-B USB Cable - 1pc... -
Page 6: Technical Specifications
Type Docking Station With Computer Port 1 upstream port Type B receptacle I/O Ports 2 USB 2.0 downstream ports, Type A receptacle 1 PS/2 Keyboard port Mini Din 6-pin 1 PS/2 Mouse port Mini Din 6-pin 1 File Transfer port Type B receptacle 1 serial port DB 9-pin male 1 parallel port DB 25-pin female 1 10/100M LAN port... -
Page 7: Hardware Installation
LED Status Indicators Once the USB Port Replicator is connected, the Hub Link LED is lit green and the LAN LED is lit after the Ethernet cable is connected. Type # of LEDs Color Descriptions Docking Station w/ Figure 1. USB Port Replicator Ports LAN Port Link to another PC (II) Red The AC to DC power adapter is plugged... - Page 8 Figure 2. Upstream Port and Power Connector Connect to power adaptor Connect to PC (I) Connect the power adapter and plug it into the back of the docking station. Find an unused electrical outlet and plug it in the power adapter. Plug the flat end (A plug) of the USB cable into a free USB port on your PC.
-
Page 9: Software Installation
1. Two-Port Hub Before you connect a USB device to one of the Hub ports, please follow the software installation instructions provided in the subsequent pages of this User’s Manual. 2. PS/2 ports (Keyboard and Mouse port) If you connect a PS/2 keyboard or mouse to the docking station and you are using a PC, you will not need the software driver. - Page 10 Installation for Windows 98SE & ME 1. The H-DS20L Install wizard searches for new drivers. Click Next to continue. 2. Select "Search for the best driver for your device [Recommended]," and click Next to continue.
- Page 11 3. Select "CD-ROM drive", and click Next to continue. 4. Windows will now search for the driver file for the device. Click Next to continue.
- Page 12 5. Windows has finished installing the software. Click Finish to end the Wizard. * NOTE: Repeat the previous steps as needed. 6. If your operating system is Windows ME, click No to continue. Otherwise, click Yes to reboot your computer.
- Page 13 7. The "Welcome to the Install Shield Wizard for PC-Linq" dialog window appears. Click Next to continue. Setup will add the program icon to the Program Folder listed below. Click Next to continue. Windows has finished installing the software. Click Finish to end the Wizard.
- Page 14 10. The PC-Linq icon will appear on the desktop. Installation verification Because the docking station is USB 2.0, the hub driver is based on the host device. The device name may vary on your host device driver. Windows 98SE...
- Page 16 Windows ME...
- Page 18 Installation for Windows 2000 1. The H-DS20L Install wizard helps you install a device driver. Click Next to continue. 2. Select "Search for a suitable driver for my device [recommended]." Click Next to continue.
- Page 19 3. Select "Floppy disk drives" and click Next to continue. The wizard found a driver. Click Next to continue.
- Page 20 5. Select "C:\WINNT\system32\drivers" for built-in hub driver (usbhub20.sys). Click Open to continue. 6. Click OK to continue.
- Page 21 7. Windows has finished installing the software. Click Finish to continue. 8. This wizard helps you install a device driver. Click Next to continue.
- Page 22 9. Select "Search for a suitable driver for my device [recommended]." Click Next to continue. 10. Select CD-ROM drives and click Next to continue.
- Page 23 11. The wizard found a driver. Click Next to continue. 12. Windows has finished installing the software. Click Finish to continue. * NOTE: Repeat the previous steps as needed.
- Page 24 13. The "Welcome to the Install Shield Wizard for PC-linq" dialog window appears. Click Next to continue. Setup will add the program icon to the Program Folder. You may type a new folder name, or se lect the default folder name. Click Next to continue. The PC-Linq icon will appear on the desktop.
- Page 25 Installation verification Because our docking station is USB 2.0, the hub driver is based on the host device. The device name may vary on your host device driver. Windows 2000...
- Page 26 Installation for Windows XP The H-DS20L Install wizard helps you install a device driver. Select "Install the software automatically [Recommended]." Click Next to continue. 2. Click Continue Anyway.
- Page 27 3. The wizard has finished installing the software. Click Finish to continue. * NOTE: Repeat the previous steps as needed. 4. The "Welcome to the Install Shield Wizard for PC-linq" dialog window appears. Click Next to continue.
- Page 28 5. Setup will add the program icon to the Program Folder. You may type a new folder name, or select the default folder name. Click Next to continue. The PC-Linq icon Note: If you connect the docking station to a PC via a USB 2.0 port, PCI card, or hub, it will ask for the operating system for the USB 2.0 driver.
- Page 29 Installation verification Because the docking station is USB 2.0, the hub driver is based on the host device. The device name may vary on your host device driver. Windows XP...
