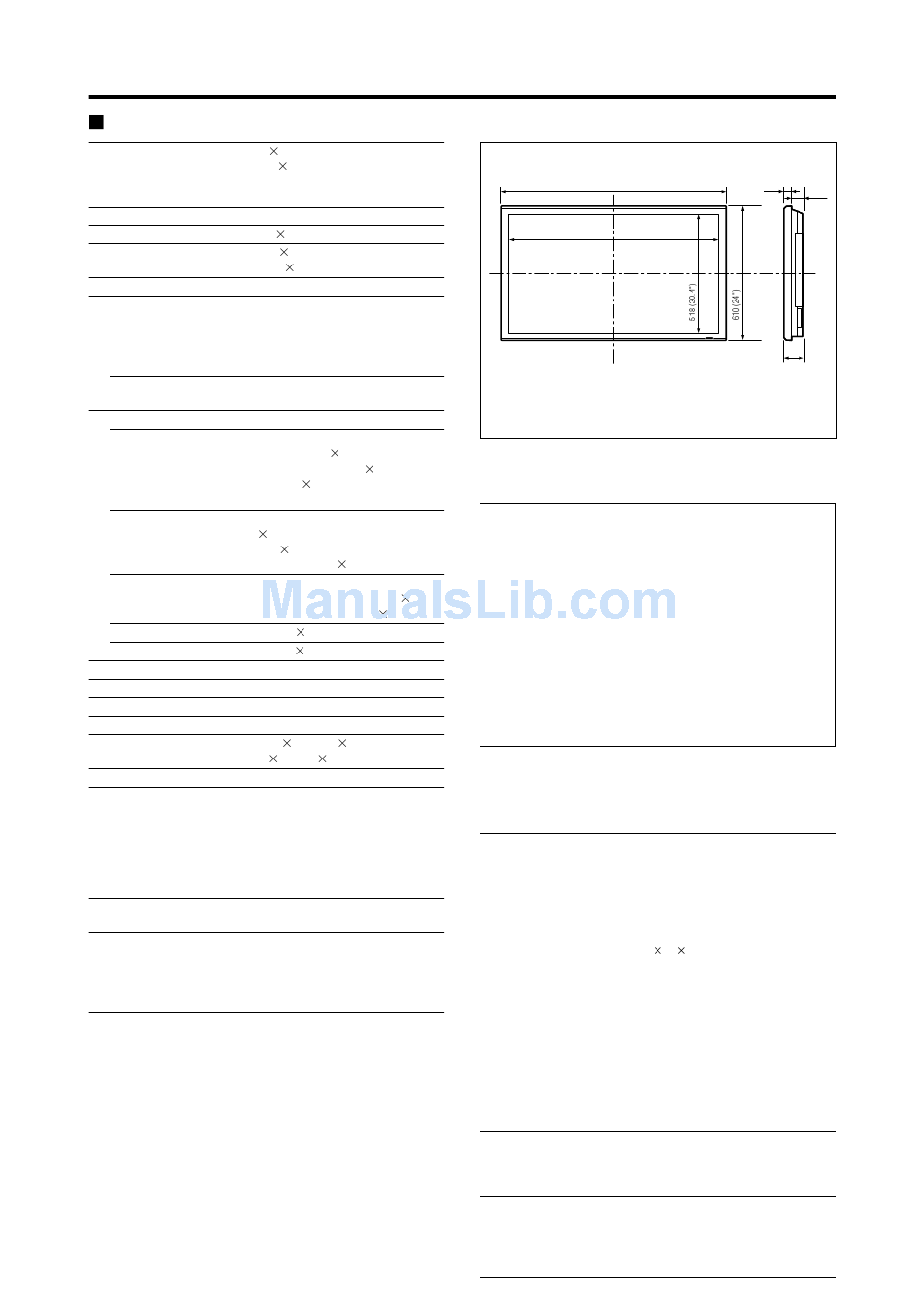

42XGA

Screen Size 918(H) 518(V) mm
36.1"(H) 20.4"(V) inches
diagonal 42"
Installed AR (Anti-Reflection) Filter
Aspect Ratio
16 : 9
Resolution
1024(H) 768(V) pixels
Pixel Pitch
0.897(H) 0.675(V) mm
0.036"(H) 0.027"(V) inches
Color Reproduction
256 levels, 16,770,000 colors
Signals
Synchronization Range
Horizontal : 15.5 to 110 kHz
(automatic : step scan)
Vertical : 50.0 to 120.0 Hz
(automatic : step scan)
Input Signals
RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*
Input Terminals
(VIDEO1 and RGB1 can also be used as OUTPUT terminals)
RGB
Visual 1 (Analog)
mini D-sub 15-pin 1
Visual 2 (Analog) BNC (R, G, B, H/CS, V) 1*
Visual 3 (Digital) DVI-I 24-pin 1*
(Not compatible with analog input)
Video
Visual 1
BNC 1
Visual 2
RCA-pin 1
Visual 3
S-Video: DIN 4-pin 1
DVD/HD/DTV
Visual 1
RCA-pin (Y, PB[CB], PR[CR]) 1*
Visual 2
BNC (Y, PB[CB], PR[CR]) 1*
Audio
Stereo RCA 3(Selectable)
External Control
D-sub 9-pin 1(RS-232C)
Sound output
8W+8W at 6 ohm
Power Supply
AC100-240V 50/60Hz
Current Rating
5.6A (maximum)
Power Consumption
350W (typical)
Dimensions
1018 (W) 610 (H) 89(D) mm
40 (W) 24 (H) 3.5 (D) inches
Weight
29.0 kg / 63.9 lbs (without stand)
Environmental Considerations
Operating Temperature 0°C to 40°C / 32°F to 104°F
Humidity
20 to 80% (no condensation)
Altitude
0 to 2800 m / 0 to 9180 feet
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity
10 to 90% (no condensation)
Altitude
0 to 3000 m / 0 to 9840 feet
Front Panel User Controls Power on/off, Input source select,
Volume up/down, OSM control
Remote Control Functions
Power on/off, Input source select, OSM
control,Volume up/down, Cursor (UP,
DOWN,LEFT, RIGHT), Pointer, Zoom up/
down, Off timer, Wireless/ Wired remote
control
OSM Functions
Picture (Contrast/Brightness/Sharpness/
Color/Tint/Picture mode/Noise reduction/
Color temperature/White balance/Gamma/
Low tone/Color tune), Audio (Bass/Treble/
Balance/Audio input), Image Adjust (Aspect
mode/V-Position /H-Position/V-Height /H-
Width/Auto Picture/Fine picture/Picture
adjustment), Option1 (OSM/BNC Input/D-
Sub Input/RGB Select/HD Select/Input Skip/
All Reset), Option2 (Power management/
Cinema mode/Long life [PLE, Orbiter,
Inverse, White, Screen wiper]/Gray level),
Option3 (Timer/Power on mode/Control
lock/IR Remote/Loop out/ID number/Video
wall [Divider, Position, Disp. mode, Auto ID,
Image adjust, Power on delay, PLE link,
Timer]), Advanced OSM, Language*, Color
1 1 1
, DVD* , DTV*
The features and specifications may be subject to change without
2
notice.
3
1
* HD/DVD/DTV input signals supported on this
system
480P (60 Hz)
525P (60 Hz)
576P (50 Hz)
1
625P (50 Hz)
1, 2
*
720P (60 Hz)
1080I (50 Hz)
2
* The 5-BNC connectors are used as RGB/PC2 and
HD/DVD2 input. Select one of them under "BNC
INPUT".
3
* Not compatable with HDCP.
Other Features
Accessories
Regulations
E-50
3-113
CONFIDENTIAL
30
(1.18")
1018 (40")
918 (36.1")
Units are in mm
480I (60 Hz)
525I (60 Hz)
576I (50 Hz)
625I (50 Hz)
1035I (60 Hz)
1080I (60 Hz)
system, Source information
*English, German, French, Italian, Spanish,
Swedish, Chinese
Motion compensated 3D Scan Converter
(NTSC, PAL, 480I, 576I, 525I, 625I,
1035I, 1080I), 2-3 pull down Converter
(NTSC, 480I, 525I, 1035I, 1080I), 2-2
pull down Converter (PAL, 576I, 625I,
NTSC, 480I, 525I), Digital Zoom
Function (100-900% Selectable), Video
Wall 2 2/3 3 multi screen, Self
Diagnosis, Anti Image Burn (PLE
LOCK1~3, INVERSE, WHITE,
ORBITER (Auto1,2/Manual), SCREEN
WIPER), Color Temperature select (high/
mid/mid low/low, user has 4 memories),
Control lock (Except power SW), Auto
Picture, Input Skip, Color Tune, Low
Tone (3 mode), Auto ID, Programmable
Timer, Gamma Correction (4 mode),
Loop through interface, Plug and play
(DDC1, DDC2b, RGB3: DDC2b only)
Remote control with two AAA batteries,
Power cord, User's Manual, Safety metal
fittings, Screw for Safety metal fittings,
Ferrite cores, Bands, Cable clamps
Meets class A requirements (EN55022,
EN61000-3-2, EN61000-3-3, EN55024)
Meets Low Voltage Directive
(EN60950, SEMKO Approved)
Meets AS/NZS 3548 Class A
59
(2.32")
89
(3.5")
(inch)
