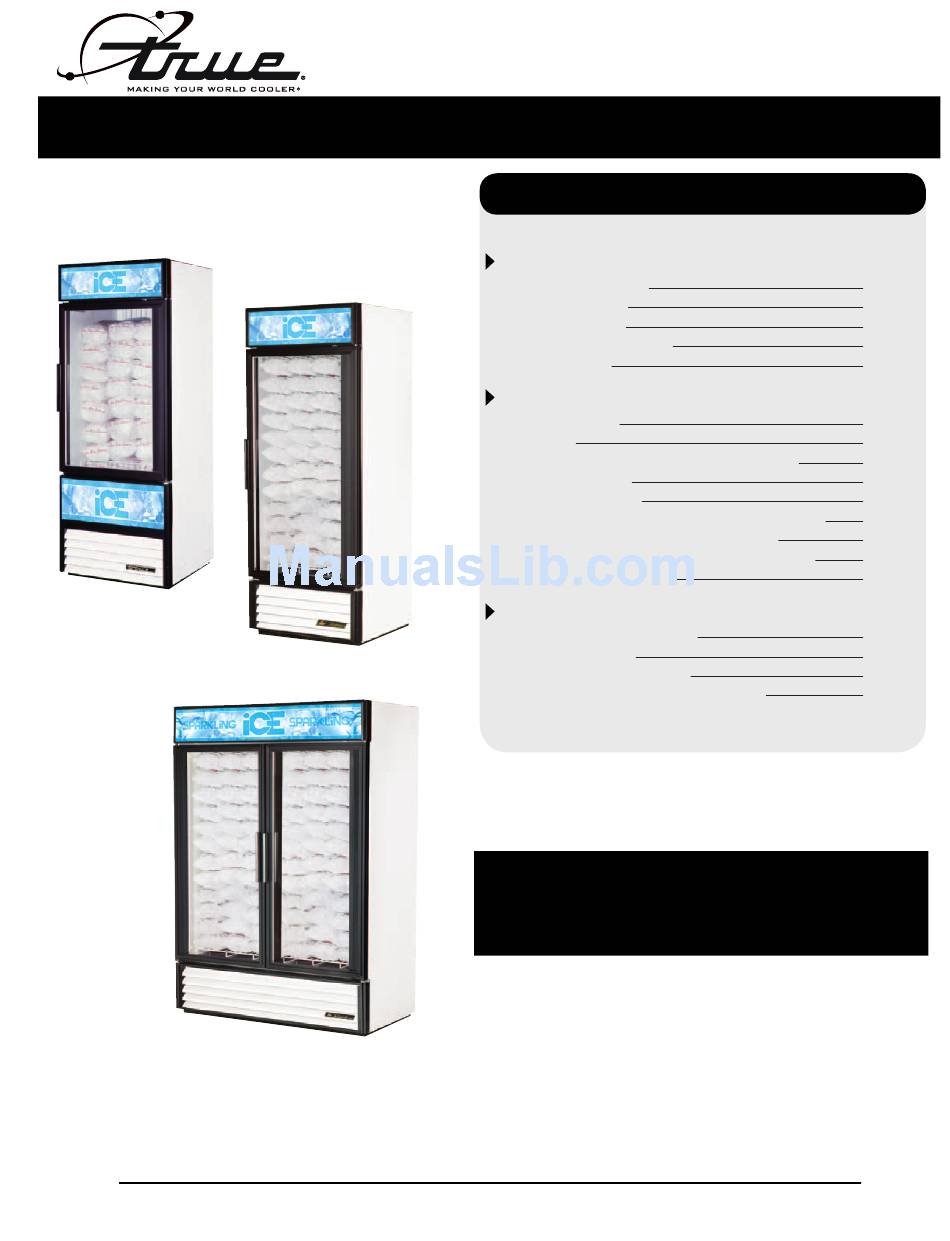

IN S T AL L AT I O N M A N U A L F OR G D IM
( G L AS S D O O R IC E M E R C H A N D I S E R S )
GDIM-26
GDIM-49
GDIM - G L ASS DOOR
ICE MERC HANDI SE RS
GDIM-26NT
............ www.truemfg.com ............
2001 East Terra Lane • O'Fallon, Missouri 63366-4434
(636) 240-2400 • FAX (636) 272-2408 • INT'L FAX (636) 272-7546 • (800) 325-6152
Parts Department (800) 424-TRUE • Parts Department FAX# (636) 272-9471
TABLE OF CONTENTS
Do's and Don'ts
Connecting Electricity
Locating & Installation of Leg/Castors
Leveling Cabinet
Wire Gauge Chart
Sealing Cabinet to Floor & Electrical Inst.
Start-up and Light Switch Location
Field Troubleshooting
Maintenance, Care and Cleaning
Cleaning Condenser Coil
Cabinet Cleaning
CONGRATULATIONS!
You have just purchased the finest commercial
freezer available. You can expect many years of
trouble-free operation.
1
2
3
4
4
5
5
6
7
8
9
10
11
12-13
14-15
16-17
17
18
#897013
