Caution
Please tighten each of the 4 Fixing Nuts one rotation at a time until all are
completely tightened.
※ Completely fastening one Nut at a time can cause damage to the VGA Chipset.
Make sure the Cooler Base is installed in full adhesion with the VGA Chipset.
Make sure there is no physical interference between the VGA card components
and the VGA Cooler.
7) VGA Cooler Installation

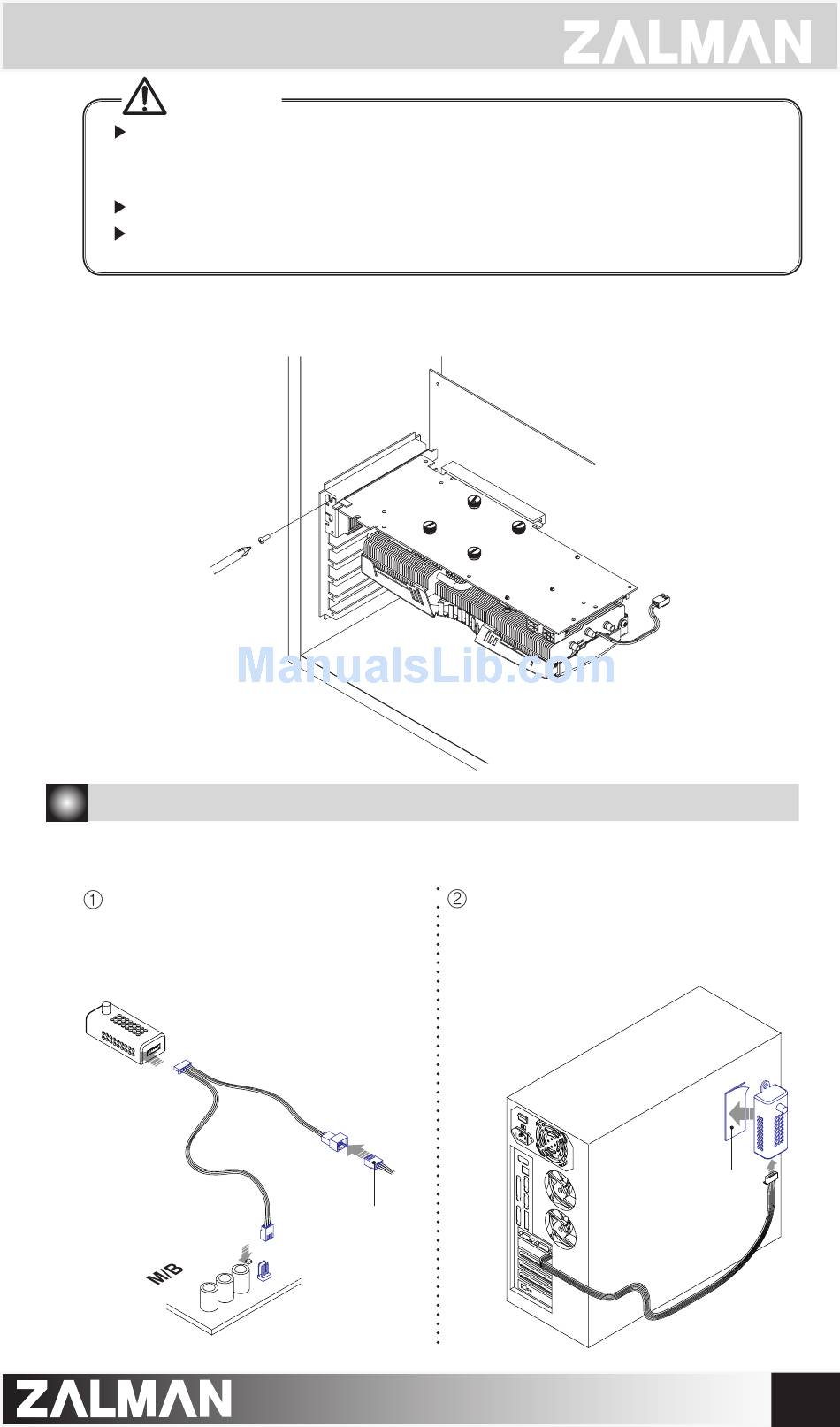

Install the VGA card to the slot after mouting the cooler.
6. Fan Mate 2 Installation and Usage
1) Fan Mate 2 Installation
Connect both the motherboard
and the Fan Connector to the
Fan Mate 2 as show in the
diagram below.
Fan Connector(Cooler)
.COM
Fan Mate 2 can be installed to the
side of the case using a Double-
Sided Tape.
Double-Sided Tape
