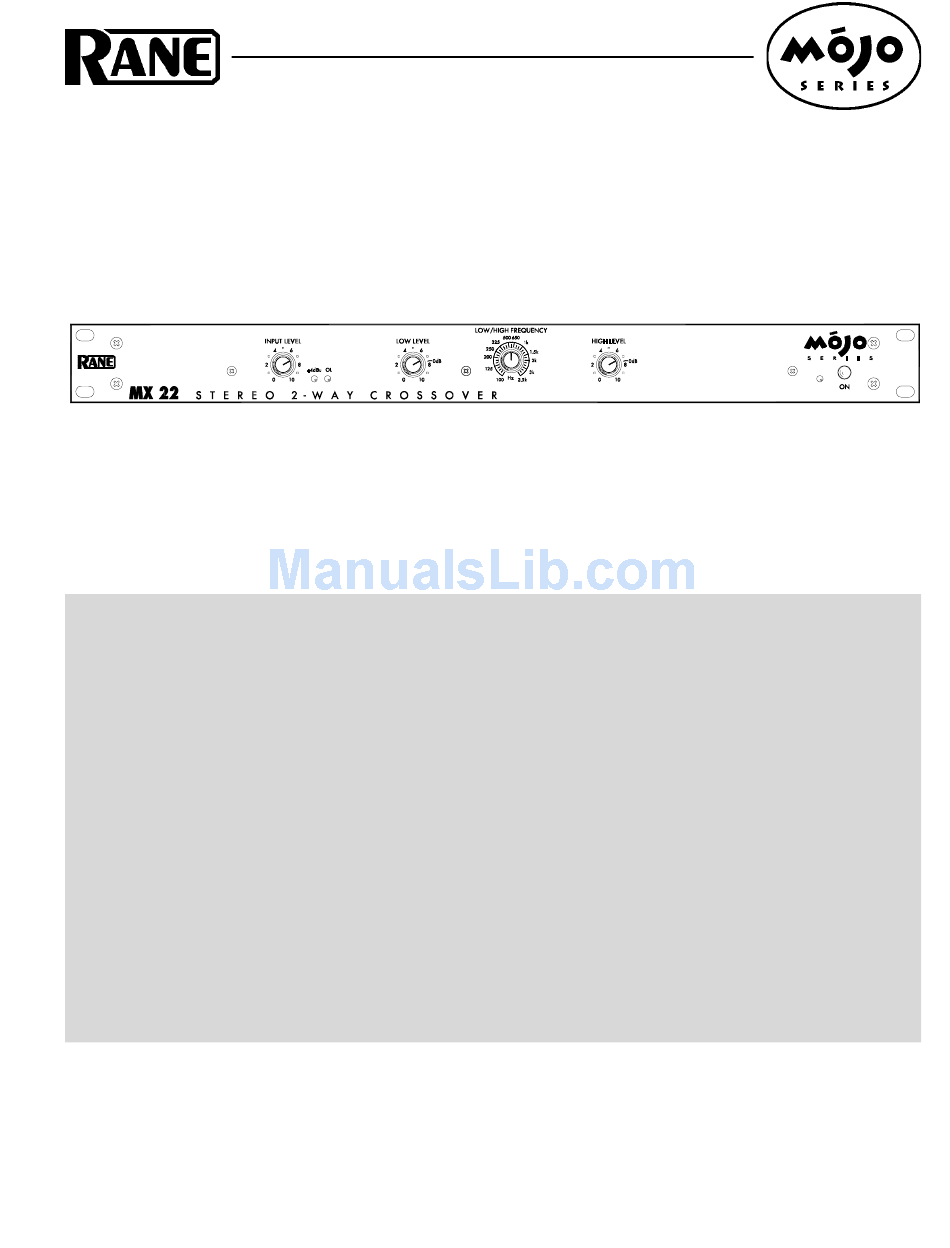

OPERATORS MANUAL

QUICK START

Whoa, hold on there. Even if you don't read manuals as a matter of principle, at least read this section to avoid hurting
yourself or your equipment.
Connect the MX 22 with the power off. Balanced XLR cables are recommended, but if you must convert to ¼" connec-
tors, buy or make a cable like the ones on page Manual-11 and keep them as short as possible. This device uses low imped-
ance balanced line drivers. Do not connect the "+" or "–" output pins to ground, as this may cause the power supply to
shut down. For unbalanced use, leave the unused output pin ("+" or "–") unterminated.
Consult the speaker manufacturer for the correct crossover FREQUENCY setting. As rugged as some drivers are, many
(especially compression drivers) will not accept frequencies outside of their normal range without producing distortion and
possibly self-destruction.
With all equipment turned off and LEVEL controls down, begin making connections to the system as shown on page
Manual-4 or 5. When turning on the system, switch on the power amplifiers last. Now, feed the MX 22 some program
material. Start by turning up the LOW LEVEL and HIGH LEVEL to the 0 dB marks. Slowly increase the INPUT
LEVEL, even if it goes all the way to 10, so the +4 dBu (green) light blinks occasionally and the OL (red) light stays out.
This delivers the best signal-to-noise performance.
The MONO SUB OUTPUT is a sum of the Left and Right Low Outputs. The MONO SUB LEVEL adjusts only this
Output and is not affected by the LOW LEVEL control.. When using a single subwoofer along with full-range cabinets
that have internal crossovers, set the 100 Hz FILTER to OUT, allowing the front panel FREQUENCY to control the
subwoofer crossover point. When used with biamp cabinets and a subwoofer, set the 100 Hz FILTER switch to IN to
allow only frequencies below 100 Hz at this output jack. This way, the MX 22 almost does the job of a Stereo 3-Way
crossover, but without removing that awesome bass from the Left and Right Low Outputs.
WEAR PARTS: This product contains no wear parts.
STEREO 2-WAY CROSSOVER
MX 22
Manual-1
