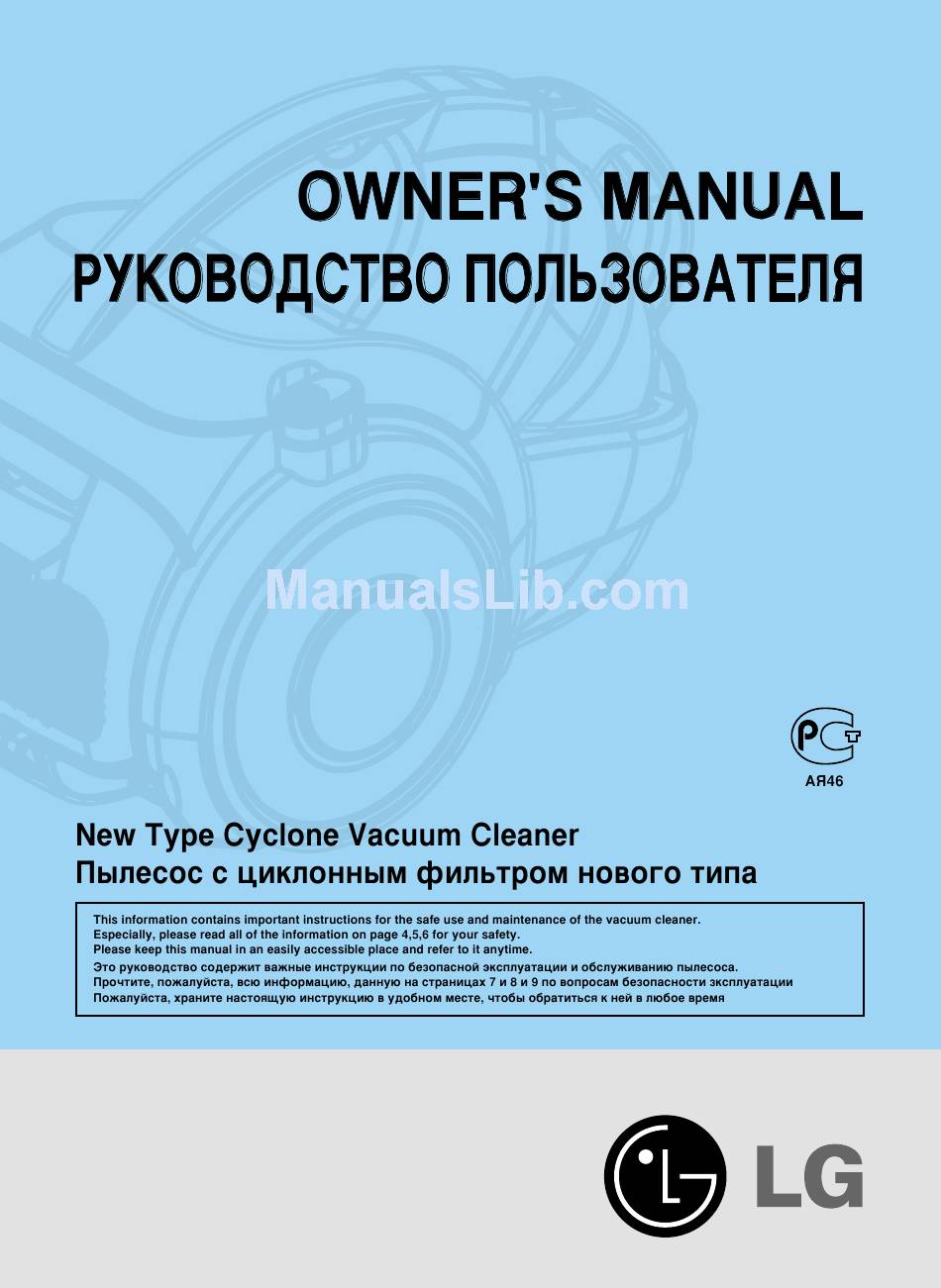

- Page 1 VK882****...
- Page 3 Important safety instructions ................4~5 How to use .........................8 Assembling vacuum cleaner........................8 Operating vacuum cleaner........................10 Using carpet and floor nozzle ........................11 Using All Floor and mini turbine nozzle ....................12 Using accessory nozzles ........................13 Using the Sani punch nozzle .........................14 Emptying dust tank ..........................18 Cleaning dust tank ..........................19 Cleaning air filter and motor safety filter ....................20 Cleaning exhaust filter ...........................21...
- Page 4 Personal injury or product damage could result. In these • Keep children away and beware of obstructions when cases, contact LG Electronics Service Agent to avoid hazard. rewinding the cord to prevent personal injury The cord moves rapidly when rewinding.
- Page 5 • Only use parts produced or recommended by LG Electronics Service Agents. Failure to do so could result in product damage. • Use only as described in this manual. Use only with LG recommended or approved attachments and acces- sories.
- Page 8 (depending on model) (depending on model) (depending on model) (depending on model) (depending on model)
- Page 10 How to operate Indicator and alarm sound Park mode Storage • Pull out the power cord to the desired • The indicator light of the hose handle • To store during vacuuming, for • When you have switched off length and plug into the socket. is on and alarm will sound when dust example to move a small piece and unplugged the vacuum...
- Page 11 How to Use Using carpet and floor nozzle Carpet Carpet Pedal Floor Floor Cleaning carpet and floor nozzle • Clean the hole and brush of the nozzle.
- Page 12 How to Use Using All Floor nozzle and mini turbine nozzle Carpet Carpet Pedal Floor Floor Cleaning All Floor nozzle • Open the cover by pulling the hook. • Clean the hole and brush of the nozzle.
-
Page 13: Upholstery Nozzle
How to Use Using accessory nozzles Upholstery nozzle Dusting brush Crevice tool ç‡Ò‡‰Í‡ ‰Îfl ˜ËÒÚÍË Ó·Ë‚ÍË è˚΂‡fl ˘ÂÚ͇ ôÂ΂‡fl ̇҇‰Í‡ Upholstery Nozzle Dusting Brush Crevice Tool Upholstery Nozzle is for vacuuming upholstery, Dusting Brush is for vacuuming pic- Crevice Tool is for vacuuming in those mattresses, etc. - Page 14 Features How to use This nozzle picks up even dust inside through beating. Follow the directions below for proper use. The bottom part can be separated to be cleaned. Since the bottom does not stick to the surface, vacuuming is easy. Assembly Connect the nozzle to the telescopic tube.
- Page 15 This Sani Punch nozzle is for effective cleaning of beds and blankets to remove mites and dust. Effective cleaning Bed & blanket Bulky & heavy blanket Light blanket & sheet When using on the bed When using on the floor Lay out the blanket It is easier to clean a light blanket or sheet and vacuum it on the bed...
- Page 16 For simple cleaning of the vacuum nozzle, detach the Sani Punch nozzle from the telescopic tube and attach the crevice tool to vacuum dust. Bottom Since the vibrator inside is composed of precision parts, never disassemble the body. Be careful not to let foreign objects clog the air suction part on top of the vacuum nozzle. Since removal of the punch bar may cause performance problems, do not warp or remove it.
- Page 17 Follow the instruction below for through washing. (Do not soak the entire body of the vacuum nozzle in water, it may cause the vibrator to malfunction) Bottom plate Bottom plate Punch bar Punch bar Press the button on the Wipe all the soiled parts Wash the removed bot- rear side of the vacuum of the vacuum nozzle...
- Page 19 • Press tank separation button and pull out dust tank. • Raise dust tank cap • Dry fully in shade so that moisture is entirely removed.
- Page 20 If suction power is decreased after cleaning dust tank or indicator light is on, clean air filter and motor safety filter. Air filter and motor safety filter are located at the up of vacuum cleaner in the above figure. • Open the Vacuum cleaner cover by pushing the button. •...
- Page 21 • The exhaust filter is a reuseable. • To clean the exhaust filter, remove the Exhaust filter cover on the body by pulling out it. • Separate the exhaust filter. • Dust off filter.(Do not wash filter with water.) • The exhaust filter should be cleaned at least a year. Exhaust filter cover assembling •...
- Page 22 Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
- Page 24 P/No.: MFL51190605 Made in KOREA...
