Lenovo B5400/M5400/M5400 Touch Hardware Maintenance Manual

1120 Fan assembly and heat sink assembly

For access, remove these FRUs in order:
• "1010 Battery pack" on page 34
• "1020 Base cover" on page 35
• "1040 Optical drive" on page 38
• "1050 Hard disk drive and solid state disk" on page 39
• "1060 PCI Express Mini Card for wireless LAN" on page 42
• "1080 Keyboard" on page 45
• "1090 Keyboard bezel" on page 47
• "1100 USB board and function board" on page 51
• "1110 System board" on page 53

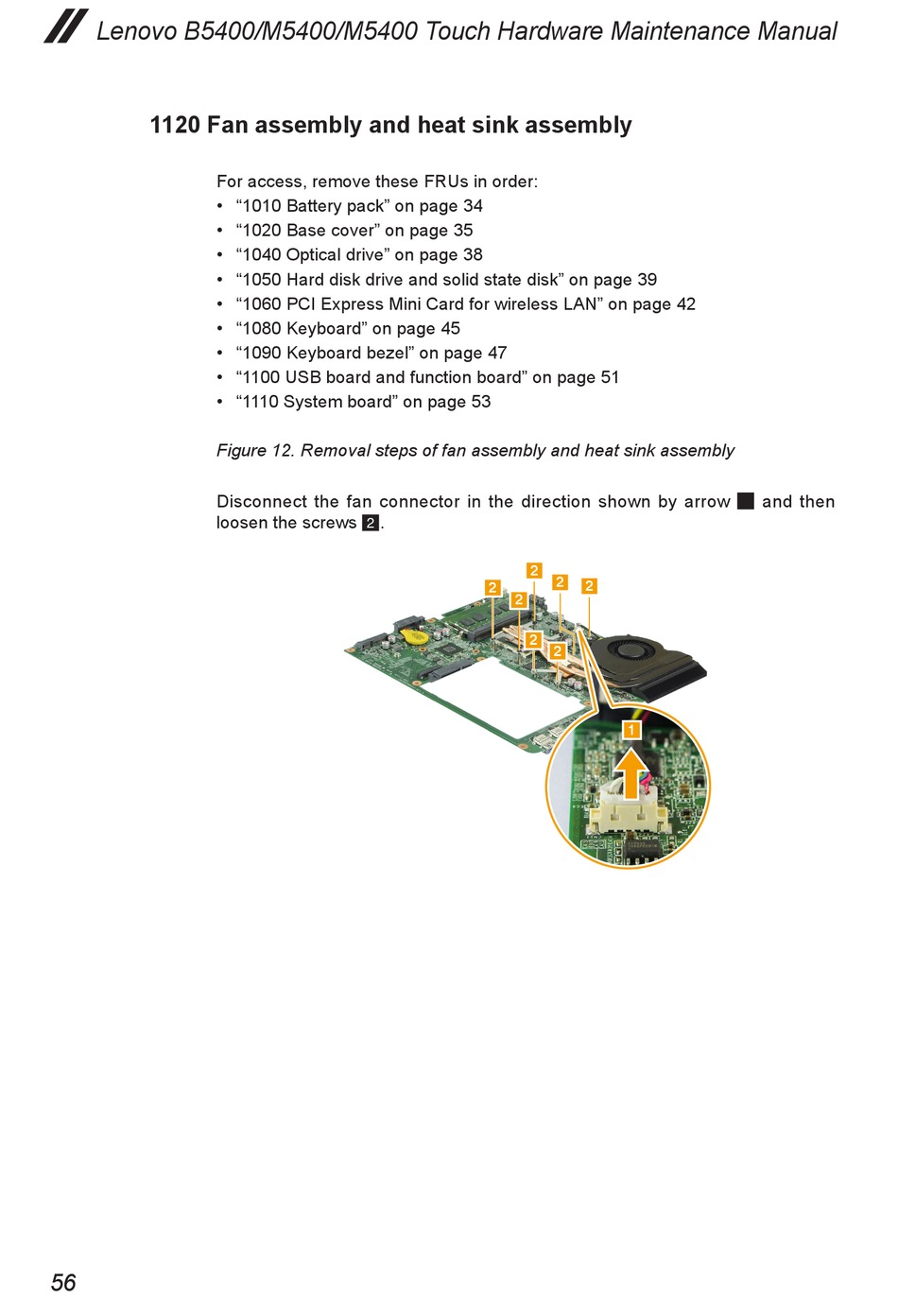

Figure 12. Removal steps of fan assembly and heat sink assembly
Disconnect the fan connector in the direction shown by arrow and then
1
loosen the screws .
2
56
