Coleman 9392-162 Instructions

When You Are Ready To Set
Up Your Shelter
–Select a level area clear of
rocks, branches and other hard or
sharp objects.
–Do not set up your shelter under
trees.
–For easier set up, two or more
people are recommended.
1
Ridge Pole
–Begin by placing the ridge pole the
desired direction for the shelter
doors and in the center of the
area you will be setting up the
shelter. Note the hubs at each
end and center port. (illus. 1, 2)
2
Leg Pole Assembly
–Leave the bottom section of each leg
pole unassembled (illus. 4), allowing
for easier set up low to the ground.
–Assemble the Leg Poles (4)
–Insert the end with the spring clip
of Pole (A) into the ridge pole hub
port marked (A) until it clicks into
position. (illus. 3)
–Insert upright pole (B) in the same
manner and to the same end as (A).
(illus. 3, 4)
–Repeat at other end of Ridge Pole.
–Insert Center Poles (Red) into Center
Port. (illus. 5)
16'x12' Screen Shelter
Instructions apply to Part Number 9392-162
POLE ASSEMBLY PARTS
Ridge Pole
Part No. 9392-102
Upright Leg Poles (A)
Part No. 9392-103
Upright Leg Poles (B)
Part No. 9392-104
Center Poles (Red)
Part No. 9392-105
Side Wall Part No. 9392-106

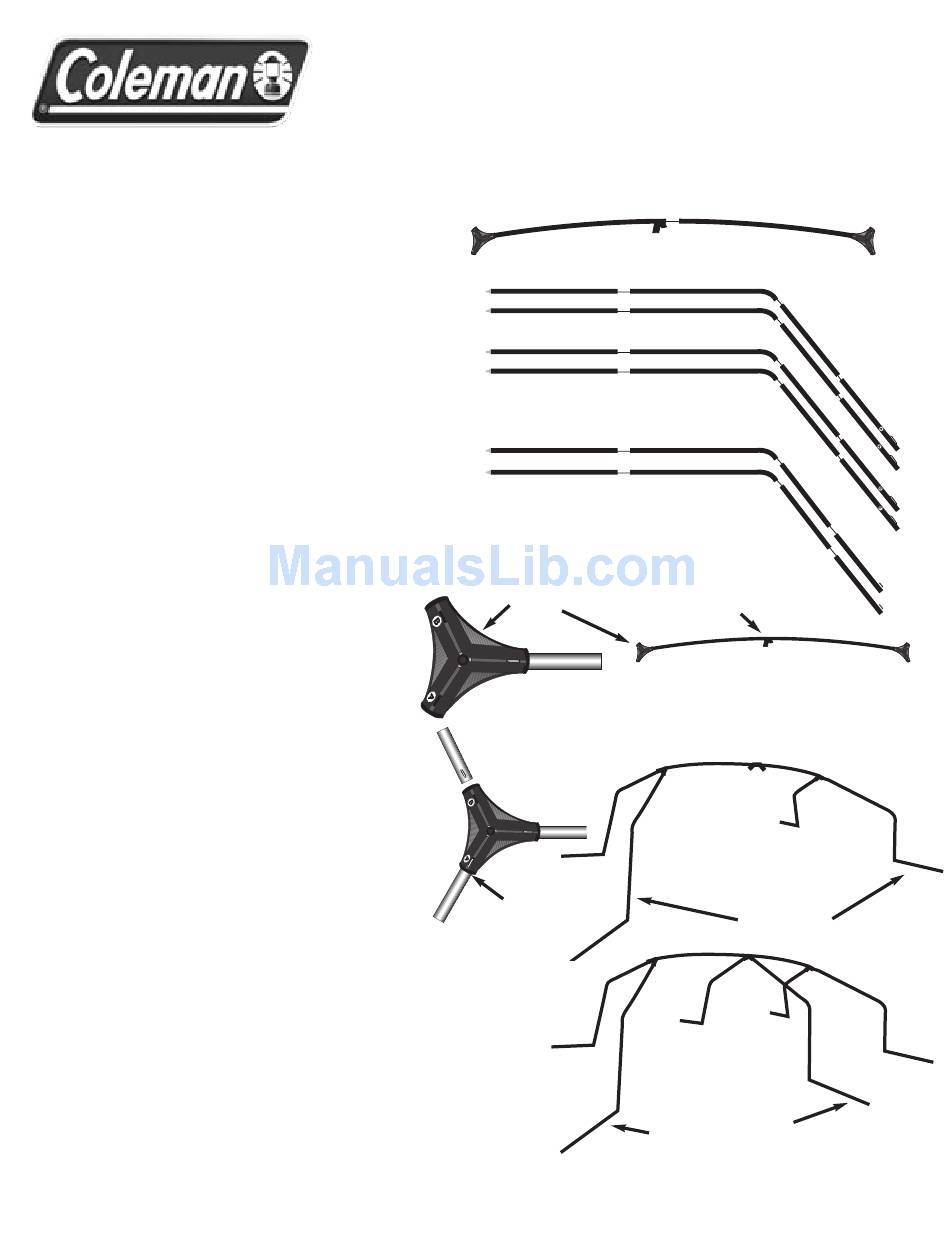

Illus. 3
Insert Leg
Poles (A) & (B)
into end hub
of Ridge Pole
End
Center Port
Hub
Illus. 1
Illus. 2
Ridge pole
hub
Hub
Leg Poles (A) & (B)
insert into one end of
ridge Pole Hub.
Illus. 5
Leg Poles and
Ridge Pole assembled
into hubs.
Leave bottom section
of leg poles
unassembled.
Ridge Pole assembled
Center Port
Hub
Illus. 4
Leg Pole
