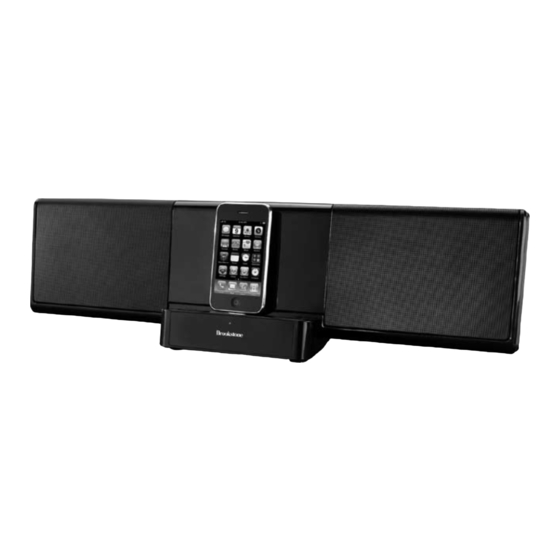

Brookstone Slimline Music System User Manual

Slimline music system with total control remote

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Slimline Music System

With total control remote

Table of Contents

Summary of Contents for Brookstone Slimline Music System

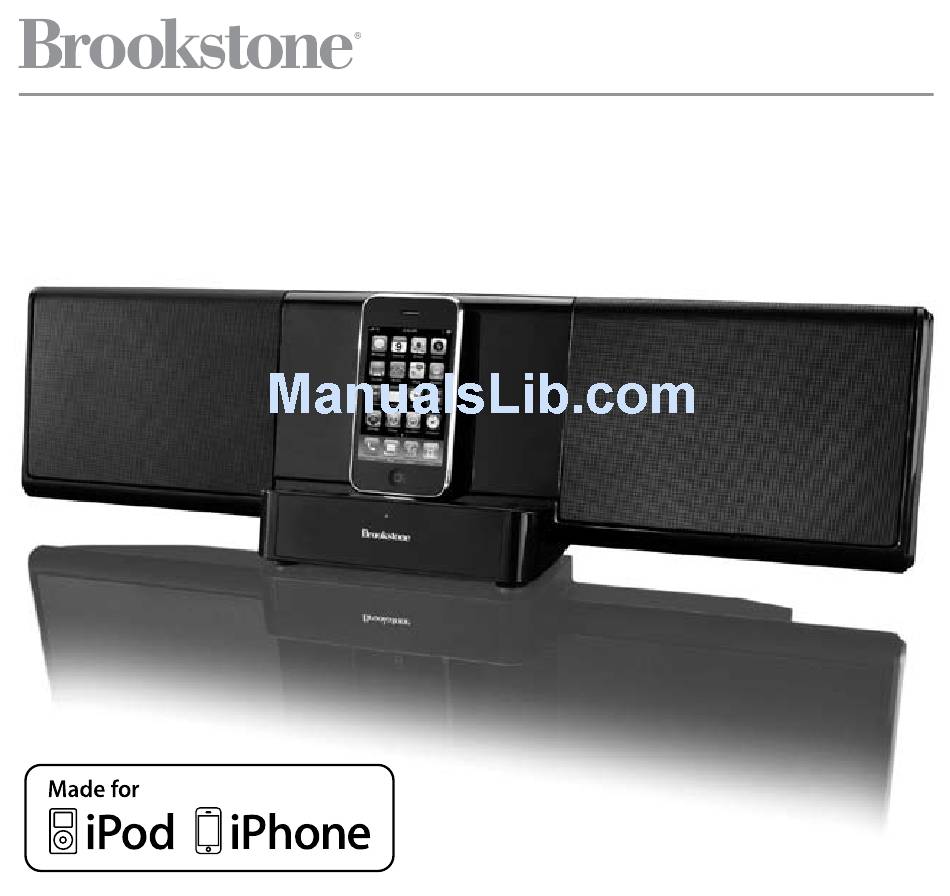

Page 1 Slimline Music System With total control remote...
Page 2: Table Of Contents
Table of conTenTs Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Location of Parts and Controls .
Page 3 Warning To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture . CAUTION—TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR baCK) . NO USER-SERVICEabLE PaRTS INSIDE . REFER TO QUaLIFIED SERVICE PERSONNEL .
Page 4: Important Safety Instructions
iMPorTanT safeTY insTrUcTions all of the safety and operating instructions should be read, adhered to and followed before the unit is operated . Read these instructions . Keep these instructions . Heed all warnings . Follow all instructions . Do not use this apparatus near water . Clean only with a dry cloth .
Page 5 Portable cart Warning 13 . Unplug this apparatus during lightning storms or when unused for long periods of time . 14 . Refer all servicing to qualified service personnel . Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped .
Page 6 caUTion • The apparatus should not be exposed to dripping or splashing and no objects filled with liquids, such as vases, should be placed on apparatus . • The main plug is used to disconnect the device if you do not want the unit to remain readily operable .
Page 7: Battery Precautions
Warning Keep away from children . This is not a toy . Use this unit only for its intended use as described in this manual . Unplug this unit during lightning storms or when unused for long periods of time . Never drop or insert an object into any opening .
Page 8: Fcc Information
fcc inforMaTion This equipment has been tested and found to comply with the limits for a Class b Digital Device, pursuant to Part 15 of the FCC Rules . These limits are designed to provide reasonable protection against harmful interference in a residential installation . This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications .
Page 9: Location Of Parts And Controls
locaTion of ParTs and conTrols (FRONT) Front Speakers (4) Signal LED iPod /iPhone backrest 30-Pin Connector ® ® Control Panel Light bars (2)
Page 10 locaTion of ParTs and conTrols (baCK) Wall Mounts (2) Rear Speakers (2) Reset button aUX-1 3 . 5 mm Line-in DC 18V, 2a...
Page 11 locaTion of ParTs and conTrols (CONTROL PaNEL) Power button Light button Volume Up button EQ button Volume Down button Connect button 30-Pin Connector iPod/iPhone backrest...
Page 12 locaTion of Jacks (baCK) aUX 2 Input Jacks (Left and Right) Component Video Output (Red, blue and Green) Composite Video Output (Yellow)
Page 13 locaTion of ParTs and conTrols (REMOTE) 1 . Signal Strength 2 . Main Menu 3 . UP button 4 . SEL (Select) button 5 . DOWN button 6 . MENU button 7 . baCKWaRD button 8 . — Volume button 9 .
Page 14: Operation
oPeraTion remote Battery installation Remove the baTTERY COMPaRTMENT cover, located on the back of the remote control . Insert 2 aaa batteries according to the polarity indicators inside the compartment . Replace and secure the baTTERY COMPaRTMENT cover . connecting the main unit Connect the Power adapter to the DC jack on the back of the unit and then plug the Power adapter into an electrical outlet .
Page 15 “Connected to” screens: • For iPod 4th Gen and 5th Gen nano: “attached to accessory” • For iPod classic: “OK to Disconnect” • For iPod touch/iPhone: “accessory Connected” (it may be necessary to press “iPod” on the iPhone or “Music” or “Video” on the iPod touch to activate the “accessory Connected”...
Page 16: How To
HoW To… iT’s easY! I wANT TO… DO ThIs… ON Press the POWER button on the speaker Turn the Speaker On/Off . to turn the speaker on, or press any button to wake the remote . “Turn Speaker On?” will appear on the remote display . Use the UP/DOWN buttons to highlight press the SEL button .
Page 17 I wANT TO… DO ThIs… Your iPod/iPhone menu will appear on the Play Music (continued) . remote screen . Use the UP/DOWN, SEL, MENU, FORWaRD, baCK and PLaY/PaUSE buttons on the remote to control your iPod/iPhone . helpful hint: to resume playback after docking the iPod/iPhone or turning the speaker on, press Play/Pause on the remote or use the uP/ DoWn buttons to highlight...
Page 18 I wANT TO… DO ThIs… Repeat and/or Shuffle From the Main Menu screen on the remote, use the songs or albums . UP/DOWN buttons to highlight and press the SEL button . Use the UP/DOWN buttons to highlight and press the SEL button . Use the UP/DOWN buttons to highlight and press the SEL button .
Page 19 I wANT TO… DO ThIs… Change the EQ setting From the Main Menu screen on the remote, on the speaker . use the UP/DOWN buttons to highlight and press the SEL button . Use the UP/DOWN buttons to highlight and press the SEL button to scroll between Flat, Movie, Pop, Jazz and Rock EQ settings .
Page 20 I wANT TO… DO ThIs… Set the Sleep Timer From the Main Menu screen on the remote, on the speaker . use the UP/DOWN buttons to highlight and press the SEL button to scroll between 15 min, 30 min, 45 min, 60 min, or Off . note: Press the menu button on the remote to return to the previous menu at any time.
Page 21 I wANT TO… DO ThIs… Manually sync the 8 . Release the CONNECT button and press SEL remote and speaker on the remote once (these instructions are also (continued) . on the remote screen) . During the Sync mode, the blue LED will continue to flash and “Sync in progress”...
Page 22 I wANT TO… DO ThIs… From the Main Menu screen on the remote, Play an alternate audio use the UP/DOWN buttons to highlight source through the speaker and press the SEL button . The audio from the using the aUX 1 input alternate source will play through the speaker .
Page 23 I wANT TO… DO ThIs… Play a movie from my Confirm your iPod/iPhone TV Out setting is iPod/iPhone on my TV “On” (for classic and nano only—you can find using the speaker with this setting in your Video settings menu) . a component (Y/Pr/Pb) Turn speaker on .
Page 24 I wANT TO… DO ThIs… Use the UP/DOWN buttons to highlight Play a movie from my . Press SEL to scroll and choose iPod/iPhone on my TV your TV setting . using the speaker with a component (Y/Pr/Pb) 10 . Press MENU to return to your iPod/iPhone video cable (continued) .
Page 25 I wANT TO… DO ThIs… Play a movie from my iPod/ Confirm your iPod/iPhone TV Out setting is iPhone on my TV using the “On” (for classic and nano only—you can find speaker with a composite this setting in your Video settings menu . ) (C/V) video cable .
Page 26 I wANT TO… DO ThIs… Play a movie from my iPod/ Use the UP/DOWN buttons to highlight . Press SEL to scroll and choose iPhone on my TV using the your TV setting . speaker with a composite 10 . Press MENU to return to your iPod’s (C/V) video cable (continued) .
Page 27 I wANT TO… DO ThIs… Play a video taken with 6 . Use the UP/DOWN buttons to highlight my iPhone 3GS on my TV . Press SEL to scroll and choose using the speaker with the “Y/Pr/Pb” setting . a component (Y/Pr/Pb) 7 .
Page 28 I wANT TO… DO ThIs… Play a video taken with 4 . From the Main Menu screen on the remote, my iPhone 3GS on my TV use the UP/DOWN buttons to highlight using the speaker with and press the SEL button . Your iPhone’s menu a composite (C/V) video will appear on the remote screen .
Page 29: Specifications
sPecificaTions speaker specifications: Total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30W output (15W/Channel) Full range .
Page 30: Troubleshooting
TroUblesHooTing issue solution Sound is not clear Check the cable or iPod/iPhone connection . or there is no sound . No power to speaker . Check the power adaptor and cable . No display shows Check and replace the batteries on the remote .
Page 31 TroUblesHooTing (CONTINUED) issue solution There is a “This accessory is The speaker needs a few seconds to authenticate the iPhone . Try removing and not made to work with iPhone” re-docking the iPhone if the warning does warning on the iPhone when docked in the speaker .
Page 32 TroUblesHooTing (CONTINUED) issue solution iPod /iPhone is docked but Let the iPod/iPhone charge for a few there is a “Device Not Found” or minutes and then remove and re-dock “No Signal” error on the remote the iPod/iPhone . screen . “Failed to Sync”...
Page 33 iPod/iPhone not included . iPod and iPhone are trademarks of apple Inc . , registered in the U . S . and other countries . “Made for iPod” and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet apple performance standards .
Page 34: Warranty
(“Warranty Period”) . If a defect arises and a valid claim is received within the Warranty Period, at its option, brookstone will either 1) repair the defect at no charge, using new or refurbished replacement parts, or 2) replace the product with a new product that is at least functionally equivalent to the original product, or 3) provide a store credit in the amount of the purchase price of the original product .
Page 35 “as is . ” This warranty does not apply to: a) damage caused by failure to follow instructions relating to product’s use or the installation of components; b) damage caused by accident, abuse, misuse, fire, floods, earthquake or other external causes;...
Page 36 Merrimack, New Hampshire USa 03054 • 800-846-3000 • www . b rookstone . c om 639591...
