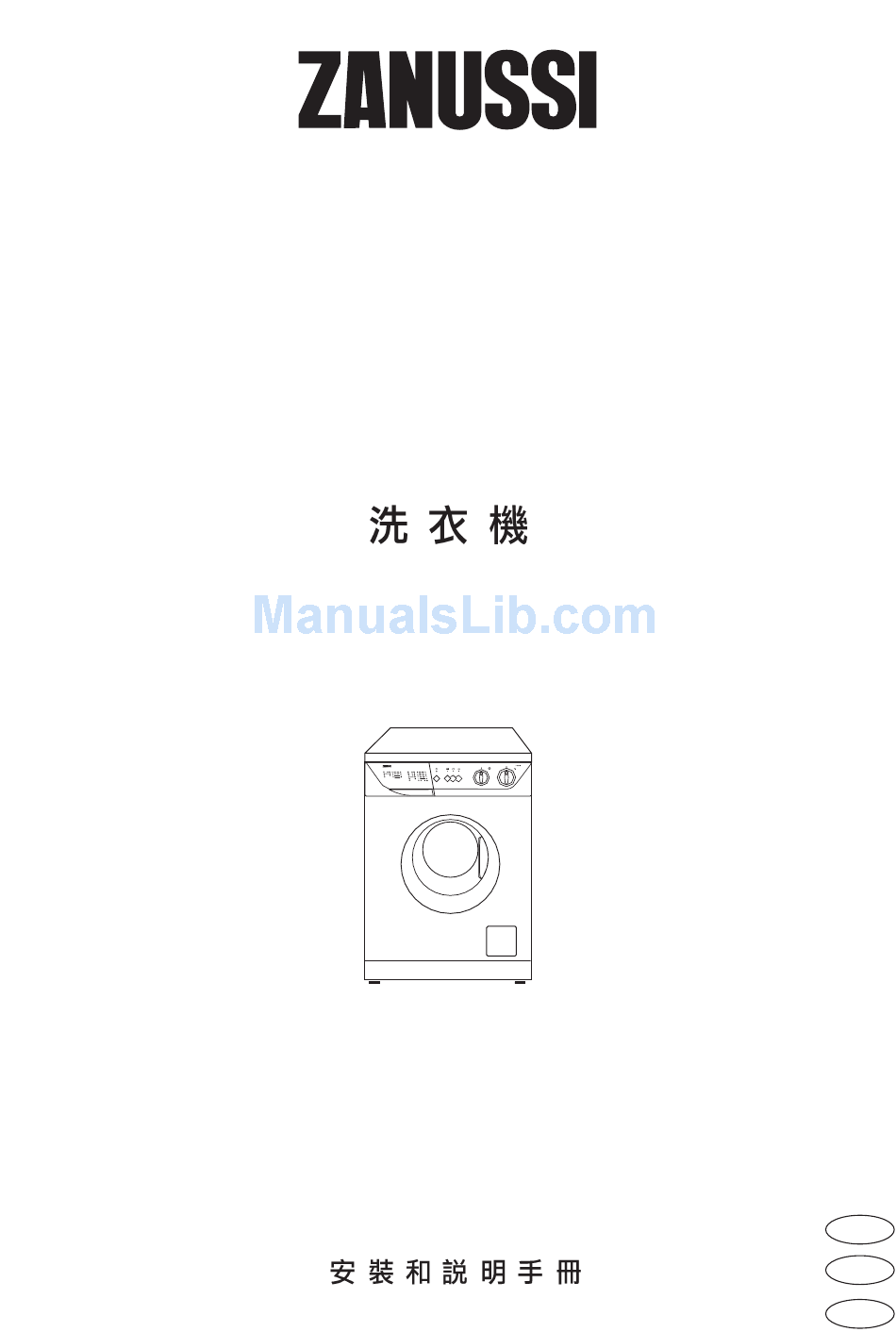

Page 1: Washing Machine
WASHING MACHINE MESIN BASUH F 655 G INSTALLATION AND INSTRUCTION MANUAL MANUAL PEMASANGAN DAN PETUNJUK 132995911... -
Page 2: Table Of Contents
Dear customer, Transport damages Please read these operating instructions carefully When unpacking the appliance, check that it is not and pay particular attention to the safety notes damaged. If in doubt, do not use it and contact the indicated in the first pages. We recommend that you Service Centre. -
Page 3: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • Always unplug the appliance and shut the water tap after use. • All internal packing must be removed before using the appliance. -
Page 4: Tips For Environmental Protection
Tips for environmental protection To save water, energy and to help protect the • With adequate pre-treatment, stains and limited environment, we recommend that you follow these soiling can be removed; the laundry can then be tips: washed at a lower temperature. •... -
Page 5: Installation
Installation Unpacking 7. Pull out the three plastic spacers from the holes into which the bolts were fitted. 8. Plug the open holes with the plugs which are All transit bolts and packing must be removed supplied with the instruction book. before using the appliance. -
Page 6: Water Drainage
The inlet hose must not be lengthened. If it is too Electrical connection short and you do not wish to move the tap, you will This machine is designed to operate on a 220-230 V, have to purchase a new, longer hose specially single-phase, 50 Hz supply. -
Page 7: Use
Control panel 1 Programme guide 6 Anti-Crease button By depressing this button the water of the last rinse 2 Detergent dispenser drawer is not emptied out. This prevents any creasing which may occur if the clothes are left damp in the drum. When it is convenient for you to empty the machine, simply Prewash press this button again so that the machine can... -
Page 8: Washing Hints
Laundry weights Washing hints The following weights are indicative: bathrobe 1200 g Sorting the laundry napkin 100 g Follow the wash code symbols on each garment quilt cover 700 g label and the manufacturer’s washing instructions. sheet 500 g Sort the laundry as follows: whites, coloureds, synthetics, delicates. -
Page 9: Detergents And Additives
Ink: depending on the type of ink, moisten the fabric Quantity of detergent to be used first with acetone (*), then with acetic acid; treat any The type and quantity of detergent will depend on residual marks on white fabrics with bleach and then the type of fabric, load size, degree of soiling and rinse thoroughly. -
Page 10: Operating Sequence
4. Select the desired option(s) Operating sequence Depress the required button(s). Before washing your first load of laundry, we recommend that you run a cotton cycle at 60°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. Pour half a measure of detergent into the main wash compartment and start up the machine. -
Page 11: Washing Programmes
Washing Programmes Programmes for cotton and linen Programme/ Degree of soil Possible Max. Wash programme Description Temperature and type of laundry option load Prewash at 40 °C WHITES For heavy soiled Wash at 60-95°C 6.5 kg WITH cotton items. 3 rinses 60°-95°... - Page 12 Washing Programmes Programmes for synthetics, mixed fabrics, delicates and wool Degree of soil Programme/ Possible Max. Wash programme Description and type of laundry Temperature option load Heavy soiled synthetic Prewash at 40 °C or mixed fabrics, SYNTHETICS Wash at 30°-60° C underwear, coloured 3 kg WITH...
-
Page 13: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not... -
Page 14: Maintenance
Maintenance 1. Bodywork Pull out the filter. Clean the filter under a running tap, then refit it, Clean the outside of the machine with warm water screwing it fully in. and a detergent used to handwash dishes. Rinse with clean water and dry with a soft cloth. Important: do not use methylated spirits, solvents or similar products to clean the bodywork. -
Page 15: Something Not Working
Something not working? Problems which you can resolve yourself without calling out an engineer. Problem Possible cause • The machine does not start up: • The door is not firmly closed. • The machine is not plugged in or there is no power at the socket. -
Page 16: Laundry Is Not Spun Enough
Problem Possible cause • Spinning starts late or the • The electronic unbalance detection device has cut in because the laundry is not evenly distributed in laundry is not spun enough: the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume.
