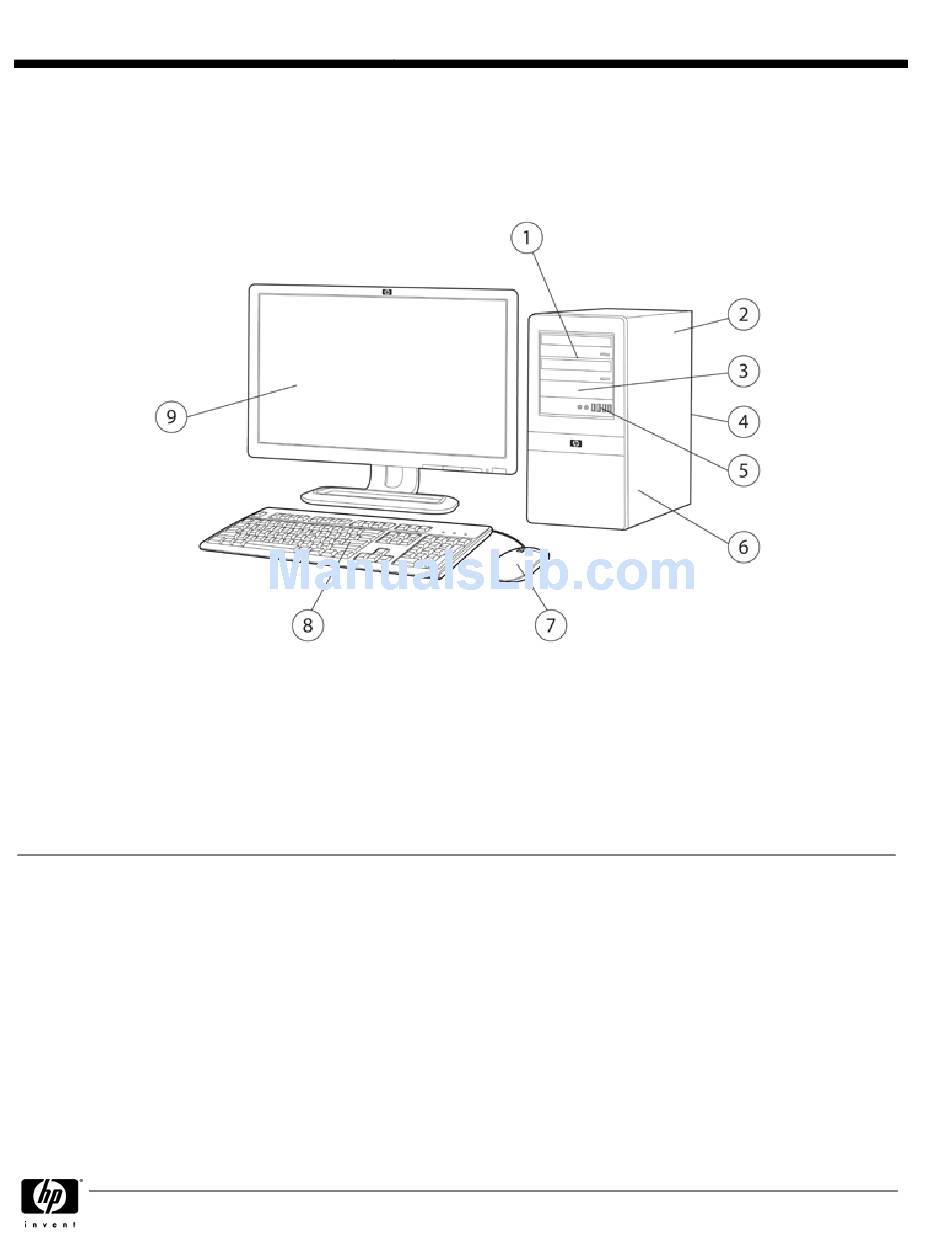

Page 1 QuickSpecs HP Compaq dx7500 Business PC Overview HP recommends ® Windows Vista Business Microtower 1. (2) external 5.25” drive bays for optional optical drives; (2) 5. Front I/O: (3) USB 2.0 ports, (1MIC – (1) audio out internal 3.5” hard drive drive bays (Headphone), (1) 1394 2.
Page 2 QuickSpecs HP Compaq dx7500 Business PC Overview Small Form Factor 1. Monitor (sold separately) 5. Front I/O: (2) USB 2.0 ports, (1) audio in – (1) audio out 2. Rear I/O: (4) USB 2.0 ports, (2) PS/2, (1) RJ-45, (1) 1394, 6.
Page 3 Can be configured with multiple hard drives in a RAID array DDR2 SDRAM system memory Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply. DA - 13152 Worldwide QuickSpecs — Version 9 — 3/30/2009...
Page 4: Standard Features And Configurable Components
QuickSpecs HP Compaq dx7500 Business PC Standard Features and Configurable Components Processor and Speed Intel Celeron Processors: One of the following Intel Celeron 430 Processor (1.8-GHz, 512-KB L2 cache, 800-MHz FSB) Intel Celeron 440 Processor (2.0-GHz, 512-KB L2 cache, 800-MHz FSB) Intel Celeron 450 Processor (2.2-GHz, 512-KB L2 cache, 800-MHz FSB)
Page 5 QuickSpecs HP Compaq dx7500 Business PC Standard Features and Configurable Components Operating Systems and Genuine Windows Vista Business Application Software Genuine Windows Vista Business (availability varies by Genuine Windows Vista Home Basic* region) Genuine Windows Vista Home Premium* Genuine Windows Vista Ultimate...
Page 6 One or more of the 1.44-MB Diskette Drive following (see Storage Media Reader section below) HP 22-in-1 Media Reader and additional USB 2.0 port Optical Drives (Serial ATA) SATA DVD-ROM Drive SATA SuperMulti LightScribe DVD Writer Drive Input Devices Keyboard – One of the following...
Page 7 Integrated Intel WG82567V Gigabit Network Connection Intel Gigabit CT Desktop NIC LSI PCIe x1 56K International SoftModem HP Wireless 802.11 b/g/n PCIe x1 Card (full height) Graphics Intel Graphics Media Accelerator X4500HD NVIDIA GeForce GT130 768MB PCIe x16 graphics card (MT only)
Page 8: System Details
QuickSpecs HP Compaq dx7500 Business PC System Details Base Unit MT: Micro ATX Microtower chassis, including power supply and front bezel; five (5) drive bays and four expansion slots SFF: Micro ATX Small Form Factor chassis, including power supply and front bezel; three (3) drive...
Page 9 QuickSpecs HP Compaq dx7500 Business PC System Details Other Ports Front: MT: (1) audio out; (1) microphone in, (1) 1394 port SFF: (1) audio out; (1) microphone in Rear: (2) PS/2 ports (keyboard and mouse) (1) analog VGA video port...
Page 10 RAID Redundant Array of Independent Drives RAID 0,1 are the RAID configurations that HP Compaq dx7500 Business PC products offer as factory configurations. The pre-configured systems: Are only available on the MT form factor. The SFF does not support RAID, as it does not allow for more than one hard disk drive.
Page 11 QuickSpecs HP Compaq dx7500 Business PC System Details Power Supply MT: 300-watt ATX Power Supply – PFC/non-PFC with a 115v/230v line switch (varies by country/region) SFF: 250-watt Power Supply – PFC with a 115/230v line switch. Unit Environment and General Unit Operating Guidelines...
Page 12 QuickSpecs HP Compaq dx7500 Business PC System Details Memory DDR2 SDRAM 4 x DIMM slots Clock Generator SLG8XP549T Integrated Graphics Intel Graphics Media Accelerator (GMA) X4500HD Audio Realtek ALC888S HD Audio compatible codec with two channel audio 3D audio compliant with AC'97 rev. 2.3...
Page 13 Specs Performance of system, options, and ancillary equipment will vary depending on the system configuration. Levels presented do not account for non-HP/Compaq installed hardware. Ambient Air Temperature O perating MT: Operating 41° to 95°F (5 to 35°C) (Test 0 to 104°F (40°C));...
Page 14 QuickSpecs HP Compaq dx7500 Business PC System Details Humidity Operating MT: 15% to 80% relative humidity (Rh), 35°C non-condensing SFF: 10% to 90% relative humidity (Rh), 86°F (30°C) maximum wet bulb temperature, non- condensing Storage MT: 90% relative humidity (Rh), 60°C for...
Page 15 On-site service may be provided pursuant to a service contract between HP and an authorized HP third- party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.
Page 16: After-Market Options
HP 80-GB SATA 3.0-Gb/s Hard Drive PY276AA Removable Storage Diskette Drive Devices HP 1.44-MB Internal Diskette Drive AG295AA HP 1.44-MB USB Diskette Drive – External DC141B 22-in-1 Media Reader FX273AA Input Devices HP PS/2 Standard Keyboard DT527A HP USB Standard Keyboard DT528A HP 2.4 GHz Wireless Keyboard and Mouse...
Page 17 * 1GB of system memory required. Graphics cards use part of the total system memory to enhance graphics performance. Optical Drives HP SATA DVD-ROM Drive AH047AA HP SATA SuperMulti LightScribe DVD Writer Drive GF343AA Security HP Business PC Security Lock Kit PV606AA...
Page 18 AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board. HP recommends dual-channel symmetric configurations for maximum performance. For best performance, add the same amount of total memory to each channel and do not mix speeds. For dual-channel symmetric performance, the total amount of memory in each channel must be equal.
Page 19 QuickSpecs HP Compaq dx7500 Business PC Storage HP Compaq dx7500 Microtower Business PC Maximum Quantity Supported Position Supported Controller Drive Support Diskette Drives Media Reader Internal USB 2.0 port CD-ROM Drives 1, 2 SATA DVD-ROM Drives 1, 2 SATA DVD+/-RW Drives...
Page 20 QuickSpecs HP Compaq dx7500 Business PC Storage HP Compaq dx7500 Small Form Factor Business PC Maximum Quantity Supported Position Supported Controller Drive Support Diskette Drives Media Reader Internal USB 2.0 port CD-ROM Drives SATA DVD-ROM Drives SATA DVD+/-RW Drives SATA 3.5”...
Page 21: Technical Specifications - Audio
QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Audio Integrated Realtek Type Integrated 2-channel ALC888S Audio HD Audio compatible codec Sampling Supports 48/96 KHz Audio Jacks Mic-In Line-In Line-Out / Headphone Out Power Support Digital: 3.3V Analog: 5V Other...
Page 22: Technical Specifications - Communications
QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Communications Integrated Intel Connector RJ-45 WG82567V Gigabit Controller Intel WG82567V and ICH10R integrated MAC Network Connection Memory Large 96kb receive and 8kb transmit on chip buffer Data rates supported 10/100/1000 Mbps Compliance IEEE 802.3 compliant, 802.3x flow control...
Page 23 QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Communications 1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus) Environmental Operating temperature 32° to 131°F (0° to 55° C) Operating humidity 85% at 131° F (55° C) Dimensions 4.75 x 2.25 x 0.8 in (12.1 x 5.7 x 2.0 cm) Management capabilities WOL, PXE, DMI, WFM 2.0...
Page 24 QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Communications 802.11b 1 Mbps -94 dBm 802.11b 11 Mbps -85 dBm 802.11g 6 Mbps -91 dBm 802.11g 18 Mbps -85 dBm 802.11g 48 Mbps -75 dBm 802.11g 54 Mbps -72 dBm EWC (2.4 GHz)
Page 25 QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Communications 130 Mbps (20 MHz 91 Mbps EWC) 13.5 Mbps (40 MHz 8 Mbps EWC) 27 Mbps (40 MHz EWC) 16 Mbps 40.5 Mbps (40 MHz 24 Mbps EWC) 54 Mbps (40 MHz EWC) 32 Mbps...
Page 26 QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Communications Power Management PCI Bus Power Management Interface Specification (PCI-PM) Revision 1.2, Appendix A. D0, D3hot, and D3cold. Wake on Ring state when in D3cold. If the power management event (PME) feature is enabled in D3cold, a modem can wake the system via WAKE# (WAKEN) or beacon.
Page 27: Technical Specifications - Graphics
QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Graphics Integrated Intel Graphics 3D/2D Controller Microsoft DirectX® 10 based with support for Pixel Shader 3.0 Media Accelerator VGA Controller Integrated X4500HD Integrated Bus Type PCI Express™ x16 RAMDAC Integrated, 350 MHz...
Page 28 QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Graphics Resolutions Supported NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP. Maximum Refresh Rate (Hz) Resolution Analog Connection...
Page 29 NVIDIA GeForce GT130 768MB PCIe x16 Graphics Controller display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP Resolution Maximum Refresh Rate (Hz)
Page 30 For Windows Vista system requirements, visit: http://www.windowsvista.com/systemrequirements. ** Linux drivers are available from NVIDIA's website and may be available in a Linux distribution. Refer to the Open Source and Linux from HP website (http://www.hp.com/wwsolutions/linux/products/clients/) for support information. Maximum power...
Page 31 Immunity Characteristics - Limits and Methods of Measurement. ATI Radeon HD 2400XT (256MB DH) PCIe Graphics Card display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP Maximum Refresh Rate (Hz)
Page 32 Immunity Characteristics - Limits and Methods of Measurement. ATI Radeon HD 3650 (512MB DH) PCIe x16 Graphics Card display resolutions and refresh rates NOTE:Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP DA - 13152 Worldwide QuickSpecs —...
Page 33 QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Graphics Maximum Refresh Rate (Hz) Analog Resolution Digital Connection Resolution 640x480 800x600 1024x768 1280x720 1280x1024 1440x900 1600x1200 1680x1050 1920x1080 60-R 1920x1200 60-R 1920x1440 2048x1536 2560x1600 * Only supported when using a dual-link DVI or DisplayPort connection...
Page 34 Immunity Characteristics - Limits and Methods of Measurement. ATI Radeon HD 3470 (256MB SH) PCIe Graphics Card display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP Maximum Refresh Rate (Hz)
Page 35 Linux x86 and x86_64 distributions using XFree86 or X.Org** ** Linux drivers are available from ATI's website and may be available in a Linux distribution. Refer to the Open Source and Linux from HP website: http://www.hp.com/wwsolutions/linux/products/clients/ for support information. DA - 13152 Worldwide QuickSpecs —...
Page 36 QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Graphics Option kit contents ATI Radeon HD 4650 512MB PCIe x16 Graphics Card Software CD with graphics drivers Warranty documentation Compliance standards EMC Emissions: a) CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of measurement of...
Page 37: Technical Specifications - Input Devices
QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Input Devices HP PS/2 or USB Standard Physical Keys 104, 105, 106, 107, 109 layout (depending Keyboard characteristics upon country) Dimensions (L x W x H) 18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm) Weight 2 lb (0.9 kg) minimum...
Page 38 QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Input Devices HP 2-Button Scroll Mouse Scroll Wheel 8 mm (PS/2) Maximum Rotation Speed 30 mm/s Switch Type Light force micro-switch Switch Life 1 million operations Mechanical Life Minimum 200,000 revolutions Environmental Operating Temperature50°...
Page 39: Technical Specifications - Hard Drives
QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Hard Drives Serial ATA Hard Drives 80 GB Capacity 80,026,361,856 bytes (7200 rpm) Height 1 in (2.54 cm) Width Media diameter: 3.5 in (8.9 cm) Physical size: 4 in (10.2 cm) Interface Serial ATA (3.0 Gb/s)
Page 40 QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Hard Drives Seek Time (typical reads, Single Track 2.0 ms includes controller Average 11 ms overhead, including Full-Stroke 21 ms settling) Rotational Speed 7,200 rpm Logical Blocks 488,397,168 Operating Temperature41° to 131° F (5° to 55° C)
Page 41: Technical Specifications - Optical Storage
QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Optical Storage SATA DVD-ROM Drive Height 5.25-inch, half-height, tray-load Orientation Either horizontal or vertical Interface type SATA/ATAPI Disc capacity Single layer: Up to 4.7 GB (6 times capacity of CD-ROM) Double layer: Up to 8.5 GB (12 times capacity of CD-ROM) Dimensions (W x H x D) 5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
Page 42 QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Optical Storage Environmental Temperature 41° to 122° F (5° to 50° C) (all conditions Relative Humidity 10% to 90% non-condensing) Maximum Wet Bulb 86° F (30° C) Temperature SATA DVD+/-RW Height 5.25-inch, half-height, tray-load...
Page 43: Technical Specifications - Removable Storage
QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Removable Storage HP 1.44-MB Diskette Size 3.5 in (8.89 cm) Drive LED Indicators (front panel) Green Read/Write Capacity per 1.44 MB/720 KB Diskette (high/low) Drive Height One-third Drive Rotation 300 rpm...
Page 44 QuickSpecs HP Compaq dx7500 Business PC Technical Specifications - Removable Storage Height (3.5”) 25.4 cm Length (5.25”) 171.6 cm Width (5.25”) 148.9 cm Height (5.25”) 42.7 cm Environmental Operational Test Parameters/Conditions – Power applied, unit environmental extremes operating on system ±5% nominal supply voltage.
Page 45: Technical Specifications - Environmental Data
Additional Information This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive – 2002/95/EC. This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. This product is in compliance with California Proposition 65 (State of California;...
Page 46: Rohs Compliance
RoHS Directive on a worldwide basis. By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).
Page 47: Hewlett-Packard
Microsoft Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
