FujiFilm FINEPIX REAL 3D W3 Specifications

SPECIFICATIONS

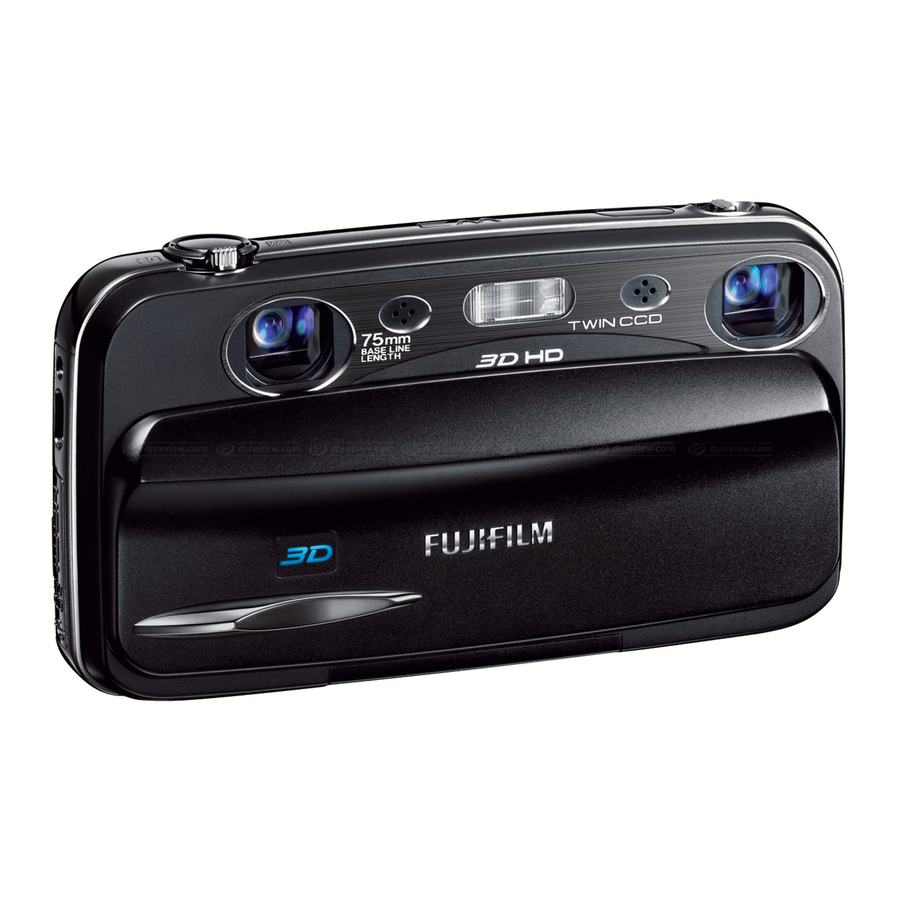

DIGITAL CAMERA FinePix REAL 3D W3
Number of effective pixels * 1 10.0 million pixels
CCD sensor 1/2.3-inch CCD x 2
Storage media Internal memory (Approx. 34MB) / SD memory card / SDHC memory card * 2
File format 3D Still image : MPO+JPEG, MPO (Multi Picture Format compatible)
2D Still image : JPEG (Exif Ver 2.3 * 3 )(Design rule for Camera File system compliant / DPOF-compatible)
3D Movie : 3D-AVI (Stereo AVI format with 2 image channels)
2D Movie : AVI format (Motion JPEG with stereo sound)
Number of recorded pixels L :<4:3> 3648 x 2736 pixels / <3:2> 3648 x 2432 pixels / <16:9> 3584 x 2016 pixels
M :<4:3> 2592 x 1944 pixels / <3:2> 2592 x 1728 pixels / <16:9> 2560 x 1440 pixels
S :<4:3> 2048 x 1536 pixels / <3:2> 2016 x 1344 pixels / <16:9> 1920 x 1080 pixels
Lens Fujinon 3x optical zoom lens, F3.7 (Wide) - F4.2 (Telephoto)
Lens focal length f = 6.3 - 18.9mm, equivalent to 35 - 105 mm on a 35 mm camera
Aperture Wide : F3.7 - F8.0, Telephoto : F4.2 - F9.0
Focus distance Normal : Approx. 60cm / 2ft. to infinity
(from lens surface) Macro(3D) : Wide : Approx. 38cm - 70cm / 1.2ft. - 2.3ft.
Telephoto : Approx. 1.1m - 2.3m / 3.6ft. - 7.5ft.
Macro (2D) : Wide : Approx. 8cm - 80cm / 0.3ft. - 2.6ft.
Telephoto : Approx. 60cm - 3m / 2.0ft. - 9.8ft.
Recommended Normal : Wide Approx. 1.3m to infinity / 4.3ft. to infinity
shooting distance for 3D * 4 Telephoto Approx. 3.7m to infinity / 12.1ft. to infinity
Macro : Wide Approx. 48cm - 70cm / 1.6ft. - 2.3 ft.
Telephoto] Approx. 1.4m - 2.2m / 4.6ft. - 7.2ft.
Sensitivity AUTO (400) / AUTO (800) / AUTO (1600) / Equivalent to ISO 100 / 200 / 400 / 800 / 1600 (Standard
Output Sensitivity)
Exposure control TTL 256-zones metering, MULTI, SPOT, AVERAGE
Exposure mode Programmed AE, Aperture Priority AE, Manual
Shooting modes SP mode : Natural light, Natural light and with Flash, Portrait, Landscape, Sport, Night, Night (Tripod),
Sunset, Snow, Beach, Underwater, Party, Anti-Blur
ADV 3D : Interval 3D shooting, Individual shutter 3D shooting
ADV 2D : Tele/Wide simultaneous shooting, 2-Color simultaneous shooting,
2-Sensitivity simultaneous shooting
Shutter speed Night : 1/8sec. - 1/500sec. Night (Tripod) : 3sec. - 1/500sec.
Manual : 1/2sec. - 1/1000sec. All other modes including AUTO : 1/4sec. - 1/1000sec.
Continuous shooting 3D : Top-40 (max. 2 frames/sec., "S" only)
2D : Top-40 (max. 1 frame/sec.)
High speed Top-40 (max. 3 frames/sec., "S" only)
*1 Number of effective pixels : The number of pixels on the image sensor which receive input light through the optical lens, and which are effectively reflected in the final output data of the still image. *2 Please see the Fujifilm website to check memory card compatibility. SD memory card with a class 6 write speed
(6MB/s) or better is recommended when shooting movies. *3 Exif 2.3 is a digital camera file format that contains a variety of shooting information for optimal. *4 This coverage of shooting distance for 3D is reccommended for stable 3D viewing.*5 Measured by CIPA standard.
Internal Memory / Memory Card Capacity
Actual number of frames and recording time varies depending on the type of memory card or shooting conditions.
Modes
Quality
Number of recorded pixels
Frame rate
File Size
Internal Memory (approx. 34MB)
1GB
SD
memory card 2GB
4GB
SDHC
memory 8GB
card
16GB
*1 When a movie reaches a size of 4GB, recording will briefly pause and then resume in a new file. * 2 Total length of all movie files. Individual movies can not exceed 2GB, regardless of capacity.
All other trademarks are the property of their respective holders.
Focus Mode : Single AF
AF mode : 3D : Center
2D : Center, Multi (for Face Detection off only)
White balance Automatic scene recognition, Preset : Fine, Shade, Fluorescent light (Daylight), Fluorescent
light (Warm white), Fluorescent light (Cool white), Incandescent light, Underwater lighting
Self-timer Approx. 10 sec. / 2 sec. delay
Flash Auto flash
Effective range : ( ISO 800) Normal : Wide: Approx. 60cm - 3.6m / 2ft. - 11.8 ft.
Telephoto: Approx. 60cm - 3.1m / 2ft. - 10.2ft.
Macro : Wide Approx. 30cm - 80cm / 1ft. - 2.6ft.
Telephoto: Approx. 60cm - 1.5m / 2ft. - 4.9ft.
Flash modes : Red-eye removal OFF : Auto, Forced Flash, Suppressed Flash, Slow Synchro.
Red-eye removal ON : Red-eye Reduction Auto, Red-eye Reduction & Forced Flash,
Suppressed Flash, Red-eye Reduction
LCD monitor 3.5-inch, Approx. 1,150,000 dots color LCD monitor with Lenticular type, Approx. 100% coverage
Movie recording 1280 x 720 (24 frames/sec.) / 640 x 480 pixels (30 frames/sec.) / 320 x 240 pixels (30 frames/sec.)
with stereo sound * Zoom function cannot be used during movie recording.* SD memory card with a
class 6 write speed (6MB/s) or better is recommended.
Photography functions 3D : Auto parallax control, Power management, Framing guideline, Frame No. memory
2D : Face Detection (with Red-eye removal), Power management, Framing guideline,
Frame No. memory
Playback functions 3D : Parallax adjustment, Multi-frame playback (with Micro Thumbnail), Cropping, Resize,
Sorting by date, Slideshow
2D : Face Detection (with Red-eye removal), Multi-frame playback (with Micro Thumbnail),
Sorting by date, Cropping, Resize, Slideshow, Image rotate
HDMI output HDMI 1.4 - 3D compliant, HDMI mini-terminal
Video output NTSC / PAL selectable
Digital interface USB 2.0 High-Speed
Power supply NP-50 Li-ion battery (included)
Dimensions Approx. 124.0 (W) x 65.9 (H) x 27.8 (D) mm / 4.9 (W) x 2.6 (H) x 1.1 (D) in. (Slimest D : 21.0mm / 0.8 in.)
( excluding accessories, battery and memory card )
Weight Approx. 230 g / 8.1 oz (excluding accessories, battery and memory card )
Approx. 250 g / 8.5 oz ( including accessories, battery and memory card )
Guide to the number of Number of frames (3D AUTO mode with POWER SAVE 1 ) : Approx. 150 frames * 5
available frames for
battery operation
If you experience fatigue or discomfort while viewing 3D
images, cease use immediately. A ten-minute break is
3D Movie 2D Movie
recommended about once every half hour. Switch to 2D
immediately if 3D images still appear double after you have
adjusted parallax. Individuals with a history of photosensitive
epilepsy or heart disease or who are unwell or suffering from
fatigue, insomnia, or the affects of alcohol should refrain from
viewing 3D images. 2D display is also recommended for young
children (up to the age of about six) whose visual system is still
maturing and for individuals with notable differences in vision
between their two eyes, who may find it difficult or impossible
to observe the 3D effect. Viewing 3D images while in motion
may cause fatigue or discomfort.Viewing large screens from
too close a distance could adversely affect your eyesight.
Images should be viewed on screens no larger than 65
in. and from a distance of at least 2 – 3m ( 6.6 – 9.8ft. ).
Select 2D when viewing images on displays larger than 65 in.*
* If you can not switch to 2D display, refrain from viewing images in 3D.
Specifications are subject to change without notice.
For more information, please visit our Website:
3D Digital Camera
FinePix REAL 3D W3
Accessories included
NP-50 Li-ion battery
Battery charger BC-45W
Hand strap
USB cable
CD-ROM
Owner's manual
Optional accessories
Rechargeable battery NP-50
Battery charger BC-45W
AC power adapter AC-5VX
HD Player HDP-L1 * 6
DC coupler CP-50
AV cable AV-C1
3D Viewer REAL 3D V1 * 6
*6 3D HD movie cannot be played back.
Caution
http://fujifilm.com/3d/
A d i g i t a l c a m e r a t h a t l e t s y o u e a s i l y s h o o t 3 D H D M o v i e s & S t i l l P h o t o s .
S HOOT 3D.
