132998760

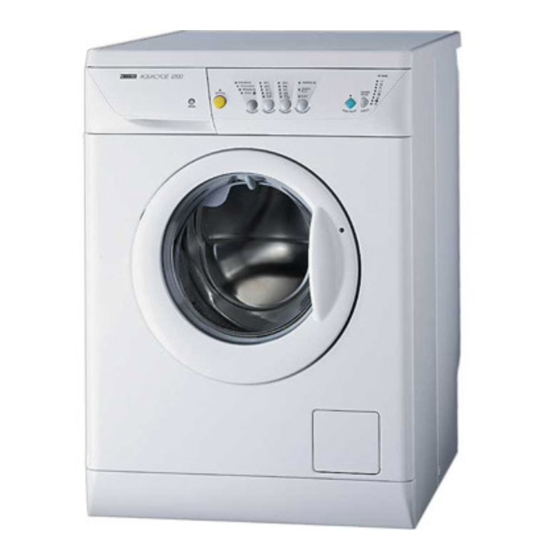

WASHING MACHINE
TVÄTTMASKIN
PYYKINPESUKONE
STIRALWNAÅ MAfiINA
FE 1004 - FJE 1204
USER MANUAL
BRUKSANVISNING
RUKOVODSTVO PO ÈKSPLUATACII
FLN 1004
ALGODON
90˚C
1000
PRELAVADO
SINTETICO
60˚C
800
ACLARADO
DELICADO
40˚C
600
ADICIONAL
LANA
30˚C
400
PROGR
LAVADO
.
FRIO
AGUA EN
LA CUBA
RAPIDO
KÄYTTÖOHJE
GB
S
FIN
RUS
Advertisement
Table of Contents
Related Manuals for Zanussi FE 1004
Summary of Contents for Zanussi FE 1004
-
Page 1: Washing Machine
WASHING MACHINE TVÄTTMASKIN PYYKINPESUKONE STIRALWNAÅ MAfiINA FE 1004 - FJE 1204 FLN 1004 ALGODON 90˚C 1000 PRELAVADO SINTETICO 60˚C ACLARADO DELICADO 40˚C ADICIONAL LANA 30˚C PROGR LAVADO FRIO AGUA EN LA CUBA RAPIDO USER MANUAL BRUKSANVISNING KÄYTTÖOHJE 132998760 RUKOVODSTVO PO ÈKSPLUATACII... - Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
-
Page 3: Table Of Contents
Contents Warnings Maintenance Door seal Disposal Bodywork Detergent dispenser drawer Tips for environmental protection 5 Drain filter Water inlet filter Technical specifications Emergency emptying out The dangers of freezing Installation Unpacking Something not working? 22-23 Positioning Water inlet Water drainage Electrical connection Your new washing machine Description of the appliance... -
Page 4: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door •... -
Page 5: Disposal
Child safety • Children are often not aware of how dangerous • Make sure that children or pets do not climb into electrical appliances can be. When the machine is the drum. working, children should be carefully supervised • When the appliance is to be scrapped, cut off the and not be allowed to play with the appliance. -
Page 6: Technical Specifications
MAXIMUM LOAD Cotton Synthetics 2.5 kg Delicates 2.5 kg Woollens SPIN SPEED 1000 rpm max. (FE 1004) 1200 rpm max. (FJE 1204) POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED 2200 W MINIMUM FUSE PROTECTION 10 A WATER PRESSURE... -
Page 7: Installation
Installation Unpacking Positioning Install the machine on a flat hard floor. All transit bolts and packing must be Make sure that air circulation around the machine is removed before using the appliance. not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen You are advised to keep all transit devices so that units. -
Page 8: Water Drainage
Water drainage Electrical connection The end of the drain hose can be positioned in three This machine is designed to operate on a 220-230 ways: V, single-phase, 50 Hz supply. Hooked over the edge of a sink using the plastic Check that your domestic electrical installation can hose guide supplied with the machine. -
Page 9: Your New Washing Machine
Your new washing machine This new washing machine meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. • The possibility of selecting the temperature, spin speed and all the options offered by this washing machine gives you truly “customised”... -
Page 10: Use
The relevant light will light up. Maximum speeds are: • for cotton: 1,000 rpm (FE 1004), 3 FABRIC button for cotton: 1,200 rpm (FJE 1204);... -
Page 11: Options Button
Important! If you accidentally press the RESET 7 START/PAUSE button button more than once, the programme is This button has three functions: cancelled. To cause the washing machine to • Start: after you have selected the desired drain the water, select any washing programme programme and options, press this button to start by means of the FABRIC button, then press the washing machine. - Page 12 Example: 9 Programme phase indicator In this case, the spin lights (at the speed provided When you select a programme, the lights relevant to for the selected type of the phases that form the programme light up. fabric) will be performed.
-
Page 13: Washing Hints
Laundry weights Washing hints The following weights are indicative: bathrobe 1200 g Sorting the laundry napkin 100 g Follow the wash code symbols on each garment quilt cover 700 g label and the manufacturer’s washing instructions. Sort the laundry as follows: sheet 500 g whites, coloureds, synthetics, delicates, woollens. -
Page 14: Detergents And Additives
Ink: depending on the type of ink, moisten the fabric Quantity of detergent to be used first with acetone (*), then with acetic acid; treat any The type and quantity of detergent will depend on residual marks on white fabrics with bleach and then the type of fabric, load size, degree of soiling and rinse thoroughly. -
Page 15: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95 C 60 C 40 C 30 C Hand wash... -
Page 16: Operating Sequence
4. Switch the machine on Operating sequence To switch the machine on, press the ON/OFF button : the mains-on light comes on. Before washing your first load of laundry, we recommend that you run a cotton cycle at 60°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. -
Page 17: Start The Programme
7. Select the spin speed or the 9. Start the programme RINSE HOLD option Press the START/PAUSE button. The relevant light will stop flashing, the DOOR LOCKED light will light Press the SPIN SPEED button repeatedly, in order up, and only the light relevant to the phase that is in to select the desired spin speed or the RINSE HOLD progress will remain lit. -
Page 18: End Of Programme
11. How to cancel a programme 13. End of programme during its cycle At the end of the programme, the washing machine stops automatically and gives an audible signal. To cancel a programme that is being carried out, first pause the washing machine by pressing the If you had selected the RINSE HOLD option, the START/PAUSE button, then press the RESET button light of the START/PAUSE button flashes and the... -
Page 19: Programme Chart
Programme/ Description of Load Available options symbols on temperature programme Energy Water Time labels litres h/min. FE 1004 SPIN SPEED Wash at White cotton: 2.25 RINSE HOLD Cottons 60°-95°C e.g. sheets, 5 kg PREWASH 60°-95°C 3 rinses FJE 1204... -
Page 20: Maintenance
Maintenance 1. Door seal Detergent can also accumulate inside the drawer recess: clean it with an old toothbrush. Refit the Check from time to time the door seal and eliminate drawer after cleaning. eventual possible objects that could be trapped in the fold. -
Page 21: Water Inlet Filter
5. Water inlet filter The dangers of freezing If you notice that the machine is taking longer to fill, If the machine is exposed to temperatures below check that the filter in the water inlet hose is not 0°C, certain precautions should be taken. blocked. -
Page 22: Something Not Working
Something not working? Problems which you can resolve yourself. During machine operation it is possible that the light , the light of the START/PAUSE button and one of the following lights start to flash: : problem with the water supply : problem with water draining : door open Once the problem has been eliminated, press the START/PAUSE button... - Page 23 Problem Possible cause • Spinning starts late or the • The electronic unbalance detection device has cut in because the laundry is not evenly distributed in laundry is not spun enough: the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume.
