Summary of Contents for Zanussi ZWT 6020

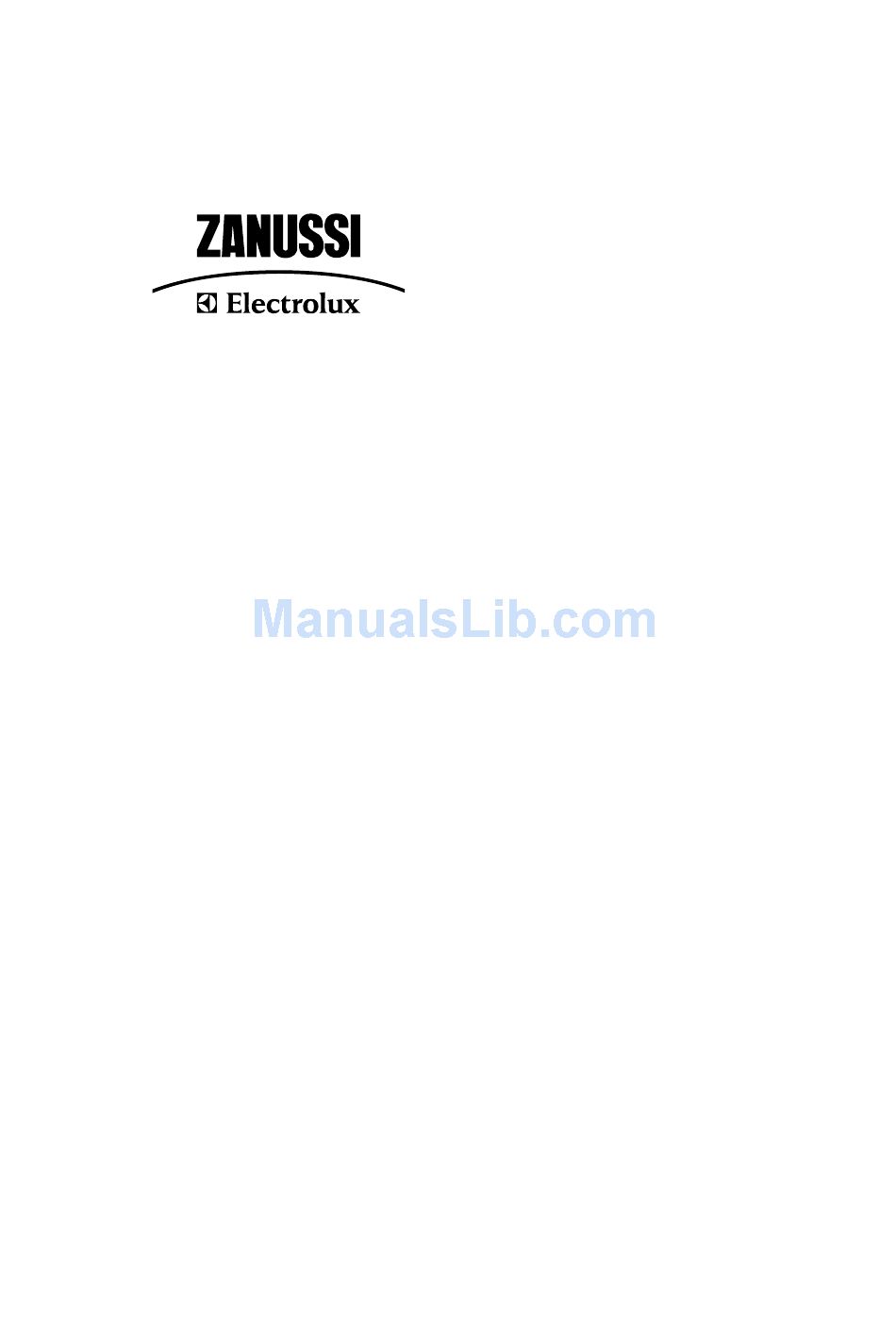

- Page 1 User manual Washing machine ZWT 6020...
- Page 2 We were thinking of you when we made this product...
- Page 3 Welcome to the world of Electrolux Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable.
-
Page 4: Table Of Contents
4 contents Contents Warnings ........... 5 Description of the appliance ....7 How to run a wash cycle ? ....8 Washing guide ........ 12 Programmes table ......14 Consumption ........15 Care and cleaning ......16 Operating problems ......17 Technical specifications .... -
Page 5: Warnings
warnings 5 Warnings Installation • Unpack or ask for the appliance to be unpacked immediately upon arri- val. Check the outside of the appliance is not damaged in any way. These warnings are for the safety of Put any complaints you may have in you and others around you. - Page 6 6 warnings Precautions to be taken against these items into the drum. frost • Your appliance has been designed If your appliance is exposed to tempera- for use by adults. Ensure children do tures below 0°C, the following precau- not touch the appliance or use it as a tions must be taken : toy.
-
Page 7: Description Of The Appliance
description of the appliance 7 Description of the appliance The control panel Lid handle Lever for moving the appliance Adjustable levelling feet Dispenser box Prewash Wash Softener (do not fill above the MAX symbol The control panel Programme selector Lights of cycle progress “Start/Pause”... -
Page 8: How To Run A Wash Cycle
8 how to run a wash cycle How to run a wash cycle? Proportioning of detergents Your washing machine has been desi- Using for the first time gned to reduce your water and deter- gent consumption. You can therefore reduce the amounts recommended by detergent manufacturers. - Page 9 how to run a wash cycle 9 Selecting the spin speed “Prewash” option Press the “Spin” pushbutton The appliance runs a prewash at 30°C to change the spin speed, if max. The prewash finishes with a short you want your washing to be spin cycle for cotton or synthetic pro- spun at a different speed to grammes, and with an empty cycle for...
- Page 10 10 how to run a wash cycle “Delay start” It is normal for the programme selector to remain stationary during the cycle. The light corresponding to the current cycle is illuminated. This option allows you to delay the start of a wash programme by 3, 6 or 9 hours pressing “Delay start”...
-
Page 11: Standby Mode
how to run a wash cycle 11 End of the programme washing machine stops automatically “Start/Pause” pushbutton goes out and the light “End” comes on. The lid can only be opened around 2 minutes after the washing machine has come to a stop. Turn the programme selector to the “Off”... -
Page 12: Washing Guide
12 washing guide Washing guide Wash loads depending on type of materials The amount of washing placed in the drum must not exceed the maximum capacity of the washing machine. This Sorting and preparing the washing capacity can vary depending on the type •... -
Page 13: International Symbols
washing guide 13 You can obtain information on the hard- case, the wash cycle must be started ness level of water in your area by con- immediately. tacting your water company or other Detergent tablets or doses must be pla- competent source. -
Page 14: Programmes Table
14 programmes table / consumption Programmes table Programme / Type of washing Load Possible options Cottons : White or colour, e.g., normally soiled work 5,5 kg Prewash clothes, bed linen, table linen, body linen, towels. Light Super quick Extra rinse Rinse hold Delay start Eco* : White or colour, e.g., normally soiled work clo-... -
Page 15: Consumption
programmes table / consumption 15 Consumption Programme Tempera- Average Washing type tures consumption** °C Litres Time Cottons 2,20 140-150 Eco* 1,04 135-145 Cottons 1,30 120-130 0,85 140-150 Cottons 0,75 115-125 Cottons 0,55 110-120 Cottons cold 0,45 95-105 Synthetics 0,85 90-100 Synthetics 0,65 75-85... -
Page 16: Care And Cleaning
16 care and cleaning Care and cleaning Object trap Regularly clean out the object trap which is located at the bottom of the drum : Unplug the appliance before cleaning. Descaling the appliance To descale the appliance, use an appro- priate non-corrosive product designed for washing machines. -
Page 17: Operating Problems
operating problems 17 Operating problems Numerous checks were carried out on your appliance before it left the factory. However, should you notice a malfunction, please refer to the sections below before contacting the after-sales service. Problems Causes washing machine • the appliance isn’t plugged in correctly, the doesn’t start or doesn’t fill : electrical installation isn’t working, •... - Page 18 18 operating problems Problems Causes Wash is unsatisfactory : • the detergent is unsuitable for machine washing, • there is too much washing in the drum, • the wash cycle is unsuitable, • there isn’t enough detergent. The appliance vibrates, is •...
- Page 19 operating problems 19 Problems Causes “Start/Pause” • the drainage filter is obstructed, pushbutton** flashes • the drain hose is blocked or bent, red***: • the drain hose is fixed too high (see “Installa- tion” section). • the drainage pump is blocked, •...
-
Page 20: Technical Specifications
20 technical specifications / installation Technical specifications DIMENSIONS Height 850 mm Width 400 mm Depth 600 mm LINE VOLTAGE / FREQUENCY 230 V / 50 Hz POWER CONSUMPTION 2300 W WATER PRESSURE Minimum 0,05 MPa (0,5 bar) Maximum 0,8 MPa (8 bar) Connection to water supply Type 20x27 This appliance conforms to the CEE 89-336 directive concerning the limi-... - Page 21 technical specifications / installation 21 Untying To install your washing machine at the same level as surrounding furniture, pro- ceed as follows : Water supply Install the supplied water inlet hose at the rear of your washing machine by proceeding as follows : Open the water inlet tap.
- Page 22 22 technical specifications / installation Drainage Positioning - The connector at Position the appliance on a flat and hard the end of the flexi- surface in a ventilated location. Ensure ble hose can be at- the appliance does not come into con- tached tact with the wall or other furniture.
-
Page 23: Environment
environment 23 Environment Protecting the environment Disposing of the appliance To save water and energy and therefore help protect the environment, we re- All materials carrying the symbol are commend the following : recyclable. Dispose of them at a waste •... - Page 24 www.electrolux.com 108 3002 00 - 06/07...
