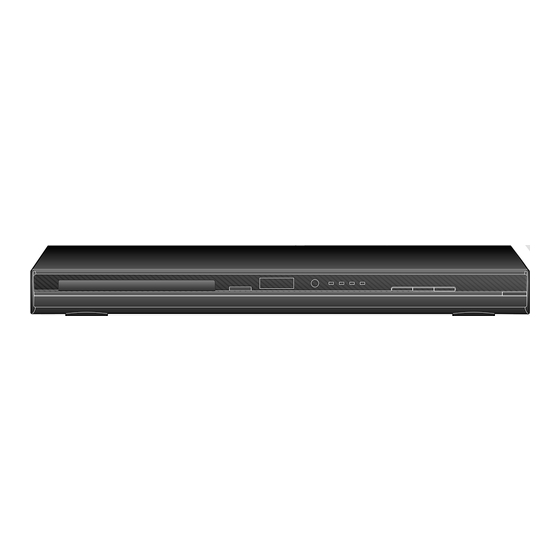

Page 1: Dvd Player
Introduction DIGITAL VIDEO Connections DVD PLAYER Basic playback SD490EKE Advanced playback OWNER’S MANUAL Function setup Others © 2009 Toshiba Corporation... -
Page 2: Introduction
"This product is marked with "CE" and complies therefore with the applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC and the EMC Directive 2004/108/EC." Responsible for CE-marking is TOSHIBA INFORMATION SYSTEMS (U.K.) LTD, Toshiba Court, Weybridge Business Park, Addlestone Road, Weybridge,... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Read all warnings. Follow all instructions. Do not use this appliance near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 4 Introduction IMPORTANT SAFETY INSTRUCTIONS SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.
-
Page 5: Precautions
Precautions Notes on handling Notes on moisture condensation When shipping the DVD player, the original shipping Moisture condensation damages the DVD player. Please carton and packing materials come in handy. For read the following carefully. maximum protection, repack the unit as it was originally Moisture condensation occurs, for example, when you pour packed at the factory. -
Page 6: Notes On Discs
Introduction Notes on Discs On handling discs Structure of disc contents Do not touch the playback side of the disc. Normally, DVDs are divided into titles, and the titles are sub-divided into chapters. VIDEO CDs and audio CDs are divided into tracks. Title 1 Title 2 Chapter 1... -
Page 7: Notes On Region Numbers
Because of problems and errors that can occur during the creation of DVD and CD software and/or the manufacture of DVD and CD discs, Toshiba cannot assure that this DVD player will successfully play every disc bearing the DVD and CD logos. -
Page 8: Table Of Contents
Introduction Table of Contents Introduction Advanced playback SAFETY PRECAUTIONS ......2 Accessing a Specific Location Directly ... 20 Locating a specific title/chapter/time ....20 IMPORTANT SAFETY INSTRUCTIONS ..3 Repeating a Specific Segment ....21 Precautions ..........5 Repeating a specific segment ......21 Notes on Discs .......... -
Page 9: Identification Of Controls
Identification of Controls See the page in for details. Front panel HDMI SELECT HDMI indicator Rear panel HDMI OUT Power Cord jack VIDEO COAXIAL DIGITAL ANALOG HDMI OUT AV (SCART) socket DVD display The indicators vary depending on the kinds of discs you play. -
Page 10: Remote Control
Introduction Identification of Controls (continued) The instructions in this manual describe the functions on the remote control. See the page in for details. Remote control HDMI button 13 * RETURN button * MENU button Return to menu display for VCD (2.0) discs with menu. Use the MENU button to display the menu included on many DVDs. -
Page 11: Loading Batteries
Loading batteries Operating with the remote control Open the cover. Point the remote control at the remote sensor and press the buttons. Insert batteries (R03/AAA size). Distance: About 7 m (23 feet) from the front of the remote sensor Angle: About 30°... -
Page 12: Connections
Connections Connecting to a TV Connect the DVD player to your TV. Connecting to a TV (Using the SCART socket) VIDEO Normal TV COAXIAL DIGITAL ANALOG HDMI OUT • Make the following setting. To AV On-screen display Select: Page Composite “Video Out”... -
Page 13: Connecting To A Display
Connections About HDMI HDMI has the capability to support standard, enhanced, or HDMI (High Definition Multimedia Interface) supports both video high-definition video plus standard to multi-channel surround- and audio on a single digital connection for use with DVD players, sound audio. HDMI features included uncompressed digital DTV, set-top boxes, and other AV devices. -
Page 14: Connecting To Optional Equipment
Connections Content of the output for each output jack is shown in the following table and differ depending on the On-Screen Display Setting: HD JPEG Mode: Off HD JPEG Mode: On On-Screen Display Setting Content of output for each output jack Content of output for each output jack during JPEG playback "Video Out"... -
Page 15: Connecting To An Amplifier Equipped With A Dolby
Connections Connecting to Optional Equipment (Continued) Connecting to an amplifier equipped with a Dolby ® Digital decoder Dolby Digital Manufactured under license from Dolby Dolby Digital is the surround sound technology used in theaters showing the latest Laboratories. Dolby and the double-D movies, and is now available to reproduce this realistic effect in the home. -
Page 16: Dts Decoder
Connections Connecting to Optional Equipment (Continued) Connecting to an amplifier equipped with a DTS ® decoder Digital Theater Systems (DTS) DTS is a high quality surround technology used in theaters and now available for Manufactured under license under U.S. home use, on DVDs or audio CDs. Patent #: 5,451,942 &... -
Page 17: Playing A Disc
Playing a Disc CAUTION Keep your fingers well clear of the disc tray as it is closing. This section shows you the basics on how to play a disc. Neglecting to do so may cause serious personal injury. Basic playback Preparations To obtain a higher quality picture •... -
Page 18: Variable Speed Playback
Basic playback Variable Speed Playback You can play discs at various speeds, and resume playback from the location where you stopped playback. Playing in fast reverse or fast forward directions To resume normal playback Press REV or FWD during playback. Press PLAY. -
Page 19: Locating A Desired Section
To start playback from the beginning regardless of the location where you stopped playback. 1 Press STOP twice. The DVD player deletes the memory of the location. • If you want to return to the beginning of a DVD, open and close the disc tray once with the OPEN/CLOSE 2 Press PLAY. -
Page 20: Advanced Playback
Advanced playback Accessing a Specific Location Directly Locating a specific title/chapter/time Accessing chapters/tracks using number Press T. buttons: For chapter/track numbers 10 to 19, press +10 once Press to highlight the Title/Chapter/ and the number 10 appears then enter one digit. Press Track/Time. -
Page 21: Repeating A Specific Segment
Repeating a Specific Segment You can specify a desired segment and repeat it. Repeating a specific segment To resume normal playback Press A-B RPT at the beginning of the Press A-B RPT until is displayed. RepAB Off segment (point A) you want to play A-B RPT repeatedly. -
Page 22: Playing In A Favourite Order
Advanced playback Playing in a Favourite Order You can combine your favourite titles, chapters, or tracks and play them in the order you determine. You can program up to 12 selections into the memory. (Memory playback) Setting titles, chapters or tracks in a favourite order To change the programmed selections Insert a disc and press MEMORY during 1. -
Page 23: Zooming A Picture
Zooming a Picture You can magnify areas within a picture. Zooming a picture To resume normal playback Press ZOOM during normal, slow or still Press ZOOM repeatedly until the is displayed. playback. Original picture is restored. The centre part of the image will be ZOOM ZOOM zoomed in. -
Page 24: Selecting The Picture Enhancement (E
Advanced playback Selecting the Picture Enhancement (E.P.M.*) You can easily select a preferred picture enhancement. *E.P.M.: Enhanced Picture Mode Selecting the picture enhancement To exit the picture enhancement selection Press E.P.M. Press E.P .M. again. E.P.M E.P.M The picture enhancement menu appears. -
Page 25: Selecting The Camera Angle
Selecting the Camera Angle If the scene was recorded from multiple angles, you can easily change the camera angle of the scene you are watching. Changing the camera angle Press ANGLE while the angle number Press ANGLE while playing a scene is displayed on the TV screen. -
Page 26: On-Screen Display Operation
Advanced playback On-screen Display Operation When you turn on the on-screen display, you can view information on operational status and access features and settings. On-screen display operation Press NAVI. NAVI The following display appears. e.g. When playing a DVD. Select by pressing Chapter number then press ENTER to access the feature. -
Page 27: Playing Mp3 Files
* CBR = Constant Bit Rate including music files, in any format, including the MP3 formats, prior to the downloading thereof. Toshiba has no right to grant and Note: When the MP3 file is out of the above specifications, the does not grant permission to download any copyrighted content. -
Page 28: Viewing Jpeg Files
Advanced playback Viewing JPEG Files You can play JPEG files that have been recorded on a CD-R or CD-RW on the DVD player. You can select a preferred view: a page of 9 thumbnail images or a single image view. Also, rotating, enlarging and shifting of each image can be possible. To playback in HD JPEG resolution, see Viewing JPEG files Preparations... -
Page 29: Playing Divx /Mpeg-4 Files
JPEG files compatibility Discs whose compatibility with this DVD player has been confirmed by TOSHIBA are as follows. CANON QuickCD FUJICOLOR CD Kodak Picture CD NORITSU QSS CD JPEG disc compatibility with this DVD player is limited as follows: • Playable discs: CD-R (650MB / 74 min. -
Page 30: Function Setup
Function setup Customizing the Function Settings You can change the default settings to customize performance to your preference. Setting procedure Setting details Press SETUP during stop. Language : English Language The following on-screen display : Off appears. DivX subtitle : ASCII : English Language : English... -
Page 31: Divx Subtitle
Audio Language To select a preferred language (English, French, Spanish, DivX subtitle German, Italian, Portuguese, Dutch, Finnish, Polish, Turkish, Hungarian, Czech, Greek or Swedish) for the sound track. DVD Menu 1) Press SETUP button. 2) Press button, then use the button to select Audio. - Page 32 Function setup Customizing the Function Settings (continued) Setting details View Mode Aspect Ratio : 16 : 9 The user may select one of the following options: Video : Auto Fit Fill: Fill the screen with decoded image. TV System : PAL Original: Display image as it original size.
-
Page 33: Video Out
TV System HDMI Resolution 1) Press SETUP button. 1) Press SETUP button. 2) Press button to select Video. 2) Press button to select Video. 3) Press button, then use the button to select TV 3) Press button, then use the button to select System. -
Page 34: Jpeg Interval
Function setup Customizing the Function Settings (continued) Setting details PCM: Select when connected to a Multi-channel digital JPEG Interval stereo amplifier. The DVD player outputs sound in the PCM stereo format when you play a DVD recorded on the Dolby 1) Press SETUP button. -
Page 35: Parental Control Dvd
Parental Control Set Password New Password can be set to replace the default password. DVDs equipped with the password function are rated according to their content. The contents allowed by a 1) Press SETUP button. 2) Press button to select Rating. parental lock level and the way a DVD can be controlled 3) Press button, then use the... - Page 36 Function setup Customizing the Function Settings (continued) Setting details ® DivX Registration HDMI CEC Some DivX ® Video-On-Demand files required registration You can control this DVD unit from TV’s remote which is code, please get the code of your DVD player as follow: connected via HDMI cable.
-
Page 37: Others
Others Table of Languages Table of languages and their abbreviations Abbreviation Language Abbreviation Language Abbreviation Language – – – No alternate Guarani Portuguese language Gujarati Quechua CHI (ZH) Chinese Hausa Rhaeto-Romance DUT (NL) Dutch Hindi Kirundi ENG (EN) English Croatian Rumanian FRE (FR) French... -
Page 38: Before Calling Service Personnel
Others Before Calling Service Personnel Check the following guide for the possible cause of a problem before contacting service. Symptoms and correction Symptom Cause Correction Page No power. • The power plug is disconnected. 12-13 • Connect the power plug securely into the wall outlet. -
Page 39: Specifications
Others Specifications DVD player / outputs / supplied accessories DVD Player Power supply 100V - 240V AC, 50/60Hz Power consumption 8 W (standby: less than 1.0W) Mass 1.26 kg External dimensions 430 x 41 x 197 mm (W/H/D) Signal system PAL/3.58 NTSC Laser Semiconductor laser, wavelength 650/780 nm... - Page 40 Following information is only for EU-member states: The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
