Page 2: Package Contents
Do not insert sharp or tiny objects into the Network Camera. Package Contents Sun Shield / Wrench / RJ45 Female / IP8361 with an RJ45 Cable Female Coupler / Double-sided Tape / Screws Waterproof Connector for RJ45 Wall Mount Bracket... -
Page 3: Warranty Card

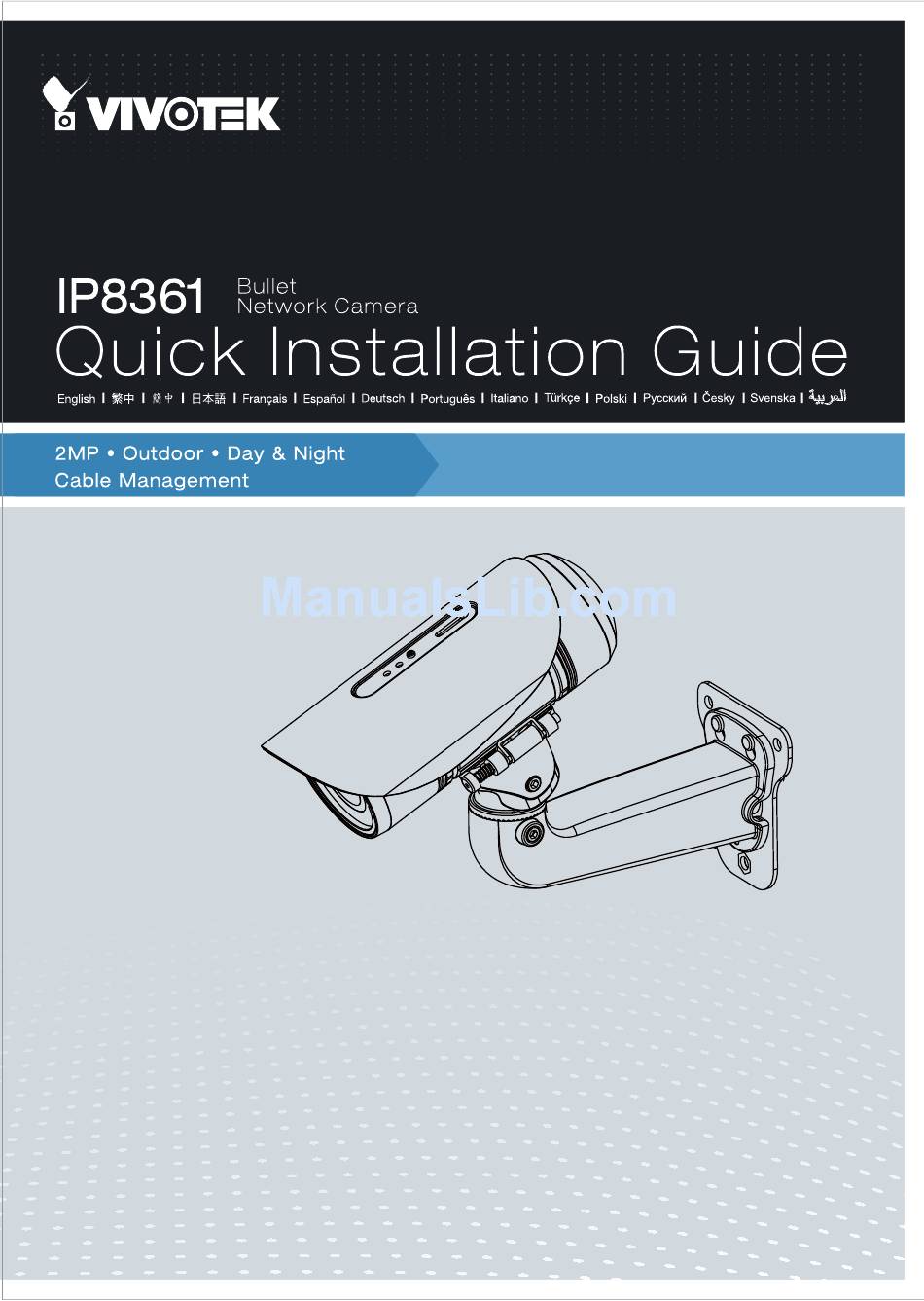

Quick Installation Guide Software CD IP8361 Network Bullet Camera Quick Installation Guide Français Deutsch Italiano Türkçe Polski Русский Česky Svenska English 繁中 簡中 日本語 Español Português 2MP • Outdoor • Day & Night Cable Management Warranty Card Physical Description Lens... -
Page 4: Hardware Installation
Hardware Installation 1. Attach the alignment sticker to the wall. Drill four holes into the wall. Then hammer the supplied plastic anchors into the holes and secure the plate with supplied screws. 2. Fix the intersection bracket to the side of the Network Camera with two screws. 3. -
Page 5: Waterproof Connector
Waterproof Connector Components of the Waterproof Connector Pin Definition Power +12V Digital Output Screw Nut (A) Digital Input Seal (B) Ground AC 24V Seals (C) AC 24V Housing (D) RS485 + Sealing Nut (E) RS485 - External MIC In 4 3 2 1 Ground Audio Out Ground... -
Page 6: Cabling Assembly
Cabling Assembly RJ45 Cable Connector RJ45 Cable Dimension (unit: mm) Components of the Waterproof Connector Sealing Nut (A) Seal (B) Screw Nut (C) Housing (D) Gasket (E) Assembling Steps Insert the housing into the Insert the seal into the housing. Prepare an Ethernet cable screw nut. -
Page 7: Network Deployment
Network Deployment Power over Ethernet (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable. PoE Switch When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE... -
Page 8: Assigning An Ip Address
2. The program will conduct an analysis of your network environment. After your network is analyzed, please click on the "Next" button to continue the program. 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. - Page 9 3. Unscrew the zoom controller to adjust the zoom factor. Upon completion, tighten the zoom controller. 4. Unscrew the focus controller to adjust the focus range. Upon completion, tighten the focus controller. 5. Tighten the lens cover. 6. Open the back cover. 7.
- Page 10 Accessories VIVOTEK also provides other accessories for versatile applications as the following illustrations. Please visit VIVOTEK's official website for more purchase information. Corner Mount Bracket Pole Mount Bracket IR illuminator (distance 30m, 60°) Built-in 24 LED units (distance 25m, 35°) The 30m, 60°...
