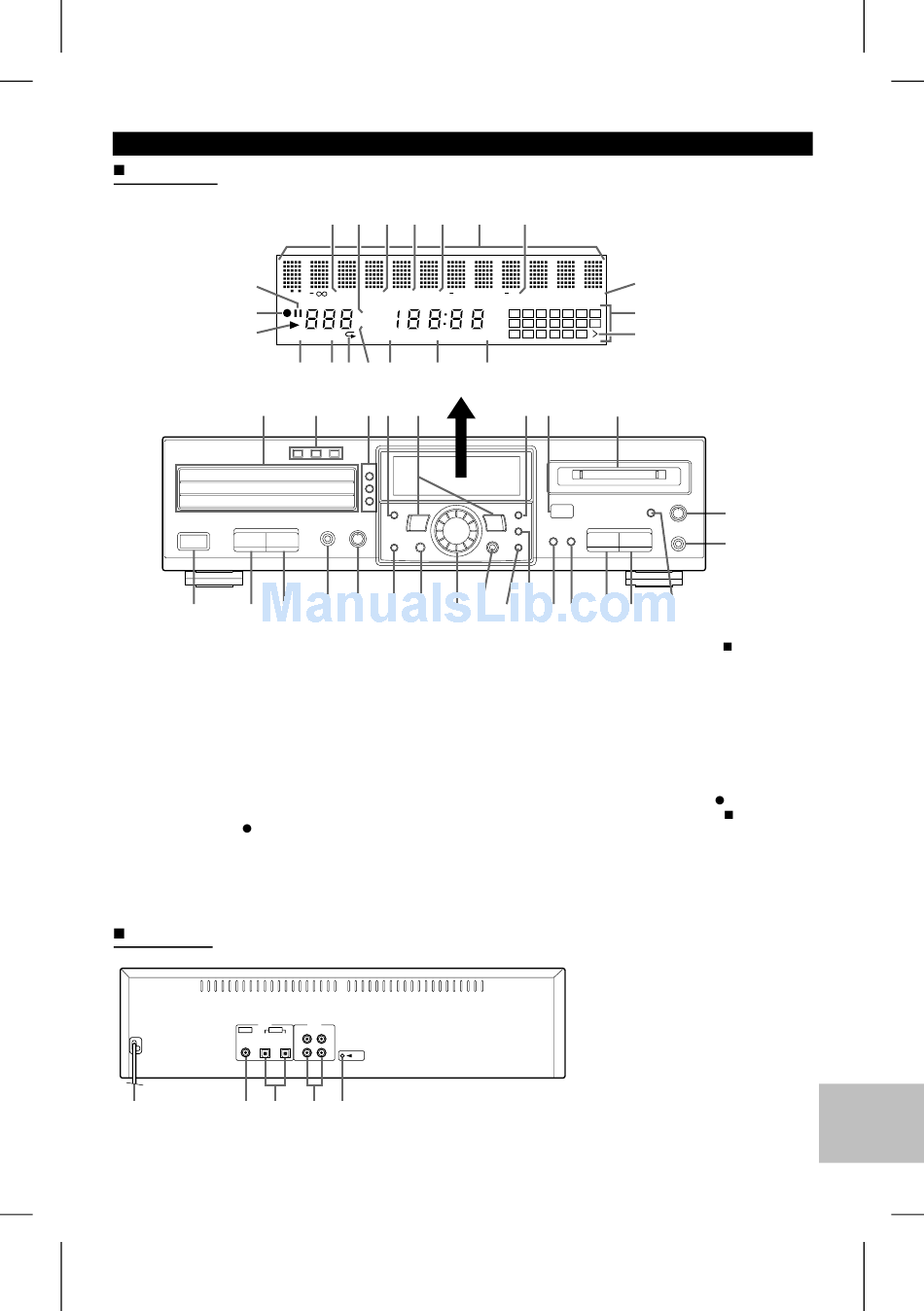

NAMES OF CONTROLS AND INDICATORS
Front panel
11
12
13
MONO LP PRGM
21
31
32
33
1. MD TOC Indicator: TOC
2. Total Time Indicator
3. Disc Name Indicator
4. Track Name Indicator
5. Date Indicator
6. Level Meter/Character Informa-
tion Display
7. Recording Level Indicator
8. Recording Level Too High Indi-
cator
9. Music Calendar
6
10. More Tracks Indicator
11. Pause Indicator:
0
12. Record Indicator:
13. Play Indicator:
14. Monaural Long-Play Mode Indi-
cator
15. Programme Indicator
Rear panel
1
2
3
1
2
3
4
5
TOC
DISC TRACK DATE
12
TOTAL
REMAIN
RANDOM
TIMER REC
14 1516
17
18
19
22
23
24
25
34 35
36
37
38 39
16. Repeat Indicator:
17. Remaining Time Indicator
18. Random Play Indicator
19. Timer Playback/Timer Record-
ing Indicator
20. Clock Indicator
21. CD Trays
22. CD Direct Play Buttons and
Indicators
23. CD Open/Close Buttons:
24. CD Track Select Button
25. Cue/Review Buttons:
26. Display/Character Button
27. Remote Sensor
28. MD Loading Slot
29. Record Level Control
30. Microphone Socket
31. On/Stand-by Button
4
5
E-3
MD-R3H
6
7
8
4
0dB
OVER
9
1 2 3 4 5 6 7
AM
8 9 10 11 12 13
14
PM
10
15 16 17 18 19 20
CLOCK
20
26 27
28
40
41
42
43
44 45
R
32. CD Stop Button:
33. CD Play/Pause Button:
34. Headphone Socket
35. Headphone Level Control
36. CD Edit Button
37. Programme Button
38. Jog Dial (Next/Previous)
39. Enter Button
7
40. Delete/Clear/Timer Button
41. Name/TOC Edit Button
3
2
42. Input Select Button
/
43. Record Button:
44. MD Stop Button:
45. MD Play/Pause Button:
46. MD Eject Button:
1. AC Power Lead
2. Coaxial Input Socket
(Digital)
3. Optical Input/Output Sockets
(Digital)
4. Line Input/Output Sockets
(Analogue)
5. Reset Button
29
30
46
06
06
7
