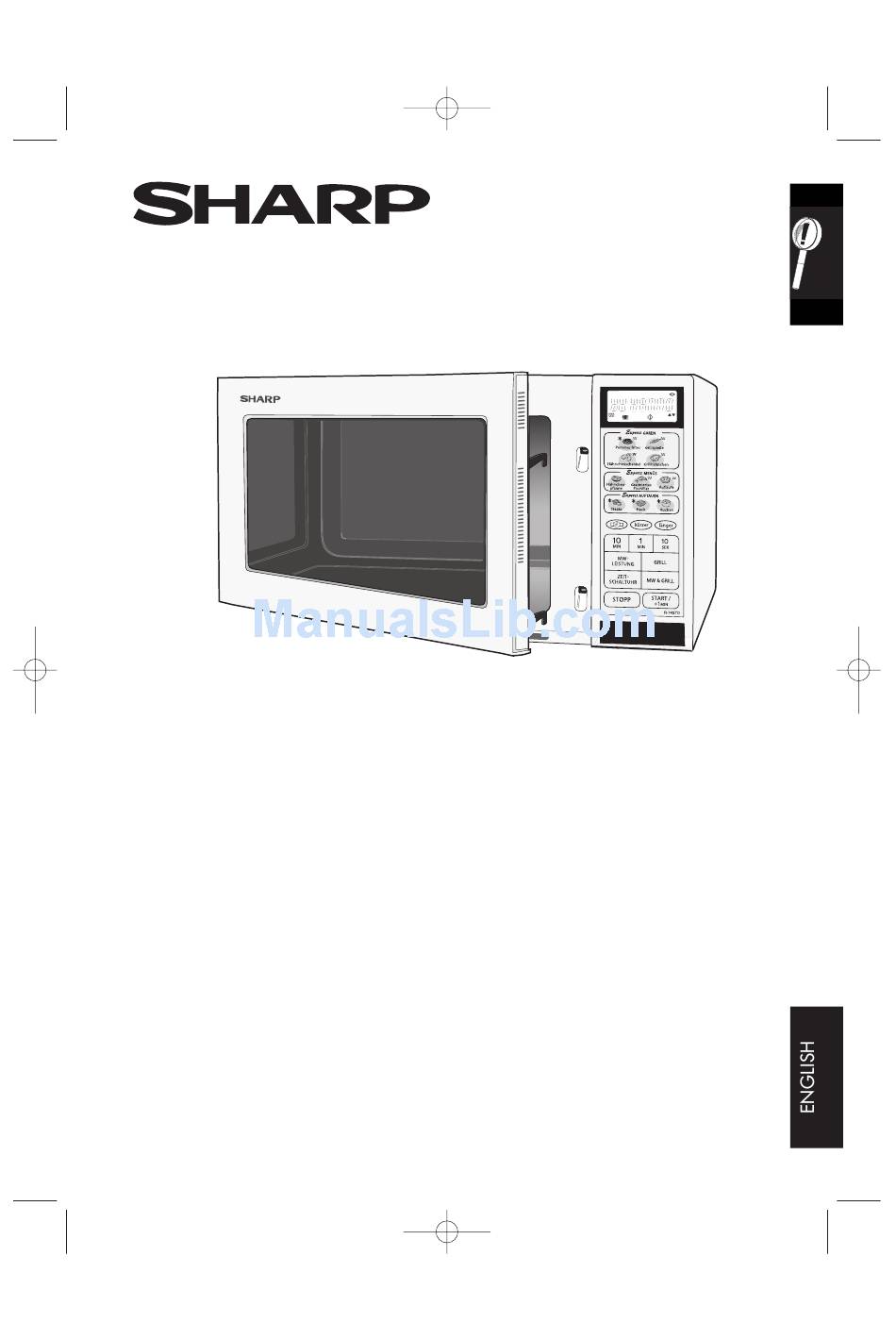

R-74STD English 23/01/2003 10:27 Page A
Important
R-74STD
MICROWAVE OVEN WITH GRILL
OPERATION MANUAL WITH COOKBOOK
OPERATION MANUAL
This operation manual contains important information which you should read carefully before using
your microwave oven.
IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the
oven is modified so that it operates with the door open.
900 W (IEC 60705)

Advertisement

Table of Contents
loading

Related Manuals for Sharp R-74STD

Summary of Contents for Sharp R-74STD

  • Page 1 R-74STD English 23/01/2003 10:27 Page A Important R-74STD MICROWAVE OVEN WITH GRILL OPERATION MANUAL WITH COOKBOOK OPERATION MANUAL This operation manual contains important information which you should read carefully before using your microwave oven. IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the oven is modified so that it operates with the door open.
  • Page 2 R-74STD English 23/01/2003 10:27 Page B RATINGS LABEL R-74STD 230V 50Hz 2.35kW SERIAL No. _ _ _ _ _ _ _ _ _ SHARP ELECTRONICS (U.K.) LTD 1000W FABRIQUE AU ROYAUME - UNI FABRICADO EN EL UNIDO 2450MHz 900W MADE IN U.K.

  • Page 3: Table Of Contents

    R-74STD English 23/01/2003 10:27 Page 1 CONTENTS OVEN AND ACCESSORIES ..........2 CONTROL PANEL .

  • Page 4: Oven And Accessories

    R-74STD English 23/01/2003 10:27 Page 2 OVEN AND ACCESSORIES 1 Door 2 Door hinges 3 Grill heating element 4 Oven lamp 5 Waveguide cover 6 Door lock openings 7 Control panel 8 Door opening button 9 Coupling 10 9 10 Oven cavity...

  • Page 5: Control Panel

    R-74STD English 23/01/2003 10:27 Page 3 CONTROL PANEL Digital display and indicators: 1. MICROWAVE indicator 2. GRILL indicator 3. CLOCK SET indicator 4. LESS/MORE indicators 5. COOKING IN PROGRESS indicator Operating keys: 6. EXPRESS COOK keys Press to select one of the 4 automatic cooking programmes.

  • Page 6: Important Safety Instructions

    EBR-45ST licensed by Do not operate the oven if it is damaged or SHARP must be used. This is available from your malfunctioning. Check the following before use: dealer. Refer to the frame installation instructions for a)The door;...
  • Page 7 Do not attempt to replace the oven lamp yourself or allow anyone who is not an electrician authorised of food and drink given to babies, by SHARP to do so. If the oven lamp fails, please consult children or the elderly. your dealer or an authorised SHARP service agent.

  • Page 8: Installation

    R-74STD English 23/01/2003 10:27 Page 6 IMPORTANT SAFETY INSTRUCTIONS Do not use metal utensils, which reflect microwaves MENU operation, because they may melt. Plastic and may cause electrical arcing. Do not put cans containers must not be used during above modes in the oven.

  • Page 9: Before Operation

    R-74STD English 23/01/2003 10:27 Page 7 BEFORE OPERATION Your oven has an energy save mode. Plug in the oven. Nothing will appear on the display at this time. 1. Open the door. The oven display will show “ENERGY SAVE MODE”.

  • Page 10: Setting The Clock

    R-74STD English 23/01/2003 10:27 Page 8 SETTING THE CLOCK There are two setting modes: 12 hour clock and 24 hour clock. Step 1. Step 2. 1. To set the 12 hour clock, press the CLOCK SETTING key once, as in Step 1 opposite.

  • Page 11: Microwave Power Levels

    R-74STD English 23/01/2003 10:27 Page 9 MICROWAVE POWER LEVELS Your oven has 5 power levels. To choose the power 450 W (50 % output) for dense foods which level for cooking, follow the advice given in the require a long cooking time when cooked recipe section.

  • Page 12: Grill Cooking/Dual Grill Cooking

    R-74STD English 23/01/2003 10:27 Page 10 GRILL COOKING/DUAL GRILL COOKING This microwave oven has two GRILL cooking modes: 1. Grill only. 2. Dual Grill (Grill with microwave). 1. GRILL ONLY COOKING This mode can be used to Grill/Brown food. Example : To make toast for 4 minutes.

  • Page 13: Other Convenient Functions

    R-74STD English 23/01/2003 10:27 Page 11 OTHER CONVENIENT FUNCTIONS 1. MULTIPLE SEQUENCE COOKING A sequence of 3 stages (maximum) can be programmed using combinations of MICROWAVE, GRILL or DUAL GRILL. Example: To cook : 10 minutes on 450 W power (Stage 1).
  • Page 14 R-74STD English 23/01/2003 10:27 Page 12 OTHER CONVENIENT FUNCTIONS 3. MINUTE PLUS FUNCTION The START/+1min key allows you to operate the two following functions: a. Direct start You can directly start cooking on 900 W microwave power level for 1 minute by presssing the START/+1min key.

  • Page 15: Express Cook, Express Menu & Express Defrost Operation

    R-74STD English 23/01/2003 10:27 Page 13 EXPRESS COOK, EXPRESS MENU & EXPRESS DEFROST OPERATION EXPRESS COOK, EXPRESS MENU and EXPRESS DEFROST automatically work out the correct cooking mode and cooking time. You can choose from 4 EXPRESS COOK, 3 EXPRESS MENU and 3 EXPRESS DEFROST menus.

  • Page 16: Express Cook Chart

    R-74STD English 23/01/2003 10:27 Page 14 EXPRESS COOK, EXPRESS MENU & EXPRESS DEFROST OPERATION Example: To cook Chicken Legs 0,4 kg. 1. To select the menu required and weight range, press the CHICKEN LEGS key three times. After 2 seconds the oven will start to cook automatically.

  • Page 17: Express Menu Chart

    R-74STD English 23/01/2003 10:27 Page 15 EXPRESS MENU CHART MENU WEIGHT (Increasing PROCEDURE Unit) / UTENSILS Chicken Pan with 0,5 - 1,5 kg* (500 g) • See recipe for Chicken Pan with Vegetables on Vegetables (initial temp Chicken 5° C) page 17.

  • Page 18: Recipes For Express Menus

    R-74STD English 23/01/2003 10:27 Page 16 RECIPES FOR EXPRESS MENUS CHICKEN PAN WITH VEGETABLES Spicy chicken fricassee Ingredients Preparation 0,5 kg 1,0 kg 1,5 kg 1. Mix the rice and saffron and place in the greased dish. 60 g 120 g...
  • Page 19 R-74STD English 23/01/2003 10:27 Page 17 RECIPES FOR EXPRESS MENUS GRATIN Spinach gratin Ingredients Preparation 1. Mix together the leaf spinach with the onion 0,5 kg 1,0 kg 1,5 kg and season with salt, pepper and nutmeg. 150 g 300 g...

  • Page 20: Care And Cleaning

    After 3 minutes do both GRILL heating elements become red? If you answer “NO” to any of the above questions, call a Service Technician appointed by SHARP and report the results of your check. See inside back cover for details of address.

  • Page 21: Service Addresses

    291292 / Audio Video Service, Sonnengasse 13, 9020 Klagenfurt, Phone: 463-43114, Fax: 463-43113 BELGIUM En cas d´une réclamation concernant une four a micro-onde SHARP, nous vous prions de vous adresser à votre spècialiste ou à une adresse des SHARP Services suivantes.
  • Page 22 Bahnhofstraße 17, Blitz Elektro-Elektronik GmbH, Tel: 03691-292930, Fax: 03691-292915 FRANCE En cas de réclamation pour les fours micro-ondes SHARP, nous vous prions de vous adresser à votre spécialiste ou à l’une des stations techniques agréées SHARP suivantes : A.A.V.I., 1, rue du Mont de Terre - 59818 Lesquin Cedex, Tél : 03.20.62.18.98 - Fax : 03.20.86.20.60 / A.A.V.I. (Point d'Accueil), 9-11, rue Léon Trulin - 59000 Lille, Tél : 03.20.14.96.20 - Fax : 03.20.14.96.26 / ATELIER ROUSSEL, 12, Bld Flandre Dunkerque - 56100 Lorient, Tél :...
  • Page 23 R-74STD English 23/01/2003 10:27 Page 21 . SERVICE NIEDERLASSUNGEN . ADDRESSES D’ENTRETIEN . ONDERHOUDSADRESSEN . DIRECCIONES DE SERVICIO . INDIRIZZI DI SERVIZIO . / Stema Snc, V.Le Bologna, 92/A 47100, Forli’, Tel: 0543-704475, Fax: 0543-702742 / Technolab Snc, Via Romea 36, 48100, Ravenna, Tel: 0544-64008, Fax: 0544-476497 / Tecnoservice.Com, Via Longhi 16/A/B, 40128, Bologna, Tel: 051-360986, Fax: 051-366863 /...
  • Page 24 Simon Musico, 2/C, 54100 Massa, Tel: 0585-489893, Fax: 0585-886122 ESPANA En caso de una reclamación con vuestra SHARP Microwave, preguntan por favor la casa dónde han comprado su máquina o infórmanse en una de las SHARP Service casas siguientes. Lavison, C.B., 972/ 23.01.22, Cl Montseny 35, Girona, Girona / Videocolor, 93/ 454.99.08, Cl Villarroel 44, Barcelona, Barcelona Argi Giltz, 94/ 443.77.93, Cl Autonomia 15, Bilbao, Vizcaya / Estarlich Pradas Vicente, 93/ 766.22.33, Cl Industria 131, Calella,...
  • Page 25 R-74STD English 23/01/2003 10:27 Page 23 . SERVICE NIEDERLASSUNGEN . ADDRESSES D’ENTRETIEN . ONDERHOUDSADRESSEN . DIRECCIONES DE SERVICIO . INDIRIZZI DI SERVIZIO . 87.07.94, Cl Carmen 21, Alcañiz, Teruel / Teleservicio Bajo Aragon, 978/ 87.08.10, Cl Romualdo Soler 4, Alcañiz, Teruel / Reparaciones Urruti S.L., 943/ 45.84.10, Ps Aintzieta 32, San Sebastian, Guipuzcoa / Reparaciones Pilsa S.C., 972/ 20.66.96, Cl J.
  • Page 26 Villena, Alicante / Servicio Tecnico Pasfer, 696/17.86.458, Av Arcadio Pardiñas 77, Burela, Lugo SWITZERLAND Sharp Electronics AG, Langwiesenstrasse 7, 8108 Dällikon, Tel: +41 1 846 61 11. SWEDEN Vid förfrågningar angående din mikrovågsugn var vänlig kontakta din återförsäljare eller nägon av Sharps representanter Centralservice Umeå, Formvägen 8, 90621 Umeå, Phone: 090-125001, Fax: 090-131135 / MN Elektronikservice...

  • Page 27: Specifications

    R-74STD English 23/01/2003 10:27 Page 25 SPECIFICATIONS AC Line Voltage : 230 V, 50 Hz, single phase Distribution line fuse/circuit breaker : Minimum 16 A AC Power required: Microwave : 1,37 kW Grill : 1,0 kW Grill/Microwave : 2,35 kW...
  • Page 28 R-74STD English 23/01/2003 10:27 Page 26 SHARP ELECTRONICS (EUROPE) GMBH. Sonninstrasse 3 20097 Hamburg Germany SHARP MANUFACTURING ist ein Mitglied von: Der Zellstoff zur Herstellung dieses Papiers kommt zu 100 % aus nachhaltig bewirtschafteten Wäldern Gedruckt in Grossbritannien TINS-A314URR0...
  • Page 29 R-74STD English 23/01/2003 10:27 Page 27 SHARP ELECTRONICS (EUROPE) GMBH. Sonninstrasse 3 20097 Hamburg Germany SHARP MANUFACTURING ist ein Mitglied von: Das Papier dieser Bedienungsanleitung besteht zu 100 % aus Altpapier Gedruckt in Grossbritannien TINS-A314URR0...
