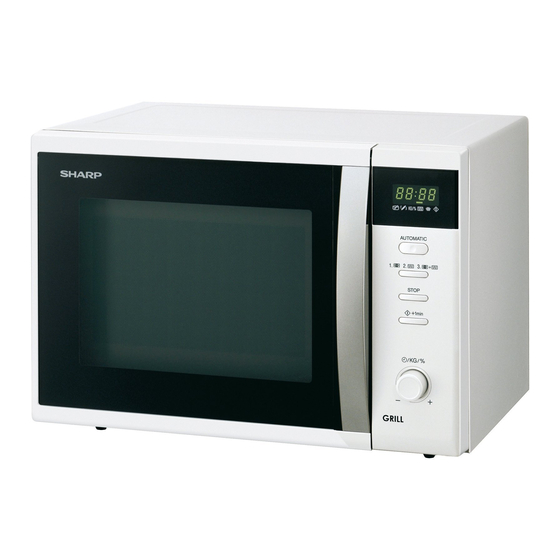

800 w microwave oven with grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

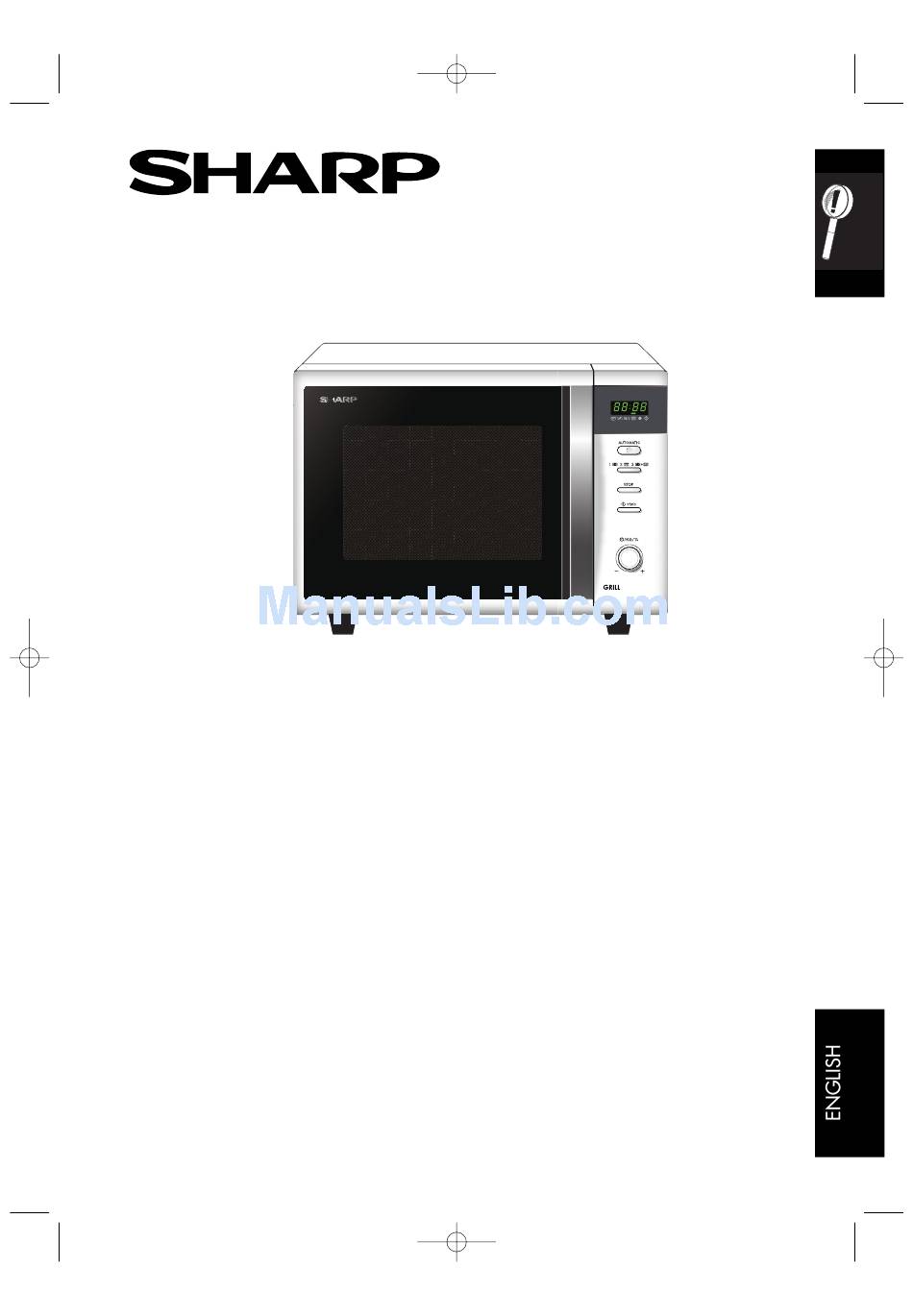

R-647_[Cov+EN].qxd
12/11/06
7:06 PM
Page A
Important
R-647
MICROWAVE OVEN WITH GRILL
OPERATION MANUAL WITH COOKBOOK
OPERATION MANUAL
This operation manual contains important information which you should read carefully before using your
microwave oven.
IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the
oven is modified so that it operates with the door open.
800 W (IEC 60705)

Advertisement

Table of Contents
loading

Related Manuals for Sharp R-647

Summary of Contents for Sharp R-647

  • Page 1 R-647_[Cov+EN].qxd 12/11/06 7:06 PM Page A Important R-647 MICROWAVE OVEN WITH GRILL OPERATION MANUAL WITH COOKBOOK OPERATION MANUAL This operation manual contains important information which you should read carefully before using your microwave oven. IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the oven is modified so that it operates with the door open.

  • Page 2: Dear Customer

    R-647_[Cov+EN].qxd 12/11/06 7:06 PM Page B Dear Customer, Congratulations on acquiring your new microwave oven with grill, which from now on will make your kitchen chores considerably easier. You will be pleasantly surprised by the kinds of things you can do with a microwave. Not only can you use it for rapid defrosting or heating up of food, you can also prepare whole meals.
  • Page 3 1. In the European Union If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the take- back of the product. You might be charged for the costs arising from take-back and recycling.

  • Page 4: Table Of Contents

    R-647_[Cov+EN].qxd 12/11/06 7:06 PM Page 1 CONTENTS Operation manual DEAR CUSTOMER ........... .1 RECYCLING INFORMATION .

  • Page 5: Oven And Accessories

    To avoid turntable damage, ensure dishes or containers are lifted clear of the turntable rim when removing them from the oven. NOTE: When you order accessories, please mention two items: part name and model name to your dealer or SHARP authorised service agent.

  • Page 6: Control Panel

    R-647_[Cov+EN].qxd 12/11/06 7:06 PM Page 3 CONTROL PANEL CONTROL PANEL 1 Digital Display 2 Indicators The appropriate indicator will flash or light up, just above each symbol according to the instruction. When an indicator is flashing, press the suitable button (having the same symbol) or do the necessary operation.

  • Page 7: Important Safety Instructions

    In the event of a spill, turn off and unplug the popcorn makers. oven immediately, and call an authorised SHARP service agent. Do not store food or any other items inside the oven. Do not immerse the power supply cord or plug in Check the settings after you start the oven to ensure the water or any other liquid.
  • Page 8 SHARP to do so. If the oven lamp fails, please consult burns and eruption of boiling. your dealer or an authorised SHARP service agent.

  • Page 9: Installation

    Keep children away from the door to prevent them burning themselves. 5. Do not allow the power supply cord to run over any hot or sharp surfaces, such as the hot air vent area at the top rear of the oven. ✓...

  • Page 10: Before Operation

    R-647_[Cov+EN].qxd 12/11/06 7:06 PM Page 7 BEFORE OPERATION Plug in the oven. Using the STOP button 1. The oven display will flash: Use the STOP button to: 1. Erase a mistake during programming. 2. Stop the oven temporarily during cooking. 3.

  • Page 11: Microwave Power Level

    R-647_[Cov+EN].qxd 12/11/06 7:06 PM Page 8 MICROWAVE POWER LEVEL Your oven has 5 power levels. To choose the power 50 P (400 W) for dense foods which require a level for cooking, follow the advice given in the long cooking time when cooked conventionally, eg. recipe section.

  • Page 12: Microwave Cooking

    R-647_[Cov+EN].qxd 12/11/06 7:06 PM Page 9 MICROWAVE COOKING Your oven can be programmed for up to 90 minutes. Cooking time Increasing unit (90.00) The input unit of cooking (defrosting) time 0-5 minutes 10 seconds varies from 10 seconds to five minutes. It depends on 5-10 minutes 30 seconds the total length of the cooking (defrosting) time as...

  • Page 13: Grill Cooking/Dual Grill Cooking

    R-647_[Cov+EN].qxd 12/11/06 7:06 PM Page 10 GRILL COOKING/DUAL GRILL COOKING This microwave oven has two GRILL cooking modes: 1. Grill only. 2. Dual Grill (Grill with microwave). 1. GRILL ONLY COOKING This mode can be used to Grill/Brown food. Example : To cook for 4 minutes. 2.

  • Page 14: Other Convenient Functions

    R-647_[Cov+EN].qxd 12/11/06 7:06 PM Page 11 OTHER CONVENIENT FUNCTIONS 1. MULTIPLE SEQUENCE COOKING A sequence of 3 stages (maximum) can be programmed using combinations of MICROWAVE, GRILL or DUAL GRILL. Example: To cook : 2 minutes and 30 seconds on 70 P power (Stage 1) 5 minutes Grill only (Stage 2) STAGE 1...

  • Page 15: Other Convenient Functions

    R-647_[Cov+EN].qxd 12/11/06 7:06 PM Page 12 XXXXXXXXXXXXX OTHER CONVENIENT FUNCTIONS 2. MINUTE PLUS FUNCTION The START/+1 button allows you to operate the two following functions: a. Direct start You can directly start cooking on 100 P microwave power level for 1 minute by pressing the START/+1 button.

  • Page 16: Automatic Operation

    R-647_[Cov+EN].qxd 12/11/06 7:06 PM Page 13 AUTOMATIC OPERATION XXXXXXXXXXXXXXXX The AUTOMATIC function automatically works out the correct cooking mode and cooking time. You can choose from 8 AUTOCOOK menus and 4 AUTO DEFROST menus. What you need to know AUTOMATIC button when using this automatic function: 1.

  • Page 17: Automatic Charts

    R-647_[Cov+EN].qxd 12/11/06 7:06 PM Page 14 AUTOMATIC CHARTS BUTTON MENU NO. WEIGHT (Increasing PROCEDURE Unit)/ UTENSILS AC-1 Cook 0,1 - 0,6 kg (100 g) • Cut into small pieces, eg. strips, cubes or slices. Fresh Vegetables (initial temp 20° C) •...
  • Page 18 R-647_[Cov+EN].qxd 12/11/06 7:06 PM Page 15 AUTOMATIC CHARTS BUTTON AUTOCOOK WEIGHT (Increasing PROCEDURE Unit)/ UTENSILS AC-6 Cook 0,5 - 1,0 kg* (100 g) • See recipes for “Gratinated Fish Fillet” on Gratinated Fish (initial temp Fish 5° C) pages GB-13-14. Fillet Gratin dish * Total weight of all ingredients.

  • Page 19: Recipes For Automatic

    R-647_[Cov+EN].qxd 12/11/06 7:06 PM Page 16 AUTOMATIC CHARTS BUTTON WEIGHT (Increasing PROCEDURE AUTO Unit)/ UTENSILS DEFROST NO. 0,1 - 0,5 kg (100 g) • Distribute in a flan dish in the centre of the turntable. Ad-4 Defrost (initial temp -18° C) •...

  • Page 20: Recipes For Automatic Ac-6, Ac-7 & Ac-8

    R-647_[Cov+EN].qxd 12/11/06 7:06 PM Page 17 RECIPES FOR AUTOMATIC AC-6, AC-7 & AC-8 Preparation GRATINATED FISH FILLET (AC-6) 1. Put vegetables, butter and the spices into a casserole dish Fish esterhazy and mix well. Cook for 2-6 minutes on 100 P depending on Ingredients weight.

  • Page 21: Care And Cleaning

    Programme the grill for three minutes and start the oven. After 3 minutes does the grill heating element become red? If “NO” is the answer to any of the above questions, call your dealer or an authorised SHARP Service Agent and report the results of your check.

  • Page 22: What Are Microwaves

    R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-17 WHAT ARE MICROWAVES? Microwaves are generated in the microwave oven by a magnetron and cause the water molecules in the food to oscillate. Heat is generated by the friction which is caused, with the result that the food is thawed, heated or cooked.

  • Page 23: Suitable Ovenware, Tips And Advice

    R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-18 SUITABLE OVENWARE, TIPS AND ADVICE COOKING TIMES NO UTENSIL SHOULD HAVE A METAL overlay, or metal parts such as screws, bands or handles.. All the times given in this cooker y book are UTENSIL SUITABILITY TEST guidelines, which can be varied according to the If you are not sure whether your utensil is suitable...

  • Page 24: Tips And Advice

    R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-19 TIPS AND ADVICE FATTY FOODS COVERING Fatty meat and layers of fat cook better than lean Covering the food retains the moisture within it portions of meat. Before cooking, cover the fatty and shortens the cooking time. Use portions with a piece of aluminium foil or place the a lid, microwave foil or a cover.

  • Page 25: Heating

    R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-20 HEATING Details for this can be found in the table: Heating ● If possible, stir large quantities from time to time, to food and drink (see page GB-21). ensure that the temperature is evenly distributed. ●...

  • Page 26: Cooking Fresh Vegetables

    R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-21 COOKING FRESH VEGETABLES Details for this can be found in the table: Cooking ● Vegetables are usually cooked in a dish with a fresh vegetables (see page GB-23). lid. Those with a high moisture content, e.g. ●...

  • Page 27: Tables

    R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-22 TABLES TABLE : HEATING FOOD AND DRINK Food/Drink Quantity Setting Power Time Method -Level- -min- Coffee, 1 cup 100 P approx. 1 Do not cover Milk, 1 cup 100 P approx. 1 Do not cover Water, 1 cup 100 P...
  • Page 28 R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-23 TABLES TABLE : DEFROSTING Food Quantity Setting Power Time Method Standing time -min- -Level- -min- Meat for roasting 1500 10 P 58-64 Place on an upturned plate, turn over 30-90 (e.g. Pork, Beef, 1000 10 P 42-48...
  • Page 29 R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-24 TABLES TABLE : COOKING FRESH VEGETABLES Vegetable Weight Setting Power Time Hints Added Water -Level- -Min- tbsps/ml- Artichokes 100 P remove the stalk, cover 3-4 tbsp Leaf Spinach 100 P wash, dry well, cover, stir once or twice during cooking Cauliflower 100 P 15-17 1 whole head, cover, divide into florets 5-6 tbsp...
  • Page 30 R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-25 TABLES TABLE : COOKING, GRILLING AND BROWNING Food Quantity Setting Power Time Method Standing time -Level- -min- -min- Roasts Season to taste, place in shallow dish, place on 5-10 100 P (Pork,Veal, Lamb) revolving plate, turn over after * 3-5* 50 P...

  • Page 31: Recipes

    R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-26 RECIPES ADAPTING RECIPES FOR THE MICROWAVE OVEN oil is sufficient to flavour food. For this reason your If you would like to adapt your favourite recipes for the microwave is excellent for preparing low-fat foods as microwave, you should take note of the following: part of a diet.

  • Page 32: Soups And Starters

    R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-27 SOUPS AND STARTERS Switzerland Procedure 1. Put the butter and diced onion in the dish and BARLEY SOUP steam with the lid on the dish. Bündner Gerstensuppe approx. 1-2 min. 100 P Total cooking time: approx. 35-40 minutes 2.
  • Page 33 R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-28 SOUPS AND STARTERS Germany Procedure 1. Toast the bread and spread with butter. CAMEMBERT TOAST 2. Cut the Camembert into slices and arrange on Camemberttoast top of the toast. Put the Cranberry jelly in the Total cooking time: approx.
  • Page 34 R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-29 MEAT, FISH AND POULTRY Spain Procedure 1. Remove the stalks from the mushrooms and chop MUSHROOM WITH ROSEMARY the stalks into small pieces. Champinones rellenos al romero 2. Spread the butter on the bottom of the dish. Add Total cooking time: approx.
  • Page 35 R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-30 MEAT, FISH AND POULTRY Austria Procedure 1. Wash the chicken, pat it dry and season the STUFFED ROAST CHICKEN cavity with salt, rosemary and marjoram. Gefülltes Brathähnchen 2. To make the filling, soak the bread roll for Stuffed roast chicken for two servings approximately 10 minutes in cold water, and then Total cooking time: approx.
  • Page 36 R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-31 MEAT, FISH AND POULTRY Germany Procedure 1. Cut the pork and the bacon into cubes COLOURED MEAT KEBABS approximately 2-3cm in size. Bunte Fleischspiesse 2. Skewer the meat the vegetables alternately on the Total cooking time: approx.
  • Page 37 R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-32 MEAT, FISH AND POULTRY Greece Procedure 1. Peel the tomatoes, cut out the stalks and purée in POT ROAST WITH GREEN BEANS a food processor. Kréas mé fasólia 2. Cut the lamb into large cubes. Grease the dish with Total cooking time: approx.
  • Page 38 R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-33 MEAT, FISH AND POULTRY China Procedure 1. Wash the prawns. Remove the shell and tail. Cut PRAWNS WITH CHILLI into the spine and remove gut. Cut each prawn Total cooking time: approx. 5 - 7 minutes into 2 or 3 pieces and snip each piece so they Utensils: Bowl with lid (1 litre capacity) do not curl when cooked.
  • Page 39 R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-34 VEGETABLES AND NOODLES Italy Procedure 1. Slice the tomatoes and mix with the diced onion LASAGNE and ham, garlic, minced beef and tomato puree. Lasagne al forno Season and steam with lid on. Total cooking time: approx.
  • Page 40 R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-35 VEGETABLES AND NOODLES Spain Procedure 1. Put the potatoes in the bowl, add the water, cover STUFFED POTATOES and cook. Turn once during cooking. Patatas Rellenas 8-10 min. 100 P Total cooking time: approx. 12 - 16 minutes Allow to cool.
  • Page 41 R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-36 DRINKS AND DESSERTS France Procedure 1. Peel the pears, keeping them whole. PEARS IN CHOCOLATE SAUCE 2. Put sugar, vanilla sugar, liqueur and water into the Poires au chocolat bowl. Stir and heat. Total cooking time: approx.
  • Page 42 Umfang der Garantie: Sollte Ihr Mikrowellengerät trotz sorgfältiger Herstellung und Endkontrolle einen Mangel aufweisen, können Sie innerhalb der Garantiezeit, Garantieleistungen gegen Sharp Electronics (Europe) GmbH in Anspruch nehmen. Diese stehen Ihnen zu, wenn ein herstellungsbedingter Material- und/oder Verarbeitungsmangel (nachfolgend „Mangel“) bei dem Mikrowellengerät oder Teilen davon - mit Ausnahme der Garraum-Glühlampe - innerhalb von 24 Monaten auftritt.
  • Page 43 Ansprüche stehen Ihnen zusätzlich neben den gesetzlichen Sachmängelansprüchen gegen Ihren Verkäufer zu. Sehr geehrter SHARP Kunde, SHARP- Geräte sind Markenartikel, die mit Präzision und Sorgfalt nach modernen Fertigungsmethoden hergestellt werden. Bei sachgemäßer Handhabung und unter Beachtung der Bedienungsanleitung wird Ihnen Ihr Gerät lange Zeit gute Dienste leisten.
  • Page 44 • ADDRESSES D’ENTRETIEN • ONDERHOUDSADRESSEN • DIRECCIONES DE SERVICIO • INDIRIZZI DI SERVIZIO • BELGIUM - http://www.sharp.be En cas d´une réclamation concernant une four a micro-onde SHARP, nous vous prions de vous adresser à votre spècialiste ou à une adresse des SHARP Services suivantes.
  • Page 45 R-647_[EN Service].qxd 2/14/07 11:11 AM Page 9 • ADDRESSES D’ENTRETIEN • ONDERHOUDSADRESSEN • DIRECCIONES DE SERVICIO • INDIRIZZI DI SERVIZIO • SERVICE SAS DI G. CALABRESE & C., Str. Teverina, Km. 2,400 Loc. Pantanese Viterbo VT, 0761-251557 0761-251558 / VITECART 99 DI TRIPPINI PAOLO, VIA DELLA PALAZZINA, 103/H VITERBO VT, 0761-220522 0761-220522 LIGURIA: C.R.E.
  • Page 46 2757273 ESPANA - http://www.sharp.es En caso de una reclamación con vuestra SHARP Microwave, preguntan por favor la casa dónde han comprado su máquina o infórmanse en una de las SHARP Service casas siguientes. ALAVA: MERINO NICOLAS JOSE A., AV JUDIZMENDI 24, 01003 VITORIA-GASTEIZ , 945/ 25.18.92 ALBACETE: JUMAN, CL IGNACIO MONTURIOL 8, 02005 ALBACETE, 967/ 22.40.78 / JOSE ANT.
  • Page 47 R-647_[EN Service].qxd 2/14/07 11:11 AM Page 11 • ADDRESSES D’ENTRETIEN • ONDERHOUDSADRESSEN • DIRECCIONES DE SERVICIO • INDIRIZZI DI SERVIZIO • 664.43.60 / ESTARLICH, CL AUQUEBISBE CREUS 12, 08301 MATARO , 93/ 790.22.89 / TECNOSPLIT S.L., CL SANT FRANCESC XAVIER 40 , 08950 ESPLUGUES DE LL. , 93/ 473.57.41 / SERVITEC, AV PIUS XII 24, 08500 VIC, 93/ 883.25.11 / MOVILFRIT, CL OSCA 11 POL.
  • Page 48 TELEVIDEO, S.C., CL BATALLA CLAVIJO 18, 50010 ZARAGOZA, 976/ 32.97.12 SWITZERLAND - http://www.sharp.ch Sharp Electronics (Schweiz) AG, Moosstrasse 2, CH-8803 Rüschlikon, +41 1 846 61 11 SWEDEN - http://www.sharp.se Helpdesk 013-353900 Bild&Ljudservice, Roxviksgatan 8, 582 73 Linköping, 013-356250 Tomi Elektronik, Svandammsplan 2, 126 47 Hägersten, 08- 186170 / Tv Trim, St Pauligatan 37, 416 90 Göteborg, 031-847200...

  • Page 49: Specifications

    R-647_[EN+Back CV].qxd 12/12/06 11:55 AM Page GB-37 SPECIFICATIONS AC Line Voltage : 230 V, 50 Hz, single phase Distribution line fuse/circuit breaker : Minimum 16 A AC Power required: Microwave : 1.25 kW Grill : 1.05 kW Micro/Grill : 2.2 kW Output power: Microwave : 800 W (IEC 60705)
  • Page 50 Gedruckt in Thailand Imprimé au Thaïlande Gedrukt in Thailand Stampato in Tailandia SHARP ELECTRONICS (Europe) GmbH TINS-A719WRRZ-H83 Impreso en Tailandia Sonninstraße 3, D-20097 Hamburg Printed in Thailand Untitled-3 4 Untitled-3 4 4/11/08 5:31:29 PM 4/11/08 5:31:29 PM...
