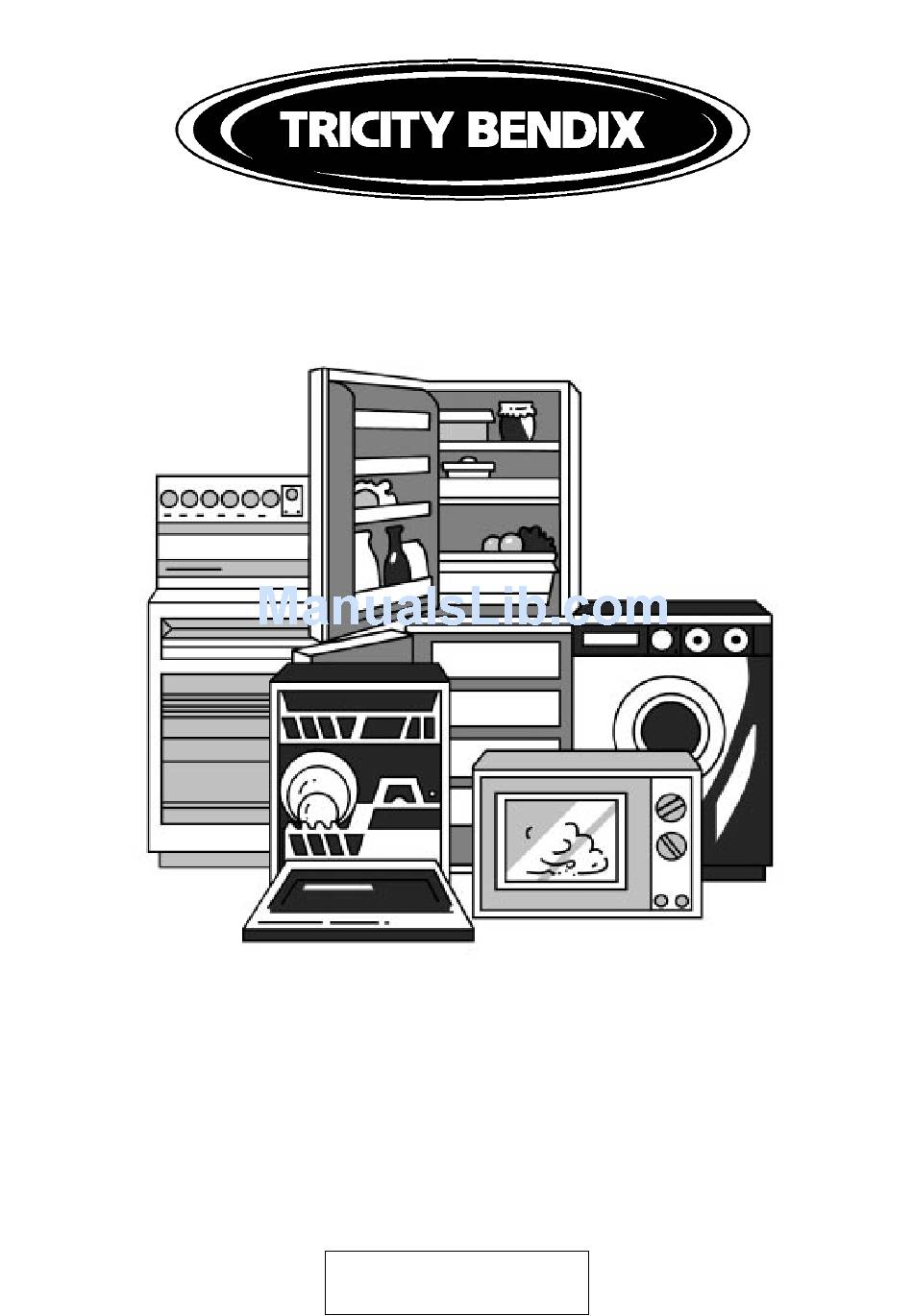

Page 1: Operating And Installation Instructions
OPERATING AND INSTALLATION INSTRUCTIONS MODEL NO. SIE 533... -
Page 2: Technical Details
TECHNICAL DETAILS MODEL NO. SIE 533 Voltage: 230/240 Volts AC 50Hz Wattage: 10.3/11.2kW Height: 900mm Width: 600mm Depth: 598mm Weight: 65 kg This appliance complies with: European Council Directive 73/23/EEC. EMC Directive 89/336/EEC. CE Marking Directive 93/68/EEC. -
Page 3: Table Of Contents
CONTENTS Technical Details ................. . 2 Contents . - Page 4 CONTENTS Defrosting ..................24 Uses of Defrost Feature .
-
Page 5: Preface
They have been approved by BEAB (British Electrotechnical Approvals Board) and are covered by a 12 month parts and labour guarantee. To get the best from your new Tricity Bendix cooker, we ask that you PLEASE READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be made to cooking times and temperatures which may differ from your previous cooker. -
Page 6: Safety
SAFETY After installation, please dispose of THESE WARNINGS ARE PROVIDED IN the packaging with due regard to INTERESTS YOUR SAFETY. safety and the environment, your ENSURE THAT YOU UNDERSTAND THEM local authority can arrange this. ALL BEFORE INSTALLING OR USING THE COOKER. -
Page 7: After Use
Do not leave utensils containing Take care to follow the recommendations foodstuffs, e.g. fat or oil in or on the given for tending the food when grilling. cooker in case it is inadvertently switched ON. Ensure that you support the grill pan when it is in the withdrawn or partially Cookers and hobs become very hot, withdrawn position. -
Page 8: Introduction
INTRODUCTION WARNING: THIS COOKER MUST BE EARTHED The cable should be routed away from potentially hot RATING PLATE areas marked by X in the diagram below. This is situated on the lower front frame of the cooker and can be seen upon opening the top oven door. Alternatively the rating plate may also be found on the back or top of some models (where applicable). -
Page 9: General Notes On Using Your Appliance
THE COOLING FAN FOR THE CONTROLS Note: Vapours from the oven vents may in time cause discoloration of wallcoverings behind the cooker. For ease of cleaning it may be preferable to tile behind the The cooling fan operates immediately when the grill cooker. -
Page 10: Grill And Oven Furniture
GRILL AND OVEN FURNITURE The following items of grill and oven furniture have been supplied with the cooker. If you require repalcements of any of the items listed below, please contact your local Service Force Centre quoting the relevant part number. 1 grill pan (311409401) 1 grill pan handle... -
Page 11: Getting To Know Your Cooker
GETTING TO KNOW YOUR COOKER THE CONTROL PANEL - SIE533 FEATURES Timer Main Oven Temperature Control Main Oven Indicator Neon Top Oven Temperature Control Top Oven Indicator Neon Dual Grill Control Hotplate Controls... -
Page 12: The Timer
THE TIMER Please note that this is a 24 hour clock, for example Cookpot symbol Bell symbol 2.00 pm is shown as 1400. In the following pages we explain how to set the controls. Read through them a few times until you are familiar with the procedure. - Page 13 AUTOMATIC CONTROL The automatic control can be used to control either oven but you can only use the control for both ovens at the same time if the cooking time is the same. When you use the automatic controls for the first time it's probably best to choose a time when you are at home.
-
Page 14: The Ceramic Hob
THE CERAMIC HOB CAUTION: DO NOT USE THE COOKER IF THE CERAMIC GLASS IS DAMAGED. IF A FAULT OR CRACK BECOMES VISIBLE DURING COOKING, DISCONNECT THE COOKER IMMEDIATELY FROM THE ELECTRICITY SUPPLY AND CONTACT YOUR LOCAL FORCE CENTRE. USING THE HOB NOTE To operate the dual hotplate turn the control knob... -
Page 15: Hot Hob Indicator
Turn the food if necessary; doughnuts float to the To prolong the life of hotplates:- surface so will not brown on the upperside if not Never use utensils with a skirt, e.g. a bucket. turned. Once cooked, drain the food on Never use an asbestos mat. -
Page 16: The Dual Grill
THE DUAL GRILL USES OF THE DUAL GRILL CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE KEPT AWAY. The Dual Grill on this appliance has been designed to heat up more quickly than conventional grill elements. It provides quick, direct heat and no preheating is necessary. -
Page 17: Hints And Tips
GRILLING CHART HINTS AND TIPS In order to become acquainted with the FOOD SHELF GRILL TIME performance of the Dual Grill it is advisable to (mins in total) check food regularly when grilling. Bacon Rashers Adjust Food should be thoroughly dried before grilling to Beefburgers shelf 10-15... -
Page 18: The Top Oven
THE TOP OVEN USES OF THE TOP OVEN The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is designed for cooking on one level and for small quantities of food. It gives especially good results if used to cook fruit cakes, sweet or savoury flans or quiche. -
Page 19: Hints And Tips
HINTS AND TIPS DO NOT place dishes or baking trays directly onto the oven base as it becomes very hot and Most cooking should be carried out using an damage may occur. oven shelf positioned in one of the shelf runners. Larger roasts and casseroles should normally be cooked in the main oven. -
Page 20: The Main Fan Oven
THE MAIN FAN OVEN USES OF THE FAN OVEN The oven is heated by an element around the fan situated behind the back panel. The fan draws air from the oven and the element heats the air which circulates in the oven via the vents in the back panel. The advantages of fan oven cooking are: PREHEATING The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. -
Page 21: Hints And Tips
HINTS AND TIPS DO NOT place dishes or baking trays directly on Arrange the shelves in the required positions the oven base as it interferes with the oven air before switching the oven ON. Shelves are circulation and can lead to base burning: use the numbered from the bottom upwards. -
Page 22: Oven Cooking Chart
OVEN COOKING CHART The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperature by 10° C to suit individual preferences and requirements. FAN OVEN TOP OVEN FOOD SHELF COOKING SHELF COOKING APPROX POSITION TEMP °C... -
Page 23: Roasting Chart
ROASTING CHART ROASTING CHART INTERNAL TEMPERATURES - Rare : 50-60°C; Medium : 60-70°C; Well done:70-80°C MEAT SECOND/FAN COOKING TIME OVEN Beef 160-180°C 20-35 min per ½kg/1lb and 20-35 min over Beef, 160-180°C 20-35 min per ½kg/1lb boned and 25-35 min over Mutton 160-180°C 25-35 min per ½kg/1lb... -
Page 24: Defrosting
DEFROSTING Small or thin fish fillets, frozen peeled prawns, cubed USES OF DEFROST FEATURE or minced meat, liver, thin chops, steaks etc., can be thawed in 1 - 2 hours. This main oven function defrosts most foods faster than more conventional methods. It is particularly suitable for delicate frozen foods which are to be served cold e.g. -
Page 25: Care And Cleaning
CARE AND CLEANING BEFORE CLEANING ALWAYS ALLOW CLEANING THE CERAMIC HOB THE COOLING FAN TO COOL THE Make sure the ceramic glass is cool before cleaning. DOWN BEFORE SWITCHING It is important to clean the ceramic hob daily to OFF AT THE ELECTRICITY SUPPLY. prevent soilage being burnt on. -
Page 26: Hints And Tips
Avoid the use of: TO REMOVE BURNT ON SOILAGE Household detergents and bleaches. We strongly recommend the use of a Ceramic Hob Scraper (incorporating a single edge razor blade) to Impregnated plastic or nylon pads that are remove spillage on the hob, in particular sugar not described as suitable for non-stick solutions, which if not removed can cause permanent saucepans. -
Page 27: Cleaning The Dual Grill
HINTS AND TIPS CLEANING THE DUAL GRILL Manual cleaning of Stayclean surfaces is not The Dual Grill will clean itself during normal use. recommended. Damage will occur if oven sprays However, if it has become excessively soiled, run the or abrasives of any kind are used. grill at full setting for approximately 3 minutes to burn off residues of food. -
Page 28: Cleaning Between The Outer And Inner Door Glass
2. Push the top of the oven glass towards the oven CLEANING THE DOOR GLASS door, ensuring the screw location holes line up. To prevent damaging or weakening the 3. Hold the glass in place with one hand and insert door glass panels avoid the use of the the cross head screws into the location holes following:... -
Page 29: Something Not Working
SOMETHING NOT WORKING? We strongly recommend that you carry out the The hotplates and ovens work but the grill does following checks on your cooker before calling a not: Service Engineer. It may be that the problem is a simple one which you can solve yourself without the expense of a service call. -
Page 30: Service And Spare Parts
Dublin 12 Telephone: 01 4090752 CUSTOMER CARE DEPARTMENT For general enquiries concerning your Tricity Bendix appliance, or further information on Tricity Bendix products, you are invited to contact our Customer Care Department by letter or telephone as follows: Customer Care Department... -
Page 31: Customer Service Centres
08705 929 929 To contact your local Service Force Centre telephone ND Macleod CHANNEL ISLANDS NORTH EAST 16 James Street Stornoway Isle of Lewis PA87 2QW Guernsey Electricity PO Box 4 Vale , Guernsey 2, 6 & 8 Woodmarket Channel Islands GY1 3AD Kelso Borders TD5 7AX... - Page 32 08705 929 929 To contact your local Service Force Centre telephone MIDLANDS LONDON & EAST ANGLIA SOUTH EAST TONBRIDGE Unit 30 Deacon Trading Estate Morley Road & 4 Tonbridge TN9 1RA SOUTH WEST &...
-
Page 33: Guarantee Conditions
Standard guarantee conditions We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: The appliance has been correctly installed and used only on the electricity supply stated on the rating plate. - Page 34 N O T E S SIE533 - 311605100...
- Page 36 In line with our continuing policy of research and development, we reserve the right to alter models and specifications without prior notice. This instruction booklet is accurate at the date of printing, but will be superseded if specifications or appearance are changed. TRICITY BENDIX 55 - 77 HIGH STREET, SLOUGH, BERKSHIRE,...
