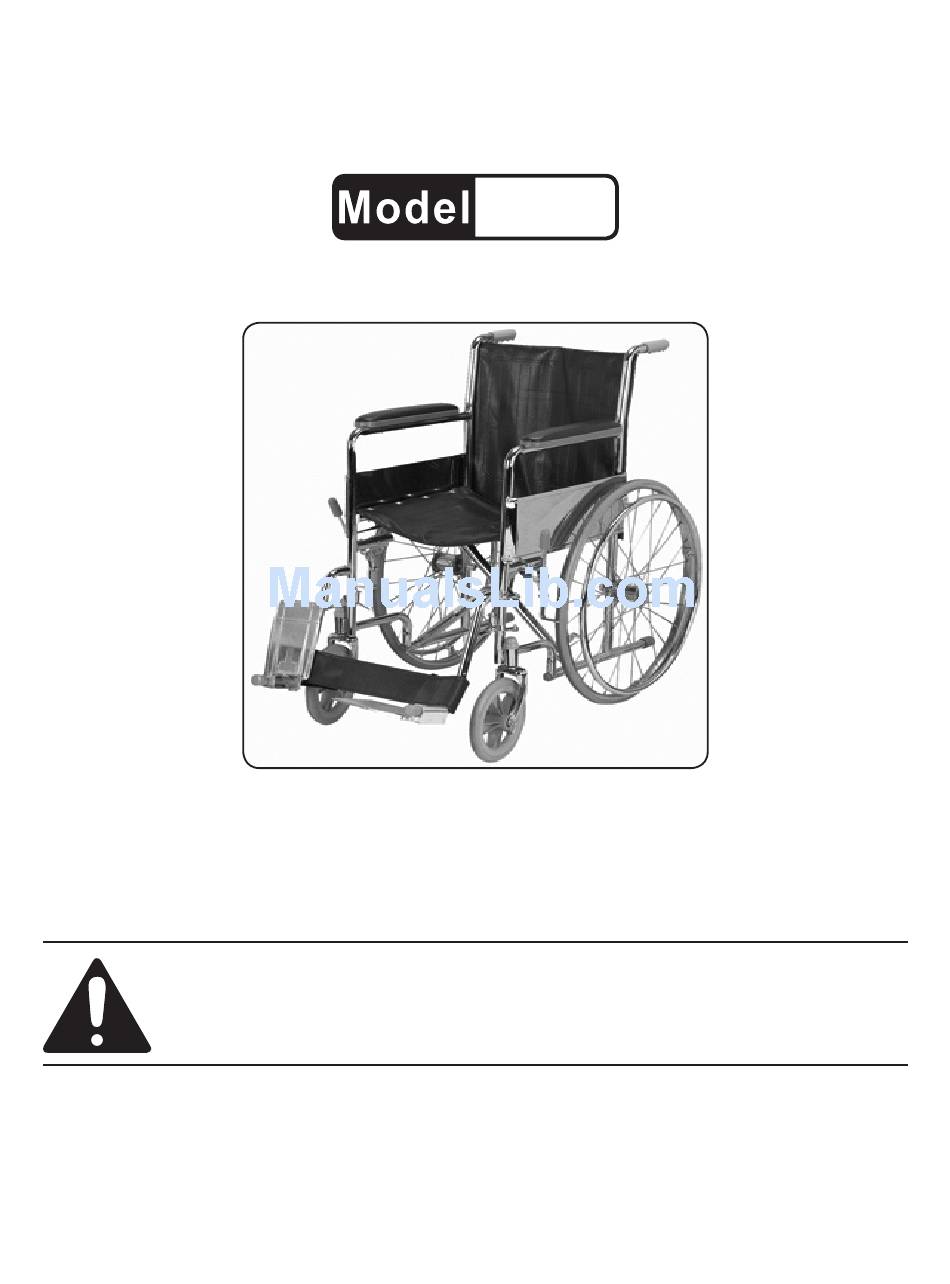

24" FOLDABLE WHEELCHAIR
SEt up AnD OpERAtIng InStRuCtIOnS
Distributed exclusively by Harbor Freight tools
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE tHIS mAnuAL.
©
Copyright
2009 by Harbor Freight Tools
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
3491 Mission Oaks Blvd., Camarillo, CA 93011
®
. All rights reserved. No portion of this manual or any artwork
67437
®
.

Advertisement

Table of Contents
loading

Related Manuals for Harbor Freight Tools 67437

Summary of Contents for Harbor Freight Tools 67437

  • Page 1 Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.

  • Page 2: Important Safety Information

    WARnIng indicates a hazardous situation which, if not avoided, could result in death or serious injury. SKU 67437 For technical questions, please call 1-800-444-3353. CAutIOn, used with the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
  • Page 3 Wheelchair unless it is fully unfolded. When propelling the Wheelchair, carefully use the wheel hand rails. Do not grip the rear wheel SKU 67437 For technical questions, please call 1-800-444-3353. themselves and be careful not to pinch fingers and hand in wheel spokes.
  • Page 4 Do not attempt to climb a high curb or step 4” or higher unless you have assistance. Attempting to SKU 67437 For technical questions, please call 1-800-444-3353. climb high steps can lead to loss of balance and potential tip over.
  • Page 5 Wheelchair. maintain labels and nameplates on Wheelchair. These carry important safety information. If unreadable or missing, contact Harbor Freight Tools for a replacement. the warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur.

  • Page 6: Specifications

    Hold the Armrests (10) and pull them away from one another, unfolding the Wheelchair. As Wheelchair unfolds, press down on Seat (6). SKU 67437 For technical questions, please call 1-800-444-3353. Swivel Footplates (2) so they are horizontal. To fold the Wheelchair, lock the Rear Wheels and fold Footplates up.

  • Page 7: Adjusting Foot Rests

    Remove plate from Seat sleeve. To install new Seat, insert plate into sleeve and fasten Seat to cross bars using ten screws and washers. SKU 67437 For technical questions, please call 1-800-444-3353. Screws and Washers Figure 2...
  • Page 8 Caster in place in the Yoke. Set new Wheel in the Yoke and fasten in place using Hex Screws, Washers and Locknuts. See Figure 6, above. SKU 67437 For technical questions, please call 1-800-444-3353. Figure 6 Dust Cover Screw...

  • Page 9: Maintenance And Servicing

    Wheel Lock handle is pulled, and HOLDS the occupied Wheelchair in place when used. If the 1/8” measurement cannot be reached, contact a qualified service technician. SKU 67437 For technical questions, please call 1-800-444-3353. mAIntEnAnCE AnD SERVICIng Procedures not specifically explained in this manual must be performed only by a qualified technician.

  • Page 10: When Storing

    If product has no serial number, record month and year of purchase instead. note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. SKU 67437 For technical questions, please call 1-800-444-3353. WARnIng! All maintenance,...

  • Page 11: Parts List And Assembly Diagram

    LISt AnD ASSEmBLY DIAgRAm part Description Detachable Footrest Footplate Rear Wheel Wheel Lock Front Casters SKU 67437 For technical questions, please call 1-800-444-3353. Qty. part Description Seat Back Pad Handles Frame Armrest Pad Qty. Page 11...

  • Page 12: Limited 1-Year Warranty

    LImItED 1 YEAR WARRAntY Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of one year from the date of purchase (90 days if used by a professional contractor or if used as rental equipment).
