Summary of Contents for Smeg CWG411MDA

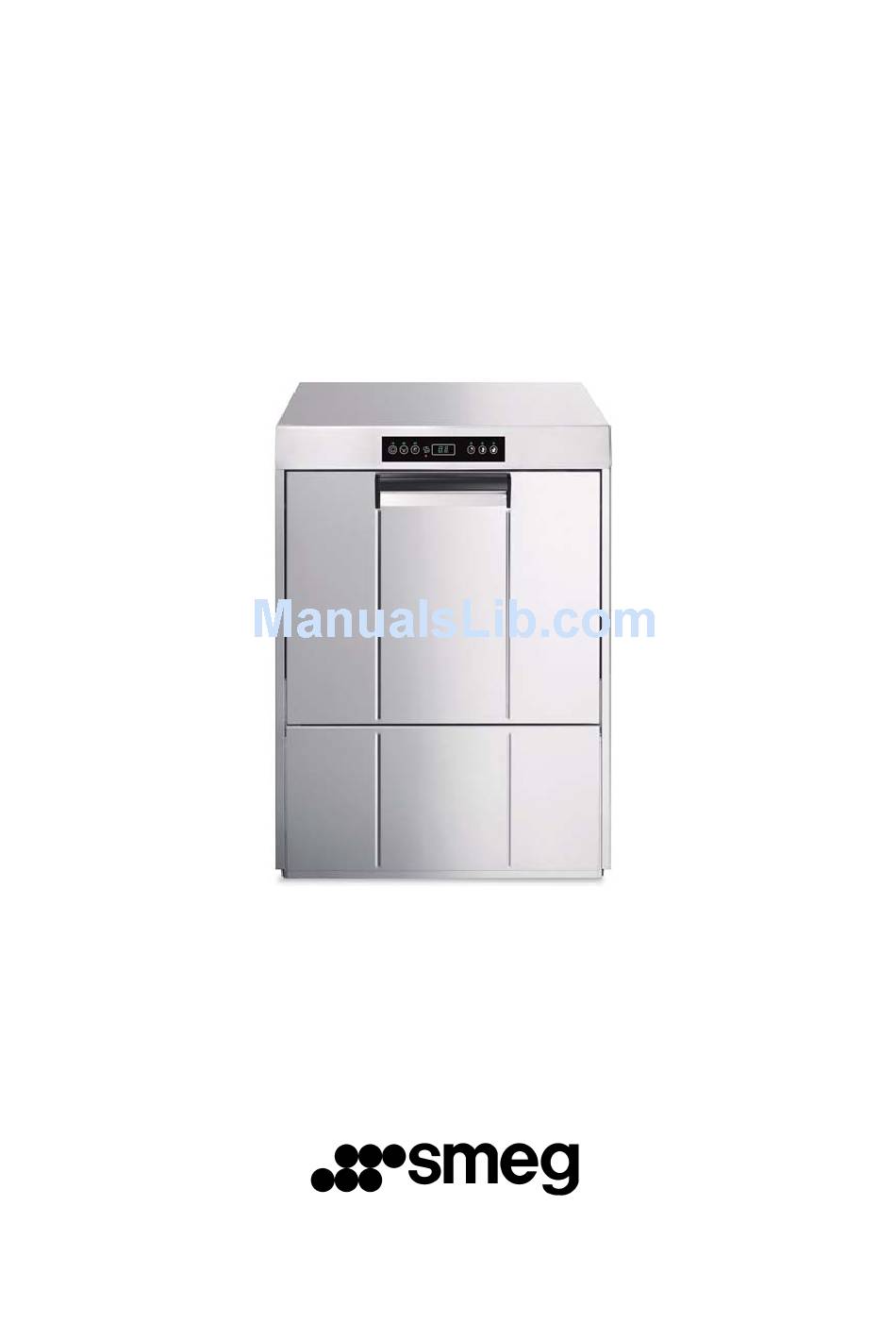

- Page 1 PROFESSIONAL GLASSWASHER ...
-
Page 2: Table Of Contents
CWG411MDA CONTENTS PRECAUTIONS FOR SAFETY AND USE ..................... 3 TECHNICAL DATA ........................... 5 INSTALLATION AND POSITIONING .................... 7 INSTRUCTIONS FOR TECHNICAL STAFF ................... 7 Plumbing Connection ....................7 Electrical connection ....................8 FIRST START‐UP .......................... 9 Using the water softener (on models with this feature only) ...... 10 SET‐UP ............................ 12 Display Contents .................... 12 Note on display of temperatures ... -
Page 3: Precautions For Safety And Use
CWG411MDA TROUBLESHOOTING ........................ 24 MALFUNCTIONS SHOWN ON THE DISPLAY (FOR THE USER) ............ 25 Smeg thanks you for choosing one of its products. Read all the instructions in this manual carefully to become familiar with the right conditions for the proper use of your glasswasher. TECHNICAL INSTRUCTIONS These are intended for the qualified staff who are to install, commission and test the appliance and carry out any servicing and repairs. INSTRUCTIONS FOR THE USER These provide recommendations for use, a description of the controls and the correct procedures for cleaning and maintaining the glasswasher. 1 PRECAUTIONS FOR SAFETY AND USE ... - Page 4 CWG411MDA THE GLASSWASHER IS INTENDED FOR PROFESSIONAL USE ONLY AND MUST ONLY BE USED BY AUTHORISED STAFF. IT COMPLIES WITH THE INTERNATIONAL STANDARDS ON ELECTRICAL AND MECHANICAL SAFETY (CEI‐EN‐IEC 60335‐2‐58/61770) AND ELECTROMAGNETIC COMPATIBILITY(CEI‐IEC‐EN 55014‐1/‐2, 61000‐3;4, 50366). THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR INJURY OR DAMAGE CAUSED BY FAILURE TO COMPLY WITH THE INSTRUCTIONS IN THE MANUAL, BY INCORRECT USE, BY TAMPERING WITH EVEN JUST ONE PART OF THE APPLIANCE AND BY THE USE OF NON‐ORIGINAL SPARE PARTS . ...
-
Page 5: Technical Data
CWG411MDA 2 TECHNICAL DATA Supply voltage V 230V 1N ~ Frequency Hz 50 Max. power absorption at 230V 1N ~ kW 3,1 Boiler heating element power at 230V 1N ~ kW 2,8 Tank heating element power kW 0,8 Water intake pressure kPa (bar) 100‐600 (1 ÷ 6) Water intake temperature °C 15°C – 60°C Intake water hardness (models with softener) °f 15°f‐60°f Rinse cycle water consumption l 2,3 Boiler capacity l 4 Tank capacity l 7 ... - Page 6 CWG411MDA APPLIANCE DIMENSIONS AND CONNECTION POSITIONS (*N.B. – VALUE “1000” WITH ASTERISK: max 600 if siphon with valve is used) KEY TO LETTERS USED IN DIAGRAM R LOWER BACK PANEL C FILLER HOSE Q EARTH TERMINAL E ELECTRICITY SUPPLY CABLE P PERISTALTIC HOSES S DRAIN HOSE 6 ...
-
Page 7: Installation And Positioning
CWG411MDA 3 INSTALLATION AND POSITIONING INSTALLATION and POSITIONING Bring the glasswasher to the installation site, remove the packaging and check the appliance and components for damage; any damage found must be reported to the transporter in writing. The packaging components (plastic bags, expanded polystyrene, nails, etc.) must not be left within reach of children and pets since they are potentially dangerous. All packaging materials used are environment‐friendly. They can be kept without constituting any hazard, or may be disposed of at a specialist waste disposal centre. ... -
Page 8: Electrical Connection
CWG411MDA The dynamic water supply pressure must be between 2 and 6 bar; if it is higher a pressure reducer must be installed. If the pressure is less than 2.5 bar it might be necessary to fit a special pump on the appliance to ensure optimal performance. Contact the After‐Sales Service. It is essential to fit a main stop tap on the water intake deliver pipeline; the tap must be accessible after installation of the appliance, so do not install it behind the glasswasher. The stated cycle duration applies to appliances supplied with hot water >50°C<60°C If the appliance is supplied with cold water, the cycle duration might increase depending on the intake water temperature. Drainage: The glasswasher is fitted with a drain pump and can operate with drain connections on the floor or wall. Refer to the connection diagram for the maximum permitted height of wall drains – (see TECHNICAL DATA) Caution: make sure that the intake and drain hoses are not bent, constricted or crushed after installation. When installing the drain hose to a siphon with valve, the maximum height of the drain outlet is reduced to 600 mm. 4.2 Electrical connection The appliance and any additional equipment must be connected to the electrical system ... -
Page 9: First Start-Up
CWG411MDA Figure – Appliance electrical system diagram 5 FIRST START-UP First start‐up The electrical protection system must undergo a functional test before the appliance is put into operation. The appliance must be installed and/or inspected by qualified staff, who will start it up for the first time and provide the relevant operating instructions. Preparing for use (important) The rinse aid dispenser is fitted on all models, the detergent dispenser only on some. If both dispensers are present put the external detergent and rinse aid containers in place and insert the respective intake hoses on the rear of the appliance into them. ... -
Page 10: Using The Water Softener (On Models With This Feature Only)
CWG411MDA Before inserting the hoses into the containers, fit the weights (needed to ensure that they always draw in liquid from the bottoms of the containers) and the filters onto their ends as shown. If the detergent dispenser is not factory‐fitted, it can be retrofitted after ordering the relative kit. As an alternative an external dispenser can be fitted, making the electrical connection by means of an H05 RN‐F 2x0.5 mm electrical cable, which can be laid along the route shown in the TECHNICAL DATA diagram and connected as shown in the wiring diagram supplied with the glasswasher. The dispenser must operate on 230V/50 Hz with maximum power absorption of 15W. Connect to the detergent dispenser outside the glasswasher using the red hose mentioned above. ... - Page 11 CWG411MDA IMPORTANT: Whenever the type of detergent or rinse aid is changed, it is ABSOLUTELY ESSENTIAL to flush out the peristaltic pumps by placing the external intake pipes in water for a few cycles. Always use only products specifically recommended for use in a glasswasher. Failure to comply with this recommendation leads to forfeiture of the warranty entitlement on the appliance’s water system. The internal pipes of the detergent and rinse aid pumps should be replaced by the After‐Sales Service every 12 months and the diaphragm rinse aid pump should be checked. 11 ...
-
Page 12: Set-Up
CWG411MDA 6 SET-UP Set‐up During first start‐up, the functions/parameters listed below must be set or adjusted: A series of operations can be carried out when the glasswasher is first installed to customise it to the user's requirements. To modify the parameters, proceed as follows. 6.1 Display Contents The two digits provide the following information: Appliance off but powered up: decimal points on Appliance on: Boiler temperature Washing phase: Tank temperature Pause phase: Boiler temperature Rinse phase: Boiler temperature Programming phase: See parameter programming section Error message: See error messages section 6.2 Note on display of temperatures Both the Boiler and the Tank temperatures provide instantaneous readings of the current value picked up by the probe, but due to the thermal inertia of the probe or its seat, wait about 1 minute after the heating element switches off to obtain the real temperature. The effective temperature in the boiler will be 5 ° C above the set P2 (example if set to 80 °, in this temperature it is the detachment of the resistors, to see the true temperature wait 1 '= approximately 85 ° C; if rinse temperature needed 70°C, set P2 65°C) ... -
Page 13: Modifiable Parameters
CWG411MDA 6.4 Modifiable parameters This table lists the model choice or cycle and temperature option parameters. F/M ID Description Default Notes M P0 Appliance Type 05 Construction version Do not modify F P1 Appliance Model 05 Do not modify M P2 Boiler temperature 80C Step 1 degree WARNING: The actual boiler temperature The effective temperature depends on whether the connection is in the boiler will be 5 ° C single‐phase or three‐phase. above the set P2 With three‐phase connection, do not set more than 82° ‐ monophase max 85°C M ... -
Page 14: Adjusting Detergent And Rinse Aid Dispensing
CWG411MDA 6.6 Adjusting detergent and rinse aid dispensing Caution: ensure that the appliance is not powered up ‐ ELECTRIC SHOCK HAZARD RD Detergent dispensing regulator screw (on some models only) RB Rinse aid dispensing regulator screw RD: Detergent dispensing regulator screw. ( OPTIONAL ) Adjustments are made using the adjuster screw AS SHOWN. The quantity dispensed is reduced by turning anticlockwise and increased by turning clockwise. RB: Rinse aid dispensing regulator screw Adjustments are made using the adjuster screw AS SHOWN. The quantity dispensed is reduced by turning clockwise and increased by turning anticlockwise. It is recommended that periodic monitoring of detergent and rinse aid dispensing; once a year suggested replace the inner peristaltic pipe and check rinse aid dispensing. 14 ... -
Page 15: Adjusting The Regeneration Frequency (Models With Softener Only)
CWG411MDA 6.7 Adjusting the regeneration frequency (models with softener only) Memorisation procedure To access the programming menu, proceed as follows: 1) switch the appliance off by pressing the On/Off 2) Hold down the and keys simultaneously for 6 seconds; H0 appears on the display 3) Use the key to modify the parameter; H0,H1,H2,H3,H4,H5 and H0 will appear on the display in cyclic sequence 4) Press the On Off key to confirm the change and quit programming mode. With values over 60°dF an external water treatment device must be used and the regeneration frequency must be set at H00 6.8 Table of parameters ... -
Page 16: Malfunctions Shown On The Display (For The Technician)
CWG411MDA 7 MALFUNCTIONS SHOWN ON THE DISPLAY (FOR THE TECHNICIAN) The glasswasher is able to identify a number of malfunctions and show them on the display. If the problem persists after the glasswasher has been switched off and back on, proceed as described below: E.1 Boiler temperature probe malfunction Boiler temperature probe disconnected or not working Tank temperature probe malfunction Tank temperature probe disconnected or not working E.2 Water intake malfunction Water intake not completed in the maximum time allowed E.3 Check dynamic pressure in intake system, inspect water intake filter and clean if necessary. If the problem persists: ‐ tank pressure switch has failed (continuous empty reading) ‐ leak from pipe connected to air trap ‐ drain siphon blocked ‐ the tank is empty due to siphoning when the drain pump is not running E.4 Boiler overheating. Reduce boiler temperature <80°. If the problem persists, the circuit board relay has failed: check circuit board and inspect boiler heating element for damage Tank overheating. Reduce tank temperature <58°. If the problem persists, the ... -
Page 17: Instructions For The User
CWG411MDA 8 INSTRUCTIONS FOR THE USER 8.1 Control panel On‐off button Total emptying button (tank and boiler) Regeneration key (only if softener is fitted) L1 power on LED L2 pump‐out in progress LED L3 regeneration reguest LED (only if softener is installed) L4 no salt LED (only if softener is installed) Short cycle key Medium cycle key ... -
Page 18: First Use Each Day (Tank And Boiler Empty)
CWG411MDA Use only detergents and rinse aids for industrial glasswasher. Do not use detergents intended for hand washing. We recommend the use of Nelson products, specially developed for this glasswasher. When topping up the detergent and rinse‐aid containers, take care not to swap the products; this might damage the glasswasher and cause malfunctions. Do not mix different detergents; this would damage the dispenser device. Failure to comply with this recommendation leads to forfeiture of the warranty entitlement on the appliance’s water system. Industrial glasswasher detergents may cause serious irritation. Comply carefully with the instructions provided by the detergent producer on the pack. CHECK 5. Switch on the 2. The level of 3. That there is 4. That the filters 1. Turn on the master switch detergent and regenerating salt are in place, the mains water tap ... -
Page 19: Choosing The Program
CWG411MDA Load the basket and close the door. Select the programme required by pressing one of the three buttons; the LED of the selected program flashes and the other two go out. The cycle starts once the key has been held down for about 2". While washing is in progress the display shows the water temperature in the tank. During rinsing, it shows the boiler temperature. At the end of the program the program LED comes on and “End" flashes on the display. ... -
Page 20: Changing The Program (Not Possible Once The Program Has Started)
CWG411MDA 8.5 Changing the program (not possible once the program has started) If the master switch is not turned off, the appliance sets on the last cycle performed. To change it, press the key of the program required; the light comes on. To confirm hold down for about 2”. The LED starts to flash and the washing cycle starts. ... - Page 21 CWG411MDA After a total pump‐out the filters should be cleaned as described in the relevant point. Never switch the glasswasher off with water in the tank; always pump out first. Models with water softener: if the set number of cycles is reached (see point 6.9. of "Technical Manual"), the appliance automatically performs regeneration after pump‐out. The entire process lasts about 15', after which the appliance switches off automatically. Resin regeneration (for models with water softener) Once the set number of wash cycles is reached (see point 6.9 of “Technical Manual”) the LED above the key flashes. Therefore, if during the working day resin regeneration is RECOMMENDED, follow the procedure described below. Press the key; the LED flashes and the regeneration phase starts. It lasts about 10 minutes, during which time the LED keeps flashing. When the regeneration phase is complete, the appliance switches to “OFF” status (only 2 digits lit on the display). To reuse the appliance, repeat procedure 7.3 Filling up with regenerating salt (for models with water softener) Caution: use only salt for water softener, do not use cooking salt. Salt must be added when the LED underneath the symbol shown in the box on the left lights up. ...
-
Page 22: Maintenance And Cleaning
CWG411MDA 9 MAINTENANCE AND CLEANING Although no particular scheduled maintenance is required, users are advised to have the glasswasher checked by a specialist technician twice a year. N.B. the manufacturer accepts no liability for wilful damage or damage deriving from carelessness, neglect, failure to comply with instructions, regulations and standards or incorrect connections, which lead to forfeiture of warranty cover. If possible, leave the door ajar when not in use; Clean surfaces thoroughly and often with a damp cloth; use neutral, non‐abrasive detergents which do not use chlorine compounds, which corrode and damage stainless steel. Do not use the products mentioned above even when cleaning the floor underneath or in the vicinity of the glasswasher, to ensure that fumes or drops cannot damage the steel surfaces. The appliance has IPX4 protection but pointing water jets straight at it for cleaning is ... -
Page 23: Routine Inspection Of The Spray Arms (Twice A Week)
CWG411MDA 9.2 Routine inspection of the spray arms (twice a week) Remove the top and bottom spray arms by unscrewing the central screw and unscrew the caps from the ends of the rinsing arms as shown. Do not unscrew the nozzles. Clean the holes and nozzles under a jet of clean running water; do not use tools which might cause damage. Reassemble the spray arms with care. IRRORATORI SUPERIORI inox IRRORATORI INFERIORI inox Clean the outside of the appliance with a damp cloth and neutral soap, rinsing and drying thoroughly. 9.3 Lengthy periods out of use If the glasswasher is to be out of use for a fairly long period of time, the detergent and rinse aid dispenser devices must be emptied to prevent crystallisation and damage to the pumps: remove the ... -
Page 24: Troubleshooting
CWG411MDA 10 TROUBLESHOOTING How to deal with any problems without calling the after‐sales service PROBLEM POSSIBLE CAUSE POSSIBLE REMEDY LIGHT L1 DOES NOT COME ON Mains power failure Check electrical mains connection. WASHING PROGRAM DOES NOT The glasswasher has not yet finished Wait for the 3 program lights to come on. START filling. Spray arm washing holes blocked by Remove spray arms and clean them dirt or limescale (9.2 Periodic checks) Filter fouled See “Cleaning the filter during the day” Too little or unsuitable detergent or Check type and quantity of detergent. rinse aid None or not enough detergent or rinse Check that the intake filter is not fouled. If aid being supplied: detergent or rinse POOR WASHING RESULTS you are unable to solve the problem, call aid not being taken from the relative the after‐sales service. container. Plates/glasses badly arranged Arrange plates/glasses correctly. Check temperature shown on the display, Low washing temperature call the after‐sales service if less than 50°C Increase wash cycle duration, especially if ... - Page 25 CWG411MDA 11 MALFUNCTIONS SHOWN ON THE DISPLAY (FOR THE USER) The glasswasher is able to identify a number of malfunctions and show them on the display. If the problem persists after the glasswasher has been switched off and back on, proceed as described below: Boiler temperature probe malfunction Switch off the glasswasher and back on and perform another E.1 cycle; if the problem persists call the after‐sales service E.2 Tank temperature probe malfunction Switch off the glasswasher and back on and perform another cycle; if the problem persists call the after‐sales service Water intake malfunction Water intake not completed in the maximum time allowed E.3 Check dynamic pressure in intake system: the water intake filter may need cleaning, the tap may be turned off or the rinsing nozzles may be fouled. E.4 Boiler overheating. Switch off the glasswasher and wait a few minutes, then switch ...
- Page 26 CWG411MDA INFORMATION AND AFTER‐SALES SERVICE FOR SMEG PRODUCTS COMMERCIAL DISHWASHERS Our Sales Department staff will be able to provide you with information about prices and special offers. Our After‐Sales Department will be able to provide you with guidance about keeping your appliance functioning correctly and put you in touch with your nearest authorised Service Centre. * Maximum cost 14,26 cent./min. including VAT with no charge on answer from landline. * Maximum cost 48 cent./min. including VAT with maximum charge on answer of 15.49 cents including VAT from cell phone. For further details of costs of calls from cell phones contact your operator. Our whole product offering can be viewed at: www.smeg‐ristorazione.com International customers, please contact your local SMEG distributor. Smeg S.p.A Via Leonardo da Vinci, 4 ‐ 42016 Guastalla (Reggio Emilia) Tel. +39 0522 8211 ‐ Fax + 39 0522 821453 email ristorazione@smeg.it 19.290.1448.00 05/04/2013 Manual Ed. Date 26 ...
