Summary of Contents for Vizio E320-B1

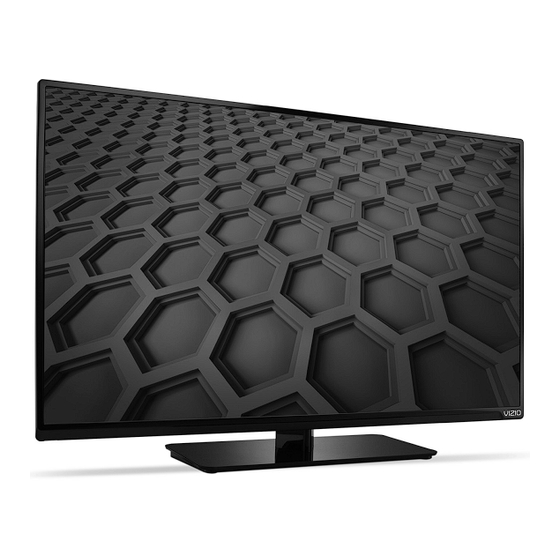

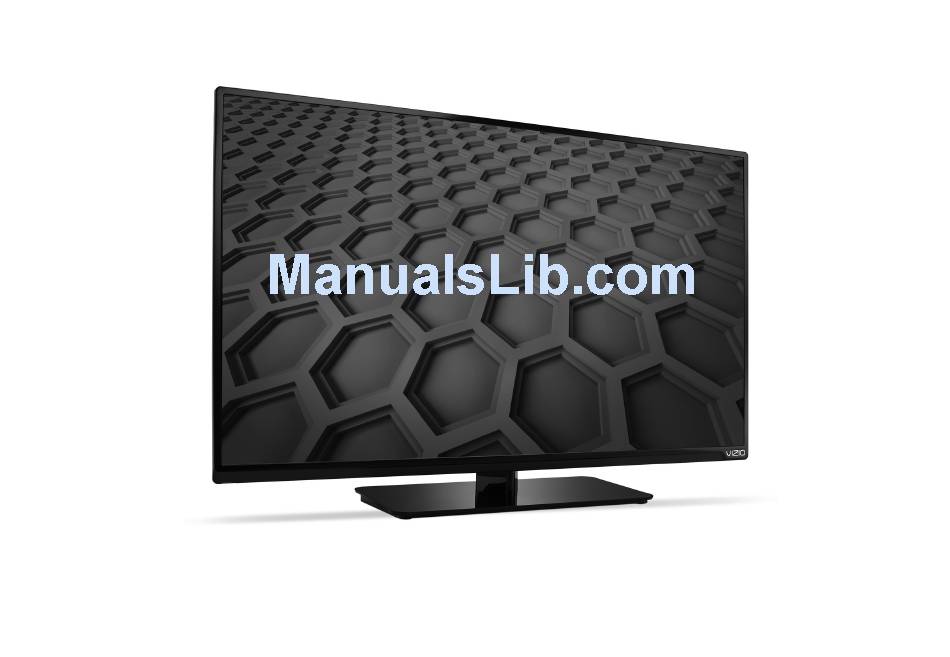

- Page 1 VIZIO QUICK START GUIDE Model: E320-B1...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your TV is designed and manufactured to operate within defined design limits. Misuse may result in electric may cause fire or electric shock. shock or fire. To prevent your TV from being damaged, the following instructions should be observed for the •... -
Page 3: Television Antenna Connection Protection
TELEVISION ANTENNA CONNECTION PROTECTION Ground Clamp Antenna Lead In Wire Antenna Discharge Unit (NEC Section 810-20) Grounding Conductors (NEC Section 810-21) Ground Clamps Power Service Grounding Electrode System (NEC ART 250, part H) Electric Service Equipment • If an outside antenna/satellite dish or cable system is to be connected to •... - Page 4 Do You Have Questions? Find Answers At SUPPORT.VIZIO.COM Find help with: • New Product Setup • Connecting Your Devices • Technical Problems • Product Updates • And More Live Chat Support Available Your can also contact our award-winning support team at:...
- Page 5 DOWNLOAD THE FULL USER MANUAL Page shown is for illustrative purposes only. Actual page content will vary. Help VIZIO reduce paper waste. You can download the Full User Manual under the Product Downloads section of the Support tab. Download the Full User Manual for your TV.
-
Page 6: Package Contents
PACKAGE CONTENTS VIZIO LED HDTV with Stand Remote Control This Quick Start Guide with Batteries Power Cord 3 x T4 16mm 3 x M4 12mm Phillips Screws Phillips Screws... -
Page 7: Using The Remote
USING THE REMOTE INPUT Change the currently-displayed input. POWER Turn TV on or off. EXIT MENU Close the on-screen menu. Display the on-screen menu. ARROW Select the highlighted menu option. Navigate the on-screen menu. BACK GUIDE Go to the previous on-screen menu. Display the info window. -
Page 8: Installing The Base
INSTALLING THE BASE Place the TV screen-down on a clean, flat surface. To prevent scratches or damage to the screen, place the TV on a soft surface such as a blanket. - Page 9 Align the neck piece with the bottom of the TV Align the base with the neck and and slide it into place as shown. tighten the three (3) T4 16mm screws using a Phillips screwdriver. Using a Phillips screwdriver, tighten the three (3) M4 12mm screws into the center Place the TV on a flat, stable surface.
-
Page 10: Connecting Your Devices
CONNECTING YOUR DEVICES CONNECTING YOUR DEVICES Connect all of your devices first. Choose ONE connection type for each device. Match colored connectors to colored ports. BACK OF TV... - Page 11 HDMI CABLE* • DIGITAL BEST • HD VIDEO (1080p)** Commonly-Connected • HD AUDIO Devices: COMPONENT CABLE* • ANALOG BETTER • HD VIDEO (1080i)** Cable or Satellite Boxes • STEREO AUDIO Match colored connectors to colored ports. COAXIAL CABLE* • ANALOG BETTER •...
- Page 12 Remove the battery cover by pressing gently on Connect the power cord to the back of the TV. the V logo and sliding away from the remote. The flat edge of the connector goes toward the outside of the TV. Insert the included batteries.
- Page 13 Turn the TV on by pressing the Follow the on-screen instructions to complete Power button on the remote. the first-time setup. The Setup App is displayed. Use the Arrow buttons on the remote to highlight Home Use and press OK .
-
Page 14: Help Topics
HELP TOPICS • The on-screen menu has guided setup. Press MENU > Guided Setup. Select the type of setup you need and press OK. The Setup App begins. How do I return to the • To reset the TV to factory defaults, press MENU > System > Reset & Admin > Setup App? Reset TV to Factory Defaults. -
Page 15: Legal & Compliance
Sunday, Pacific Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER. Proof of purchase in the form of a purchase receipt or copy thereof is required to show CHECK WWW.VIZIO.COM FOR THE MOST CURRENT VERSION. - Page 16 © 2014 VIZIO INC. ALL RIGHTS RESERVED. 140131OC-NC...
