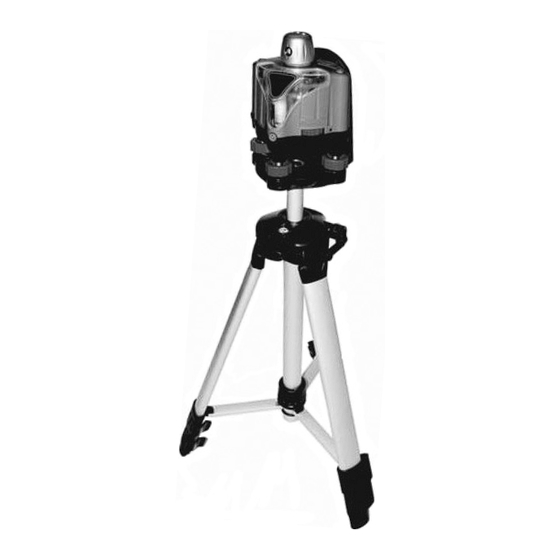

MOTORIZED ROTARY LASER LEVEL KIT
Item 92801
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
When unpacking, make sure that the product is intact and undamaged.
If any parts are missing or broken, please call 1-800-444-3353 as soon as possible.
©
Copyright
2010 by Harbor Freight Tools
or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.
Visit our website at: http://www.harborfreight.com
Email our technical support at: tech@harborfreight.com
®
. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape
Manual Revised 11f
Advertisement
Table of Contents
Related Manuals for Pittsburgh CEN-TECH 92801
Summary of Contents for Pittsburgh CEN-TECH 92801
- Page 1 2010 by Harbor Freight Tools or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.
-
Page 2: Important Safety Information
11. Stay alert, watch what you are doing and use common sense when operating Laser Level. Do not use Laser Level while you are tired or under the influence of drugs, alcohol or medication. 12. Dress properly. Do not wear loose clothing or jewelry. -
Page 3: Specifications
Laser Range Projects Up to 100′ Max. Tripod Height 48″ Rotation Capacity 360° Batteries (4) ‘AA’ Batteries Rotary Laser Level ITEM 92801 Made in China. 05a-11c LASER LIGHT AVOID DIRECT EYE EXPOSURE Max. Output: ≤ 5mW, Wavelength: 650 nm ±10 nm... -
Page 4: Mounting To Tripod
For technical questions, please call 1-800-444-3353. Mounting To Wall 1. The Laser Level may also be installed on a wall surface without the Tripod. To do so, use the Wall Bracket (7A) to secure the Laser Level to the wall. - Page 5 1. For example, to install a chair rail on an interior wall, first mark the desired height of the rail. 2. Align the Laser Level with that point, and check to make sure the Vial Levels (9A) are level with the floor.
-
Page 6: Maintenance And Servicing
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Turn OFF the Laser Level before performing any inspection, maintenance, or cleaning procedures. TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use. -
Page 7: Please Read The Following Carefully
PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. -
Page 8: Limited 90-Day Warranty
LIMITED 90 DAY WARRANTY Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
