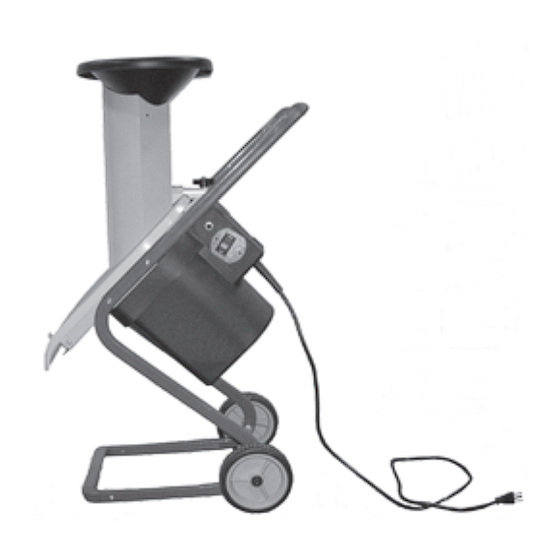

CHIPPER/SHREDDER
Model 95091
ASSEMBLY AND OPERATING INSTRUCTIONS
Do to continuing improvements, actual product may differ slighlty from the product described herein.
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at: http://www.harborfreight.com
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
©
®
Copyright 2007 by Harbor Freight Tools
. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions, please call 1-800-444-3353.
Advertisement
Table of Contents
Related Manuals for Chicago Electric 95091
Summary of Contents for Chicago Electric 95091
- Page 1 Copyright 2007 by Harbor Freight Tools . All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. For technical questions, please call 1-800-444-3353.
-
Page 2: Product Specifications
Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create SKU 95091 For technical questions, please call 1-800-444-3353 Description 120 VAC / 60 Hz / 3400 RPM Power Switch: Rocker Switch with Safety Key Power Cord: 14 AWG x 3 C (SJT) / 5’3”... -
Page 3: Electrical Safety
Stay alert. Watch what you are doing, and use common sense when operating the Wood Shaper. Do not use the tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while SKU 95091 For technical questions, please call 1-800-444-3353 ELECTRICAL SAFETY... - Page 4 Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool’s operation. If damaged, have SKU 95091 For technical questions, please call 1-800-444-3353 TOOL USE AND CARE...
-
Page 5: Specific Safety Rules And Precautions
SPECIFIC SAFETY RULES AND PRECAUTIONS Maintain labels and nameplates on the Chipper/Shredder. These carry important information. If unreadable or missing, contact Harbor Freight Tools for a replacement. Make sure the Chipper/Shredder is located on a flat, level, sturdy surface capable of supporting the weight of the Chipper/Shredder and any additional tools and equipment. - Page 6 Do not allow children and other unauthorized people to handle or play with the Chipper/Shredder. Never allow people or animals in the work area. Do not force the Chipper/Shredder. This tool will do the work better and safer at the speed and capacity for which it was designed.
-
Page 7: Double Insulated Tools: Tools With Two Prong Plugs
The grounding prong in the plug is connected through the green wire inside the cord to the grounding system in the tool. The green wire in the cord must be the SKU 95091 For technical questions, please call 1-800-444-3353 GROUNDING... -
Page 8: Extension Cords
“live” terminal. (See Figure B.) The Chipper/Shredder must be plugged into an appropriate outlet, properly installed and grounded in accordance with all codes and ordinances. The plug and outlet should look like those in the following illustration. - Page 9 When unpacking, check to make sure all the parts shown on the Parts List on page 15 are included. If any parts are missing or broken, please call Harbor Freight Tools at the number shown on the cover of this manual as soon as possible.
-
Page 10: Assembly Instructions
“OFF” position and the unit is unplugged from its electrical outlet prior to performing assembly procedures. To Attach The Wheels: Move the Chipper/Shredder to a clean, dry, level area in which to perform the necessary assembly. Place one Washer (24) on each end of the Axle (25). (See Figure E.) Insert the ends of the Axle (25) through the two Vertical Frames (15). - Page 11 ANSI approved hearing protection must also be used. Make sure the Chipper/Shredder is located on a flat, level, sturdy surface capable of supporting the weight of the Chipper/Shredder and any additional tools and equipment.
- Page 12 (See Figure G.) NOTE: The Power Switch (42) features a Safety Key to prohibit unauthorized people from turning on the Chipper/Shredder. To use this feature, turn the Power Switch to its “OFF” position. Then, remove the Safety Key from the Power Switch and store the Safety Key in a safe location.
-
Page 13: Inspection, Maintenance, And Cleaning
Then, open the upper cover of the Shredder Housing (11) and clean out the interior of the machine and its Discharge Chute. (See Figure G.) Make sure to store the Chipper/Shredder in a clean, dry, safe location out of reach of children and other unauthorized people. -
Page 14: Troubleshooting
Motor will not start. But the safety screw is securely tightened. Motor overloads and shuts off. The Shredder intake is diminished, reducing cutting capacity. SKU 95091 For technical questions, please call 1-800-444-3353 TROUBLESHOOTING Possible Cause 1. No current is coming out of the outlet. -
Page 15: Please Read The Following Carefully
Frame Connection Bar (I) Recess Head Screw Spring Plate Special Nut Some parts are listed and shown for illustration purposes only and are not available individually as replacement parts. SKU 95091 For technical questions, please call 1-800-444-3353 PARTS LIST Qty. Part #... -
Page 16: Assembly Diagram
ASSEMBLY DIAGRAM NOTE: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. SKU 95091 For technical questions, please call 1-800-444-3353 PAGE 16... -
Page 17: Electrical Schematic
ELECTRICAL SCHEMATIC SKU 95091 For technical questions, please call 1-800-444-3353 PAGE 17... -
Page 18: Important Warranty Information
IMPORTANT WARRANTY INFORMATION LIMITED 90 DAY WARRANTY Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
