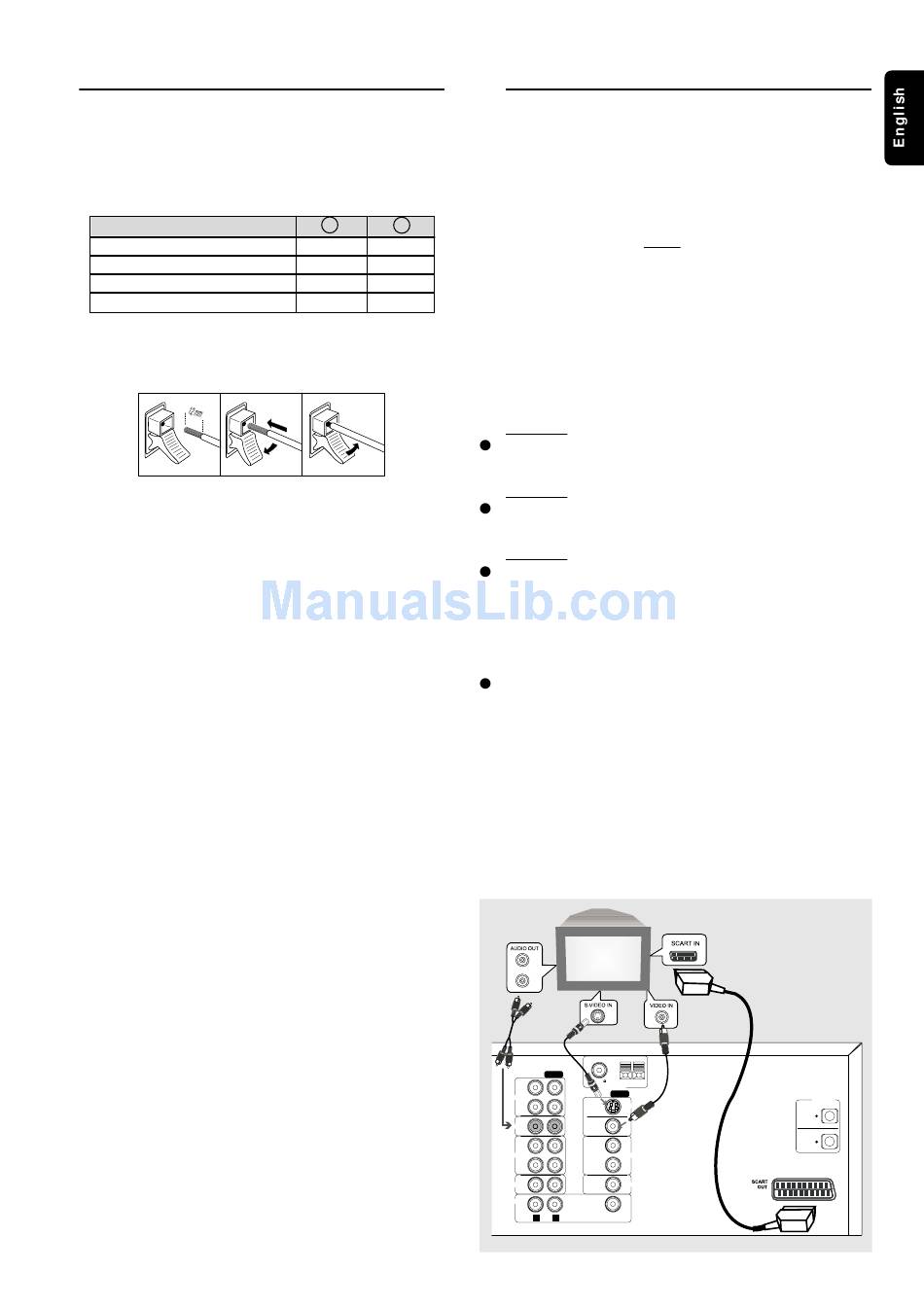

Step 2: Connecting the
speakers
Connect the supplied speaker systems using the supplied
speaker cables by matching the colours of the jacks and
speaker cables.
Speakers
FRONT (L/R)
CENTER
REAR (SURROUND) (L/R)
SUBWOOFER
1
Press up (or down) the speaker's jack and fully insert the
stripped portion of the speaker cable into the jack, then
release.
a b
2
Connect the Front Left speaker to the FRONT L jacks
and Right speaker to the FRONT R jacks.
Connect the Left Surround speaker to SURROUND L
jacks and Right Surround speaker to SURROUND R
jacks.
Connect the Centre speaker to the CENTER jacks.
Connect the subwoofer's audio input to the
SUBWOOFER jack.
Notes:
– Ensure that the speaker cables are correctly connected.
Improper connections may damage the system due to short-
circuit.
– For optimal sound performance, use the supplied speakers.
– Do not connect more than one speaker to any one pair of
+/- speaker jacks.
– Do not connect speakers with impedance lower than the
speakers supplied. Please refer to the SPECIFICATIONS
section of this manual.
- +
black red
black blue
black grey
black brown
c

Step 3: Connecting a TV

You must connect a TV to the DVD system in order to use
the DVD player.
IMPORTANT!
– There are various ways to connect the system
to a TV (as shown in the illustration below). You
only need to make ONE of the best connections
(SCART, S-VIDEO or MONITOR OUT),
depending on the capabilities of your TV system.
– If you are planning to connect the VCR, satellite
or other visual equipment to your DVD system,
you have to use the MONITOR OUT to connect
your TV. It will allow all the viewing possibilities,
see "Step 4: Connecting additional components"
for complete connection.
Option 1
Use the supplied Scart cable to connect SCART OUT
jack to the corresponding SCART VIDEO IN jack on a TV.
Option 2
Connect the S-VIDEO OUT jack to the S-Video input
jack on the TV using a S-Video cable (not supplied).
Option 3
Connect the MONITOR OUT jack to the video input
jack on the TV using the supplied video cable (yellow - not
supplied).
You can listen to the TV broadcast channels
through your DVD home cinema system
Use the supplied audio cables to connect
AUDIO-TV IN (L/R) jacks to the corresponding AUDIO
OUT jacks on the TV.
Before start operation, press TV/AV on the remote
control to activate the input source.
Note: On the TV,
– The Video In jack is usually yellow and might be labeled
CVBS, Composite or Baseband.
– The S-Video In jack may be labeled, Y/C, S-Video or S-VHS.
L
or
R
or
AUDIO
FM (75 )
GND MW
ANTENNA
OUT
VIDEO
CDR
S-VIDEO DVD
IN
OUT
MONITOR
TV IN
OUT
OUT OUT
VCR VCR
IN
IN
SAT SAT
IN
AUX
SUB
WOOFER
PRE-OUT
L R
OPTICAL
DIGITAL
OUT
SAT
IN
C
9
ONNECTIONS
