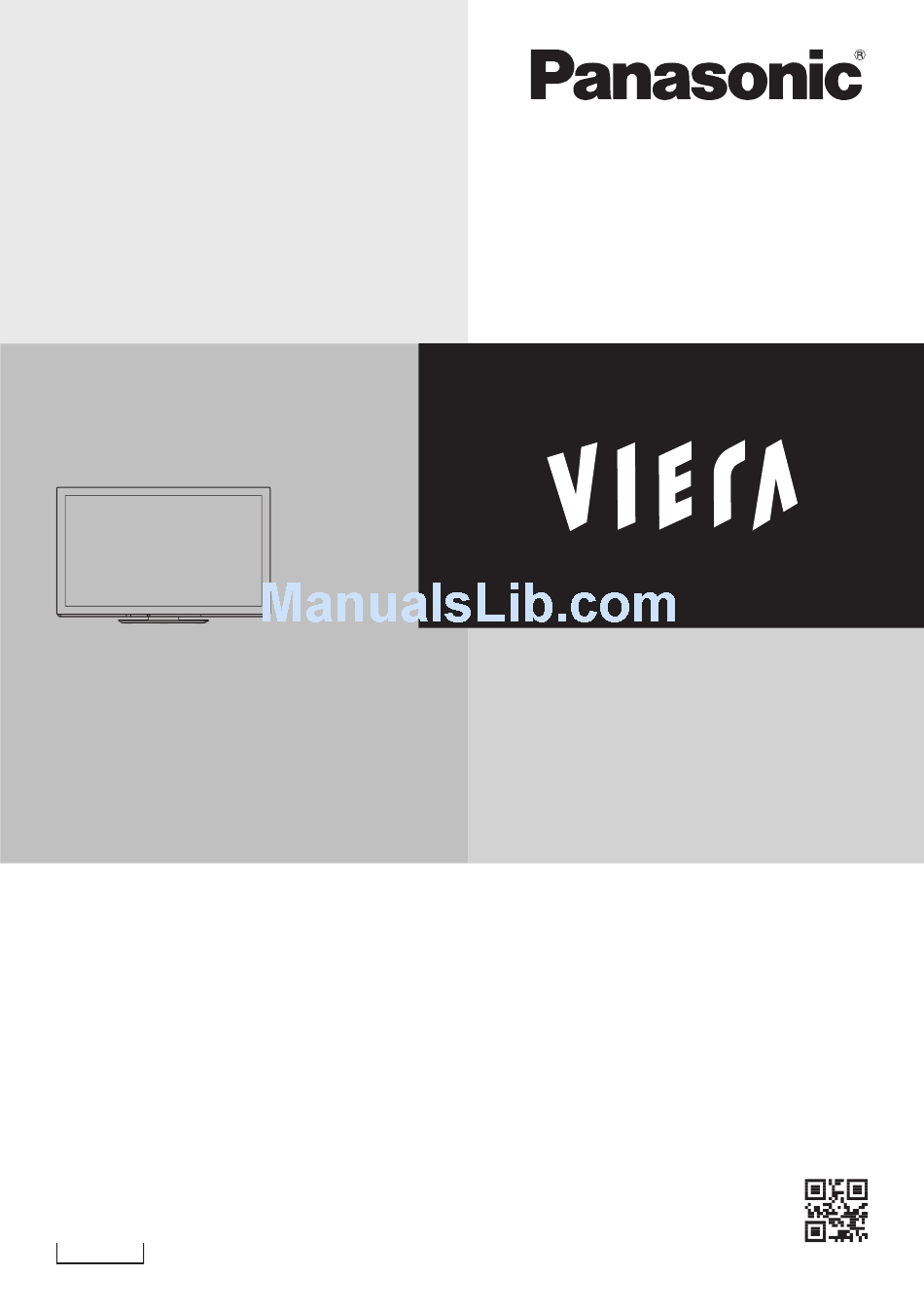

Operating Instructions

Plasma Television
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain
them for future reference.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local
Panasonic dealer for assistance.
English
Model No.
TX-P55VT30E
TX-P65VT30E
TQB0E2149U-1

Advertisement

Table of Contents
loading

Related Manuals for Panasonic Viera TX-P55VT30E

Summary of Contents for Panasonic Viera TX-P55VT30E

  • Page 1: Operating Instructions

    TX-P55VT30E TX-P65VT30E Operating Instructions Plasma Television Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only. Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance.
  • Page 2 This TV may not work correctly with CI module that is not approved by the service provider. • Additional fees may be charged depending on the service provider. • The compatibility with future services is not guaranteed. • Check the latest information on the available services at the following website. (English only) http://panasonic.jp/support/global/cs/tv/...

  • Page 3: Table Of Contents

    Viewing Teletext ····································································· 26 or other such rights in that content. Panasonic has no authority Watching External Inputs ··················································· 28 to and does not grant you that permission and explicitly Viewing 3D images ·······························································...

  • Page 4: Safety Precautions

    Using an unapproved pedestal or other fixtures may make the TV unstable, risking injury. Be sure to ask your local other open flames away Panasonic dealer to perform setup. • Use approved pedestals (p. 7) / wall-hanging brackets from this product at all (p. 6).

  • Page 5: Maintenance

    Caution When cleaning the TV, remove the mains Do not block the rear air vents • Blocked ventilation by newspapers, table cloths, curtains, plug • etc. may cause overheating, fire or electrical shock. Cleaning an energized TV may cause electrical shock. Do not expose your ears to excessive When the TV is not going to be used for a volume from the headphones...

  • Page 6: Accessories / Options

    Keep these parts out of reach of young children. Optional accessories Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please refer to the manual of the optional accessories. 3D Eyewear set...
  • Page 7 Do not use the pedestal if it becomes warped or physically damaged. • If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic dealer immediately. During set-up, make sure that all screws are securely tightened.
  • Page 8 TX-P55VT30E A Assembly screw (8) B Pole (2) C Base • • L : TBL5ZA3107 TBL5ZX0059 • M5 × 25 R : TBL5ZA3108 TX-P65VT30E D Assembly screw (6) F Pole (2) G Base H Allen wrench • • TBL5ZA3125 TBL5ZX0171 M5 ×...

  • Page 9: Identifying Controls

    Identifying Controls Remote Control • Confirms selections and choices • Press after selecting channel positions to quickly change channel • Displays the Channel List [Option Menu]  (p. 21) • Easy optional setting for viewing, sound, etc. Teletext  (p. 26) • Switches to teletext mode Subtitles  (p. 20) •...

  • Page 10: Auto Power Standby Function

    Changes the input mode Mains power On / Off switch • Use to switch the mains power. If you turned the TV Off during Standby mode by the remote control last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch.

  • Page 11: Basic Connection

    Basic Connection External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. There are some restrictions on placement for viewing 3D images. For details  (p.

  • Page 12: Installing The Ferrite Core

    Example 3 Connecting DVD Recorder / VCR and Set top box TV, DVD Recorder / VCR and Set top box Rear of the TV Cable Fully wired HDMI compliant cable Set top box SCART adaptor (supplied) Terrestrial Fully wired AC 220-240 V aerial SCART cable Fully wired...

  • Page 13: Auto Setup

    Auto Setup Search and store TV channels automatically. • These steps are not necessary if the setup has been completed by your local dealer. • Please complete connections (p. 11, 12) and settings (if necessary) of the connected equipment before starting Auto Setup. For details of settings for the connected equipment, read the manual of the equipment.

  • Page 14: Setup The Network Connection

    [DVB-S Auto Setup] [DVB-C Network Settings] • Depending on the country you select, select your cable provider DVB-S Auto Setup Satellite Astra 19.2° E beforehand by following the on screen instructions. Progress 100% This will take about 30 minutes. DVB-C Network Settings Channel Name Type Quality...
  • Page 15 ■ [Wireless] Select the connection type select Connection Type Please select network connection type. access Search for access point WPS(Push button) [Search for access point] Access points found automatically are listed. 1. Select your desired access point select Available Access Points SSID Wireless type Encrypt...
  • Page 16 [WPS(Push button)] 1. Press the WPS button on the access point until the light flashes 2. Connect the Wireless LAN Adaptor and the access point WPS(Push button) 1) Please press the ‘WPS’ button on the access point until its light flashes. •...
  • Page 17 Customers can download a copy of the original DoC to our R&TTE products from our DoC server: http://www.doc.panasonic.de Contact in the EU: Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany This product is intended to be used in the following countries.

  • Page 18: Using "Viera Connect

    Using “VIERA Connect” VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as photos, videos, games, etc.

  • Page 19: Watching Tv

    Watching TV Turn power on • Press for about 1 second • Mains power On / Off switch should be On. (p. 10) ■ VIERA Connect introduction banner appears You can access to VIERA Connect and enjoy the various contents.  (p. 18) •...

  • Page 20: Other Useful Functions

    Other useful functions Display Information banner Display Information banner • Also appears when changing a channel Example : DVB 20:35 HDTV Coronation Street All DVB-T Channels 20:00 - 20:55 Info Change category Bad signal Dolby D+ Channel position and name Programme Start / Finish time (DVB) Channel number, etc.

  • Page 21: Off Timer

    Hold Freeze / unfreeze picture Display the selectable settings for the current status Check or change the current status instantly • To change select select / change access store [Multi Video] (DVB mode) [Sub Channel] (DVB mode) [MPX] (Analogue mode) Allows you to select from a group of Allows you to select the multifeed Selects multiplex sound mode...

  • Page 22: Last View

    Aspect Change the aspect ratio (image size) Enjoy viewing the image at its optimum size and aspect. Programmes usually contain an “Aspect Control Signal” (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the “Aspect Control Signal” (p. 115). ■...

  • Page 23: Using Tv Guide

    Using TV Guide TV Guide - Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters). • This function varies depending on the country you select (p. 13). •...
  • Page 24 ■ ■ To the previous day (DVB mode) To the next day (DVB mode) (red) (green) ■ ■ To view a channel list of the selected type To view a channel list of the selected category (DVB mode) (blue) (yellow) (Category list) select category (Type list) select type...

  • Page 25: Timer Programming (Dvb Mode)

    Timer Programming (DVB mode) Timer Programming is a timer to remind watching or record the programme to the external recorder, the USB HDD or the SD Card. Select the forthcoming programme Select the function ([Ext Rec.], [USB HDD Rec.], [SD Card Rec.] or [Reminder]) select select...

  • Page 26: Viewing Teletext

    Viewing Teletext Teletext services are the text information provided by the broadcasters. The features may vary depending on the broadcasters. What is FLOF (FASTEXT) mode? In FLOF mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button.
  • Page 27 FULL / TOP / BOTTOM (green) (TOP) (BOTTOM) Normal (FULL) (Expand the BOTTOM half ) (Expand the TOP half ) View in multi window Watch TV and Teletext in two windows at once Select Picture and text On or Off (Press twice) •...

  • Page 28: Watching External Inputs

    Watching External Inputs Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input. • To connect the equipment  (p. 11, 12, 112 - 114) The remote control is capable of operating some functions of selected external equipment. “Operating the equipment with the TV remote control”...

  • Page 29: Operating The Equipment With The Tv Remote Control

    The equipment connected to the TV can be directly operated with the below buttons of this TV remote control. Selection Switch for operating the connected equipment Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player theatre, Blu-ray Disc theatre or VCR  “How to change the code for the type of the equipment”...

  • Page 30: Viewing 3D Images

    Viewing 3D images You can enjoy viewing 3D images with contents or programmes corresponding to the 3D effect by wearing the 3D Eyewear (supplied).  “Standard accessories” (p. 6) This TV supports [Frame Sequential] ∗ , [Side by Side] ∗ and [Top and Bottom] ∗ 3D formats.
  • Page 31 Do not use the 3D Eyewear at a distance less than the recommended distance. The recommended viewing distance is at least 3 times of image height. TX-P55VT30E : 2.1 m or more TX-P65VT30E : 2.4 m or more When the top and bottom area of the screen is blackened, such as movies, view the screen at a distance at least 3 times further than the height of the actual image.

  • Page 32: Part Names And Functions

    3D Eyewear 3D Eyewear set (2) • TY-EW3D2MA 3D Eyewear 3D Eyewear case Charging cable Ferrite core • N5ZZ00000223 • 3D Eyewear can be worn over vision correction glasses. Part names and functions Infrared receiver Receives infrared signals from the TV. •...
  • Page 33 Attaching Ferrite Core Be sure to attach the provided ferrite core to the charging cable to reduce interference or electrical noise. Attach the ferrite core as close to USB connector of Close the ferrite core until it clicks. the charging cable as shown. Mini USB connector USB connector USB connector...
  • Page 34 Disposal A lithium-ion polymer rechargeable battery is built in to the 3D Eyewear. Please discard according to local regulations. When disposing this 3D Eyewear, disassemble properly by following the procedure below, and remove the internal rechargeable battery. Do not disassemble this 3D Eyewear except when disposing of it. Danger As the rechargeable battery is specifically for this 3D Eyewear, do not use it for any other device.
  • Page 35 • Please consult the suppliers of contents or programmes for availability of this service. ■ 3D photos and 3D videos taken by 3D-compatible Panasonic products • Available in Media Player (p. 81 - 83, 86) and Network services (p. 100) ■...
  • Page 36 Changing 2D - 3D mode You can easily change the viewing mode between 2D and 3D using the 3D button. Select the mode • Items of [3D Mode Selection] vary select 3D Mode Selection depending on the condition. [3D] / [2D] / [2D 3D] : Displays the appropriate image that you desire without selecting 3D format •...
  • Page 37 Table of images that can be seen for each [3D Mode Selection (Manual)] and the source image format If the picture appears to be abnormal, refer to the table below to choose the correct 3D mode. [3D Mode Selection] [Frame [Side by Side [Top and Source...
  • Page 38 Item Adjustments / Configurations (alternatives) Selects a level of 3D-image depth for viewing converted 2D images [Min] / [Mid] / [Max] 2D 3D Depth Adjustment of the 3D effect (except in [2D 3D] mode) [Off] / [On] • Set to [On] to enable [Effect] setting. •...

  • Page 39: How To Use Viera Tools

    How to Use VIERA TOOLS You can access some special features easily by using the VIERA TOOLS function. Display icons of the feature Select a feature select access ■ To return to TV VIERA Link Control ■ Follow the operations of each feature [Music] ∗...

  • Page 40: How To Use Menu Functions

    How to Use Menu Functions Various menus allow you to make settings for the picture, sound, and other functions. Display the menu • Displays the functions that can be set (varies according to the input signal) Select the menu Example : [Picture Menu] select Main Menu access...

  • Page 41: Menu List

    Menu list Menu Item Adjustments / Configurations (alternatives) Basic picture mode [Dynamic] / [Normal] / [Cinema] / [THX (True Cinema)] / [Game] / [Photo] / [Professional1] / [Professional2] In each Viewing Mode and input, [Contrast], [Brightness], [Colour], [Sharpness], [Tint], [Colour Balance], [Vivid Colour], [Eco Mode], [P-NR] and [3D-COMB] can be adjusted and stored to suit your particular viewing requirement.
  • Page 42 Menu Item Adjustments / Configurations (alternatives) Provides the picture effect such as the reversal film [Off] / [On] Reversal Film Effect • This function is available when [Viewing Mode] is set to [Photo]. Automatic Brightness Control function Eco Mode Adjusts picture settings automatically dependent on ambient lighting conditions [Off] / [On] Picture Noise Reduction P-NR...
  • Page 43 Menu Item Adjustments / Configurations (alternatives) Selects the screen area displaying the image [Off] / [On] [On] : Enlarged the image to hide the edge of the image. [Off] : Displayed the image in the original size. 16:9 Overscan • Set to [On] if noise is generated on the edge of the screen.
  • Page 44 Menu Item Adjustments / Configurations (alternatives) Adjusts the frequency level to suit your favourite sound quality • This function is available when [Mode] is set to [User]. • Select the frequency and change the frequency level by using the cursor button. •...
  • Page 45 Menu Item Adjustments / Configurations (alternatives) SPDIF : A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM] [Auto] : Dolby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channel are output as Dolby Digital Bitstream.
  • Page 46 Menu Item Adjustments / Configurations (alternatives) Controls the power consumption in Standby mode of the connected equipment to reduce the consumption [Off] / [On] (p. 107) Standby Power Save • This function is available when [VIERA Link] is set to [On] and [Power off Link] is set to [On].
  • Page 47 Menu Item Adjustments / Configurations (alternatives) Favourites Edit Creates list of favourite DVB-C channels (p. 54) Channel List Skips the unwanted DVB-C channels or edits DVB-C channels (p. 55) Auto Setup Automatically sets the DVB-C channels supplied (p. 52) Manual Tuning Sets the DVB-C channels manually (p. 56) Update Channel List Updates DVB-C Channel List while keeping your settings (p. 57) Favourite Network...
  • Page 48 Menu Item Adjustments / Configurations (alternatives) Channel List Skips the unwanted Analogue channels or edits Analogue channels (p. 58) Auto Setup Automatically sets the Analogue channels received in the area (p. 53) Manual Tuning Sets the Analogue channels manually (p. 59) Adds the TV mode •...
  • Page 49 Menu Item Adjustments / Configurations (alternatives) Common Interface Uses include to watch encrypted channels (p. 67) Network Setup Sets the network setting to use in your network environment (p. 94) DivX® VOD Displays DivX VOD registration code (p. 117) Enables the advanced picture settings [Off] / [On] •...

  • Page 50: Retuning From Setup Menu

    Retuning from Setup Menu Automatically retune the channels received in the area. • This function is available if channel tuning is already performed. • Only the selected mode is retuned. • All the previous tuning settings are erased. • If Child Lock PIN number (p. 63) has been set, the PIN number is required. •...
  • Page 51 Select [LNB Configuration] select DVB-S Tuning Menu access LNB Configuration Access Set [LNB] and [Satellite] Set [LNB] first, then set [Satellite] for the selected LNB. [LNB] : LNB Configuration select • Signal Quality If you set to [One LNB] Signal Strength  not selectable •...
  • Page 52 DVB-C channels Select DVB-C  (p. 19) Display the menu Select [Setup] select Main Menu access Picture Sound Timer Setup Select [DVB-C Tuning Menu] select ■ To return to TV access DVB-C Tuning Menu Access Select [Auto Setup] select DVB-C Tuning Menu access Auto Setup Access...
  • Page 53 DVB-T or Analogue channels Select DVB-T or Analogue  (p. 19) Display the menu Select [Setup] select Main Menu access Picture Sound Timer Setup Select [DVB-T Tuning Menu] or [Analogue Tuning Menu] select access DVB-T Tuning Menu Access ■ Analogue Tuning Menu Access •...

  • Page 54: Tuning And Editing Channels (Dvb)

    Tuning and Editing Channels (DVB) You can retune channels or make your favourite channel lists, skip unwanted channels, etc. Select DVB-S, DVB-C or DVB-T  (p. 19) Display the menu Select [Setup] select Main Menu access Picture Sound Timer Setup Select [DVB-S Tuning Menu], [DVB-C Tuning Menu] or [DVB-T Tuning Menu] select access...
  • Page 55 • Add it to the Favourites list To add continuous block of channels to the list at once DVB-C Favourites Editor Sorting 123... make the block (yellow) All DVB-C Channels Favourites1 1 BBC One Wales 1 BBC One Wales 7 BBC THREE 14 E4 CBBC Channel 72 Cartoon Nwk...

  • Page 56: Set Dvb Channel Manually [Manual Tuning

    Set DVB channel manually [Manual Tuning] Normally use [Auto Setup] or [Update Channel List] to retune DVB channels. If tuning has not been done completely or for adjusting the direction of the aerial or dish, use this function. • All channels found will be added to the Channel List. DVB-S : Set the satellite DVB-S Manual Tuning...
  • Page 57 Update DVB channel automatically [Update Channel List] You can add new channels, delete removed channels, update channel name and position automatically to Channel List. • Channel List is updated while keeping your settings in [Favourites Edit], DVB-T Update Channel List Progress CH 5 [Channel List], [Child Lock], etc.

  • Page 58: Tuning And Editing Channels (Analogue)

    Tuning and Editing Channels (Analogue) You can retune channels or skip unwanted channels, edit channels etc. Select Analogue  (p. 19) Display the menu Select [Setup] select Main Menu access Picture Sound Timer Setup Select [Analogue Tuning Menu] select access Analogue Tuning Menu Access Select one of the following functions select...

  • Page 59: Fine Tuning

    ■ To edit channels You can also edit each channel in Channel List. • To retune each channel ([Manual Tuning]) (red) (see below) • To move the channel position Select the new position Store (green) (green) • To rename the channel name Set characters (maximum : five characters) Store select...

  • Page 60: Timer Programming

    Timer Programming Timer Programming from Menu The Timer Programming menu allows you to choose programmes that you wish to remind watching or record to the external recorder, the USB HDD or the SD Card. At the correct time, the TV will tune to the correct channel even if the TV is in Standby mode.

  • Page 61: Set Timer Programming Event Details [Timer Programming

    Set timer programming event details [Timer Programming] Start making the settings Select the function ([Ext Rec.], [USB HDD Rec.], [SD Card Rec.] or [Reminder]) select [Ext Rec.] / [USB HDD Rec.] / [SD Card Rec.] : to record the programme to the external recorder, the USB HDD or the SD Card When the start time comes, the channel will be switched automatically and the video and audio signals will be output.

  • Page 62: Child Lock

    ■ ■ To change a timer programming event To record with subtitles (if available) Select the programme to be changed Select the programme to record with subtitles select (yellow) Correct as necessary (p. 61) • Each time pressed : access auto ■...

  • Page 63: Control Channel Audience [Child Lock

    Control channel audience [Child Lock] Enter the PIN number (4 digits) • Enter the PIN number twice at first setting. Child Lock-PIN Entry • Make a note of the PIN number in case you forget it. Please enter new PIN •...

  • Page 64: Input Labels

    Input Labels For easier identification and selection of the input mode, you can label each input mode or skip terminal that is not connected to any equipment. • To select the input mode  (p. 28) Display the menu Select [Setup] select Main Menu access Picture...

  • Page 65: Using Mhp Services

    Using MHP Services MHP (Multimedia Home Platform) is a standard of interactive services for digital broadcasting. MHP is a Java-based application, provided by broadcasters and you can load MHP services automatically on the TV (news, information, entertaining, etc.). • The availability of this function depends on the country you select (p. 13). •...
  • Page 66 Operating MHP application Select a channel with MHP and follow the on screen operation guide. • On screen operation guide may not correspond to the remote control buttons. Information banner 20:35 Coronation Street All DVB-T Channels 20:00 - 20:55 BBC ONE WALES Info Change category Displayed if programme has MHP services...

  • Page 67: Using Common Interface

    Although CI module may enable you to view some services, this TV does not guarantee all services (e.g. encrypted pay-TV channels). Please use only the approved CI module by the broadcaster. Consult your local Panasonic dealer or broadcasters for more information and conditions of the services. CI slot Caution •...

  • Page 68: Shipping Condition

    Shipping Condition Resets the TV to its original condition, i.e. no channels tuned in. All settings other than [USB HDD Setup] are reset (channels, picture, sound settings, etc.). • To retune TV channels only, e.g. after moving house  “Retuning from Setup Menu” (p. 50 - 53) Display the menu Select [Setup] select...

  • Page 69: Updating The Tv Software

    Updating the TV Software From time to time, a new version of software may become available for download to enhance the performance or operations of the TV. If there is an update available, a notification banner is displayed when the channel has the update information. •...

  • Page 70: Multi Window

    Multi Window Enjoy viewing the digital TV programme and external input (AV, COMPONENT or HDMI) at once. Display the menu Select [Picture] select Main Menu access Picture Sound Timer Setup Select [Picture in Picture] select access Picture in Picture Access •...

  • Page 71: Advanced Picture Settings

    Advanced Picture Settings You can adjust and setup the detailed picture settings for each input and Viewing Mode. • To use this function completely, set [Advance(isfccc)] to [On] in the Setup Menu.  (p. 49) Select the input mode to adjust and setup  (p. 19, 28) Display the menu Select [Picture]...
  • Page 72 Adjust the detailed picture settings [Advanced Settings] select Advanced Settings White Balance Access adjust Colour Management Access access / store Gamma Access Menu Item Adjustments / Configurations (alternatives) R-Gain Adjusts the white balance of bright red area G-Gain Adjusts the white balance of bright green area B-Gain Adjusts the white balance of bright blue area R-Cutoff...
  • Page 73 Menu Item Adjustments / Configurations (alternatives) Switches the gamma curve [S Curve] / [1.8] / [2.0] / [2.2] / [2.4] / [2.6] Gamma • Please note the numerical values are reference for the adjustment. Adjusts more detailed Gamma items [Input Signal Level] : Adjusts the input signal level More Detailed [Gain] :...

  • Page 74: Usb Hdd / Sd Card Recording

    USB HDD / SD Card Recording You can record the digital TV programmes to the connected USB HDD or inserted SD Card and enjoy playing back in various ways. • Analogue TV programme cannot be recorded to the USB HDD / SD Card. •...
  • Page 75 Setting for USB HDD / SD Card Format and setup the USB HDD / SD Card with this TV in order to use it for recording. • Before the settings, connect the USB HDD / SD Card (p. 74) and be sure to turn on the USB HDD. •...
  • Page 76 Confirmation of USB HDD name USB HDD Formatting select Name : USB Drive A Edit name? The name for the USB HDD is created automatically. If you want to edit the name, select [Yes]. Set characters Store select USB HDD USB HDD 1 Name C D E...
  • Page 77 Recording the TV programme to USB HDD / SD Card You can record the current programme immediately by using [One Touch Recording]. You can also record the current programme constantly for the selected period by using [REW LIVE TV] so that you can go back or pause the current programme.
  • Page 78 ■ ■ To start One Touch Recording When both USB HDD and SD Card are available Set the position to “TV” Select the recording device Start Please select recording device select EXIT • Select No other channel can be selected while the RETURN SD Card USB HDD1...

  • Page 79: Using Media Player

    Using Media Player Media Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory, and contents recorded with this TV on the exclusive recording devices (USB HDD / SD Card). VIERA IMAGE VIEWER is the function of the easy viewing for photos or videos recorded on an SD Card on the TV screen by simply inserting into the SD Card slot.
  • Page 80 Starting Media Player Insert the SD Card or USB Flash Memory to the TV (p. 79) • To play back contents in the USB HDD, check the connection and settings are completed. (p. 74, 75) Start Media Player Media Player Signal output from all AV terminals will be disabled during Media Player view.

  • Page 81: Photo Mode

    Photo mode Photo mode will read all “.jpg” extension files and supports “.mpo” extension files in the SD Card or USB Flash Memory. The thumbnail of all the photos in the SD Card or USB Flash Memory will be displayed. Example : Thumbnail - [All photos] All photos Media Player...

  • Page 82: Multi Shot 3D

    [Single view] - Photos are displayed one at a time. Select the file from the thumbnail of photos to be viewed select access Example : • • To display / hide the operation To operate Single view Single view guide To the previous photo Slideshow •...

  • Page 83: Photo Settings

    Create the 3D photo • If your selected photos are not suitable for the 3D photo, the error message will be displayed and will return to the photo selection screen (step 3). • To save the 3D photo in the SD Card select [Yes] The 3D image will be saved onto your media.
  • Page 84 Menu Item Adjustments / Configurations (alternatives) Selects the frame type of the slideshow [Off] / [Multi] / [Collage] / [Drift (+ calendar)] / [Drift] / [Gallery (+ calendar)] / [Gallery] / [Cinema] [Multi] : 9 photos are displayed orderly at once. [Collage] : Each photo is displayed at a random position and random scale.

  • Page 85: Change The Contents

    Menu Item Adjustments / Configurations (alternatives) Selects the back ground music during Photo mode [Off] / [Type1] / [Type2] / [Type3] / [User] / [Auto] • [Type1], [Type2] and [Type3] are the fixed music each installed in this TV. [User] : Music data in the device registered by yourself will be played back. To register the music 1.

  • Page 86: Video Mode

    Video and Recorded TV mode • Supported file format  (p. 116) Video mode (For SD Card or USB Flash Memory) The thumbnail of video titles in the SD Card or USB Flash Memory will be displayed. Example : Thumbnail - [Title view] The preview will start when the title is Title view Media Player...
  • Page 87 ■ How to operate in the playback Example : Playback • • To display / hide the operation guide and To change aspect 19/02/2010 11:21 00:15:39 00:02:05 information banner • To the previous title / • To operate the playback scene Rewind EXIT...

  • Page 88: Recorded Tv Mode

    Recorded TV mode (For exclusive USB HDD / SD Card) Contents list of the selected device will be displayed. • For the SD Card, ensure the write-protection switch (on the left side of the SD Card) is unlocked to play back. Example : Contents list Remaining capacity of the selected device Media Player...
  • Page 89 ■ How to operate in the playback Example : Playback • • To display / hide the operation guide To return to list Das Erste 00:15:39 00:02:05 and information banner • To operate the playback Manual skip Rewind EXIT [Manual skip] RETURN •...

  • Page 90: Audio Output Settings

    Audio output Settings You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal. • To confirm or change the current sound status “Confirm or change the current status” (p. 87) Display the menu Select [Sound] Select [SPDIF Selection] and set Main Menu...

  • Page 91: Music Setup

    ■ Playback from File view Selected file will be played back. Select the folder Select the file Start playback Example : Thumbnail - File view (red) Folder view > My Music_1 Media Player Music select access My Song_1 My Song_2 My Song_3 My Song_4 My Song_5...

  • Page 92: Using Network Services (Dlna / Viera Connect)

     (p. 99 - 102) VIERA Connect VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as photos, videos, games, etc.

  • Page 93: Network Connections

    Network connections To use only DLNA features, you can operate the features without broadband network environment. To use VIERA Connect features, you need a broadband network environment. • If you do not have any broadband network services, please consult your retailer for assistance. •...

  • Page 94: Network Setup

    Enables to control the TV from the network equipment (Smartphone, etc.) [Off] / [On] • Depending on the area, this function may not be available. For details, consult your Network Remote Control local Panasonic dealer. • For more information of this function, visit the following website. (English only) http://panasonic.jp/support/global/cs/tv/...

  • Page 95: Wired Connection Settings

    Wired connection settings This setting is for the network connection by using the LAN cable. Select [Network Type] and set to [Wired] select Network Setup Connection Test Network Type Wired access / store Access Point Settings IP/DNS Settings Network Link Settings If you make the network connection like “Example 2”...

  • Page 96: Wireless Connection Settings

    Select [Connection Test] and access to test select Network Setup Connection Test Access Network Type Wired access Access Point Settings • IP/DNS Settings Performs automatic testing of the network connection for the TV. (It takes a while Network Link Settings to test.) Software Update MAC Address...
  • Page 97 ■ [WPS(Push button)] press the WPS button on the access point until the light flashes WPS(Push button) 1) Please press the ‘WPS’ button on the access point until its light flashes. 2) When the light is flashing select ‘Connect’ on connect the Wireless LAN Adaptor and the access point •...

  • Page 98: Update Tv's Software

    Enter the encryption key of the access point (Set characters one by one) Store select Access Point Settings Encryption key C D E L M N O P Q R U V W X • You can set characters by using numeric v w x buttons.
  • Page 99 Using DLNA® features • Ensure the preparation of media server, network connections and network settings are completed.  “Media server” (p. 92), “Network connections” (p. 93), [Network Setup] (p. 94 - 98) Display icons of the feature Select [Media Server] select access Media Server Select one of the media servers you want to access Example : Media server list Media Server select...
  • Page 100 For photo file [Single view] - Photos are displayed one at a time. Example : • • To display / hide the operation guide To return to list Single view • • To operate Single view To rotate 90° Single view To the previous photo (blue) EXIT...

  • Page 101: Option Menu For Each Content

    For DIGA Recorder Control the DIGA Recorder The screen of the DIGA Recorder will be displayed. You can control the functions of the DIGA Recorder with this TV remote control according to the operation guide. Example : • Before operating, register this TV on the DIGA Recorder. DIRECT NAVIGATOR (Grouped Titles) Time Remaining 36:17 (DR) •...

  • Page 102: Audio Output Settings (For Video Contents)

    VIERA Connect home screen is subject to change without notice. • The services through VIERA Connect are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services. •...

  • Page 103: Link Functions (Q-Link / Viera Link)

    Use fully wired HDMI compliant cable. • Connect the equipment supporting VIERA Link to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable. • About HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment.

  • Page 104: Viera Link (Hdmi And Audio Out Connections)

    VIERA Link (HDMI and Audio out connections) Connected equipment Player theatre with Blu-ray Disc theatre with Amplifier with VIERA Link Features VIERA Link function VIERA Link function function Preset download – – – ∗ ∗ Easy playback – Power on link – Power off link Reduce unnecessary power consumption ∗...

  • Page 105: Power Off Link

    Q-Link Preparations • Connect the DVD Recorder / VCR with the following logos : “Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC (a trademark of Metz Corporation)”, “Easy Link (a trademark of Philips Corporation)”, “Megalogic (a trademark of Grundig Corporation)”, “SMARTLINK (a trademark of Sony Corporation)” •...

  • Page 106: Easy Playback

    ” ∗ VIERA Link “ ∗ Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function. This TV supports “HDAVI Control 5” function. Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables allow you to interface them automatically (p. 103, 104).
  • Page 107 Reduce unnecessary power consumption in standby [Standby Power Save] Set Standby Power Save [On] in the Setup Menu to use this function  [Standby Power Save] (p. 46) The power consumption in Standby mode of the connected equipment is controlled higher or lower in synchronization with the TV On / Off state to reduce the consumption.
  • Page 108 Pause Live TV programme [Pause Live TV] You can pause the live TV programme and resume later. Live TV programme will be recorded on HDD of the connected DIGA Recorder. • This function is available with DIGA Recorder which has HDD. •...
  • Page 109 Control the menu of the connected equipment by VIERA remote control [VIERA Link Control] You can control some functions of the connected equipment with this TV remote control (point the remote control at the TV’s signal receiver). • If you cannot operate, check the settings and the equipment  ...

  • Page 110: Operate The Menu Of The Equipment

    Operate the menu of the equipment Available VIERA remote control buttons : (Depending on the connected equipment) Set the position to “TV” Follow the operation guide • To display the operation guide If other manufacturers’ equipment is accessed, Setup / Contents Selection menu may be displayed.
  • Page 111 Speaker control [Speaker Selection] You can control the theatre speaker with this TV remote control (point the remote control at the TV’s signal receiver). • If you cannot operate, check the settings and the equipment   “Summary of Q-Link and VIERA Link features” (p. 103, 104), “Preparations” (p. 106) Display [VIERA Link Menu] Select [Speaker Selection] select...

  • Page 112: External Equipment

    External Equipment These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment, the table (p. 114), and the specifications (p. 126, 127). To watch satellite broadcasts Satellite dish Satellite cable Satellite adaptor...

  • Page 113: Network (Wired)

    Network (wired) Less Less than than Internet 10 cm 10 cm LAN cable Modem Hub or Router This terminal is for special Ferrite core - Large size (supplied) applications used by authorized Installing the Ferrite core service dealers. Pull back the tabs Wind the cable Press the cable (in two places)
  • Page 114 Headphones Less than 10 cm (M3 stereo mini plug) Ferrite core - Small size (supplied) Installing the Ferrite core Rear of the TV Open Pull back the tab Wind the cable Press the cable twice through and close • To adjust volume  [Headphone Volume] (p. 44) Types of connectable equipment to each terminal Terminal...

  • Page 115: Technical Information

    Technical Information Auto Aspect The optimum size and aspect can be chosen automatically, and you can enjoy finer images.  (p. 22) Aspect Control Signal [WIDE] will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through SCART / HDMI terminal is found.
  • Page 116 Dolby Digital products. Linear PCM (RAW • This TV supports Motion JPEG recorded by / TWOS / SOWT) Panasonic LUMIX Camera ∗ MotionJPEG .mov • This TV is not available for playing back H.264 BP / MP / HP Motion JPEG with the media server.
  • Page 117 ■ Music Codec File extension Restrictions .mp3 – • .m4a Copy-protected files cannot be played back. • Copy-protected files cannot be played back. .wma • WMA Pro and WMA Lossless are not supported. Note • Some files may not be played back even if they fulfill these conditions. •...

  • Page 118: Devices For Recording Or Playing Back

    Electrical interference, static electricity, or erroneous operation may damage the data or device. • Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the TV. (Panasonic is not liable for any deterioration or damage of recorded data.)

  • Page 119: Hdmi Connection

    Recording time for the USB HDD / SD Card Recording Recording device Recording mode USB HDD SD Card 1 TB 2 GB 16 GB 48 GB 64 GB For HD broadcast 87 hours 9 minutes 1.5 hours 4.5 hours 6 hours [DR] For SD broadcast 217 hours...

  • Page 120: Usb Connection

    You cannot use two or more same kind of USB devices simultaneously except USB Flash Memory or USB HDD. • Additional information for USB devices may be on the following website. (English only) http://panasonic.jp/support/global/cs/tv/ USB Keyboard • The USB Keyboard which requires the driver is not supported.

  • Page 121: Scart And Hdmi Terminal Information

    Characters table for numeric buttons You can enter characters by using numeric buttons for free input items. Press the numeric button repeatedly until you reach the User input desired character. Name C D E L M N O P Q R •...

  • Page 122: Faqs

    Before requesting service or assistance, please follow these simple guides to resolve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. Block noise, frozen or disappearing image occurs in DVB mode / White spots or shadow image (ghosting) occurs in Analogue mode / Some channels cannot be tuned...
  • Page 123 Problem Actions • Set [P-NR] in the Picture Menu (to remove noise).  (p. 42) Chaotic image, noisy • Check nearby electrical products (car, motorcycle, fluorescent lamp). • Is [Contrast], [Brightness] or [Colour] in the Picture Menu set to the minimum? No image can be displayed  (p. 41) Blurry or distorted image •...
  • Page 124 Off with Mains power On / Off switch, then turn it On again. appears • Check if foreign objects are inside the USB port. • Follow the message’s instructions. • An error message appears If the problem persists, contact your local Panasonic dealer or the authorized Service Centre.

  • Page 125: Licence

    LLC in the United States and other countries. • HDAVI Control™ is a trademark of Panasonic Corporation. • “AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation. • x.v.Colour™ is a trademark. • THX and the THX logo are trademarks of THX Ltd. which may be registered in some jurisdictions. All rights reserved.

  • Page 126: Specifications

    Specifications TX-P55VT30E TX-P65VT30E Power Source AC 220-240 V, 50 / 60 Hz Rated Power Consumption 430 W 500 W On mode Average Power Consumption 222 W 311 W (based on IEC 62087 Ed.2 measurement method) 0.30 W Standby Power Consumption 30.00 W (With monitor out recording)
  • Page 127 AV1 (SCART) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link) 1.0 V[p-p] (75 Ω) VIDEO RCA PIN Type × 1 AV2 input AUDIO L - R RCA PIN Type × 2 0.5 V[rms] 1.0 V[p-p] (including synchronization) COMPONENT input ±0.35 V[p-p] TYPE A Connectors HDMI1 / 3 / 4 : 3D, Content Type, Deep Colour, x.v.Colour™...
  • Page 128 Declaration of Conformity (DoC) Authorized Representative : Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany Customer’s Record The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

This manual is also suitable for:

Viera tx-p65vt30eTx-p55vt30yTx-p65vt30yTx-p42vt30eTx-p50vt30e

Table of Contents
