Panasonic RR-QR150 Operating Instructions Manual

Troubleshooting Guide

Before requesting service, make the below checks. If you are in doubt about some of
the check points, or if the remedies indicated in the chart do not solve the problem:
In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-
mail consumerproducts@panasonic.com, or web site (http://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-624-
5505, web site (www.panasonic.ca), or an authorized Servicentre close to you.
Symptom
No operation. ≥The hold function is on. (page 2)
≥Make sure the battery cover is closed.
≥Make sure the battery is correctly inserted.
"U01" appears on the ≥The battery has run down.
display.
"2003" flashes. ≥Set the clock. (page 3)
There is no sound from ≥Ensure the plug is inserted firmly.
the earphone or it is ≥Wipe the plug clean.
difficult to hear or noisy.
Recording stops. ≥VAS (page 4) may have functioned.
"– – – –" appears instead ≥Set the clock. (page 3)
of the recording date.
Playback speed is too ≥Set play speed to normal. (page 6)
fast or slow.
"FULL" appears. ≥There are 99 files in the folder.
≥There is no remaining recording time.
– Erase unneeded files. (page 8)
No sound from the ≥There is no sound when you have connected an
speaker. earphone.
Cannot erase a file or ≥The file is locked. (page 8)
folder. ≥The folder is already empty.
Cannot move a file. ≥You cannot move files to folders that already
contain 99 files.
A recording disappeared. ≥Recordings can disappear if the unit receives a
shock (e.g. it is dropped), or if the battery and
cover come loose during recording.
Available recording time ≥This can occur after repeatedly recording and
does not increase erasing files. Unlock all your files, then erase all
correspondingly after folders to remedy this.
erasing files.
Cannot set timer ≥You can set the timers within 24 hours of the
recording/playback. current time.
≥Set the clock. (page 3)
Timer recording/ ≥The settings are canceled if the battery is
playback does not work. removed and the clock settings clear.
Cannot set timer ≥When you set both, only the one you set last
recording/playback at works.
the same time.
Timer recording does ≥You cannot set the timer if there is less than one
not work. minute of available recording time.
Cannot use a battery that ≥This unit determines the battery empty even if
can be used on other there is actually life left in it. This is to preserve
equipment. the clock and other memory items.
≥Press [ $ FOLDER/ % MENU] briefly. You will
Cannot select a folder.
enter the menu mode if you hold the button
down for 2 or more seconds.
Maintenance
To clean this unit, wipe with a soft, dry cloth.
≥Never use alcohol, paint thinner or benzine to clean this unit.
≥Before using chemically treated cloth, read the instructions that came with the cloth
carefully.
Checkpoints
12
0
50
100
Model RR-QR153 is only for the U.S.A.
Dear customer
Thank you for purchasing this product. For optimum
performance and safety, please read these instruc-
tions carefully.
Before connecting, operating or adjusting this prod-
uct, please read these instructions completely.
Please keep this manual for future reference.
Panasonic Consumer Electronics Company, Division of
Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094
http://www.panasonic.com
Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc. ("PSC")
Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
www.panasonic.ca
C 2003 Matsushita Electric Industrial Co., Ltd.
Printed in Japan
Specifications
Power output: 200 mW (max.)
Frequency response: 350 Hz – 4,300 Hz (HQ mode)
S/N: 38 dB (HQ mode)
Jack:
Output jack; Earphone, 3.5 mm (
Input jack; Mic, 3.5 mm (
Speaker: 28 mm (1
Power requirement: DC 3 V
2 AAA size (R03/LR03, UM-4) batteries
Dimensions (WtHtD):
Max dimensions; 48.6 k 106.0 k 15.0 mm (1
Cabinet dimensions;
47.5 k 105.0 k 14.0 mm (1
Mass:
with batteries;
About 64 g (2.2 oz.)
without batteries; About 44 g (1.5 oz.)
Operational temperature range: 0 oC – 40 oC (32 oF – 104 oF)
Battery life:
[When used at 25 oC (77 oF) on a flat, stable surface]
Batteries
Panasonic alkaline About 18 hours
batteries
≥The battery life may be less depending on the operating conditions.
Note:
≥Specifications are subject to change without notice.
≥Mass and dimensions are approximate.
The model number and serial num-
ber of this product can be found on
either the back or the bottom of the
unit.

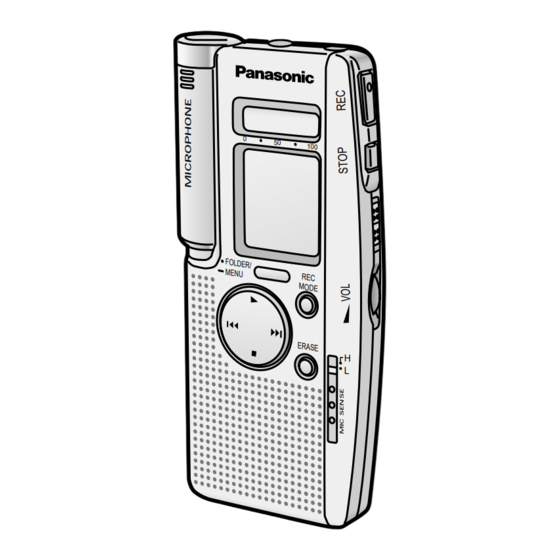

IC Recorder

Operating Instructions

RR-QR150
Model No.
RR-QR153
This manual was printed
with soy based ink.
P PC
RQT6869-P
F0103YH0
1 ⁄ in.); 1.4 mW 16 ≠
8
1
⁄ in.); 0.56 mV plug in power
8
3 ⁄ in.) 8 ≠
32
15 3
⁄ k 4 ⁄
k
16 16
7 ⁄ k 4 1 ⁄ 1 ⁄
k
8 8 2
Playback Recording
About 68 hours
Please note them in the space pro-
vided below and keep for future ref-
erence.
MODEL NUMBER
SERIAL NUMBER
p
9
⁄ in. )
16
in. )
