Operating Instructions

LCD Television
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain
them for future reference.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local
Panasonic dealer for assistance.
English
Model No.
TX-L19D35ES
TX-L19D35EW

Advertisement

Table of Contents
loading

Related Manuals for Panasonic Viera TX-L19D35ES

Summary of Contents for Panasonic Viera TX-L19D35ES

  • Page 1: Operating Instructions

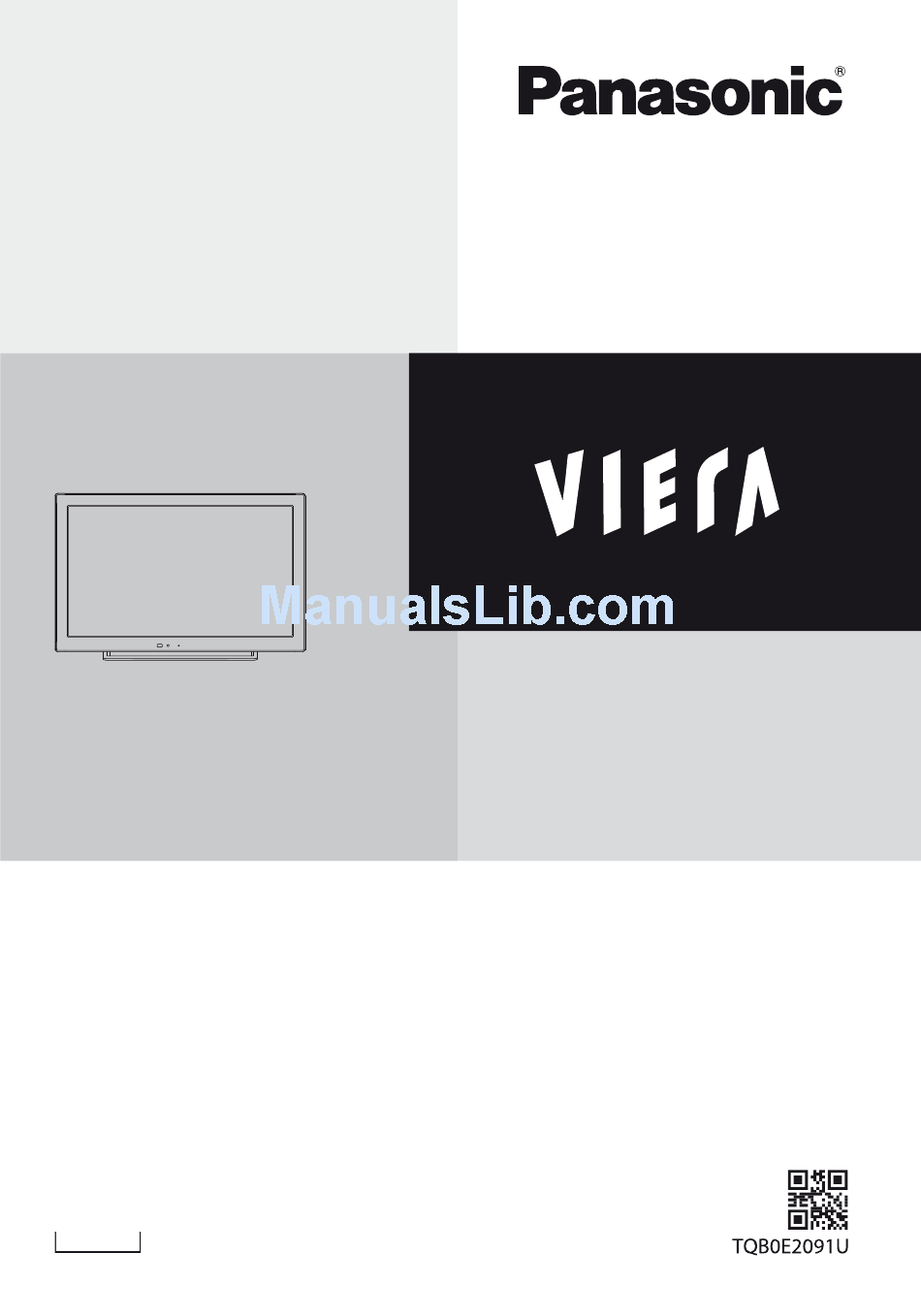

    TX-L19D35ES TX-L19D35EW Operating Instructions LCD Television Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only. Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance.
  • Page 2 This TV may not work correctly with CI module that is not approved by the service provider. Additional fees may be charged depending on the service provider. The compatibility with future services is not guaranteed. Check the latest information on the available services at the following website. (English only) http://panasonic.jp/support/global/cs/tv/...

  • Page 3: Table Of Contents

    The recording and playback of content on this or any other Maintenance ··············································································5 device may require permission from the owner of the copyright or other such rights in that content. Panasonic has no authority Quick Start Guide to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission Accessories / Options ······························································6...

  • Page 4: Safety Precautions

    Using an unapproved pedestal or other fixtures may make To prevent the spread the TV unstable, risking injury. Be sure to ask your local Panasonic dealer to perform the set up or installation. of fire, keep candles or Use approved pedestals / wall-hanging brackets (p. 6 - 7).

  • Page 5: Maintenance

    Caution When cleaning the TV remove the mains Do not block the rear air vents Adequate ventilation is essential to prevent failure of plug electronic components. Cleaning an energized TV may cause electrical shock. Ventilation should not be impeded by covering the Remove the mains plug from the wall socket ventilation openings with items such as newspapers, table when TV is not in use for a prolonged period...

  • Page 6: Accessories / Options

    Warning Failure to use a Panasonic bracket or choosing to mount the unit yourself will be done at the risk of the consumer. Always be sure to ask a qualified technician to carry out set up. Incorrect fitting may cause equipment to fall, resulting in injury and product damage.

  • Page 7: Attaching The Pedestal

    Otherwise the TV may fall over and become damaged, and personal injury may result. Do not use the pedestal if it becomes warped or physically damaged. If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic dealer immediately.

  • Page 8: Identifying Controls

    Identifying Controls Remote Control Confirms selections and choices INPUT SD CARD Press after selecting channel positions to quickly change channel MENU ASPECT DIRECT TV REC Displays the Channel List EXIT [Option Menu]  (p. 19) Easy optional setting for viewing, sound, etc. Teletext  (p. 24) Switches to teletext mode...

  • Page 9: Using The On Screen Displays

    Mains power On / Off switch Use to switch the mains power. If you turned the TV Off during Standby mode by the remote control last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch.

  • Page 10: Basic Connection

    Basic Connection External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. Example 1 Example 2 Connecting aerial Connecting DVD Recorder / VCR TV only TV, DVD Recorder or VCR Rear of the TV...
  • Page 11 Example 3 Connecting DVD Recorder / VCR and Set top box TV, DVD Recorder / VCR and Set top box Terrestrial aerial Rear of the TV DIGITAL AUDIO OUT Dock for iPod (DC 5V 1.0A MAX) AC 220-240 V Fully wired RF cable 50 Hz SCART cable...

  • Page 12: Auto Setup

    Auto Setup Search and store TV channels automatically. These steps are not necessary if the setup has been completed by your local dealer. Please complete connections (p. 10, 11) and settings (if necessary) of the connected equipment before starting Auto Setup. For details of settings for the connected equipment, read the manual of the equipment.

  • Page 13: Setup The Network Connection

    [DVB-C Auto Setup] [DVB-T Auto Setup] DVB-C Auto Setup DVB-T Auto Setup 100% CH 5 Progress Progress This will take about 3 minutes. This will take about 3 minutes. Channel Name Type Quality Channel Name Type Quality CBBC Channel Free TV CBBC Channel Free TV BBC Radio Wales...
  • Page 14 [Wireless] Select the connection type select Connection Type Please select network connection type. access Search for access point WPS(Push button) [Search for access point] Access points found automatically are listed. 1. Select your desired access point select Available Access Points SSID Wireless type Encrypt...
  • Page 15 [WPS(Push button)] 1. Press the WPS button on the access point until the light flashes 2. Connect the Wireless LAN Adaptor and the access point WPS(Push button) 1) Please press the ‘WPS’ button on the access point until its light flashes. 2) When the light is flashing select ‘Connect’...

  • Page 16: Using "Viera Connect

    Using “VIERA Connect” VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as photos, videos, games, etc.

  • Page 17: Watching Tv

    Watching TV Turn power on Press for about 1 second Mains power On / Off switch should be On. (p. 9) VIERA Connect introduction banner appears You can access to VIERA Connect and enjoy the various contents.  (p. 16) To remove this banner, leave for about 5 seconds or press any buttons (except the buttons to access VIERA Connect).

  • Page 18: Other Useful Functions

    Other useful functions Display Information banner Display Information banner Also appears when changing a channel Example : DVB 20:35 HDTV Coronation Street All DVB-T Channels 20:00 - 20:55 Info Change category Bad signal Dolby D+ Channel position and name Programme Start / Finish time (DVB) Channel number, etc.

  • Page 19: Off Timer

    Hold Freeze / unfreeze picture HOLD Display the selectable settings for the current status Check or change the current status instantly To change OPTION select / change select access store [Multi Video] (DVB mode) [Dual Audio] (DVB mode) [Teletext Language] (DVB mode) Allows you to select from a group of Allows you to select stereo / monaural Allows you to select between alternative...

  • Page 20: Last View

    Aspect Change the aspect ratio (image size) Enjoy viewing the image at its optimum size and aspect. ASPECT Programmes usually contain an “Aspect Control Signal” (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the “Aspect Control Signal” (p. 97). If you would like to change the aspect ratio manually Display Aspect Selection list While the list is displayed,...

  • Page 21: Using Tv Guide

    Using TV Guide TV Guide - Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters). This function varies depending on the country you select (p. 12). The postcode entry or update may be required to use the GUIDE Plus+ system depending on the country you select.
  • Page 22 To the previous day (DVB mode) To the next day (DVB mode) (red) (green) To view a channel list of the selected type To view a channel list of the selected category (DVB mode) (blue) (yellow) (Category list) select category (Type list) Categor y select type All Channels...

  • Page 23: Timer Programming (Dvb Mode)

    Timer Programming (DVB mode) Timer Programming is a timer to remind watching or record the programme to the external recorder or the USB HDD. Select the forthcoming programme Select the function ([Ext Rec.], [USB HDD Rec.] or [Reminder]) select select (Timer Programming screen) Timer Programming Wed 27.10.2010 10:46 Function...

  • Page 24: Viewing Teletext

    Viewing Teletext Teletext services are the text information provided by the broadcasters. The features may vary depending on the broadcasters. What is FLOF (FASTEXT) mode? In FLOF mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button.

  • Page 25: Store Frequently Viewed Pages

    FULL / TOP / BOTTOM MENU (green) (TOP) (BOTTOM) Normal (FULL) (Expand the BOTTOM half ) (Expand the TOP half ) View in multi window Watch TV and Teletext in two windows at once MENU Select Picture and text On or Off (Press twice) Operations can be made only in teletext screen.

  • Page 26: Watching External Inputs

    Watching External Inputs Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input. To connect the equipment  (p. 10, 11, 94 - 96) The remote control is capable of operating some functions of selected external equipment. “Operating the equipment with the TV remote control”...

  • Page 27: Operating The Equipment With The Tv Remote Control

    The equipment connected to the TV can be directly operated with the below buttons of this TV remote control. Selection Switch for operating the connected equipment Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player theatre, Blu-ray Disc theatre or VCR DVD/VCR  “How to change the code for the type of the equipment”...

  • Page 28: How To Use Viera Tools

    How to Use VIERA TOOLS You can access some special features easily by using the VIERA TOOLS function. Display icons of the feature Select a feature select access To return to TV EXIT VIERA Link Control Follow the operations of each feature [Music] [VIERA Link Control]  “VIERA Link Control”...

  • Page 29: How To Use Menu Functions

    How to Use Menu Functions Various menus allow you to make settings for the picture, sound, and other functions. Display the menu Displays the functions that can be set (varies according to the input signal) MENU Select the menu Example : [Picture Menu] select Main Menu access...

  • Page 30: Menu List

    Menu list Menu Item Adjustments / Configurations (alternatives) Basic picture mode [Dynamic] / [Normal] / [Cinema] / [True Cinema] / [Game] / [Photo] In each Viewing Mode and input, [Contrast], [Brightness], [Colour], [Sharpness], [Tint], [Colour Balance], [Vivid Colour], [Eco Mode], [P-NR] and [3D-COMB] can be adjusted and stored to suit your particular viewing requirement.
  • Page 31 Menu Item Adjustments / Configurations (alternatives) Film Cadence Automatically makes the film source movie images clear [Off] / [On] Detection Selects the screen area displaying the image [Off] / [On] [On] : Enlarged the image to hide the edge of the image. [Off] : Displayed the image in the original size.
  • Page 32 Menu Item Adjustments / Configurations (alternatives) Surround sound settings [Off] / [V-Audio] / [V-Audio Surround] [V-Audio] : Surround Provides a dynamic enhancer of width to simulate improved spatial effects [V-Audio Surround] : Provides a dynamic enhancer of width and depth to simulate improved spatial effects Adjusts the current volume level if it is extremely different from the previous viewed Auto Gain Control channel or input mode [Off] / [On]...
  • Page 33 Menu Item Adjustments / Configurations (alternatives) Select to fit the input signal [Digital] / [Analogue] (p. 101) [Digital] : HDMI cable connection HDMI1 / 2 Input [Analogue] : HDMI-DVI adaptor cable connection HDMI input mode only Adjusts the delay time of the sound output from DIGITAL AUDIO OUT and HDMI2 (ARC SPDIF Delay function) terminals if the sound does not synchronize the image DVB mode only...
  • Page 34 Menu Item Adjustments / Configurations (alternatives) Controls the power consumption in Standby mode of the connected equipment to reduce the consumption [Off] / [On] (p. 89) Standby Power Save This function is available when [VIERA Link] is set to [On] and [Power off Link] is set to [On].
  • Page 35 Menu Item Adjustments / Configurations (alternatives) Favourites Edit Creates list of favourite DVB-T channels (p. 40) Channel List Skips the unwanted DVB-T channels or edits DVB-T channels (p. 41) Auto Setup Automatically sets the DVB-T channels received in the area (p. 39) Manual Tuning Sets the DVB-T channels manually (p. 42) Update Channel List Updates DVB-T Channel List while keeping your settings (p. 42)
  • Page 36 Menu Item Adjustments / Configurations (alternatives) Selects the preferred subtitle type [Standard] / [Hard of Hearing] Preferred Subtitle [Hard of Hearing] provides aids in understanding and enjoyment with DVB subtitles Type (depending on the broadcaster). [Preferred Subtitles 1 / 2] in [Language] are given priority. Teletext Teletext display mode [TOP (FLOF)] / [List] (p. 24) Selects teletext language font [West] / [East1] / [East2]...
  • Page 37 Menu Item Adjustments / Configurations (alternatives) Common Interface Uses include to watch encrypted channels (p. 50) Network Setup Sets the network setting to use in your network environment (p. 76) DivX® VOD Displays DivX VOD registration code (p. 99) USB Keyboard Selects the language that your USB Keyboard supports Layout For the information of using USB Keyboard (p. 102)

  • Page 38: Retuning From Setup Menu

    Retuning from Setup Menu Automatically retune the channels received in the area. This function is available if channel tuning is already performed. Only the selected mode is retuned. All the previous tuning settings are erased. If Child Lock PIN number (p. 48) has been set, the PIN number is required. If tuning has not been done completely  [Manual Tuning] (p.
  • Page 39 DVB-T or Analogue channels Select DVB-T or Analogue  (p. 17) Display the menu MENU Select [Setup] select Main Menu access Picture Sound Timer Setup Select [DVB-T Tuning Menu] or [Analogue Tuning Menu] select access DVB-T Tuning Menu Access Analogue Tuning Menu Access To return to TV The displayed item depends on the selected...

  • Page 40: Tuning And Editing Channels (Dvb)

    Tuning and Editing Channels (DVB) You can retune channels or make your favourite channel lists, skip unwanted channels, etc. Select DVB-C or DVB-T  (p. 17) Display the menu MENU Select [Setup] select Main Menu access Picture Sound Timer Setup Select [DVB-C Tuning Menu] or [DVB-T Tuning Menu] select access DVB-C Tuning Menu...
  • Page 41 Add it to the Favourites list To add continuous block of channels to the list at once DVB-C Favourites Editor Sorting 123... make the block (yellow) All DVB-C Channels Favourites1 1 BBC One Wales 1 BBC One Wales 7 BBC THREE 14 E4 CBBC Channel 72 Cartoon Nwk...
  • Page 42 Set DVB channel manually [Manual Tuning] Normally use [Auto Setup] or [Update Channel List] to retune DVB channels. If tuning has not been done completely or for adjusting the direction of the aerial, use this function. All channels found will be added to the Channel List. DVB-C : Enter the frequency Select [Start scan]...

  • Page 43: Tuning And Editing Channels (Analogue)

    Tuning and Editing Channels (Analogue) You can retune channels or skip unwanted channels, edit channels etc. Select Analogue  (p. 17) Display the menu MENU Select [Setup] select Main Menu access Picture Sound Timer Setup Select [Analogue Tuning Menu] select access Analogue Tuning Menu Access Select one of the following functions select...

  • Page 44: Fine Tuning

    To edit channels You can also edit each channel in Channel List. To retune each channel ([Manual Tuning]) (red) (see below) To move the channel position Select the new position Store (green) (green) To rename the channel name Set characters (maximum : five characters) Store BACK/ select...

  • Page 45: Timer Programming

    Timer Programming Timer Programming from Menu The Timer Programming menu allows you to choose programmes that you wish to remind watching or record to the external recorder or the USB HDD. At the correct time, the TV will tune to the correct channel even if the TV is in Standby mode. TV Guide may also be used to set timer programming event (p. 23).

  • Page 46: Set Timer Programming Event Details [Timer Programming

    Set timer programming event details [Timer Programming] Start making the settings Select the function ([Ext Rec.], [USB HDD Rec.] or [Reminder]) select [Ext Rec.] / [USB HDD Rec.] : to record the programme to the external recorder or the USB HDD When the start time comes, the channel will be switched automatically and the video and audio signals will be output.

  • Page 47: Child Lock

    To change a timer programming event To record with subtitles (if available) Select the programme to be changed Select the programme to record with subtitles select (yellow) Correct as necessary (p. 46) Each time pressed : access auto To cancel a timer programming event To cancel a timer programming event Select the programme to be deleted temporarily...

  • Page 48: Control Channel Audience [Child Lock

    Control channel audience [Child Lock] Enter the PIN number (4 digits) Enter the PIN number twice at first setting. Child Lock-PIN Entry Make a note of the PIN number in case you forget it. Please enter new PIN pqrs wxyz “0000”...

  • Page 49: Input Labels

    Input Labels For easier identification and selection of the input mode, you can label each input mode or skip terminal that is not connected to any equipment. To select the input mode  (p. 26) Display the menu MENU Select [Setup] select Main Menu access Picture...

  • Page 50: Using Common Interface

    Although CI module may enable you to view some services, this TV does not guarantee all services (e.g. encrypted pay-TV channels). Please use only the approved CI module by the broadcaster. Consult your local Panasonic dealer or broadcasters for more information and conditions of the services. CI slot Caution...

  • Page 51: Shipping Condition

    Shipping Condition Resets the TV to its original condition, i.e. no channels tuned in. All settings other than [USB HDD Setup] are reset (channels, picture, sound settings, etc.). To retune TV channels only, e.g. after moving house  “Retuning from Setup Menu” (p. 38, 39) Display the menu MENU Select [Setup]...

  • Page 52: Updating The Tv Software

    Updating the TV Software From time to time, a new version of software may become available for download to enhance the performance or operations of the TV. If there is an update available, a notification banner is displayed when the channel has the update information. To download If you choose not to download EXIT...

  • Page 53: Displaying Pc Screen On Tv

    Displaying PC Screen on TV The screen of the PC connected to the TV can be displayed on the TV. You can also listen to PC sound with the audio cable connected. To connect PC p. 95 Select the external input Select [PC] Input Selection select...

  • Page 54: Usb Hdd Recording

    USB HDD Recording You can record the digital TV programmes to the connected USB HDD and enjoy playing back in various ways. Analogue TV programme cannot be recorded to the USB HDD. The data broadcasting (MHEG, etc.), radio broadcasting and the periods without any signal will not be recorded. Not all the programmes can be recorded depending on the broadcaster and service provider.
  • Page 55 Setup the USB HDD [USB HDD Setup] All the USB devices recognised as a mass storage device will be listed. You can only choose one USB HDD for recording at a time. Select the USB HDD for recording and start setup USB HDD Setup select Product...
  • Page 56 Recording the TV programme to USB HDD You can record the current programme immediately by using [One Touch Recording]. You can also record the current programme constantly for the selected period by using [REW LIVE TV] so that you can go back or pause the current programme.
  • Page 57 To start One Touch Recording Set the position to “TV” Start DVD/VCR No other channel can be selected while the recording is in progress. To stop recording on the way DVD/VCR EXIT To playback or delete the recorded contents   “Recorded TV mode”...

  • Page 58: Using Media Player

    Using Media Player Media Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory, and recorded contents on the formatted USB HDD. VIERA IMAGE VIEWER is the function of the easy viewing for photos or videos recorded on an SD Card on the TV screen by simply inserting into the SD Card slot.
  • Page 59 Starting Media Player Insert the SD Card or USB Flash Memory to the TV (p. 58) To play back contents in USB HDD, check the connection and settings are completed. (p. 54, 55) Start Media Player Media Player Signal output from all AV terminals will be disabled during Media Player view.

  • Page 60: Photo Mode

    Photo mode Photo mode will read all “.jpg” extension files and supports “.mpo” extension files in the SD Card or USB Flash Memory. The thumbnail of all the photos in the SD Card or USB Flash Memory will be displayed. Example : Thumbnail - [All photos] All photos Media Player...

  • Page 61: Photo Settings

    [Single view] - Photos are displayed one at a time. Select the file from the thumbnail of photos to be viewed select access Example : To display / hide the operation To operate Single view Single view guide To the previous photo Slideshow To the next photo To return to thumbnail...
  • Page 62 Menu Item Adjustments / Configurations (alternatives) Selects the frame type of the slideshow [Off] / [Multi] / [Collage] / [Drift (+ calendar)] / [Drift] / [Gallery (+ calendar)] / [Gallery] / [Cinema] [Multi] : 9 photos are displayed orderly at once. [Collage] : Each photo is displayed at a random position and random scale.

  • Page 63: Change The Contents

    Menu Item Adjustments / Configurations (alternatives) Selects the back ground music during Photo mode [Off] / [Type1] / [Type2] / [Type3] / [User] / [Auto] [Type1], [Type2] and [Type3] are the fixed music each installed in this TV. [User] : Music data in the device registered by yourself will be played back. To register the music 1.

  • Page 64: Video Mode

    Video and Recorded TV mode  (p. 98) Video mode (For SD Card or USB Flash Memory) Media Player Video Title view Trip1 Trip2 Trip3 Trip4 Trip5 Room Nature1 “Video Setup” (p. 65) Nature2 Nature3 Nature4 Nature5 Nature6 2010_4 2010_7 1/15 2010_9 Trip1 EXIT OPTION OPTION...
  • Page 65 How to operate in the playback 19/02/2010 11:21 00:15:39 00:02:05 ASPECT EXIT BACK/ RETURN DVD/VCR To change the device   “Change the device” (p. 63) To change the content in the current device   “Change the contents” (p. 63) Video Setup Display the option menu Select [Video Setup] Select the items and set in the thumbnail view...

  • Page 66: Recorded Tv Mode

    Recorded TV mode (For USB HDD) Media Player BBC 1 Das Erste 12:00 00:20 News 13:30 BBC 2 Cinema   “How to Use VIERA TOOLS” (p. 28) 13:50 EXIT DVB-T, BBC 1 OPTION USB HDD 1 Das Erste 00:20 Playback the content from the list Select the content Start playback To edit recording content...
  • Page 67 How to operate in the playback Das Erste 00:15:39 00:02:05 EXIT ASPECT STTL BACK/ RETURN DVD/VCR  “Display the selectable settings for the current status” (p. 19) Chapter List 00:00:00 00:05:00 Note Change the device Display the Select [Drive Select] Select the device you want to access to option menu Option Menu OPTION...

  • Page 68: Audio Output Settings

    Audio output Settings “Confirm or change the current status” (p. 65) Display the menu Select [Sound] Select [SPDIF Selection] and set MENU Main Menu Auto Picture Sound Timer Setup Menu Item Adjustments / Configurations (alternatives) [Auto] / [PCM] [Auto] : SPDIF Selection [PCM] : Music mode  (p. 98)

  • Page 69: Music Setup

    Playback from File view Select the folder Select the file Start playback Media Player Music Folder view > My Music_1 My Song_1 My Song_2 My Song_3 My Song_4 My Song_5 My Song_6 My Song_7 My Song_8 My Song_9 My Song_10 My Song_11 EXIT OPTION...

  • Page 70: Playing An Ipod On Tv

    Playing an iPod on TV Set up Universal Dock for iPod Controls and basic functions Plug: Dock cable iPod connector terminal Indicator Connecting the Universal Dock for iPod Note Dock for iPod (DC 5V 1.0A MAX) Connecting your iPod Note Charging your iPod Note Disconnecting the Universal Dock for iPod...
  • Page 71 Basic feature Available modes for your iPod TV control mode Remote mode Music Playlists Correction Songs Music Artists Sing a song People Albums Good morning Songs Stand up Videos iPod is in operation. Please observe your Audiobooks Sing a song iPod screen and use the TV’s remote to Monday control it.
  • Page 72 TV control mode Display main window MENU ASPECT EXIT BACK/ iPod RETURN Select the category in the Selector tab Music Playlists Music Artists Albums Songs Videos Audiobooks Podcasts Remote 0:00 / 0:00 Select EXIT Select RETURN Select track in the List window and play Full screen (Only for Video playback) Videos BACK/...
  • Page 73 Remote mode Change to the Remote mode Music Playlists Back to iPod menu? Music Artists Albums iPod is in operation. Please observe your Songs iPod screen and use the TV’s remote to Videos OPTION EXIT Audiobooks control it. Select Presss OPTION to go back. RETURN Podcasts Remote...

  • Page 74: Using Network Services (Dlna / Viera Connect)

     (p. 81 - 84) VIERA Connect VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as photos, videos, games, etc.

  • Page 75: Network Connections

    Network connections To use only DLNA features, you can operate the features without broadband network environment. To use VIERA Connect features, you need a broadband network environment. If you do not have any broadband network services, please consult your retailer for assistance. Set up and connect any equipment required for the network environment.

  • Page 76: Network Setup

    Enables to control the TV from the network equipment (Smartphone, etc.) [On] / [Off] Depending on the area, this function may not be available. For details, consult your Network Remote Control local Panasonic dealer. For more information of this function, visit the following website. (English only) http://panasonic.jp/support/global/cs/tv/...

  • Page 77: Wired Connection Settings

    Wired connection settings This setting is for the network connection by using the LAN cable. Select [Network Type] and set to [Wired] select Network Setup Connection Test Network Type Wired access / store Access Point Settings IP/DNS Settings Network Link Settings If you make the network connection like “Example 2”...

  • Page 78: Wireless Connection Settings

    Select [Connection Test] and access to test select Network Setup Connection Test Access Network Type Wired access Access Point Settings IP/DNS Settings Performs automatic testing of the network connection for the TV. (It takes a Network Link Settings while to test.) Software Update MAC Address ab-cd-ef-gh-ij-kl...
  • Page 79 Select [Connection Test] and access to test select Network Setup Connection Test Access Network Type Wireless access Access Point Settings IP/DNS Settings Performs automatic testing of the network connection for the TV. (It takes a while Network Link Settings to test.) Software Update MAC Address ab-cd-ef-gh-ij-kl...

  • Page 80: Update Tv's Software

    Access the encryption key input mode Encryption Key Setting Connection will be made with the following settings:- SSID : Access Point A Authentication type : WPA-PSK Encryption type : TKIP If the selected access point is not encrypted, the confirmation screen will be displayed.
  • Page 81 Using DLNA® features Ensure the preparation of media server, network connections and network settings are completed.  “Media server” (p. 74), “Network connections” (p. 75), [Network Setup] (p. 76 - 80) Display icons of the feature Select [Media Server] select access Media Server Select one of the media servers you want to access Example : Media server list Media Server select...
  • Page 82 For photo file [Single view] - Photos are displayed one at a time. Example : To display / hide the operation guide To return to list Single view BACK/ RETURN Single view To operate Single view To rotate 90° EXIT To the previous photo (blue) Select...

  • Page 83: Option Menu For Each Content

    For DIGA Recorder Control the DIGA Recorder The screen of the DIGA Recorder will be displayed. You can control the functions of the DIGA Recorder with this TV remote control according to the operation guide. Example : Before operating, register this TV on the DIGA Recorder. DIRECT NAVIGATOR (Grouped Titles) Time Remaining 36:17 (DR) Not Viewed...

  • Page 84: Audio Output Settings (For Video Contents)

    VIERA Connect home screen is subject to change without notice. The services through VIERA Connect are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.

  • Page 85: Link Functions (Q-Link / Viera Link)

    Use fully wired HDMI compliant cable. Connect the equipment supporting VIERA Link to the TV’s HDMI1 or HDMI2 terminal via an HDMI cable. About HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment.
  • Page 86 VIERA Link (HDMI and Audio out connections) Connected equipment Player theatre with Blu-ray Disc theatre with Amplifier with VIERA Link Features VIERA Link function VIERA Link function function Preset download – – – Easy playback – Power on link – Power off link Reduce unnecessary power consumption –...
  • Page 87 Q-Link Preparations Connect the DVD Recorder / VCR with the following logos : “Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC (a trademark of Metz Corporation)”, “Easy Link (a trademark of Philips Corporation)”, “Megalogic (a trademark of Grundig Corporation)”, “SMARTLINK (a trademark of Sony Corporation)” Q-Link connection  (p. 85) Use fully wired SCART cable.

  • Page 88: Easy Playback

    ” VIERA Link “ Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function. This TV supports “HDAVI Control 5” function. Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables allow you to interface them automatically (p. 85, 86).
  • Page 89 Reduce unnecessary power consumption in standby [Standby Power Save] Set Standby Power Save [On] in the Setup Menu to use this function  [Standby Power Save] (p. 34) The power consumption in Standby mode of the connected equipment is controlled higher or lower in synchronization with the TV On / Off state to reduce the consumption.
  • Page 90 Pause Live TV programme [Pause Live TV] You can pause the live TV programme and resume later. Live TV programme will be recorded on HDD of the connected DIGA Recorder. This function is available with DIGA Recorder which has HDD. If you connect a variety of recorders including other manufacturers’...

  • Page 91: Viera Link Control

    Control the menu of the connected equipment by VIERA remote control [VIERA Link Control] You can control some functions of the connected equipment with this TV remote control (point the remote control at the TV’s signal receiver). If you cannot operate, check the settings and the equipment  ...

  • Page 92: Operate The Menu Of The Equipment

    Operate the menu of the equipment Available VIERA remote control buttons : (Depending on the connected equipment) Set the position to “TV” DVD/VCR Follow the operation guide To display the operation guide OPTION If other manufacturers’ equipment is accessed, Setup / Contents Selection menu may be displayed.
  • Page 93 Speaker control [Speaker Selection] You can control the theatre speaker with this TV remote control (point the remote control at the TV’s signal receiver). If you cannot operate, check the settings and the equipment   “Summary of Q-Link and VIERA Link features” (p. 85, 86), “Preparations” (p. 88) Display [VIERA Link Menu] Select [Speaker Selection] select...

  • Page 94: External Equipment

    External Equipment These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment, the table (p. 96), and the specifications (p. 106). To record / playback Terrestrial aerial RF cable DIGITAL AUDIO OUT DVD Recorder / VCR...

  • Page 95: Network (Wired)

    Network (wired) Internet Modem LAN cable (Shielded) Hub or Router USB devices DIGITAL AUDIO OUT Dock for iPod (DC 5V 1.0A MAX) USB cable USB HDD Side panel Wireless LAN Adaptor of the TV Rear of the TV (Listening) Computer (Viewing) Conversion adaptor (if necessary)
  • Page 96 Camcorder / Game equipment Rear of the TV (Viewing) Camcorder (Listening) Game equipment Side panel of the TV Headphones (M3 stereo mini plug) To adjust volume  [Headphone Volume] (p. 31) Types of connectable equipment to each terminal Terminal Recording / Playback (equipment) (AV2) To record / playback videocassettes / DVDs (VCR / DVD Recorder)

  • Page 97: Technical Information

    Technical Information Auto Aspect The optimum size and aspect can be chosen automatically, and you can enjoy finer images.  (p. 20) Aspect Control Signal [WIDE] will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through SCART / HDMI terminal is found.
  • Page 98 Dolby Digital products. Linear PCM (RAW / This TV supports Motion JPEG recorded TWOS / SOWT) by Panasonic LUMIX Camera MotionJPEG .mov This TV is not available for playing back H.264 BP / MP / HP Motion JPEG with the media server.
  • Page 99 Music Codec File extension Restrictions .mp3 – .m4a Copy-protected files cannot be played back. Copy-protected files cannot be played back. .wma WMA Pro and WMA Lossless are not supported. Note Some files may not be played back even if they fulfill these conditions. Do not use two-byte characters or other special codes for data.

  • Page 100: Scart And Hdmi Terminal Information

    Electrical interference, static electricity, or erroneous operation may damage the data or device. Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the TV. (Panasonic is not liable for any deterioration or damage of recorded data.) SCART and HDMI terminal information...

  • Page 101: Hdmi Connection

    HDMI connection HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying with a non- compression standard. HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment. HDMI-compatible equipment with an HDMI or DVI output terminal, such as a DVD player, a set top box or a game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.

  • Page 102: Usb Connection

    You cannot use two or more same kind of USB devices simultaneously except USB Flash Memory or USB HDD. Additional information for USB devices may be on the following website. (English only) http://panasonic.jp/support/global/cs/tv/ USB Keyboard The USB Keyboard which requires the driver is not supported.
  • Page 103 Input signal that can be displayed COMPONENT (Y, P ), HDMI Signal name COMPONENT HDMI 525 (480) / 60i, 60p 625 (576) / 50i, 50p 750 (720) / 60p, 50p 1,125 (1,080) / 60i, 50i 1,125 (1,080) / 60p, 50p, 24p Mark : Applicable input signal PC (from D-sub 15P) Signal name...

  • Page 104: Faqs

    Before requesting service or assistance, please follow these simple guides to resolve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. Block noise, frozen or disappearing image occurs in DVB mode / White spots or shadow image (ghosting) occurs in Analogue mode / Some channels cannot be tuned...
  • Page 105 TV Off with Mains power On / Off switch, then turn it On again. appears Check if foreign objects are inside the USB port. Follow the message’s instructions. An error message appears If the problem persists, contact your local Panasonic dealer or the authorized Service Centre.

  • Page 106: Specifications

    Specifications TX-L19D35ES, TX-L19D35EW Power Source AC 220-240 V, 50 Hz Rated Power Consumption 43 W 0.30 W Standby Power Consumption 12.00 W (With monitor out recording) 467 mm × 313 mm × 172 mm (With Pedestal) Dimensions (W × H × D) 467 mm ×...

  • Page 107: Licence

    LLC in the United States and other countries. HDAVI Control™ is a trademark of Panasonic Corporation. “AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
  • Page 108 Declaration of Conformity (DoC) Authorized Representative : Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany Customer’s Record The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

This manual is also suitable for:
