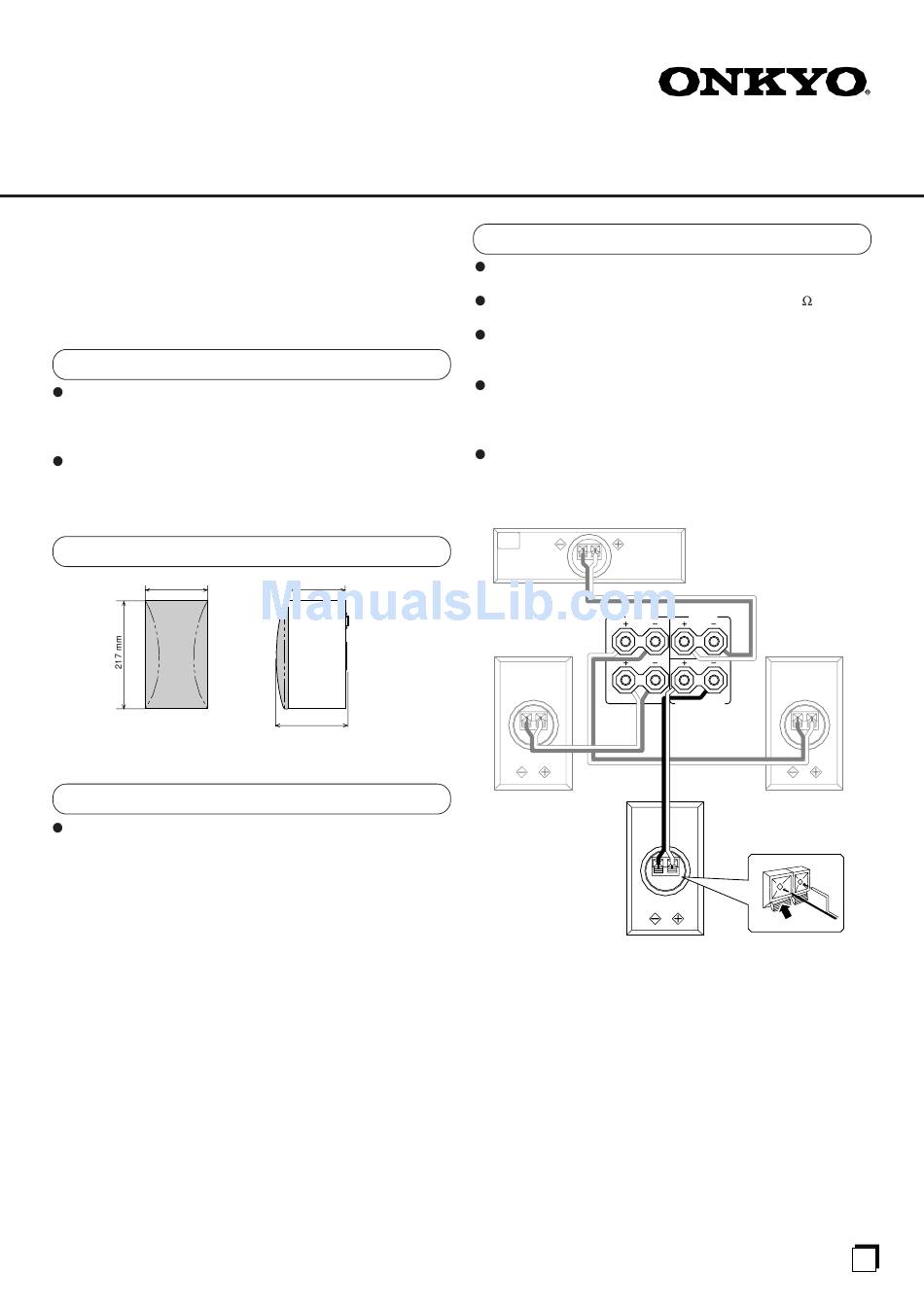

Onkyo SKR-101 Instruction Manual

SPEAKER SYSTEM
SKR-101
Thank you for purchasing of the Onkyo speaker system.
Please read this manual thoroughly before using it.
Following the instructions in this manual will enable you to
obtain optimum performance and listening enjoyment from
your new speaker system.
Please retain this manual for future reference.
Before using this unit
The speaker cabinet is made of wood and sensitive to extreme
temperatures and humidity. Avoid placing the speaker system in
locations subjected to direct sunlight or in humid places such as
near an air conditioner, bathroom, or kitchen.
Be sure to turn off your amplifier before connecting the speaker
system. Connecting it while the amplifier is on may result in
damage to the amplifier or the speaker system.
Dimensions
125 mm
The speaker grille is not removable.
Precaution on use
This speaker system can handle the specified input power
when it is used for ordinary music reproduction. If the following
abnormal signals are fed to the speaker, however, an overcurrent
may flow in the internal circuits, causing burning or breakage of
the wires even if the input power is below the specified rating.
1. Noise produced when FM station is not tuned in.
2. Sound produced when fast-forwarding cassette tape deck.
3. High-frequency sound generated by an oscillator, an
electronic musical instruments, etc.
4. Oscillating amplifier signals.
5. Special test signals produced by audio checking CD, etc.
6. Sound produced when connecting or disconnecting audio
connection cables. (Always turn off the amplifier's power
before connecting or disconnecting cables.)
7. Howling when a microphone is used.
115 mm
145 mm
Instruction Manual
Connections
Be sure to turn off your amplifier before connecting the speaker
system.
The nominal impedance of this speaker system is 6 . Use only
amplifiers capable of handling this impedance.
Use the supplied speaker cables to connect between the
speaker's input terminals and the amplifier's speaker terminals
as illustrated below.
Be sure that you are connecting the speaker's positive (+) and
negative (–) input terminals with the amplifier's corresponding
positive and negative speaker terminals. Otherwise, undesirable
sound field or impaired bass-range reproduction will result.
Before turning on the amplifier's power switch, pull lightly on
the speaker cables to ensure that they are connected securely.
SKC-101
– +
SURROUND
SPEAKERS
L
R
– +
SKR-101
for surround
R ch
– +
SKR-101
Surround Back
Speaker
CENTER
SPEAKER
SURROUND BACK
SPEAKER
AV amplifier
– +
SKR-101
for surround
L ch
E
