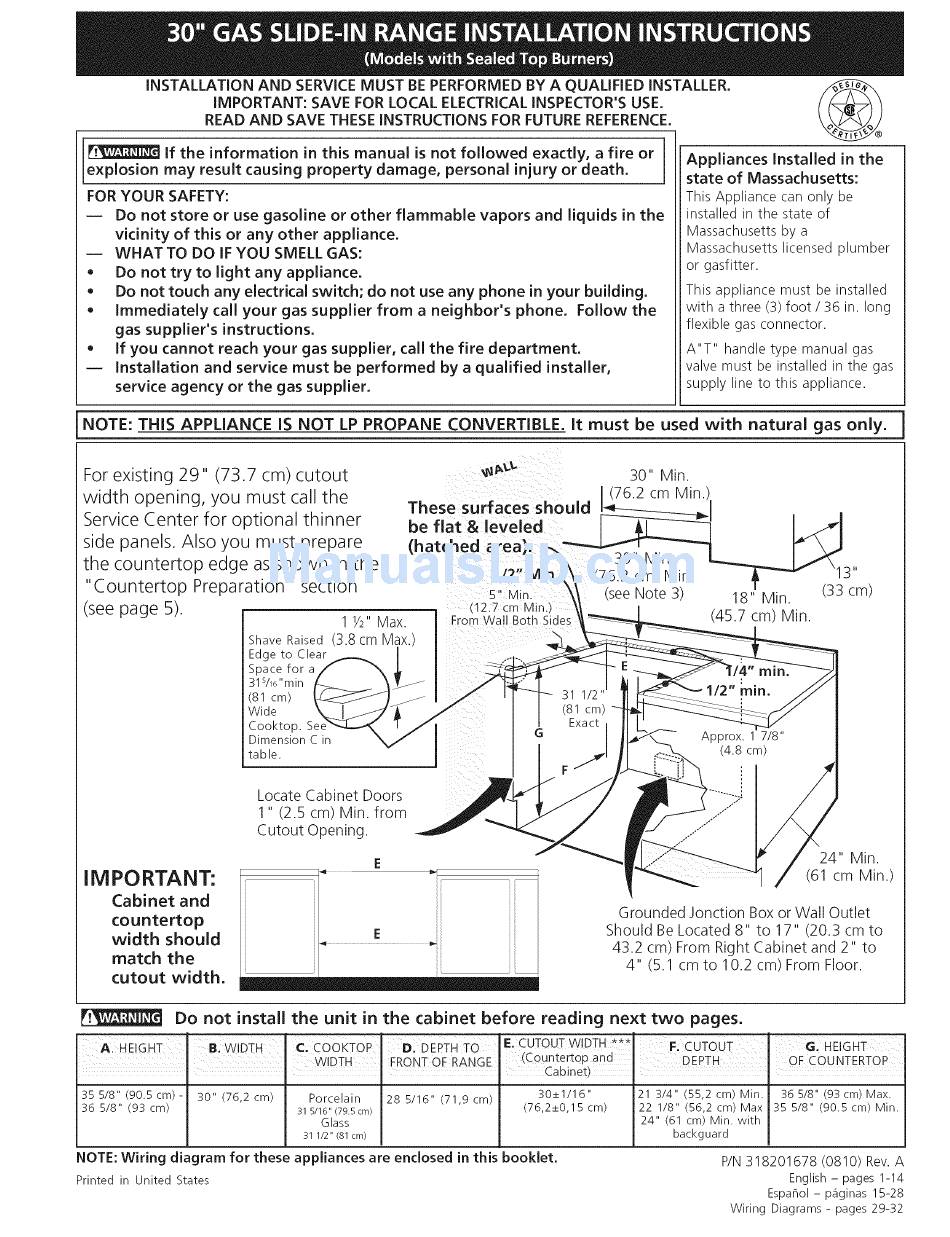

Kenmore 79031043805 Installation Instructions Manual

iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED iNSTALLER.
iMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.
if the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or death.
FOR YOUR SAFETY:
-- Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
-- WHAT TO DO iF YOU SMELL GAS:
* Do not try to light any appliance.
o Do not touch any electrical switch; do not use any phone in your building.
* immediately call your gas supplier from a neighbor's phone. Follow the
gas supplier's instructions.
* if you cannot reach your gas supplier, call the fire department.
-- installation and service must be performed by a qualified installer,
service agency or the gas supplier.
Appliances Installed in the
state of Massachusetts:
This Appliance can only be
installed in the state of
Massachusetts by a
Massachusetts licensed plumber
or gasfitter.
This appliance must be installed
with a three (3) foot / 36 in. long
flexible gas connector.
A"T" handle type manual gas
valve must be installed in the gas
supply line to this appliance.
NOTE: THIS APPLIANCE IS NOT LP PROPANE CONVERTIBLE. It must be used with natural gas only.
For existing 29" (73.7 cm) cutout
width opening, you must call the
Service Center for optional thinner
side panels. Also you must prepare
the countertop edge as shown in the
"Countertop Preparation" section
(see page 5).
Shave Raised
Edge to Clear
Space for a
31s/16"min
(81 cm)
Wide
Cooktop.
Dimension C in
table.
1 1/2"Max.
(3.8 cm Max.
Locate Cabinet Doors
1" (2.5 cm) Min. from
Cutout Opening.
These surfaces should
be flat & leveled
(hatched area).
1/2" M
5" M n.
,12.7 cm Min.
From Wall Both Sides
IM PO RTA NT:
Cabinet and
countertop
width should
match the
cutout width.
30" Min.
,76.2 cm Min
30" Min.
\13"
see Note 3) 18" Min. (33 cm)
(45.7 cm) Min.
24" Min.
(61 cm Min.)
Grounded Jonction Box or Wall Outlet
Should Be Located 8" to 17" (20.3 cm to
43.2 cm) From Right Cabinet and 2" to
4" (5.1 cm to 10.2 cm) From Floor.
Do not install the unit in the cabinet before reading next two pages.
A HEGHT c, C00KToP DEPTHT0 IFCUTOUT WlDTH *** GIHEIGHT
I ........... I WIDTH I FRONT OF RANGE (C0untertop I DEPTH I OF COUNTERTOP
Cabinet)
35 5/8" (90.5cm)- 30" (76,2 cm) Porcelain 28 5/16" (71,9 cm) 30_+1/16" 21 3/4" (55,2 cm) Min. 36 5/8" (93cm) Max.
36 5/8" (93 cm) 315/16"(79.5cm) (76,2_+0,15 cm) 22 1/8" (56,2 cm) Max 35 5/8" (90.5 cm) Min.
Glass 24" (61 cm) Min. with
31 1/2" (81 crn) backguard
NOTE: Wiring diagram for these appliances are enclosed in this booklet.
Printed in United States
P/N 318201678 (0810) Rev. A
English - pages 1-14
Espaflol - p_iginas 15-28
Wiring Diagrams - pages 29-32
